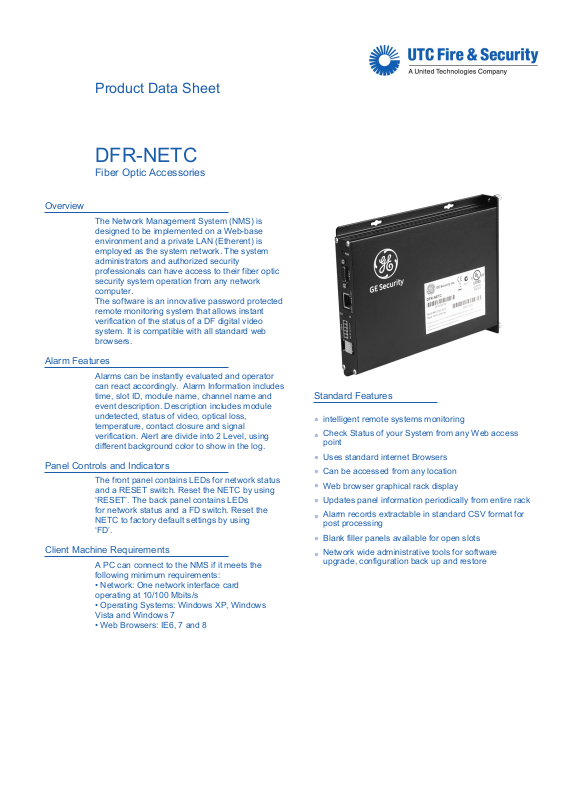

Product Data Sheet

DFR-NETC

Fiber Optic Accessories

Overview

The Network Management System (NMS) is
designed to be implemented on a Web-base
environment and a private LAN (Etherent) is
employed as the system network. The system
administrators and authorized security
professionals can have access to their fiber optic
security system operation from any network
computer.
The software is an innovative password protected
remote monitoring system that allows instant
verification of the status of a DF digital video
system. It is compatible with all standard web
browsers.

Alarm Features

Alarms can be instantly evaluated and operator
can react accordingly. Alarm Information includes
time, slot ID, module name, channel name and
event description. Description includes module
undetected, status of video, optical loss,
temperature, contact closure and signal
verification. Alert are divide into 2 Level, using
different background color to show in the log.

Panel Controls and Indicators

The front panel contains LEDs for network status
and a RESET switch. Reset the NETC by using
‘RESET’. The back panel contains LEDs
for network status and a FD switch. Reset the
NETC to factory default settings by using
‘FD’.

Client Machine Requirements

A PC can connect to the NMS if it meets the
following minimum requirements:

• Network: One network interface card
operating at 10/100 Mbits/s

• Operating Systems: Windows XP, Windows
Vista and Windows 7

• Web Browsers: IE6, 7 and 8

Standard Features

intelligent remote systems monitoring

E

Check Status of your System from any Web access

E

point

Uses standard internet Browsers

E

Can be accessed from any location

E

Web browser graphical rack display

E

Updates panel information periodically from entire rack

E

Alarm records extractable in standard CSV format for

E

post processing

Blank filler panels available for open slots

E

Network wide administrative tools for software

E

upgrade, configuration back up and restore

DFR-NETC

Fiber Optic Accessories

Specifications

Ethernet

Connector 1 X RJ45 E
Standard IEEE802.3x, IEEE802.3u E
Cabling 10/100Base-T: Cat5 UTP E
Distance 100M E
Data Rate 10Mbps or 100Mbps E

Contact Closures

Amount of Channels 1 E
Direction Bi-directional E
Input Type TTL Logic (positive)/ Dry Contract - Default: Normal Open E
Output Type TTL Logic (positive)/ Dry Contract - Default: Normal Open E
Dry Contact Output Rating 110 VDC/125VAC, 30W/62.5VA max. E
Contact Output Response Time 2msec. E
Input/ Output Indications LEDs (Green lit/OFF) E
Input/ Output Connectors 5-pin screw terminals E

Mechanical

Dimensions (HWD) 25.4 x 158.4 x 231.8 E
Shipping Weight 0.74 Kg E

Construction Black Colored metal sheets of uniform thickness of 1.5mm (0.06 inches)

E

and with stainless treatment
Mounting Mounts in standard 19-inch rack using four screws E

Environmental

Operating Temperature 0°C to 60°C E
Storage Temperature -40°C to 85 °C E
Maximum Humidity 95% relative, noncondensing E

MTBF

MTBF >100.000 hours E

Diagram Ordering Information

As a company of innovation, UTC Fire & Security reserves the right to change product specifications without notice. For the latest
product specifications, visit UTC Fire & Security online or contact your sales representative.
