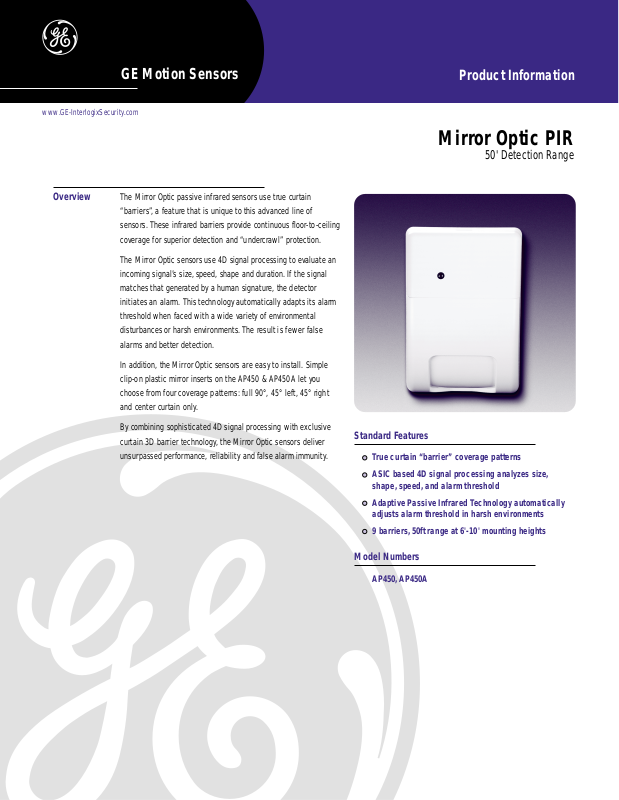

GE Security AP450, AP450A Specsheet

Mirror Optic PIR

50' Detection Range

www.GE-InterlogixSecurity.com

The Mirror Optic passive infrared sensors use true curtain
“barriers”, a feature that is unique to this advanced line of
sensors. These infrared barriers provide continuous floor-to-ceiling
coverage for superior detection and “undercrawl” protection.

The Mirror Optic sensors use 4D signal processing to evaluate an
incoming signal’s size, speed, shape and duration. If the signal
matches that generated by a human signature, the detector
initiates an alarm. This technology automatically adapts its alarm
threshold when faced with a wide variety of environmental
disturbances or harsh environments. The result is fewer false
alarms and better detection.

In addition, the Mirror Optic sensors are easy to install. Simple
clip-on plastic mirror inserts on the AP450 & AP450A let you
choose from four coverage patterns: full 90°, 45° left, 45° right
and center curtain only.

By combining sophisticated 4D signal processing with exclusive
curtain 3D barrier technology, the Mirror Optic sensors deliver
unsurpassed performance, reliability and false alarm immunity.

Standard Features

True curtain “barrier” coverage patterns
ASIC based 4D signal processing analyzes size,

shape, speed, and alarm threshold
Adaptive Passive Infrared Technology automatically

adjusts alarm threshold in harsh environments
9 barriers, 50ft range at 6'-10' mounting heights

Model Numbers

AP450, AP450A

Overview

GE Motion Sensors

Product Information

Mirror Optic PIR

50’ Detection Range
AP450

©2002 GE Interlogix. All trademarks are properties of their owners.
P-4348-2000KA-1002

GE Interlogix

www.GE-InterlogixSecurity.com 2266 Second Street North

North St. Paul, MN 55109
Phone: [phone]
USA & Canada: 800-777-5484
Technical Service: 800-777-2624

12345 SW Leveton Drive
Tualatin, OR 97062
Phone: [phone]
USA & Canada: 800-547-2556
Technical Service: 800-648-7424
Faxback: 800-483-2495

Specifications

Input voltage 9-15VDC
Input voltage (UL) 9.7-13.6VDC
Peak to peak ripple 2V max @ 12VDC
Current consumption 15mA max
Mounting height 6’ -10’ (2.1m-3m)
Relay contacts 50mA max @ 28V
Tamper contact rating (AP450 only) 100mA max @ 28VDC
Relay type

AP450A Closed loop (Form A)

AP450 Closed loop (Form C)
Alarm time (LED and relay) 2.9 to 3.5 seconds
Operating temperature 0°–131°F (-18°–55°C)
Relative humidity 93% non-condensing
Weight 0.26lbs (120g)
Dimensions 4.1 H x 2.8 D x 2" W

(10.3 x 7.1 x 5.1cm)

Number of curtains 9
View angle 90°
Listings C-UL-US, UL639,

CAN/ULC–S306

Coverage Patterns

50' (15.2m)

45° Right

45° Left

10'
(3.0m)

4.8'
(1.4m)

50' PIR, Form A
50' PIR, Form C, tamper

AP450A
AP450

Ordering Information

C-UL-US
C-UL-US

Model Description Listing
