Operating guide
POSEIDON 2
POSE
IDON 2
Page 2
1
english
POSEIDON 2
Contents
1 Important safety
instructions
2 Description
3 Before starting the washer
4 Operation
5 After using the washer
6 Maintenance
7 Troubleshooting
8 Further information
............................................................................................2
2.1 Purpose................................................................................4
2.2 Operating elements..............................................................4
3.1 Setting up the washer...........................................................5
3.2 Connecting the high pressure hose......................................5
3.3 Connecting the water supply................................................5
3.4 Electrical connection ............................................................6
4.1 Connecting the spray lance to the spray handle ..................6
4.2 Switching on the washer ......................................................6
4.2.1 Switching on the washer when it is connected to
a water supply ......................................................................6
4.2.2 Switching on the washer when it is connected to
open tanks (suction mode)...................................................6
5.1 Switching off the washer ......................................................7
5.2 Disconnecting supply lines...................................................7
5.3 Storing the washer (below 0°C)............................................7

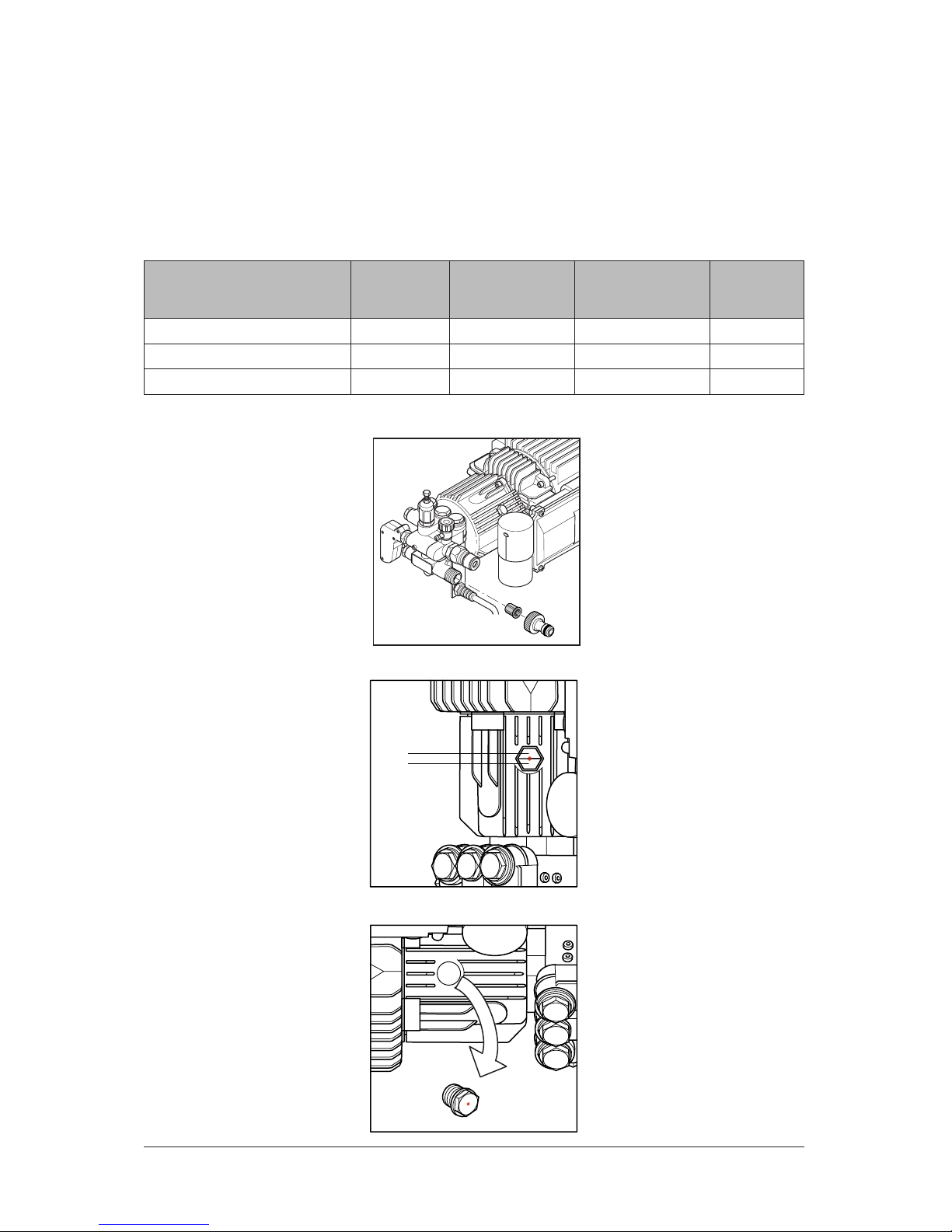

6.1 Maintenance plan.................................................................8
6.2 Maintenance work ................................................................8
6.2.1 Cleaning water inlet filter......................................................8
6.2.2 Checking the pump oil level..................................................8
6.2.3 Changing the pump oil .........................................................8
............................................................................................9
8.1 Recycling the cleaner...........................................................9
8.3 Technical Specifications .....................................................10
8.4 EU Declaration of Conformity.............................................10
8.2 Guarantee ..........................................................................10
Page 3
2
english
POSEIDON 2
1 Important safety instructions
For your own safety
The high-pressure washer
may only be used by persons
instructed in its use and who
have been expressly authorised
to do so.
Although extremely easy to
operate, children should not be
allowed to use the washer.
General
Use of the high-pressure washer is subject to the applicable
local regulations.
Besides the operating instructions and the binding accident
prevention regulations valid in
the country of use, observe recognised regulations for safety
and proper use.
Do not use any unsafe work
techniques.
Transport
Transport of the high-pressure
washer in upright position only.
For safe transport in and on
vehicles we recommend to prevent the equipment from sliding
and tilting by fixing it with belts.
For transport at temperatures
around or below 0°C, antifreeze should be drawn into the
pump beforehand (see chapter
5).
Before starting the washer
Before use, check that the highpressure washer is safe and in
proper condition.
Regularly check whether the
power cord is damaged or
shows signs of ageing.
Use the high-pressure washer
only when the mains power
lead is in a safe condition. (risk
of electric shock if damaged!).
Check the rated voltage of the
high-pressure washer before
connecting it to the mains power supply. Ensure that the voltage shown on the rating plate
corresponds to the voltage of
the local mains power supply.
We strongly recommend that
the power supply to the high
pressure washer be connected
via a residual current circuit
breaker.
This device stops the supply
of electricity if the leakage current to earth exceeds 30 mA for
30 ms or it has an earth tester
circuit.
Operate the washer only in an
upright position!
Please observe the regulations
and provisions applicable in
your country. Before putting the
high-pressure washer into service, carry out a visual check of
all the major components.
CAUTION!
High-pressure water jets can
be dangerous if misused. The
jet must not be directed at persons, animals, live electrical
equipment or the washer itself.
Wear appropriate protective
clothing and eye protectors.
Do not direct the jet towards
yourself or towards other persons in order to clean clothes or
footwear.

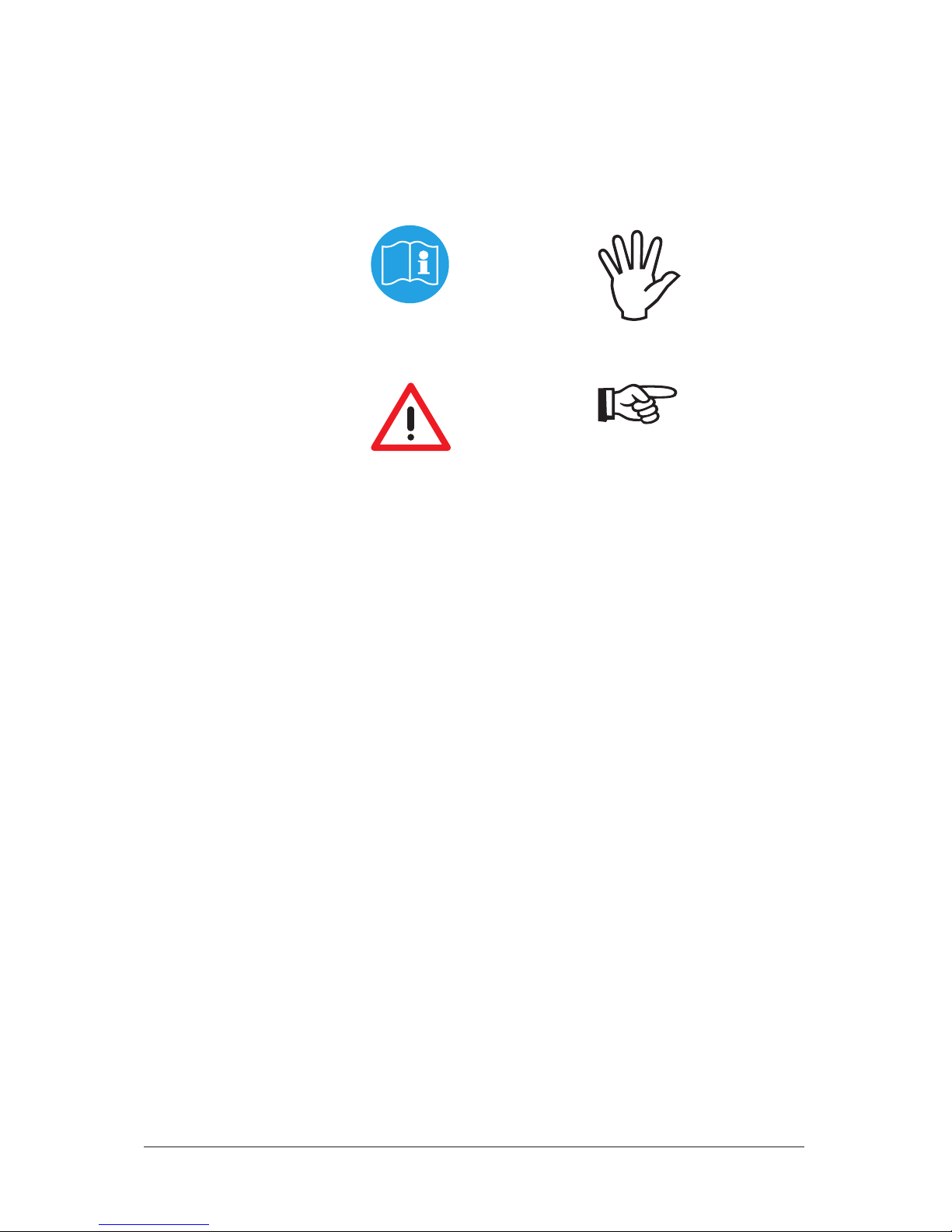

Symbols used to mark
instructions
Before using the
high-pressure
washer, be sure
to also read the
enclosed operating instructions and keep them
within reach at all times.
Safety instructions
in these operating
instructions which
must be observed
to prevent risks to persons are
marked with this danger symbol.
This symbol is
used to mark
safety instructions that must
be observed to
prevent damage
to the machine and its performance.
This indicates tips
and instructions to
simplify work and
to ensure safe operation.
Page 4
3
english
POSEIDON 2
During operation of the washer,
recoil forces are produced at
the spraying device and, when
the spray lance is held at an
angle, a torque is also created. The spraying device must
therefore be held firmly in both
hands.
Do not use the washer when
other people without protective clothing are in the working
area.
Check that cleaning will not
result in dangerous substances
(e.g. asbestos, oil) being
washed off the object to be
cleaned and harming the environment.
Do not clean delicate parts
made of rubber, fabric, etc. with
the 0° jet. Keep some distance
between high pressure nozzle
and surface in order to prevent
the surface from damage.
Do not use the high-pressure
hose for lifting loads.
NOTE!
The specifications of the highpressure hose (max. permissible pressure and temperature)
are printed on the hose.
Do not continue to use the
washer if the mains power lead
or high-pressure hose is damaged.
Ensure adequate air circulation. Do not cover the washer
or operate it in inadequately
ventilated rooms!
Store the washer where
it will not be exposed to
frost!
Never operate the washer without water. Even brief shortages
of water result in severe damage to the pump seals.
Operation
CAUTION!
Unsuitable extension cords can
represent a source of danger.
Always unwind cord from the
reels completely to prevent the
power cord overheating.
When using an extension cord,
connectors must be of watertight construction.
When using an extension cord,
check the minimum cross-sections of the cable:
Cable length
m
Cross section
<16 A <25 A
up to 20 m
ø1.5mm² ø2.5mm²
20 to 50 m
ø2.5mm² ø4.0mm²
Do not damage the mains
power lead (e.g. by driving over
it, pulling or crushing it).
Disconnect the power cord by
pulling the plug only (do not
pull or tug the power cord).
Electrical equipment
CAUTION!
Never spray electrical equipment with water: danger for
persons, risk of short-circuiting.
The washer may only be connected to a correctly installed
plug socket.
Switching on the washer may
cause voltage fluctuations.
Voltage fl uctuations should not
occur if the impedance at the
transfer point is less than 0.17.
If in doubt ask your local electricity supplier.
Maintenance and repair
CAUTION!
Always remove the plug from
the mains plug socket before
cleaning or carrying out maintenance work on the washer.
Carry out only the maintenance
operations described in the
operating instructions. Use only
original spare parts.
Do not make any technical
modifications to the high-pressure washer.
Ensure that the machine is regularly serviced by Authorised
dealers in accordance with the
maintenace plan. Failure to do
so will invalidate the warranty.
CAUTION!
High-pressure hoses, fittings
and couplings are important for
the safety of the washer. Use
only high-pressure parts approved by the manufacturer!
If the power cord is damaged,
it must be replaced by authorized Service or an electrician to
avoid danger before use of the
washer is continued.
Use only the type of power cord
specified in Operating Instructions.
Please contact the Service department or an authorised specialist work-shop for all other
maintenance or repair work!
Safety Devices
Unloader valve
Unacceptably high pressure is
fed back without residual pressure via a bypass line into the
intake line of the pump when the
safety device is tripped.
The unloader valve is set and
sealed at the factory and must
not be adjusted.
Page 5
4
english
POSEIDON 2
2.2 Operating elements
See fold-out page at front of
these operating instructions.
2 Description
2.1 Purpose
This high-pressure washer has
been designed for professional
use within
– Trade
– Construction industry
– Small-scale farming
Always use the washer as
described in these operating
instructions. Any other use may
damage the washer or the surface to be cleaned or may result
in severe injury to persons.

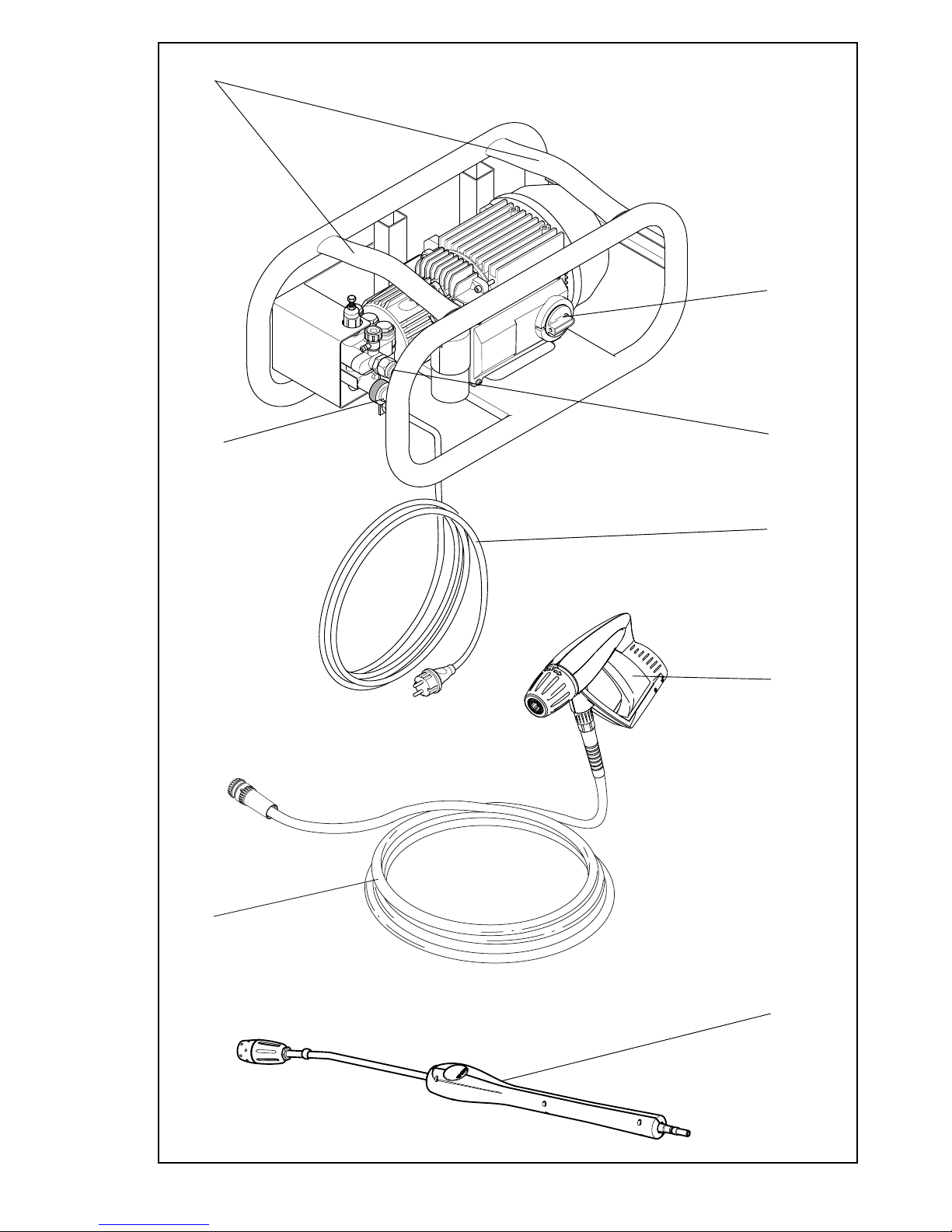

1 Handle
2 Mains power lead
3 Spray handle
4 High-pressure hose
5 Spray lance
6 Supply water connection
with water inlet filter
7 High pressure hose
connection
8 Main switch
Page 6
5
english
POSEIDON 2

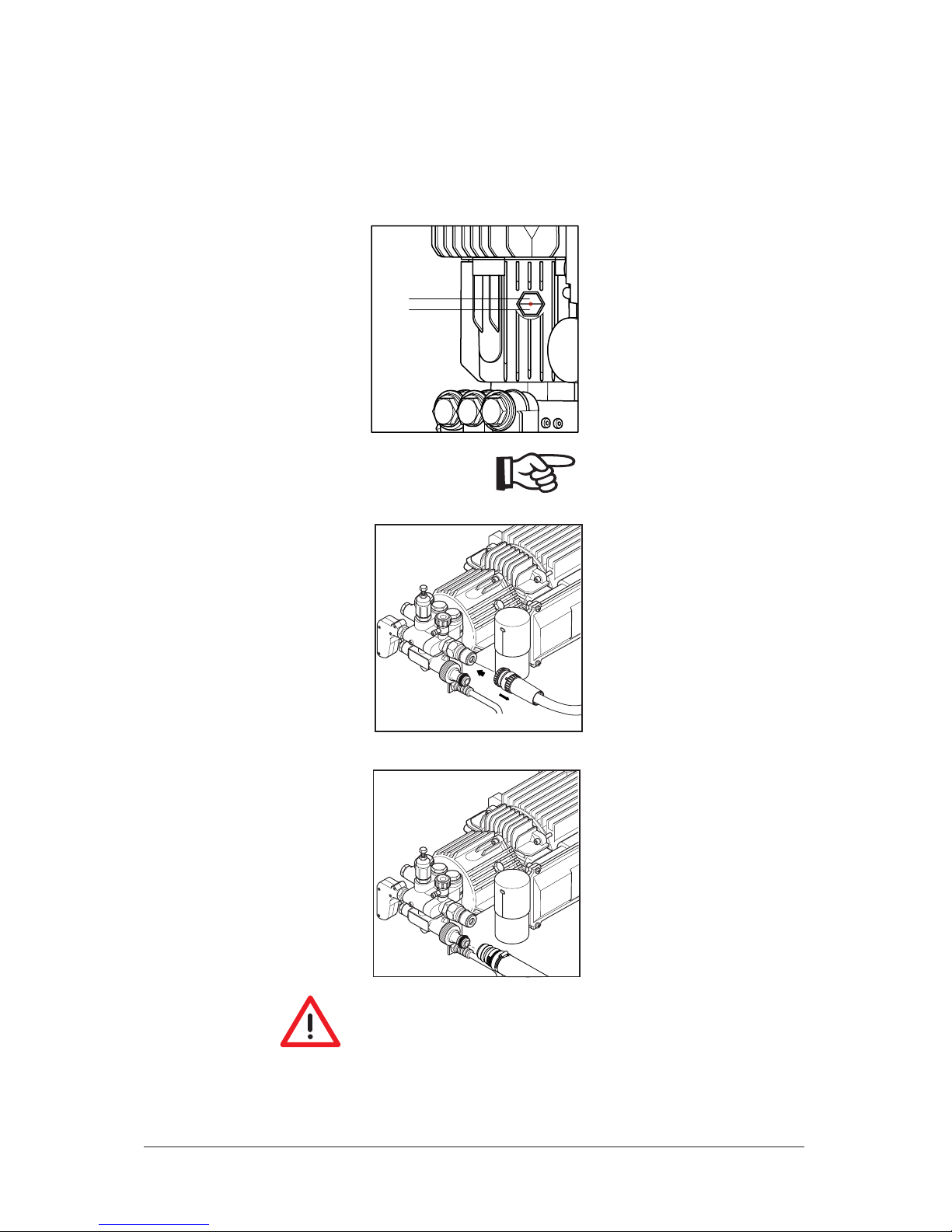

3 Before starting the washer
3.1 Setting up the washer
1. Before using the washer for
the first time, check it carefully to detect any faults or
damage.
2. In the event of any damage
contact your dealer
immediately.
3. Check whether the oil level
is between the minimum and
maximum marks. If necessary, add oil (see chapter
8.3 for type of oil). NOTE:
Set the machine in upright
position when checking the
pump oil.
3.2 Connecting the high
pressure hose
1. Screw the quick connector of the high pressure
hose onto the nipple on the
washer (7).
3.3 Connecting the water
supply
Do not connect the washer
directly to the public drinking water mains. Observe the
regulations of your water supply
company to prevent backflow of
water into the supply line.
A connection is permitted,
however:
– briefly to a pipe interrupter
with moving section
– with a free outlet
See chapter 8.3 Technical Data
for required quantity of water
and water pressure.
In the case of poor water quality
(sand, etc.), we recommend that
a fine water filter is fitted in the
water inlet.
1. Rinse the water supply hose
briefly in order to prevent
sand an other dirt particles
entering into the machine.
2. Connect water supply hose
to the machine (3/4").
3. Open water tap.
Max.
Min.
Page 7
6
english
POSEIDON 2
4.2.2 Switching on the
washer when it is
connected to open
tanks (suction mode)
1. Before connecting the deter
gent intake set to the washer, fill the hose with water.
2. Turn main switch to position
»I«.

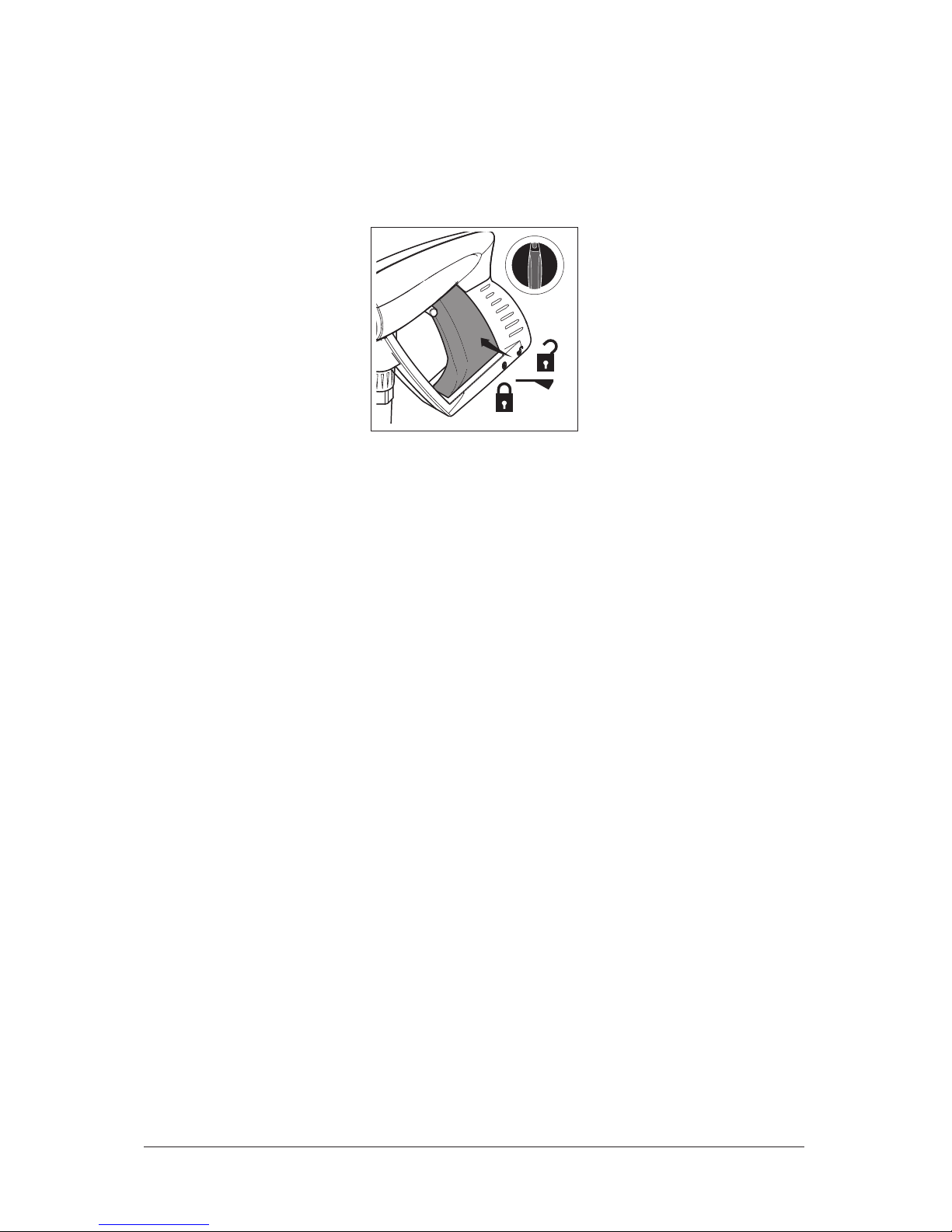

3. Unlock the spray handle and
activate it.
Max. suction height = 0 m.
4 Operation
4.1 Connecting the spray
lance to the spray
handle
1. Pull the blue quick-release
grip (A) of the psry handle
forwards and lock it by turning it to the left.
2. Insert the nipple of the spray
lance (C) into the quick-release connection and turn
the blue quick-relese grip to
the right (B).
3. Pull the psray lance (or
other accessory) forwards to
check that it is securely attached to the spray handle.
4.2 Switching on the washer
4.2.1 Switching on the washer
when it is connected to a
water supply
1. Main switch
Turn the switch to position
»I«.
2. Unlock the spray handle and
activate it.
3. Lock the spray handle even
during short pauses.
The washer switches off automatically after the spray handle
has been closed. To start the
washer again, activate the
spray handle.
NOTE!
Operate the spray handle several times at short intervals to
vent the system.
3.4 Electrical connection
1. Observe safety instructions
in chapter 1.
2. Put the plug into the electrical socket.
NOTE!
Always remove any dirt from
the nipple before connecting
the spray lance to the spray
handle.
A
B
C
O
I
Page 8
7
english
POSEIDON 2
5 After using the washer
5.1 Switching off the
washer
1. Turn the main switch to position »0«.
2. Close water tap.
3. Activate the spray handle
until the washer is depressurised.
4. Lock the safety catch on the
spray handle.
5.2 Disconnecting supply
lines
1. Remove the water hose
from the washer.
2. Pull out the plug from the
electrical socket.
,
5.3 Storing the washer
(below 0°C)
1. Store the washer in a dry
room without danger of frost
or protect as below:
CAUTION!
If the high-pressure washer is
stored in a room with temperatures around or below 0°C, antifreeze should be drawn into the
pump beforehand:
1. Remove the water inlet
hose from the washer.
2. Remove the spray lance.
3. Connect the suction hose to
the water inlet of the washer
and place it in a tank containing anti-freeze.
4. Switch on the washer with
the main switch in position
»I«.
5. Hold the spray handle over
the tank containing antifreeze and operate it to start
suction.
6. During suction operate the
spray handle two or three
times.
7. Lift the suction hose from
the tank containing antifreeze and operate the
spray handle to pump off
the remaining antifreeze.
8. Switching off the washer
9. Disconnect the plug from
the socket.
10. To avoid any risks, store
the washer temporarily in a
heated room before using it
again.
O
I
Page 9
8
english
POSEIDON 2
6.2.2 Checking the pump oil
level
1. Check whether the oil level
is between the minimum and
maximum marks. If necessary, add oil (see chapter
8.3 for type of oil).
6.2.3 Changing the pump oil
1. Unscrew the oil drain plug
(1) on the pump housing
and dispose of the old oil in
accordance with the disposal regulations.
2. Fill with fresh oil and remount the oil drain plug.
Check the oil level.
Oil grade and capacity see
chapter ‘8.3 Technical Data’.
6 Maintenance
6.1 Maintenance plan
6.2 Maintenance work
6.2.1 Cleaning water inlet
filter
A water filter is fitted on the
water inlet to prevent large particles of dirt from entering into
the pump.
1. Unscrew the quick-release
connection.
2. Remove the filter and rinse
it. Replace damaged filter.
Replace damaged filter.
Weekly
After the first 50
operating hours
Every six months
or 100 operating
hours
As required
6.2.1 Cleaning water inlet filter
QQ
6.2.2 Checking pump oil level
Q
6.2.3 Changing pump oil
QQ
Max.
Min.
Page 10
9
english
POSEIDON 2
8 Further information
8.1 Recycling the cleaner
Make the old cleaner unusable
immediately.
1. Unplug the cleaner.
2. Cut the power cord.
3. Do not discard of electrical
appliances with household
waste.
As specified in European
Directive 2002/96/EC on
old electrical and electronic appliances, used electrical
goods must be collected separately and recycled ecologically.
Contact your local authorities or
your nearest dealer for further
information.
7 Troubleshooting
Fault Cause Remedy
Pressure drop > Air in the system • Vent the system by operating
the spray handle several times
at short intervals. If necessary,
operate the washer for a short
time without the high-pressure
hose connected.
>
High pressure nozzle blocked
worn
• Clean/replace the high
pressure nozzle
Pressure fluctuations > Pump draws in air (only possible
in suction mode)
• Check that the suction set is
air-tight
> Lack of water • Open water tap
> Water inlet hose is too long or its
cross-section too small
• Use specified water inlet hose
> Lack of water caused by blocked
water filter
• Clean the water filter in the
water connection (never work
without water filter)
> Lack of water because max.
permissible suction height has
not been heeded
• See instructions
The motor does not start when the
washer is switched on
> The plug is not inserted properly,
i.e. there is no current
• Check the plug, lead and
switch and if necessary have
them replaced by a trained
electrician
> The mains fuse is switched off • Switch on the mains fuse
When the washer is switched on
the motor buzzes without starting
> The mains voltage is too low • Have the electrical connection
checked
> The pump is blocked or frozen • Contact the customer service
> Incorrect cross-section or length
of the extension lead
• Use lead with correct cross
section or length
The motor switches off > The overload protection has
been activated due to overheating or overloading of the motor
• Check that the mains voltage and the washer voltage
are the same. Switch off the
washer and allow it to cool for
at least 3 minutes
> High-pressure nozzle is dirty • Change the high-pressure
nozzle
Water outflow under the machine > Machine runs longer than 3
minutes with spray handle
closed
• Switch off the machine
Page 11
10
english
POSEIDON 2
8.2 Guarantee
Our general conditions of business are applicable with regard
to the guarantee. Subject to
change as a result of technical
advances.
8.3 Technical Specifications
8.4 EU Declaration of
Conformity
EU Declaration of Conformity
Product:
High Pressure Washer
Type:
Poseidon 2-24 Portable
Description:
230 V, 1~, 50 Hz - IP X5
The design of the unit corresponds to
the following pertinent regulations:
EC Machine Directive 98/37/EEG
EC Low-voltage Directive 73/23/EEG
EC EMV Directive 2004/108/EEG
Applied harmonised standards:
EN 12100-1, EN 12100-2, EN 60335-2-79
EN 55014-1, EN 55014-2, EN 61000-3-2
Applied national standards and technical
specifications:
DIN EN 60335-2-79
Anton Sørensen
V.P. Technical Operations Europe
Nilfisk-ALTO
Division of Nilfisk-Advance A/S
Industrivej 1
DK-9560 Hadsund
Hadsund, 2007-01-02
POSEIDON 2-24 PORTABLE
Voltage V 230 V / 1~ / 50 Hz
Fuse (slow) A 10
Power rating kW 2.2
Power consumption A 10
Protection type IP X5
Working pressure bar / Mpa 100 (10)
Permissible pressure bar / Mpa 160 (16)
Volume flow Q
max
l/h 650
Volume flow Q
IEC
l/h 600
Cleaning Impact kg/Force 2.4
High pressure nozzle NT 0500
Max. water inlet temperature Intake-/Pressure operation °C 40
Max. water inlet pressure bar / MPa 10 (1)
Dimensions l x w x h mm 555 x 300 x 280
Weight kg 24
Noise level at a distance of 1m EN 60704-1
dB(A) 86.6
Sound power level LW
A
dB(A) 101
Vibration ISO 5349 m/s² < 2.5
Recoil forces N 24
Oil quantity l 0.150
Oil type HV68
Page 12
1
2
3
4
5
6
7
8
Page 13
Nilfisk Advance Pty Ltd
48 Egerton Street
Silverwater NSW 2128
Ph: 1300 556 710
Email: customerservice@nilfisk-advance.com.au
Loading...
