Page 1
Des igned i n Grand Ra pids MI , USA Ass emble d in Chin a
7.3 Inch Car Rear View Mirror Monitor
with Mirror link
Wide LCD Display Screen
User manual
ECER10
Approval No.: 10R-03 12762
ECER46
Approval No.: 46R-04 0019
FK-073MA
Page 2
Welcome to use our 7.3 inch car Rear view mirror monitor with mirror link.
●We reserve the final explanation right on this User's Manual.
●Specifications are subject to change without notice. Sorry for any inconvenience
caused!
●Please make a copy of the important data. We assume no responsibility for the
data loss.
●This manual has been carefully checked. Please contact our service center when
any typing mistake is found.
●Please read the operating instruction carefully and use the accessories only
provided by the original factory to avoid any unexpected damage. No warranty
will be executed if you are not following the instruction or connecting with the
incompatible accessories, we assume no responsibility for any loss and damage
caused hereby.
●Any discrepancy between the pictures with real products hereinafter, the real
one prevails.
●The working voltage of this model is 10V to 30V, and it can be installed in the
truck if its voltage is 24V. Please refer to the camera manual for the camera power
supply, since it's not from the car rear view mirror. The 24V camera is advisable if
installed to truck or purchase the power adapter to convert the voltage.
User's Manual
Chapter one: Product Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.4 Operating panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter two: Installation and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 How to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Special bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 How to wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter three: Adjustable Guideline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 About guide line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 What is the regular guide line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 How to adjust the guide line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Chapter f : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .our 11 Menu Setting
4.1 Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 Menu setting guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Chapter five: Mirror Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1 How to connect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2 Channel switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Page 3
Chapter one: Product Introduction
1.3 Specification
The packing box contains the following accessories, please confirm:
7.3 inch car Rear view mirror monitor with mirror link
wire harness
User's manual
wire cover
Remote control
For the items listed above, please check with your package box. If any damage,
Please contact with the distributor or the agent as soon as possible.
1.1 Package
●
●
●
●
●
7.3 inch wide LCD display screens
2-way video input
Back up camera display
Automatic brightness adjustment
4.0 mm glass and 21 mm car factory OEM bracket
Adjustable guide line
Mode switch between wide screen and dual screens LCD display separately
1.2 Features
●
●
●
●
φ
●
●
Screen size: 7.3 inch
Display screen: TFT-LCD
Aspect resolution: 1280(H)*390(V)
Working voltage: 12V
Working temperature: -20℃~+65℃
Signal system: PAL/Auto/NSTC
●
●
●
●
●
●
●

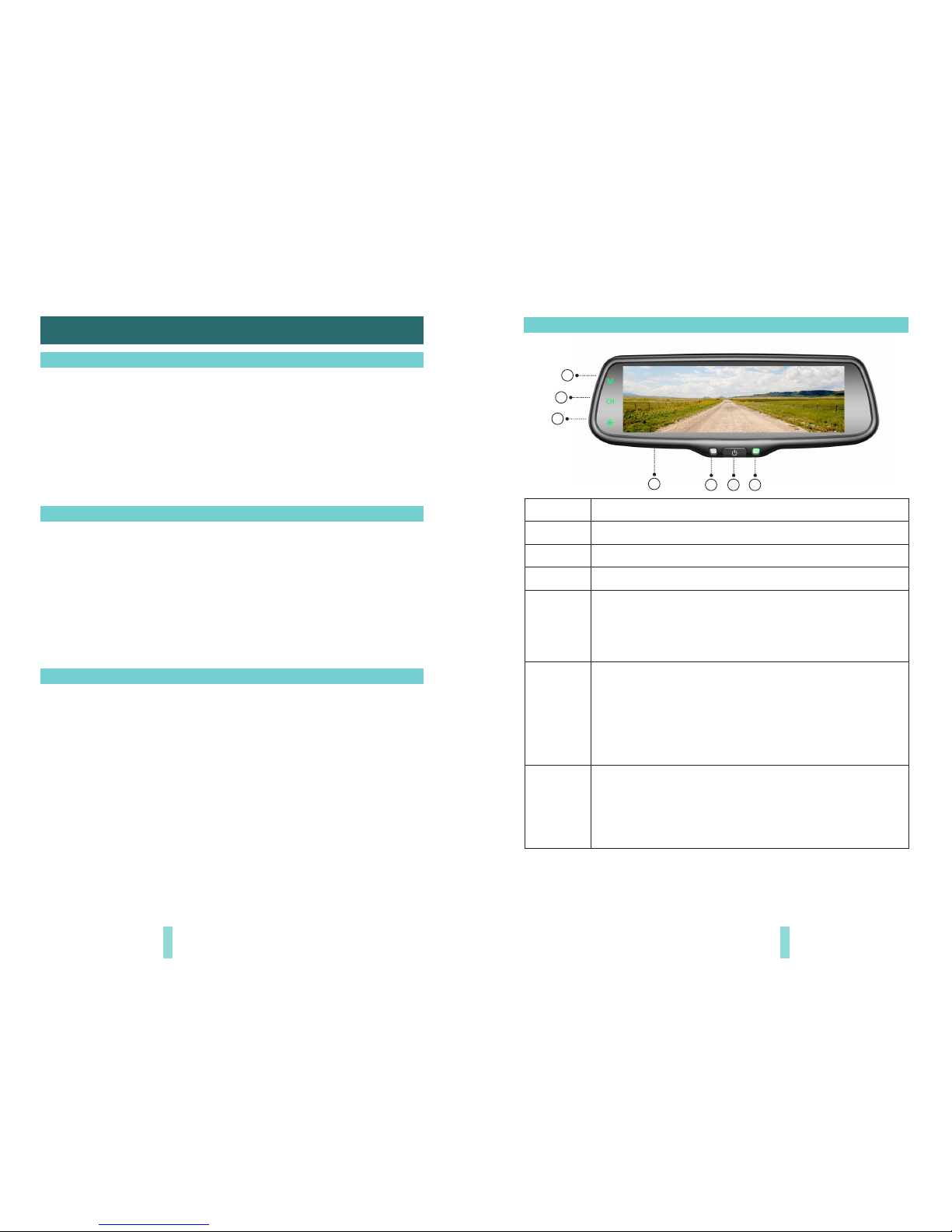

1.4 Operating panel
7.3 inch ultra high brightness display screen
1
Turn on/off the display screen
Indicator
1
2
3
4
5
6
7
2 3 4
7
6
5
Front light sensor
Mirror link model switch
When the menu is closed, press it to switch model of Mirror link
, model switched between Miracast Mode (Android) and DLNA
Mode (iOS). Effectiveness only for DOUBLE and MOBLIE model.
Selection of video input channel
Press shortly can realize the transformation about video input
channels, also can realize choosing as DOUBLE, VIDEO1, PHONE,
CAMERA channels. Reversing model can't be selected, only for
CAMERA channel and there isn't reversing guideline. When
reverse wire is connected to 12V, system will switch to BACK UP
CAMERA screen automatically and reverse guideline is available.
We can adjust it by remote control.
Color mode adjustment
Short press it can adjust the color mode of the image. Four
modes are available, that is STANDARD, BRIGHT, BEAUTIFUL,
and SOFT. Please be noted that these modes only are accessible
when it's not in reversing mode.
1 2
Page 4
3 4
8
9
10
11
12
13
14
15

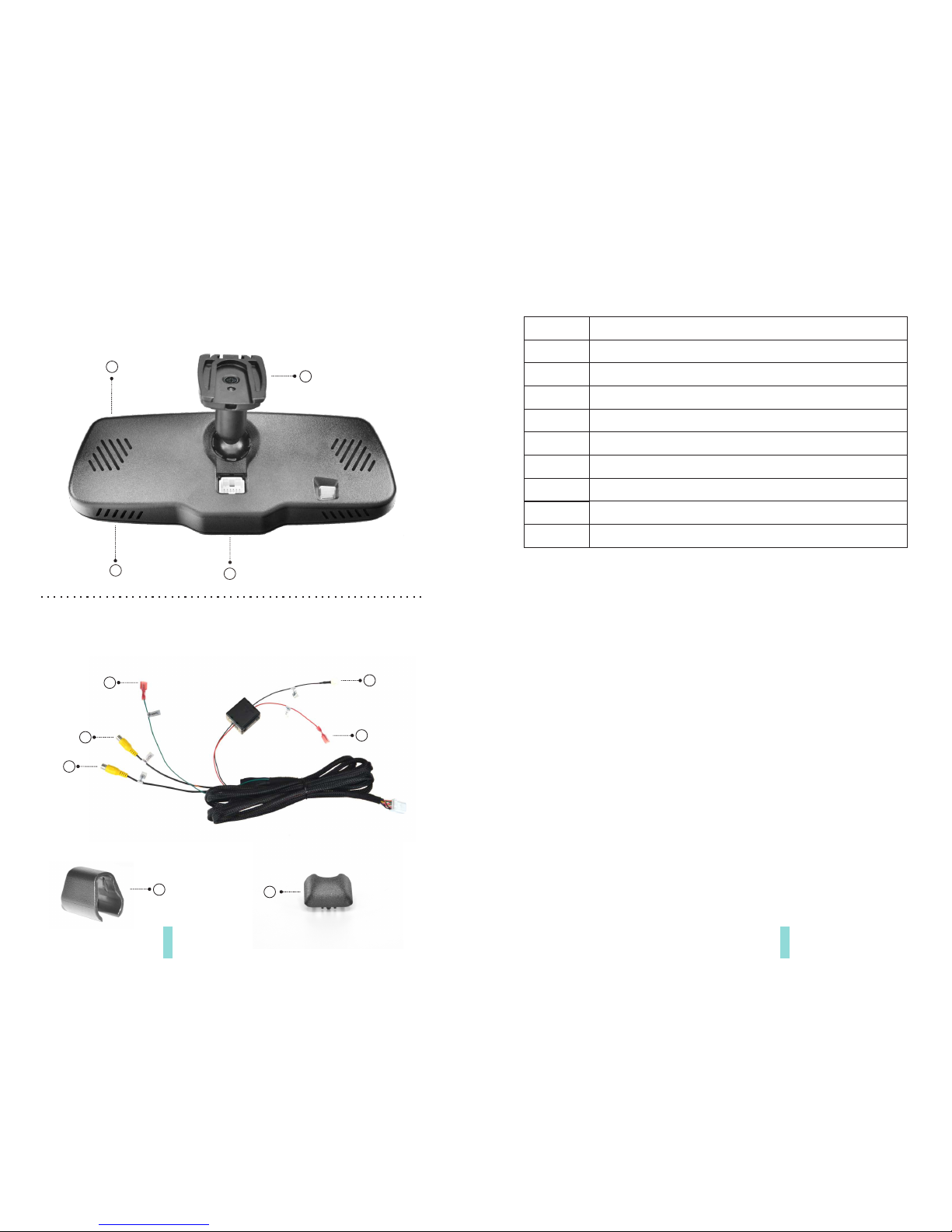

Horn
Special bracket
8
9
10
11
12
13
14
15
16
17
Red to ACC+
Black to GND
Back up signal
Video input
Camera
Connector
Connector cover
16
8
17
Cable cover
Page 5

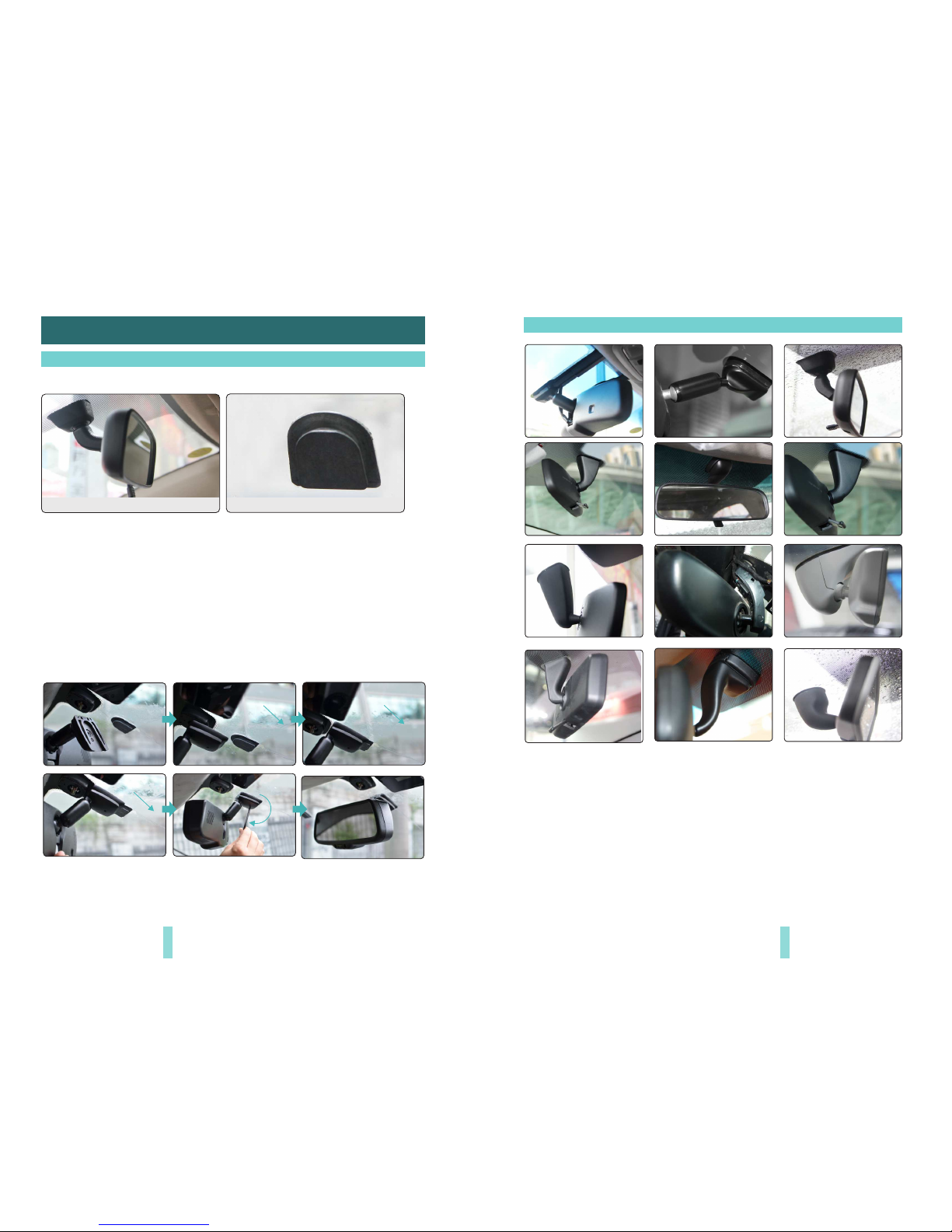

2.1 How to install
Remove the original rear view mirror and remain
the metal base on the windscreen
Original car rear view mirror
Along this direction
to install rear view mirror
Along this direction
to install rear view mirror
Along this direction
to install rear view mirror
contrarotate the fixed
rear view mirror
1
We have many kinds of brackets. one of them must suit for your car, and we are
not going to go through anymore examples, because the space is limited.
If you don’t find the same bracket here as your car, please contact us.
2.2 Special bracket
5 6
Chapter two: Installation and Wiring
Different cars have different brackets. It depends on your vehicle maker and
manufacturer.
There are many methods to remove the original rear view mirror, however, please
don’t force the mirror off the bracket.
The manufacturer will not be responsible for any damage caused to your car by
wrong installation of the mirror.
Remove the origina l mi rror
Install mirror m on itor on the bas e
Page 6

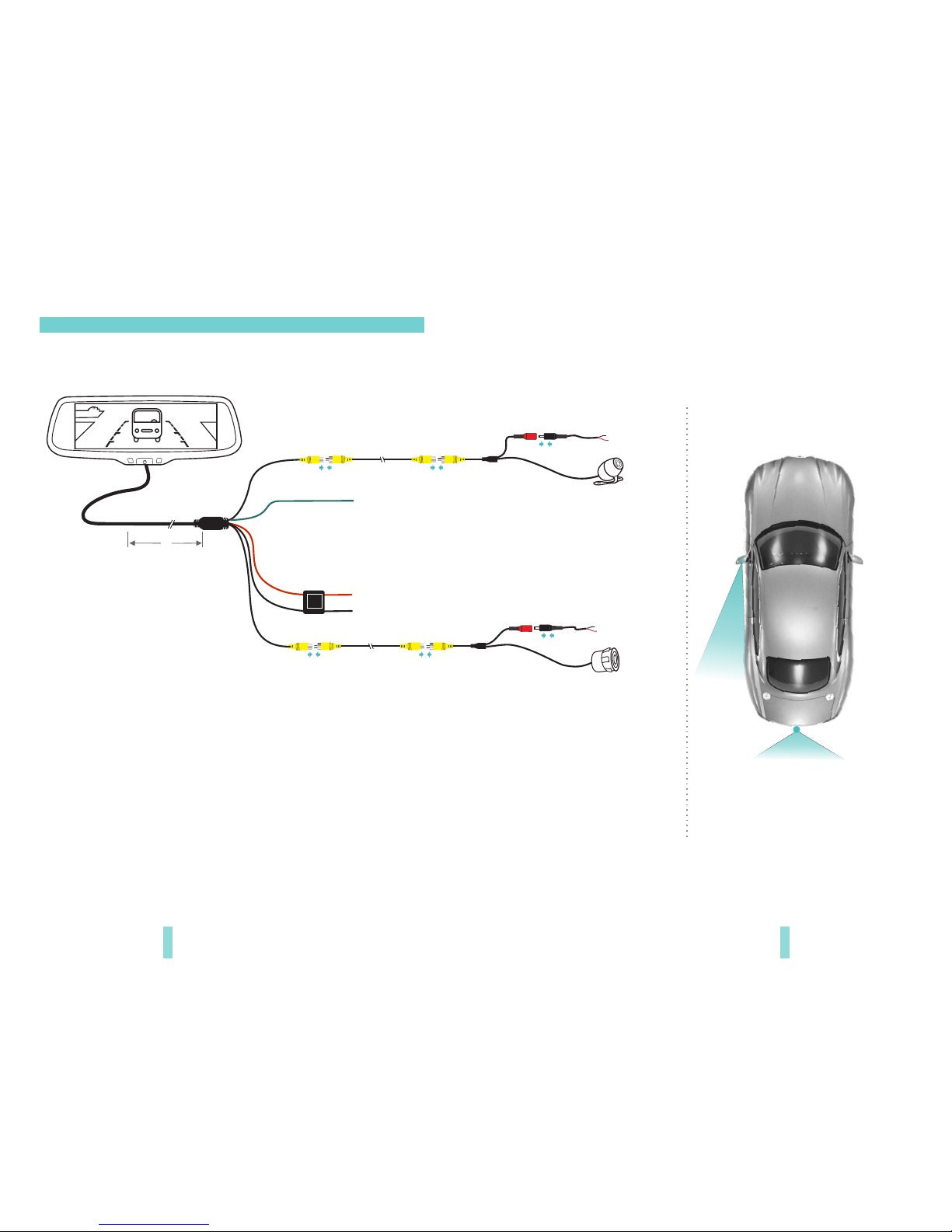

2.3 How to wire
3M
7 8
power harness
PUSE
BOX
Black to GND
Red to A CC +12V
Black to GND
Red to ACC +12V
Black to GND
Red to ACC +12V
Back up vide o
Lef t video
The advisable installation
position for camera
B
ack u
p v
ide
o
By connecting the green line, the reversing signal is input to the rear view mirror
and reversing video can automatically display on the wide 7.3 inch LCD monitor.
L
ef
t v
i
de
o
CTR 1(Gre en)
it' s advis able to c onnec t the reve rsing l ine
Page 7
UP
Clockwise
Dow n
Rig ht
lef t
Move the guide line Rotate the guide line
anticlockwise
Press the button to choose the L or R adjustable guideline
Remote control
RL
Wrongposition
Right position
9 10
According to the site of standard reference line, we can put reference objects such
as desks in the back area of car. Compared with the marked reference objects, we
can adjust the sites and angle of two guide lines displayed on the monitor. You will
get the accurate and safety guide lines once they coincide with the reference
objects.
Press setting button is to enter into “guide line adjustment” mode. The system is
defaulted to adjust left guide line firstly. Press the button again will switch to adjust
the right guide line. The up , down left and right buttons are to
adjust the correspondent location of guide lines. The clockwise rotation and
contra rotation buttons are to adjust the angle of guide lines. It is easy to
operate and calibrate. After finishing calibration, switch the reverse gear to save
the information.
Caution: keep the remote control 0.5m-1.0m from rearview mirror when you use the remote to
adjust the parking lines.

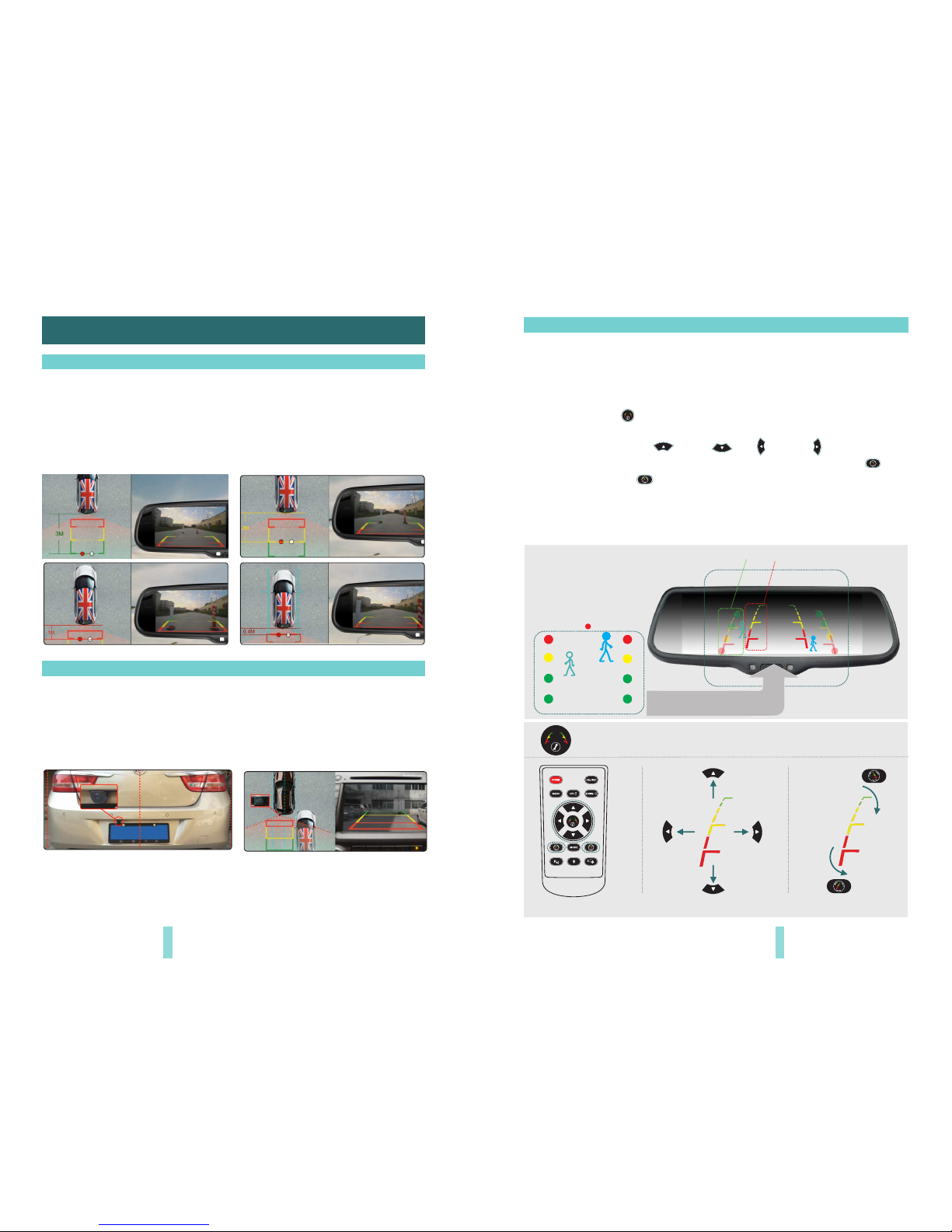

3.3 How to adjust the guide line
Displayonthemonitor
Generally, to help drivers estimate the distance from obstacles, there are three
lines for reference -red, yellow and green. Those three lines are displayed on the
monitor when car is reversing. The green line is 3m from the back of car and the
yellow line is 2m. The distant red line is 1m from the backside of car while the
closed red line is 0.4m. Both reference lines on the left and right should leave
0.2m space from the car.
20CM20CM
3.1 About guide line
Regular guide line is fixed. But installation sites of cameras are different as well
as car size. The fixed guide line is not accurate enough for drivers. There will be a
great difference between regular and fixed guide lines and car's real guide lines,
especially when camera is mounted on the left or right side of car backside. It
may cause accidents.
3.2 What the regular guide line is
Chapter three: Adjustable Guideline
Page 8
11 12
Chapter Four: Menu Setting
Enter pic ture menu
Guide line cl ockwise
Menu pa rameter de crease
Menu paramete r increas e
Guid e line up
Guid e line left
Enter g uide line
adju stment
Guide line ant i-clockwise
Guid e line right
Guid e line down
Pres s to res et all
menu a nd paramete rs

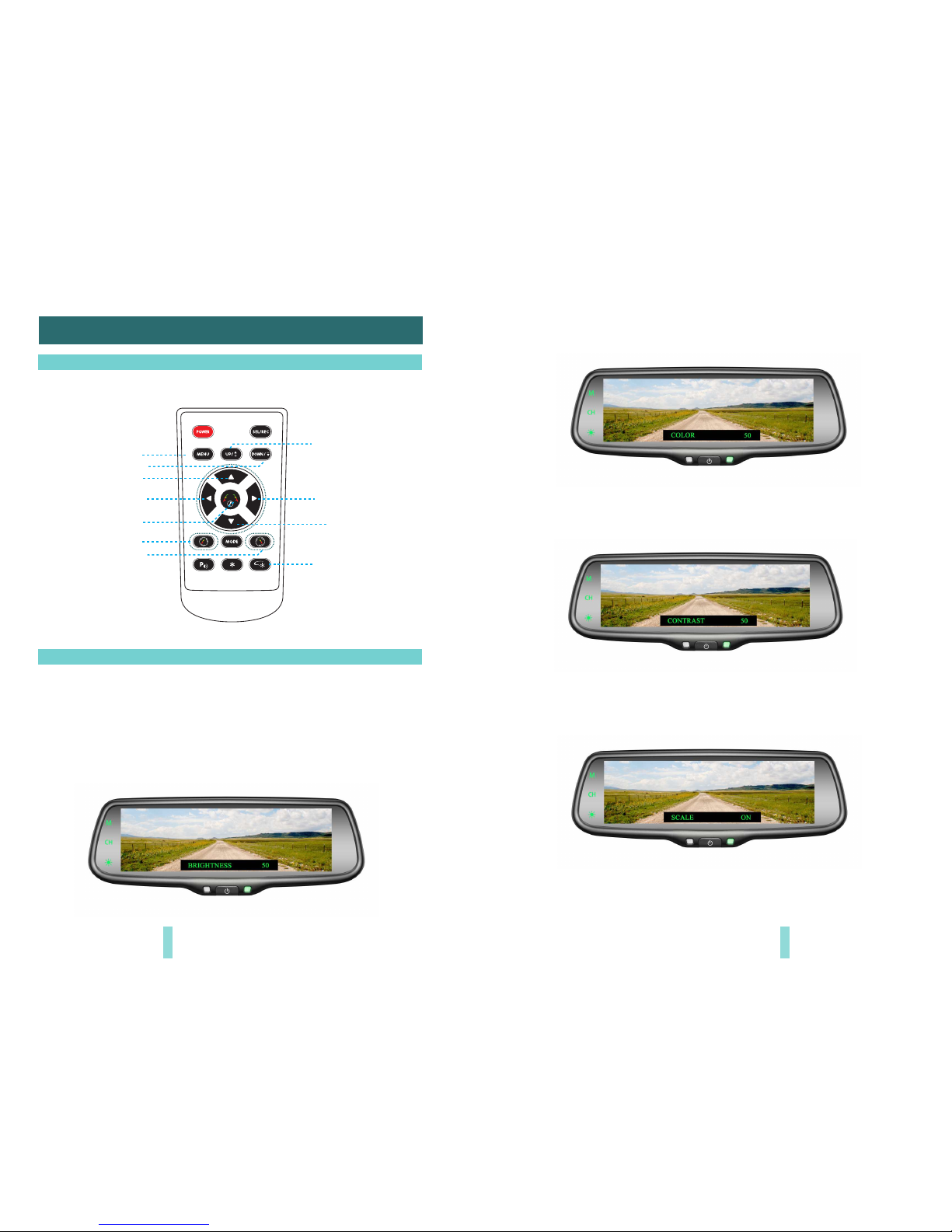

4.1 Remote control
The m enu onl y can be se t by remo te cont rol, an d kindl y check i ts defi nitio n as belo w.
4.2 Menu setting guidance
Short pres s “ME NU”to e nte r “PI CT URE ”, then y ou ca n switch amo ng
“BR IGHTN ESS”, “COLOR”, “CONT RAST”, “SCALE ”, “START LOGO ”, “PRESET”,
or ente r out. When i t switche s to “PRESET”, re-press s hortl y the M ENU, and
you woul d c lose the m enu. UP and D OWN are to change t he figure of each
set tin g.
4.2.1 B RIG HTNES S ADJ UST MENT
The d efaulted setting i s 50, rang ing f rom 0 to 100, an d onl y CVBS si gnal ca n wor k.
4.2.2 COLOR ADJ UST MENT
The d efaulted setting i s 50, rang ing f rom 0 to 100, an d onl y CVBS si gnal can work.
4.2.3 CONT RAST ADJUSTME NT
The d efaulted setting i s 50, rang ing f rom 0 to 100, an d onl y CVBS si gnal can work.
4.2.4 S CAL E ADJUSTME NT
It' s on ly for the m odel with guide lines, and no s uch setting for thos e wit hout
suc h funct ion. ON i s defaulted settin g, an d you can m anu ally se t it to O FF.
Page 9
4.2.6 P RES ET ADJUSTM ENT

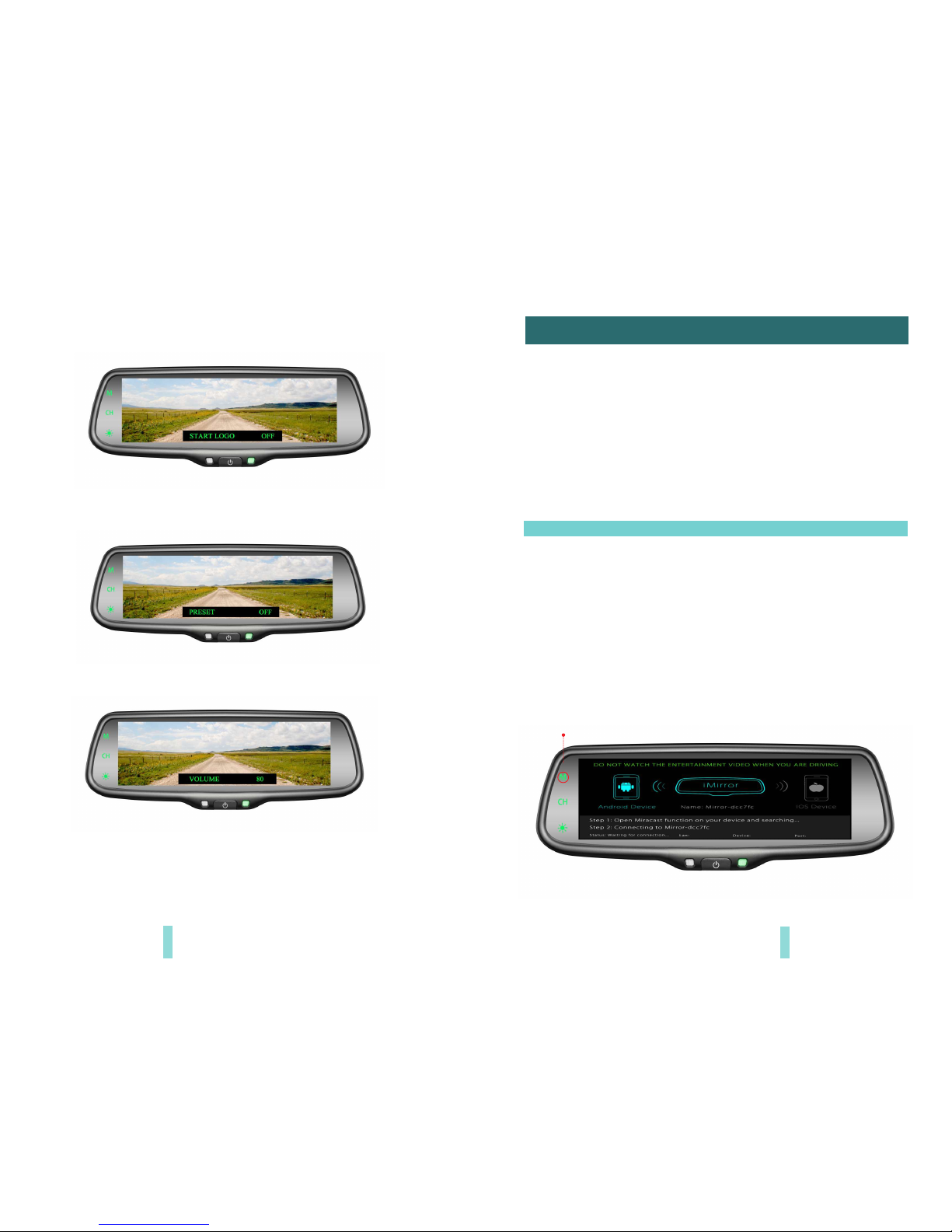

4.2.5 START LOGO AD JUS TMENT
It' s d efaulted as OFF, and ON is to pre set th e m enu, the n it swit che s t o OFF
aut oma tically.
It' s is defaulted as “ON”, you can set it to “OFF” ma nua lly.
The reve rsing mode i s th e top priori ty, the n al l tou ch pane l is ineffect ive . The
vid eo cann ot be s wit che d until t he pa rki ng mode i s end ed. But t he ma nual
but ton is access ibl e. Sho rt pre ss i s to ad jus t the brig htn ess of the monit or, lo ng
pre ss to t urn o ff the sc ree n.
13
Chapter Five: Mirror Link

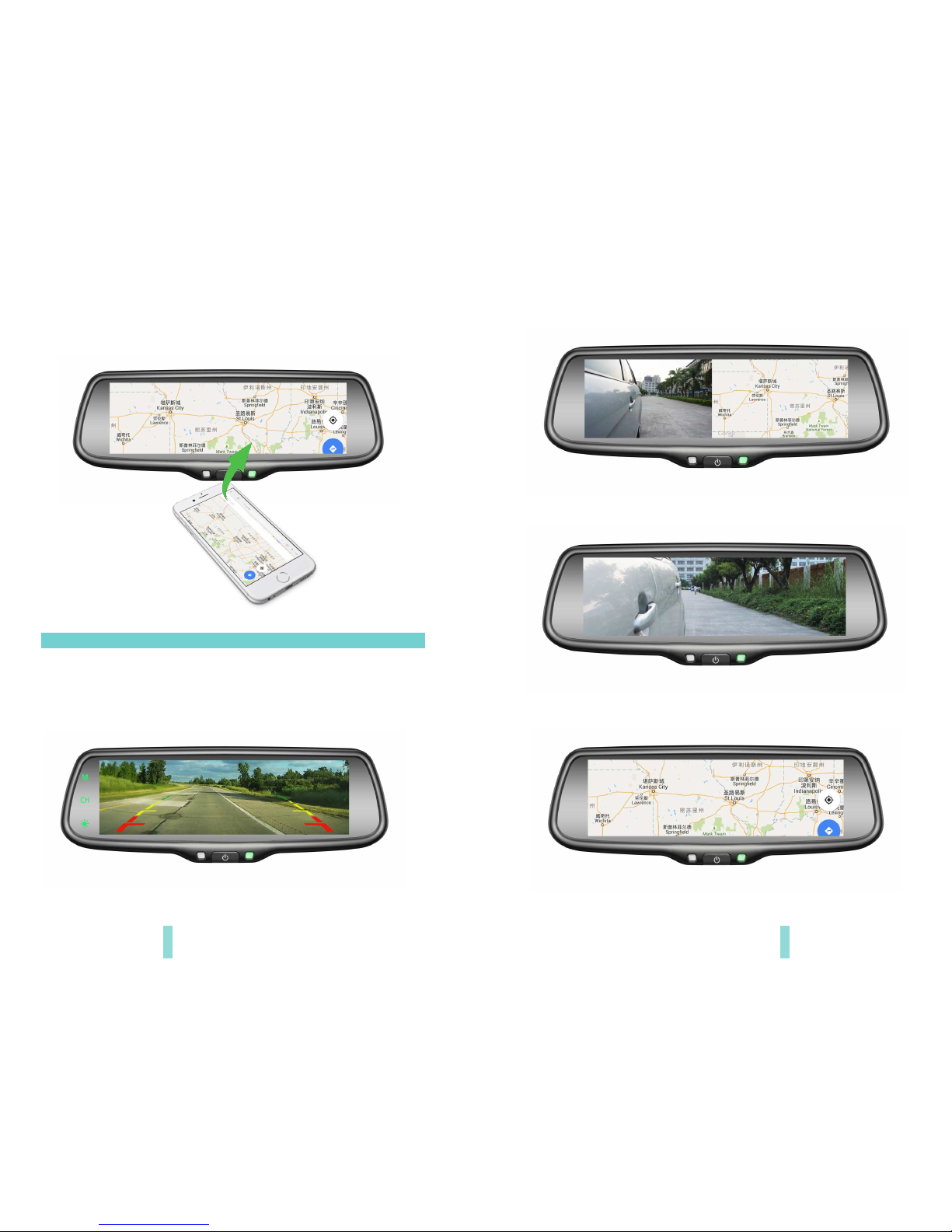

This is a spe cia l devi ce to proj ect your mob ile phone to Rear view mir ror
monitor th rou gh WiFi c onnec tion, a nd the po pular stan dards like DLNA ,
Mir aca st and Air Play. The driver can set the n avi gat ion p ath o n the phone
before ente ring the car, and the n so lon g as the phone WIFI connec ted to
rea rview mi rro r, th e n avi gat ion au dio and vid eo can be simu lta neous ly
displayed on t he rearv iew mirror. Whil e dri vin g you can a lso s et nav iga tio n
pat h by a p assenger u sing a mo bile ph one, th e image i s simul tan eousl y
displayed on th e rea rview m irror.

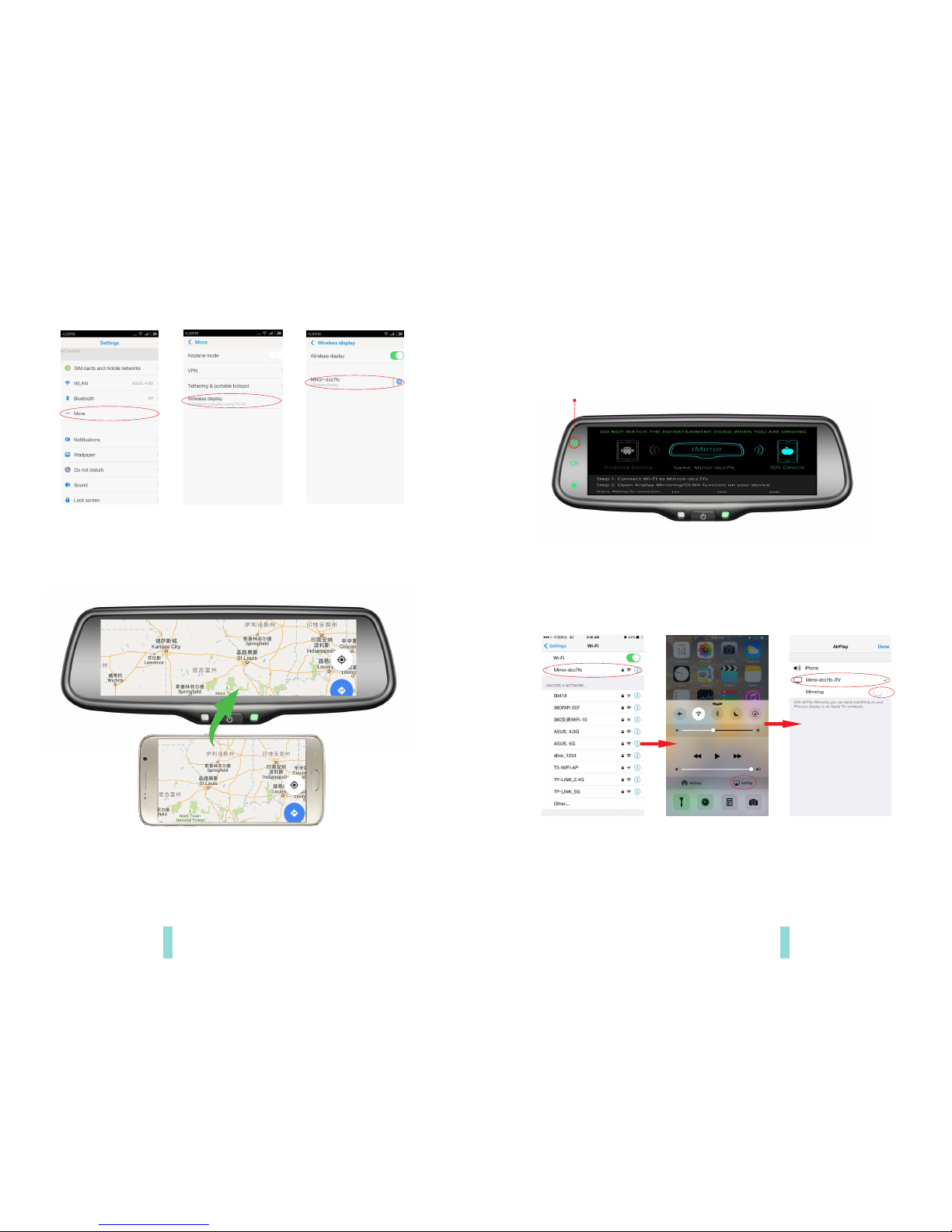

5.1 How to connect
1: Fir st, make sure android phon e h as wir eless proje ction functio n ( part of
the phone can not su pport wir eless pro jection, or par t of the phone
wir eless dis play need s to roo t an d co uld us e af ter chang ing the system file) .
2: Click the “ M” button on t he TP button, swi tch wireless m ode to Android
mode; ope n th e WIFI on your phone , th en sea rch equ ipmen t in the phone 's
wir eless project ion functi on, connec t the device acco rdi ng to the wirel ess
dev ice nam es disp layed on t he screen , th e ste p is as below:
“M” button
14
4.2.7 VOLUM E ADJUSTME NT
The d efaulted setting i s 80, rang ing f rom 0 to 100, an d onl y CVBS si gnal can work.
5.1 .1 How to connect with And roi d phone (An dro id vers ion have mor e on
how to use wi reless p rojec tion fu nction, please consult t he p hone
instruct ions)
Ple ase note: Kee p the bluetoo th be ing clos ed wh en yo u use mirror lin k
function a nd conn ect y our pho ne！
Page 10
WIF I name
tap h ere
tap h ere
15 16
After fin ishing the conn ect ion, then the phon e screen proj ected onto the
rea r view mi rro r, you can press “ CH” on TP button t o decid e DOUBL E MOBLI E
dual mode or s ingle -screen mo de.
“M” button
1: First, click the “M” b utton on TP button, switch t he wireless mode to i OS
mode.
5.1.2 H ow to c onn ect wit h iPhon e
2: Us ing iPh one search W IFI ( WIFI na me is d isplayed on the s cre en and
shown a s be low), then enter the defaul t pa ssword::123 45678 . Af ter
finishin g WIFI conn ectio n, bring up the sho rtc ut menu, clic k o n t he AirPl ay
function , selec t the device n ame, an d open th e Mir ror ing.
tap h ere
Tap her e
Turn o n it
Tap her e
Page 11
17 18
5.2 Channel switching
5.2.1 C ame ra fu ll screen di splay
5.2.2 V IDE O1 an d MOBIL E displ ay si mul taneo usl y
5.2.3 V IDE O1 fu ll scre en di splay
5.2.4 M OBI LE full s cre en disp lay
After fin ishing the conn ect ion, then the phon e screen proj ected onto the
rea r view mi rro r, you can press “ CH” on TP button t o decid e DOUBL E MOBLI E
dual mode or s ingle -screen mo de.
Pre ss the “CH” butto n on the screen, could s witch disp lay among CAMERA
(defau lt and only full screen display), VIDEO1, MOB ILE , VIDEO1 ful l screen
display and MOB ILE ful l screen dis play.
Loading...
