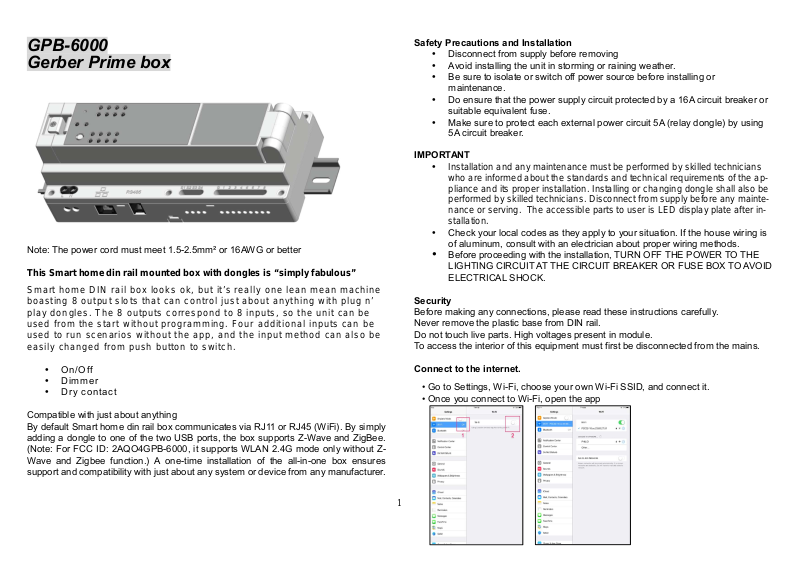

GPB-6000
Gerber Prime box

Note: The power cord must meet 1.5-2.5mm² or 16AWG or better

This Smart home din rail mounted box with dongles is “simply fabulous”

Smart home DIN rail box looks ok, but it’s really one lean mean machine
boasting 8 output slots that can control just about anything with plug n’
play dongles. The 8 outputs correspond to 8 inputs, so the unit can be
used from the start without programming. Four additional inputs can be
used to run scenarios without the app, and the input method can also be
easily changed from push button to switch.

• On/Off

• Dimm e r

• Dry cont a c t

Compatible with just about anything

By default Smart home din rail box communicates via RJ11 or RJ45 (WiFi). By simply
adding a dongle to one of the two USB ports, the box supports Z-Wave and ZigBee.
(Note: For FCC ID: 2AQO4GPB-6000, it supports WLAN 2.4G mode only without Z­Wave and Zigbee function.) A one-time installation of the all-in-one box ensures

support and compatibility with just about any system or device from any manufacturer.

Safety Precautions and Installation

• Disconnect from supply before removing

• Avoid installing the unit in storming or raining weather.

• Be sure to isolate or switch off power source before installing or

maintenance.

• Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.

• Make sure to protect each external power circuit 5A (relay dongle) by using
5A circuit breaker.

IMPORTANT

• Installation and any maintenance must be performed by skilled technicians

• Check your local codes as they apply to your situation. If the house wiring is

•

Security

Before making any connections, please read these instructions carefully.
Never remove the plastic base from DIN rail.
Do not touch live parts. High voltages present in module.
To access the interior of this equipment must first be disconnected from the mains.

who are informed about the standards and technical requirements of the ap­pliance and its proper installation. Installing or changing dongle shall also be
performed by skilled technicians. Disconnect from supply before any mainte­nance or serving. The accessible parts to user is LED display plate after in­stallation.

of aluminum, consult with an electrician about proper wiring methods.

Before proceeding with the installation, TURN OFF THE POWER TO THE
LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.

Connect to the internet.

• Go to Settings, Wi-Fi, choose your own Wi-Fi SSID, and connect it.

• Once you connect to Wi-Fi, open the app

1

• Add UID: Can enter 10.10.10.254 or press Search or press QR Code to scan

the QR Code to set up the gateway address.

•Name: arbitrary input

• ID: admin

• Password: 888888

Add your devices

Add IP Cam

• In the Divice page, press Plus Gear Add IP Cam QR Code to add
IP Cam by scanning the QR Code with camera.

Add a room

• Press Add new Room in the Device page to add a new room, enter the name of

• In the Device page, press Plus Gear Include Device to add devices.
(Remember to activate the include mode of your device by flipping three times
the trigger on it.)

the room as you like.

2

Scene

• Scene can set the room ambiance quickly. It can help you to have a
better experience at the special

moment.

Macro

Still worry about your flat security?
Macro is just like your 24-7 personal home guard.
It secures your flat. Just set the reactive you wishes, it obeys your orders faithfully.

Overview

Front view

Side view

Internal view

3

A. Reset
B. AC Power input

D. RJ45 Ethernet port
E. RJ 11 port

F. Learn Key
