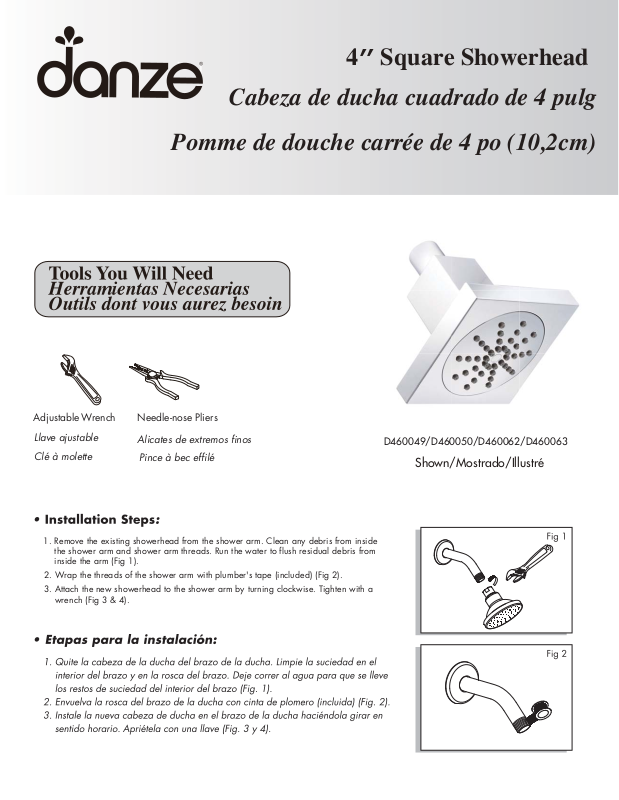

4’’ Square Showerhead
Cabeza de ducha cuadrado de 4 pulg
Pomme de douche carrée de 4 po (10,2cm)
Adjustable
Llave ajustable
Clé à molette
1. Remove the existing showerhead from the shower arm. Clean any debris from inside
the shower arm and shower arm threads. Run the water to flush residual debris from
inside the arm (Fig 1).
2. Wrap the threads of the shower arm with plumber's tape (included) (Fig 2).
3. Attach the new showerhead to the shower arm by turning clockwise. Tighten with a
wrench (Fig 3 & 4).
Wrench
Needle-nose Pliers
Alicates de extremos finos
Pince à bec effilé
D460049/D460050/D460062/D460063
Shown/Mostrado/Illustré
Page 2
the

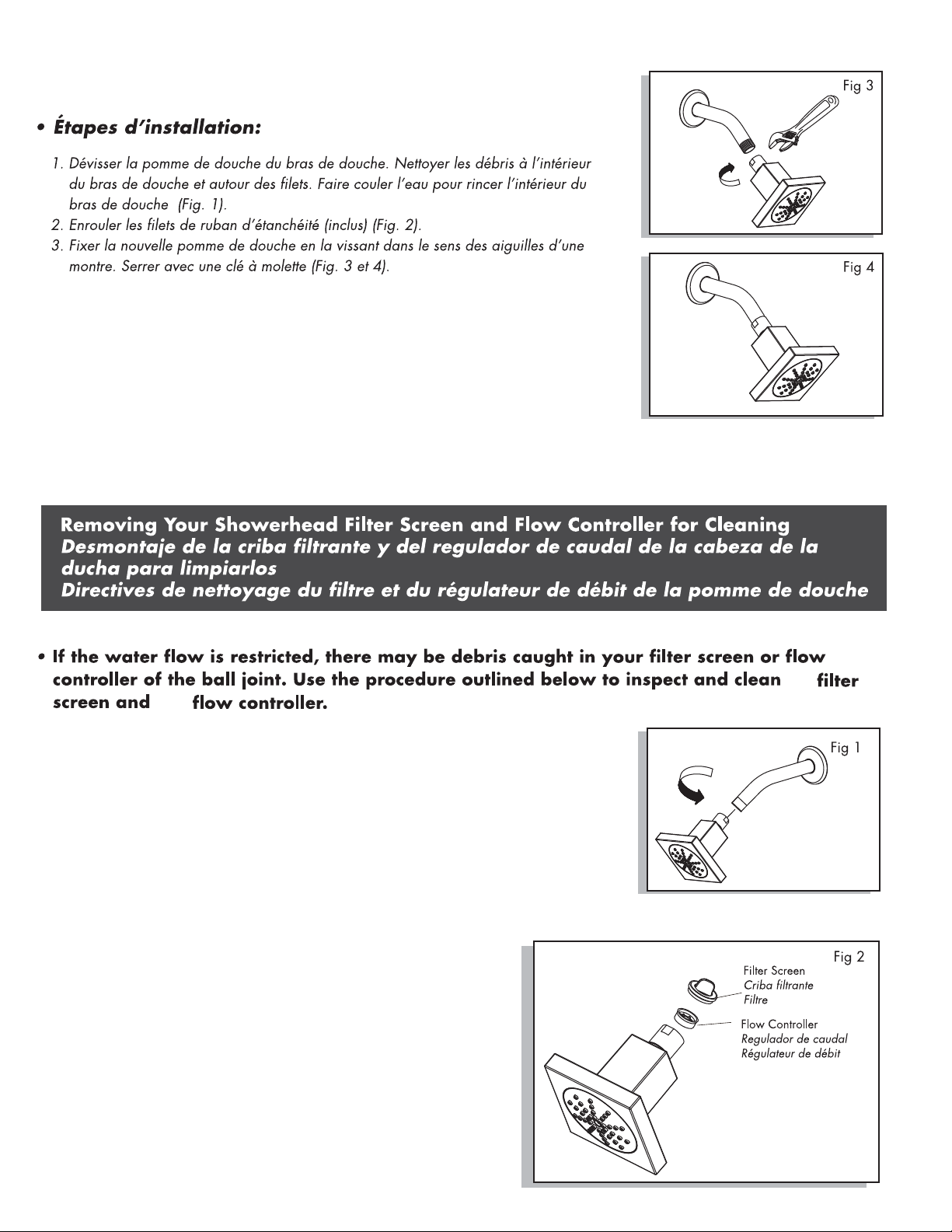

1. Remove the showerhead from the shower arm by unscrewing the ball
joint counter-clockwise (Fig 1).
2. The filter screen and flow controller are located at the opening of the
showerhead ball joint (Fig 2). Unscrew the filter screen from the ball
If necessary, use your needle-nose pliers (Fig 3).
joint.

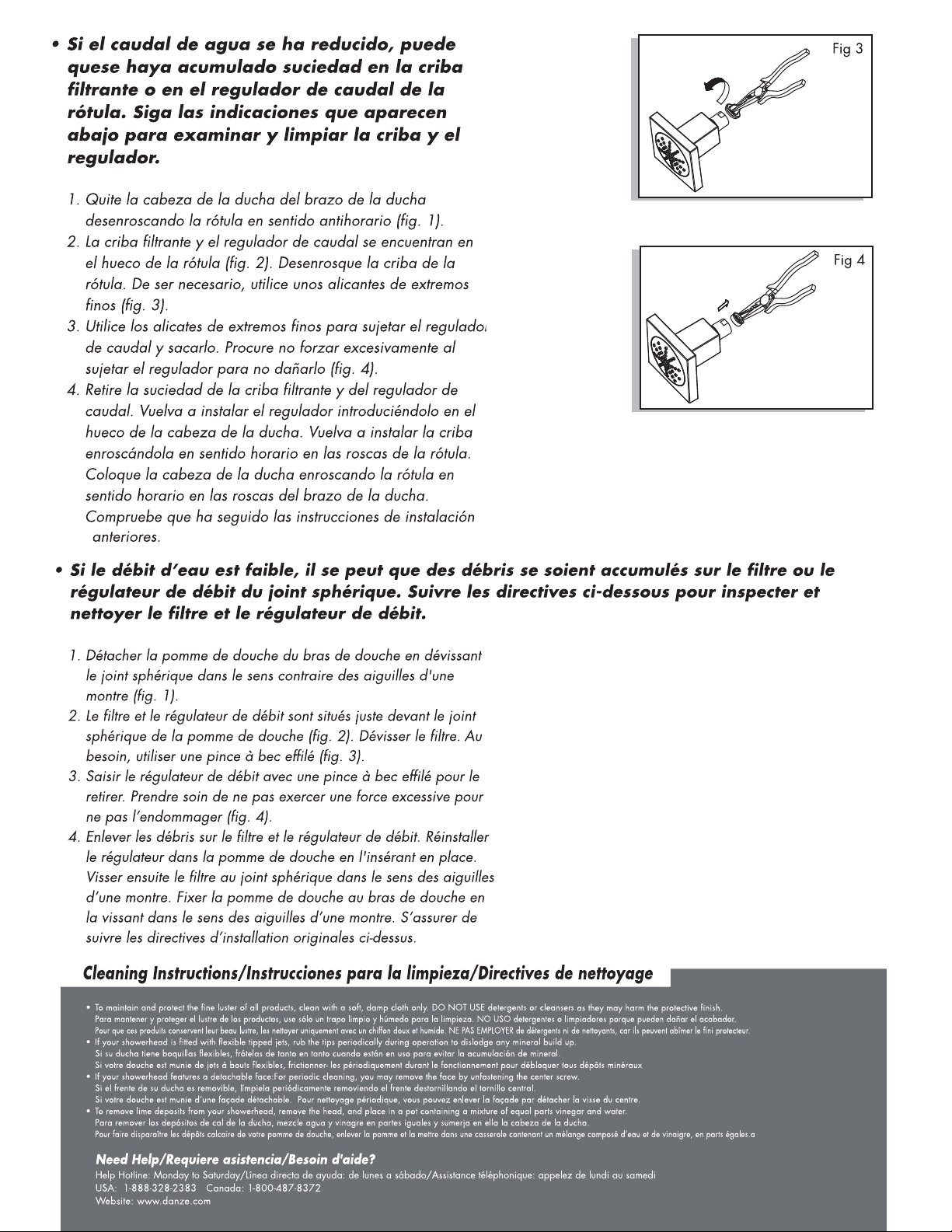

3. Use needle-nose pliers to grasp the flow controller and pull the flow
controller out.
flow controller so as to avoid damage (Fig 4).
4. Remove any debris from the filter screen and from the flow controller.
Reinstall the flow controller by pressing into the opening of the
showerhead. Reinstall the filter screen by screwing clockwise into
the ball joint threads. Reattach the showerhead by screwing the ball
joint clockwise into the showerarm threads. Make sure to follow the
original installation instructions shown above.
Take care not to use excessive force when grasping the
the
