Gerber D520030LSBNTC, D520030LSTC, D520030LSBSTC Specifications
Ø 2 3/8"
4 3/4"
08
GPM

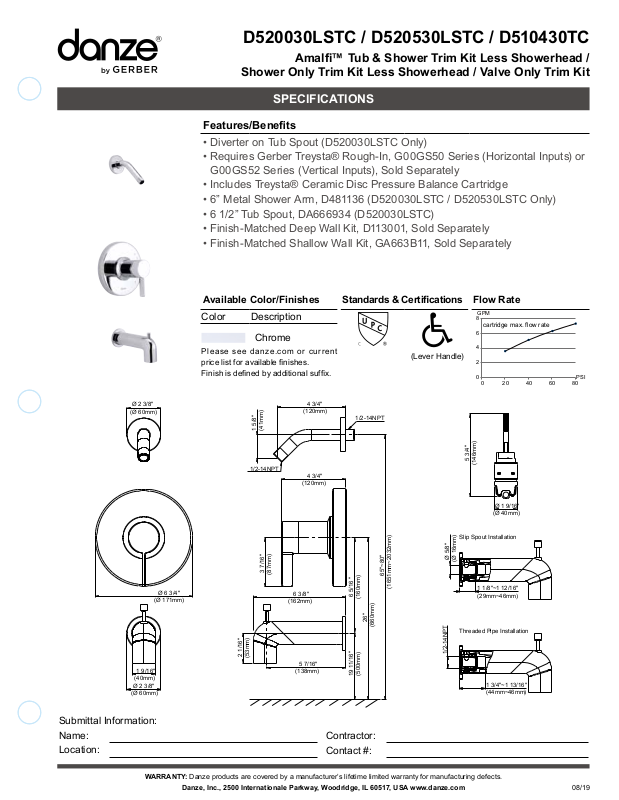

D520030LSTC / D520530LSTC / D510430TC
Am al™ Tub & Shower Trim Kit Less Showerhead /
Shower Only Trim Kit Less Showerhead / Valve Only Trim Kit
SPECIFICATIONS
Features/Benets
• Diverter on Tub Spout (D520030LSTC Only)
• Requires Gerber Treysta® Rough-In, G00GS50 Series (Horizontal Inputs) or
G00GS52 Series (Vertical Inputs), Sold Separately
• Includes Treysta® Ceramic Disc Pressure Balance Cartridge
• 6” Metal Shower Arm, D481136 (D520030LSTC / D520530LSTC Only)
• 6 1/2” Tub Spout, DA666934 (D520030LSTC)
• Finish-Matched Deep Wall Kit, D113001, Sold Separately
• Finish-Matched Shallow Wall Kit, GA663B11, Sold Separately
Available Color/Finishes Standards & Certications Flow Rate
Color Description
Chrome
Please see danze.com or current
price list for available nishes.
Finish is dened by additional sufx.
(Lever Handle)
8
cartridge max. flow rate
6
4
2
0
020406
0
PSI
(Ø 60mm)
1 9/16"
(40mm)
Ø 2 3/8"
(Ø 60mm)
Ø 6 3/4"
(Ø 171mm)
1/2-14NPT
2 1/16"
(53mm)
(120mm)
1 5/8"
(41mm)
4 3/4"
(120mm)
3 7/16"
(87mm)
6 3/8"
(162mm)
5 7/16"
(138mm)
1/2-14NPT
6 5/16 "
(160mm)
26"
(500mm)
19 11/16"
(660mm)
5 3/4"
(146mm)
Ø 1 9/16"
(Ø 40mm)
Slip Spout Installation
Ø 5/8"
(Ø 16mm)
65"~80"
(1651mm~2032mm)
1/2-14NPT
1 1/8"~1 12/16"
(29mm~46mm)
Threaded Pipe Installation
1 3/4"~1 13/16"
(44mm~46mm)
Submittal Information:
Name:
Location:
WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.
Contractor:
Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com
08/19
