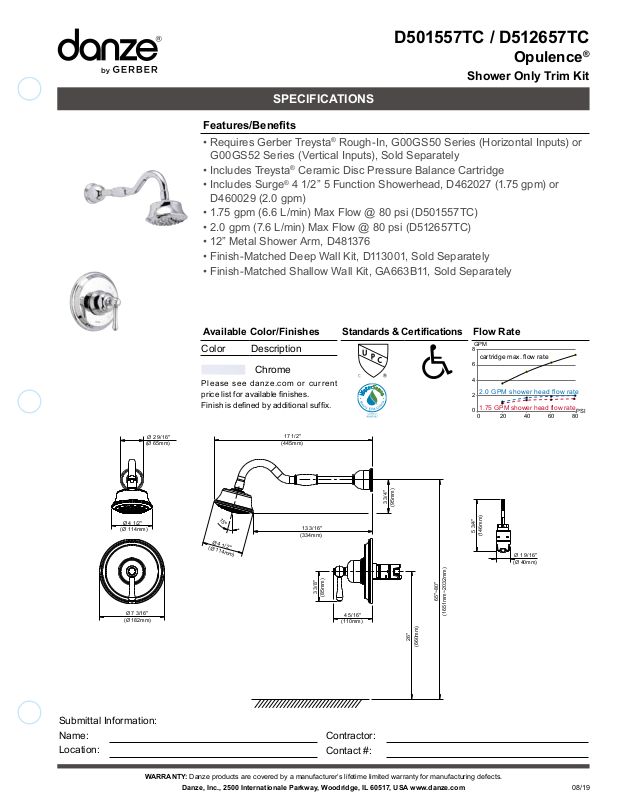

Gerber D512657BRTC, D512657TC, D512657BNTC Specifications

D501557TC / D512657TC

08

GPM

Shower Only Trim Kit

SPECIFICATIONS

Features/Benets

• Requires Gerber Treysta
G00GS52 Series (Vertical Inputs), Sold Separately

• Includes Treysta

• Includes Surge

®

Ceramic Disc Pressure Balance Cartridge

®

4 1/2” 5 Function Showerhead, D462027 (1.75 gpm) or

D460029 (2.0 gpm)

• 1.75 gpm (6.6 L/min) Max Flow @ 80 psi (D501557TC)

• 2.0 gpm (7.6 L/min) Max Flow @ 80 psi (D512657TC)

• 12” Metal Shower Arm, D481376

• Finish-Matched Deep Wall Kit, D113001, Sold Separately

• Finish-Matched Shallow Wall Kit, GA663B11, Sold Separately

Available Color/Finishes Standards & Certications Flow Rate

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

®

Rough-In, G00GS50 Series (Horizontal Inputs) or

8

cartridge max. flow rate

6

4

2.0 GPM shower head flow rate

2

1.75 GPM shower head flow rate

0

020406

Opulence®

PSI

0

Ø 2 9/16"

(Ø 65mm)

Ø 4 1/2"

(Ø 114mm)

Ø 7 3/16"

(Ø 182mm)

Submittal Information:
Name:
Location:

15º

Ø 4 1/2"

(Ø 114mm)

17 1/2"

(445mm)

13 3/16"

(334mm)

3 3/8"

(85mm)

4 5/16"

(110mm)

Contractor:
Contact #:

3 3/4"

(95mm)

5 3/4"

(146mm)

Ø 1 9/16"

(Ø 40mm)

65"~80"

(1651mm~2032mm)

26"

(660mm)

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

08/19
