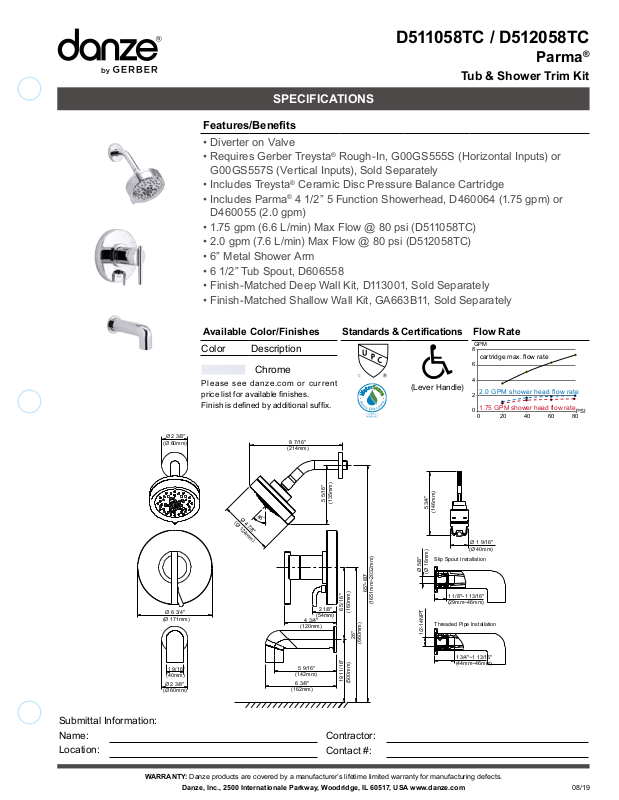

Gerber D512058BNTC, D512058TC Specifications

D511058TC / D512058TC

08

GPM

Tub & Shower Trim Kit

SPECIFICATIONS

Features/Benets

• Diverter on Valve

• Requires Gerber Treysta
G00GS557S (Vertical Inputs), Sold Separately

• Includes Treysta

• Includes Parma

®

Ceramic Disc Pressure Balance Cartridge

®

4 1/2” 5 Function Showerhead, D460064 (1.75 gpm) or

D460055 (2.0 gpm)

• 1.75 gpm (6.6 L/min) Max Flow @ 80 psi (D511058TC)

• 2.0 gpm (7.6 L/min) Max Flow @ 80 psi (D512058TC)

• 6” Metal Shower Arm

• 6 1/2” Tub Spout, D606558

• Finish-Matched Deep Wall Kit, D113001, Sold Separately

• Finish-Matched Shallow Wall Kit, GA663B11, Sold Separately

Available Color/Finishes Standards & Certications Flow Rate

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

®

Rough-In, G00GS555S (Horizontal Inputs) or

8

(Lever Handle)

cartridge max. flow rate

6

4

2.0 GPM shower head flow rate

2

1.75 GPM shower head flow rate

0

020406

Parma®

PSI

0

Submittal Information:
Name:
Location:

Ø 2 3/8"

(Ø 60mm)

Ø 6 3/4"

(Ø 171mm)

1 9/16"

(40mm)

Ø 2 3/8"

(Ø 60mm)

Ø 4 7/8"

(Ø 124mm)

8 7/16"

(214mm)

5 5/16"

(135mm)

45°

65"~80"

(160mm)

(500mm)

(1651mm~2032mm)

26"

(660mm)

(120mm)

5 9/16"

(142mm)

6 3/8"

(162mm)

4 3/4"

2 1/8"

(54mm)

6 5/16 "

19 11/16"

5 3/4"

(146mm)

Slip Spout Installation

Ø 5/8"

(Ø 16mm)

1 1/8"~1 13/16"
(29mm~46mm)

Threaded Pipe Installation

1/2-14NPT

1 3/4"~1 13/16"
(44mm~46mm)

Ø 1 9/16"

(Ø 40mm)

Contractor:
Contact #:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

08/19
