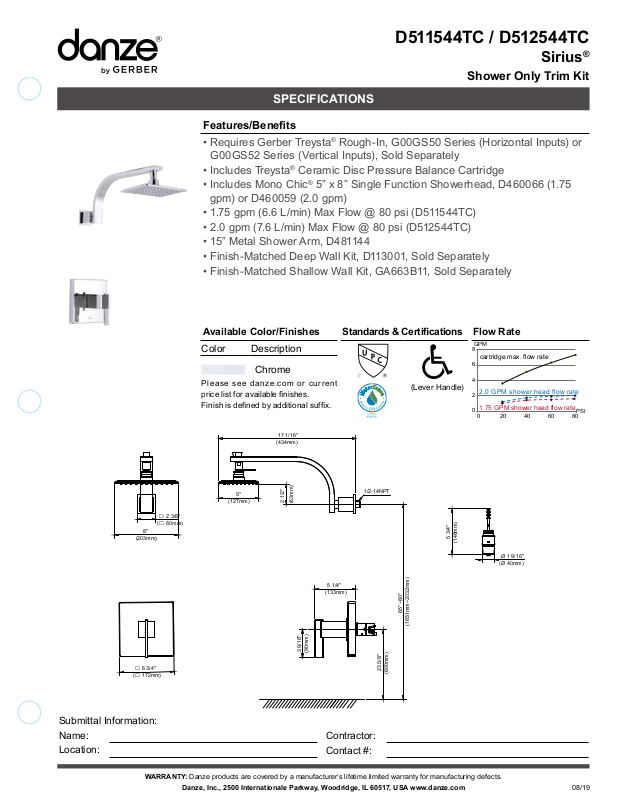

Gerber D511544TC, D511544BNTC Specifications
D511544TC / D512544TC
08
GPM
17 1/16"
Shower Only Trim Kit
SPECIFICATIONS
Features/Benets
• Requires Gerber Treysta
G00GS52 Series (Vertical Inputs), Sold Separately
• Includes Treysta
®
Ceramic Disc Pressure Balance Cartridge
• Includes Mono Chic
gpm) or D460059 (2.0 gpm)
• 1.75 gpm (6.6 L/min) Max Flow @ 80 psi (D511544TC)
• 2.0 gpm (7.6 L/min) Max Flow @ 80 psi (D512544TC)
• 15” Metal Shower Arm, D481144
• Finish-Matched Deep Wall Kit, D113001, Sold Separately
• Finish-Matched Shallow Wall Kit, GA663B11, Sold Separately
Available Color/Finishes Standards & Certications Flow Rate
Color Description
Chrome
Please see danze.com or current
price list for available nishes.
Finish is dened by additional sufx.
®
Rough-In, G00GS50 Series (Horizontal Inputs) or
®
5” x 8” Single Function Showerhead, D460066 (1.75
8
(Lever Handle)
cartridge max. flow rate
6
4
2.0 GPM shower head flow rate
2
1.75 GPM shower head flow rate
0
020406
Sirius®
PSI
0
8"
(203mm)
6 3/4"
□
172mm)
□
(
Submittal Information:
Name:
Location:
□
□
(
2 3/8"
60mm)
5"
(127mm)
(434mm)
2 1/2"
(63mm)
3 9/16"
5 1/4"
(133mm)
(90mm)
Contractor:
Contact #:
1/2-14NPT
23 5/8"
(600mm)
65" ~80"
(1651mm~2032mm)
5 3/4"
(146mm)
Ø 1 9/16"
(Ø 40mm)
WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com
08/19
