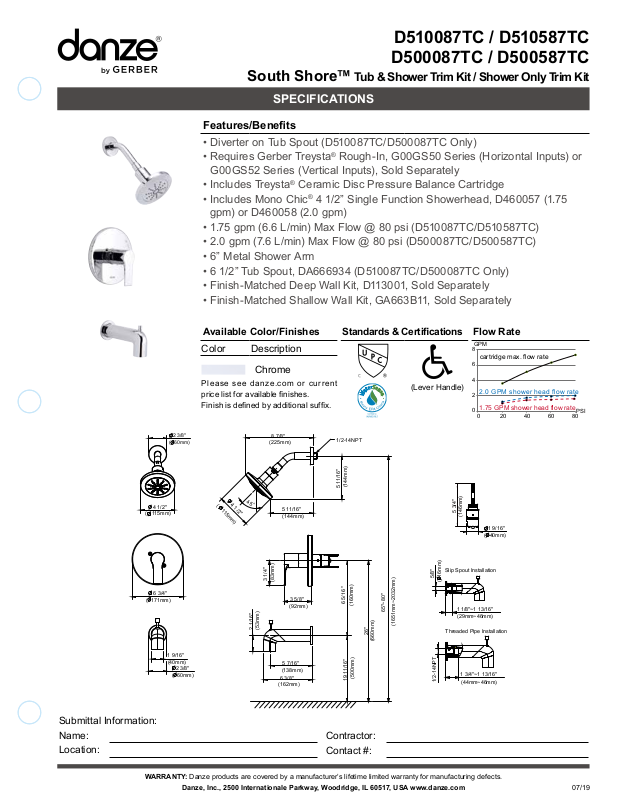

Gerber D510587TC, D510587BNTC Specifications
D510087TC / D510587TC
2 3/8"
8 7/8"
08
GPM
D500087TC / D500587TC
South Sho r e™ Tub & Shower Trim Kit / Shower Only Trim Kit
SPECIFICATIONS
Features/Benets
• Diverter on Tub Spout (D510087TC/D500087TC Only)
• Requires Gerber Treysta
G00GS52 Series (Vertical Inputs), Sold Separately
• Includes Treysta
®
Ceramic Disc Pressure Balance Cartridge
• Includes Mono Chic
gpm) or D460058 (2.0 gpm)
• 1.75 gpm (6.6 L/min) Max Flow @ 80 psi (D510087TC/D510587TC)
• 2.0 gpm (7.6 L/min) Max Flow @ 80 psi (D500087TC/D500587TC)
• 6” Metal Shower Arm
• 6 1/2” Tub Spout, DA666934 (D510087TC/D500087TC Only)
• Finish-Matched Deep Wall Kit, D113001, Sold Separately
• Finish-Matched Shallow Wall Kit, GA663B11, Sold Separately
Available Color/Finishes Standards & Certications Flow Rate
Color Description
Chrome
Please see danze.com or current
price list for available nishes.
Finish is dened by additional sufx.
®
Rough-In, G00GS50 Series (Horizontal Inputs) or
®
4 1/2” Single Function Showerhead, D460057 (1.75
8
(Lever Handle)
cartridge max. flow rate
6
4
2.0 GPM shower head flow rate
2
1.75 GPM shower head flow rate
0
020406
0
PSI
Submittal Information:
Name:
Location:
4 1/2"
( 115mm)
6 3/4"
( 171mm)
( 60mm)
1 9/16"
(40mm)
2 3/8"
( 60mm)
4 1/2"
( 115mm)
45
°
2 1/16"
(225mm)
3 1/4"
(53mm)
5 11/16"
(144mm)
(83mm)
5 7/16"
(138mm)
6 3/8"
(162mm)
3 5/8"
(92mm)
1/2-14NPT
(144mm)
5 11/16"
6 5/16 "
(160mm)
(500mm)
19 11/16"
Contractor:
Contact #:
26"
(660mm)
65"~80"
(1651mm~2032mm)
5 3/4"
(146mm)
Slip Spout Installation
5/8"
( 16mm)
1 1/8"~1 13/16"
(29mm~46mm)
Threaded Pipe Installation
1 3/4"~1 13/16"
1/2-14NPT
(44mm~46mm)
1 9/16"
( 40mm)
WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com
07/19
