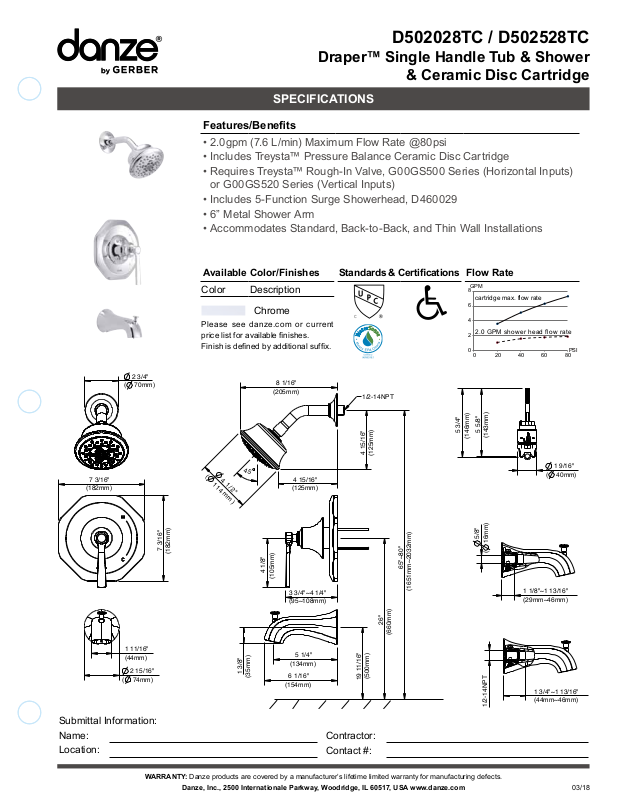

Gerber D502528BNTC, D502522TC Specifications

D502028TC / D502528TC

2 3/4"

08

GPM

Draper™ Single Handle Tub & Shower

& Ceramic Disc Cartridge

SPECIFICATIONS

Features/Benets

• 2.0gpm (7.6 L/min) Maximum Flow Rate @80psi

• Includes Treysta™ Pressure Balance Ceramic Disc Cartridge

• Requires Treysta™ Rough-In Valve, G00GS500 Series (Horizontal Inputs)
or G00GS520 Series (Vertical Inputs)

• Includes 5-Function Surge Showerhead, D460029

• 6” Metal Shower Arm

• Accommodates Standard, Back-to-Back, and Thin Wall Installations

Available Color/Finishes Standards & Certications Flow Rate

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

8

cartridge max. flow rate

6

4

2.0 GPM shower head flow rate

2

0

020406

0

PSI

7 3/16"

(182mm)

( 70mm)

1 11/16"
(44mm)

2 15/16"

(

74mm)

8 1/16"

(205mm)

4

(

1

1

7 3/16"

(182mm)

5

4

1

/

2

4

"

m

m )

1 3/8"

(35mm)

4 1/8"

4 15/16"

(125mm)

(105mm)

3 3/4"~4 1/4"
(95~108mm)

5 1/4"

(134mm)

6 1/16"

(154mm)

1/2-14NPT

4 15/16"

(125mm)

26"

(500mm)

19 11/16"

(660mm)

5 5/8"

5 3/4"

(143mm)

(146mm)

1 9/16"

(

40mm)

5/8"

16mm)

(

65"~80"

(1651mm~2032mm)

1/2-14NPT

1 1/8"~1 13/16"
(29mm~46mm)

1 3/4"~1 13/16"
(44mm~46mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

03/18
