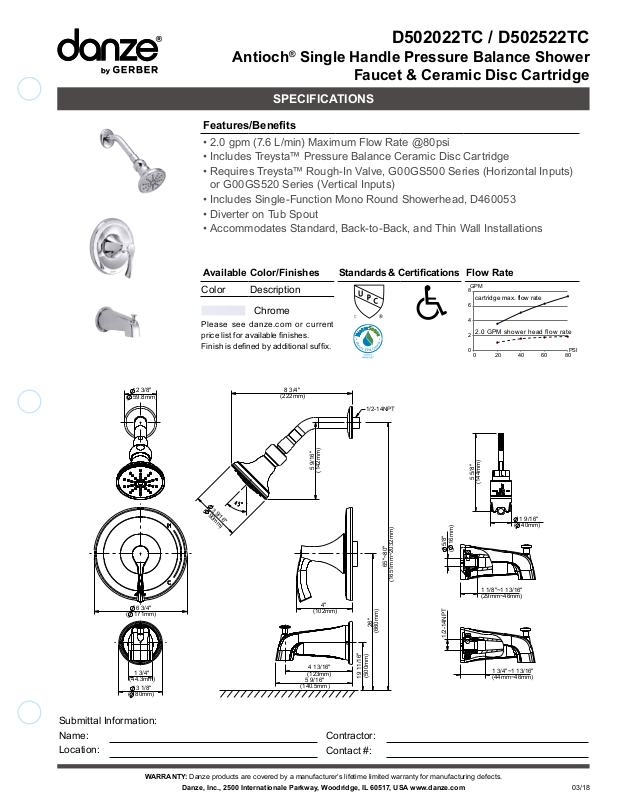

Gerber D502519TC, D502522BNTC, D502522BRTC Specifications

D502022TC / D502522TC

8 3/4"

08

GPM

Antioch® Single Handle Pressure Balance Shower

Faucet & Ceramic Disc Cartridge

SPECIFICATIONS

Features/Benets

• 2.0 gpm (7.6 L/min) Maximum Flow Rate @80psi

• Includes Treysta™ Pressure Balance Ceramic Disc Cartridge

• Requires Treysta™ Rough-In Valve, G00GS500 Series (Horizontal Inputs)
or G00GS520 Series (Vertical Inputs)

• Includes Single-Function Mono Round Showerhead, D460053

• Diverter on Tub Spout

• Accommodates Standard, Back-to-Back, and Thin Wall Installations

Available Color/Finishes Standards & Certications Flow Rate

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

8

cartridge max. flow rate

6

4

2.0 GPM shower head flow rate

2

0

020406

0

PSI

2 3/8"

(

59.8mm)

6 3/4"

(

171mm)

1 3/4"

(44.3mm)

3 1/8"

(

80mm)

(

(222mm)

1/2-14NPT

5 9/16"

(142mm)

3

9

9

/

1

0

6

m

"

m)

65"~80"

(1651mm~2032mm)

4"

(102mm)

26"

(660mm)

4 13/16"

(123mm)

5 9/16"

(140.5mm)

(500mm)

19 11/16"

5 5/8"

(144mm)

1 9/16"

(

40mm)

16mm)

5/8"

(

1 1/8"~1 13/16"
(29mm~46mm)

1/2-14NPT

1 3/4"~1 13/16"
(44mm~46mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

03/18
