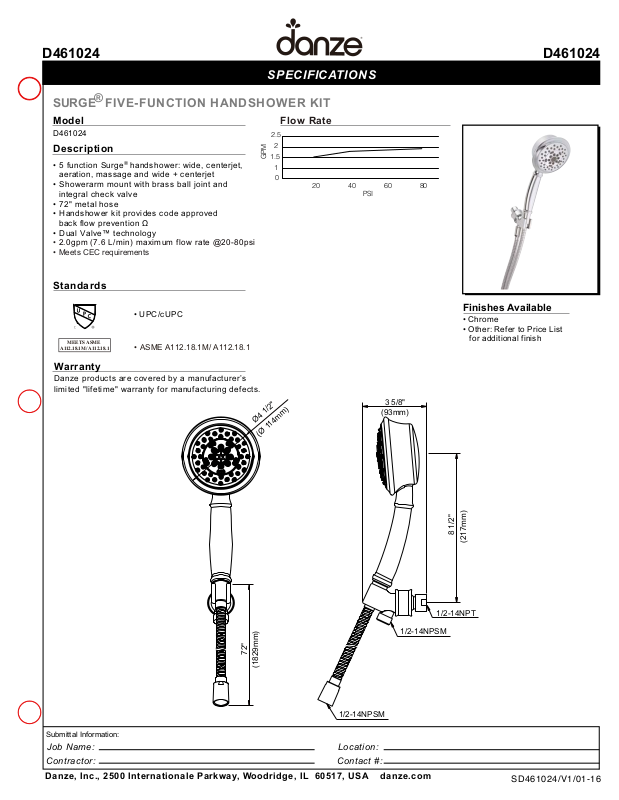

Gerber D461024, D461024BS, D461024BR, D461024BN Specifications
®
SURGE
FIVE-FUNCTION HANDSHOWER KIT
Model
D461024
Description
•
5 function Surge® handshower: wide, centerjet,
aeration, massage and wide + centerjet
• Showerarm mount with brass ball joint and
integral check valve
• 72" metal hose
• Handshower kit provides code approved
back flow prevention Ω
•
Dual Valve™ technology
• 2.0gpm (7.6 L/min) maximum flow rate @20-80psi
• Meets CEC requirements
Standards
SPECIFICATIONS
Flow Rate
2.5
2
1.5
GPM
1
0
20 40 60 80
PSI
420164D420164D
• UPC/ cUPC
MEETS ASME
A112.18.1M/ A112.18.1
• ASME A112.18.1M/ A112.18.1
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufa cturing defects.
Ø4 1/2"
(Ø 114mm)
3 5/8"
(93mm)
Finishes Available
• Chrome
• Other: Refer to Price List
for additional finish
8 1/2"
(217mm)
1/2-14NPSM
72"
(1829mm)
1/2-14NPSM
Submittal Information:
Job Name: Location:
Contract or: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
1/2-14NPT
SD461024/ V1/01- 16
