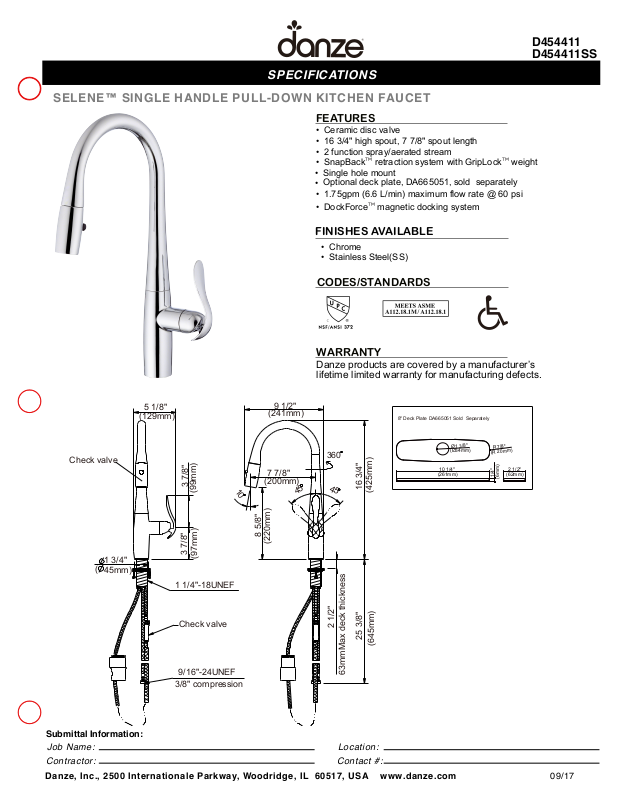

SPECIFICATIONS

SELENE™ SINGLE HANDLE PULL-DOWN KITCHEN FAUCET

FEATURES

• Ceramic disc valve

• 16 3/4" high spout, 7 7/8" spout length

• 2 function spray/aerated stream

• SnapBack

• Single hole mount Optional deck plate, DA665051, sold separately

•

• 1.75gpm (6.6 L/min) maximum flow rate @ 60 psi

• DockForce

FINISHES AVAILABLE

Chrome

•

Stainless Steel(SS)

•

CODES/STANDARDS

™

retraction system with GripLock™ weight

™

magnetic docking system

D454411 D454411SS

Check valve

1 3/4"

(

45mm)

5 1/8"

(129mm)

3 7/8"

(99mm)

3 7/8"

(97mm)

1 1/4"-18UNEF

Check valve

WARRANTY

Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

9 1/2"

(241mm)

360

7 7/8"

(200mm)

8 5/8"

(220mm)

16 3/4"

2 1/2"

25 3/8"

8" Deck Plate DA665051 Sold Separately

(425mm)

(645mm)

10 1/4"

(261mm)

Ø 1 3/8"

(Ø34mm)

7/8"

(R 20mm)

1/4"

(6mm)

2 1/2"

(62mm)

9/16"-24UNEF

63mmMax deck thickness

3/8" compression

Submittal Information:

Job Name: Locat ion:

Contract or: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

09/17
