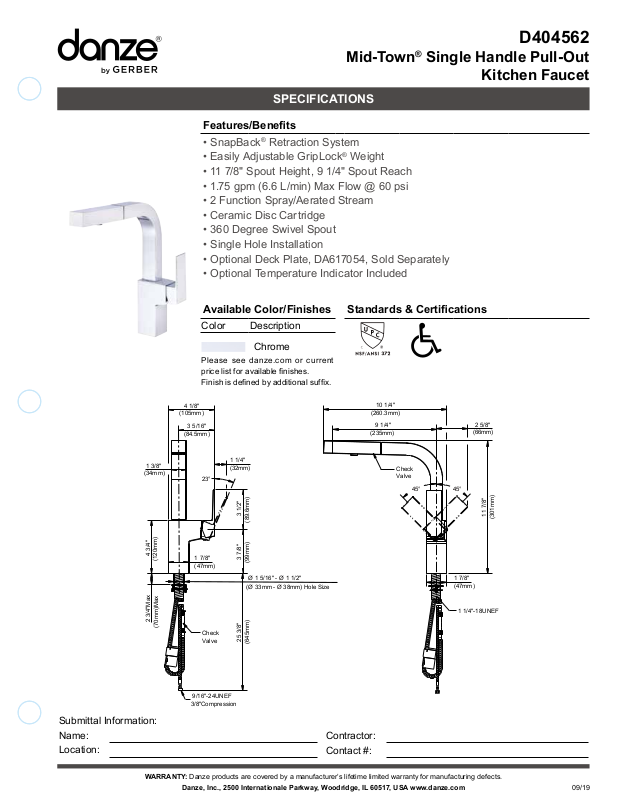

Gerber D404562BS, D404562SS, D404562 Specifications

Mid-Town® Single Handle Pull-Out

SPECIFICATIONS

Features/Benets

• SnapBack

• Easily Adjustable GripLock

• 11 7/8" Spout Height, 9 1/4" Spout Reach

• 1.75 gpm (6.6 L/min) Max Flow @ 60 psi

• 2 Function Spray/Aerated Stream

• Ceramic Disc Cartridge

• 360 Degree Swivel Spout

• Single Hole Installation

• Optional Deck Plate, DA617054, Sold Separately

• Optional Temperature Indicator Included

Available Color/Finishes Standards & Certications

Color Description

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

®

Retraction System

Chrome

®

Weight

D404562

Kitchen Faucet

1 3/8"

(34mm)

4 3/4"

2 3/4"Max

4 1/8"

(105mm)

3 5/16"

(84.5mm)

1 1/4"
(32mm)

23°

3 1/2"

(89.6mm)

(120mm)

(70mm)Max

1 7/8"
(47mm)

Check
Valve

9/16"-24UNEF
3/8"Compression

3 7/8"

(99mm)

Ø 1 5/16" - Ø 1 1/2"

(Ø 33mm - Ø 38mm) Hole Size

25 3/8"

(645mm)

10 1/4"

(260.3mm)

9 1/4"

(235mm)

Check
Valve

2 5/8"

(66mm)

45°45°

1 7/8"
(47mm)

1 1/4"-18UNEF

11 7/8"

(301mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

09/19
