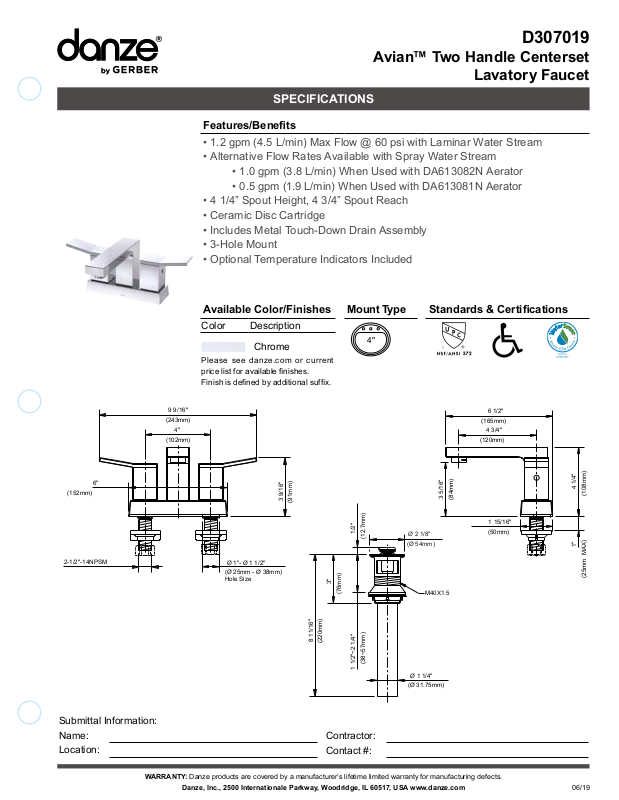

Gerber D307019BS, D307019BN, D307019 Specifications

D307019

Avian™ Two Handle Centerset

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613082N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613081N Aerator

• 4 1/4” Spout Height, 4 3/4” Spout Reach

• Ceramic Disc Cartridge

• Includes Metal Touc

• 3-Hole Mount

• Optional Temperature Indicators Included

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

h-Down Drain Assembly

4"

6"

(152mm)

2-1/2"-14NPSM

9 9/16"

(243mm)

4"

(102mm)

Ø

1"- Ø 1 1/2"

(Ø

25mm - Ø 38mm)

Hole Size

6 1/2"

(165mm)

4 3/4"

(120mm)

4 1/4"

3 5/16"

3 9/16"

(91mm)

1/2"

(12.7mm)

3"

(76mm)

8 11/16"

(220mm)

(38~57mm)

1 1/2"~2 1/4"

Ø 2 1/8"

(Ø 54mm)

Ø 1 1/4"

(Ø 31.75mm)

(84mm)

1 15/16"

(50mm)

M40X1.5

(108mm)

1"

(25mm MAX)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

06/19
