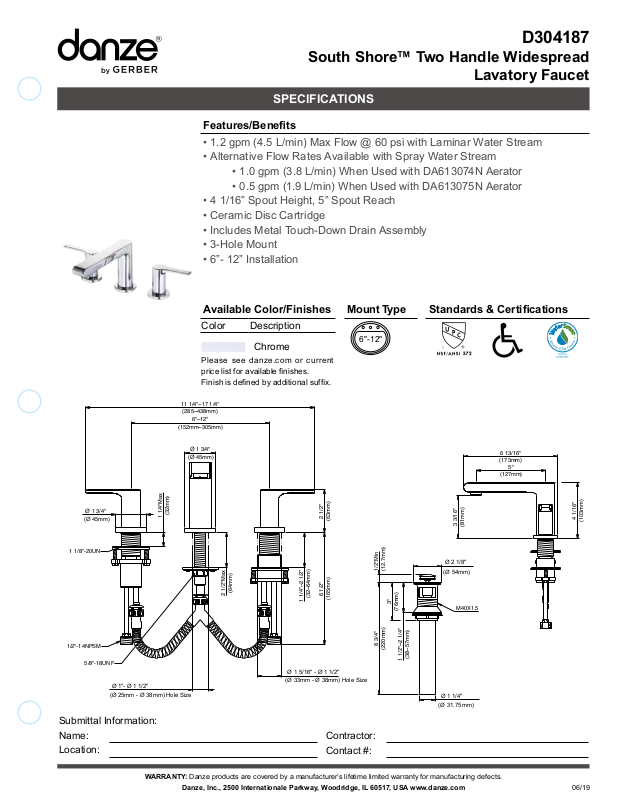

Gerber D304187, D304187BN Specifications
D304187
11 1/4"~17 1/4"
(Ø 31.75mm)
South Shore™ Two Handle Widespread
Lavatory Faucet
SPECIFICATIONS
Features/Benets
• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream
• Alternative Flow Rates Available with Spray Water Stream
• 1.0 gpm (3.8 L/min) When Used with DA613074N Aerator
• 0.5 gpm (1.9 L/min) When Used with DA613075N Aerator
• 4 1/16” Spout Height, 5” Spout Reach
• Ceramic Disc Cartridge
• Includes Metal Touc
• 3-Hole Mount
• 6”- 12” Installation
Available Color/Finishes Mount Type Standards & Certications
Color Description
Chrome
Please see danze.com or current
price list for available nishes.
Finish is dened by additional sufx.
h-Down Drain Assembly
6"-12"
Ø
1 3/4"
(Ø
45mm)
1 1/8"-20UN
1/2"-14NPSM
5/8"-18UNF
1 1/4"Max
Ø
1"- Ø 1 1/2"
(Ø
25mm - Ø 38mm) Hole Size
(285~438mm)
6"~12"
(152mm~305mm)
Ø
1 3/4"
(Ø
45mm)
(32mm)
6 13/16"
(173mm)
5"
(127mm)
2 1/2"
(63mm)
1/2"Min
(12.7mm)
(64mm)
2 1/2"Max
Ø 1 5/16" - Ø 1 1/2"
(Ø 33mm - Ø 38mm) Hole Size
6 1/2"
(32~64mm)
(165mm)
1 1/4"~2 1/2"
3"
(76mm)
8 3/4"
(220mm)
(38~57mm)
1 1/2"~2 1/4"
3 3/16"
Ø 2 1/8"
(Ø 54mm)
M40X1.5
Ø 1 1/4"
(81mm)
4 1/16"
(103mm)
Submittal Information:
Name:
Location:
WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.
Contractor:
Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com
06/19
