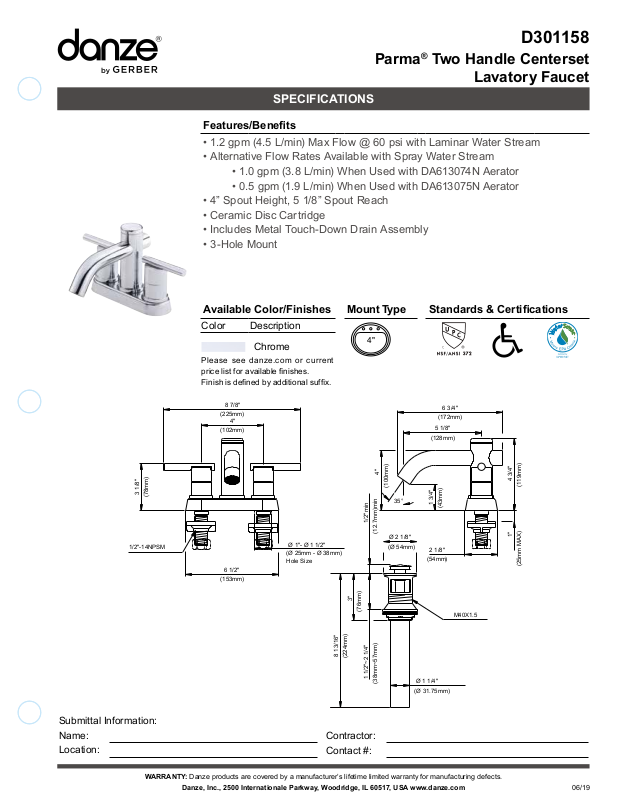

Gerber D301158BN, D301158 Specifications

D301158

Parma® Two Handle Centerset

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613074N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613075N Aerator

• 4” Spout Height, 5 1/8” Spout Reach

• Ceramic Disc Cartridge

• Includes Metal Touch-Down Drain Assembly

• 3-Hole Mount

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

4"

3 1/8"

(78mm)

1/2"-14NPSM

8 7/8"

(225mm)

4"

(102mm)

6 1/2"

(153mm)

Ø

1"- Ø 1 1/2"

(Ø

25mm - Ø 38mm)

Hole Size

6 3/4"

(172mm)

5 1/8"

(128mm)

4"

(100mm)

35°

1/2"min

(12.7mm)min

Ø 2 1/8"

(Ø 54mm)

3"

(76mm)

8 13/16"

(224mm)

1 1/2"~2 1/4"

(38mm~57mm)

1 3/4"

2 1/8"

(54mm)

Ø 1 1/4"

(Ø 31.75mm)

(43mm)

M40X1.5

4 3/4"

(119mm)

1"

(25mm MAX)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

06/19
