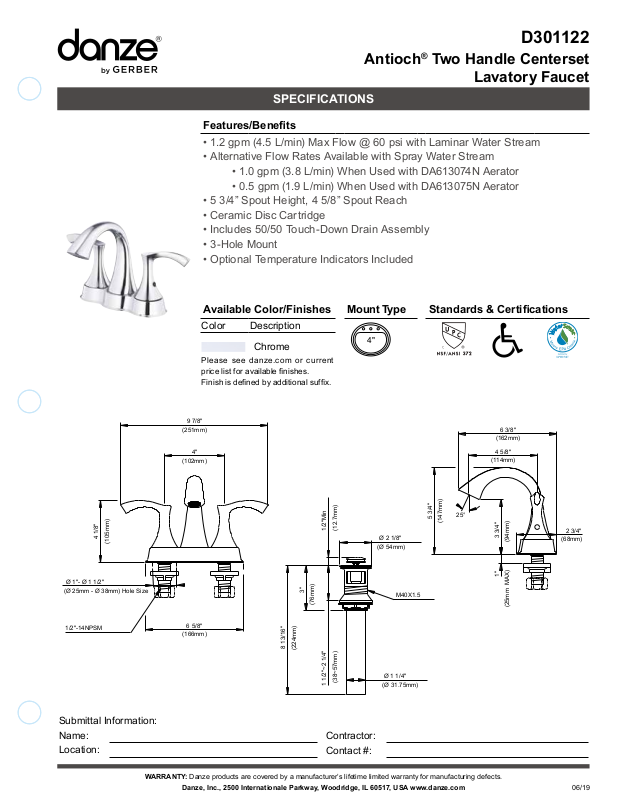

D301122

Antioch® Two Handle Centerset

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613074N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613075N Aerator

• 5 3/4” Spout Height, 4 5/8” Spout Reach

• Ceramic Disc Cartridge

• Includes 50/50 Touch-Down Drain Assembly

• 3-Hole Mount

• Optional Temperature Indicators Included

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

4"

4 1/8"

(105mm)

Ø

1"- Ø 1 1/2"

(Ø

25mm - Ø 38mm) Hole Size

1/2"-14NPSM

9 7/8"

(251mm)

4"

(102mm)

6 5/8"

(166mm)

6 3/8"

(162mm)

4 5/8

"

(114mm)

25°

5 3/4"

1/2"Min

(12.7mm)

3"

(76mm)

8 13/16"

(224mm)

(38~57mm)

1 1/2"~2 1/4"

Ø 2 1/8"

(Ø 54mm)

M40X1.5

Ø 1 1/4"

(Ø 31.75mm)

(147mm)

3 3/4"

(94mm)

1"

(25mm MAX)

2 3/4"

(68mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

06/19
