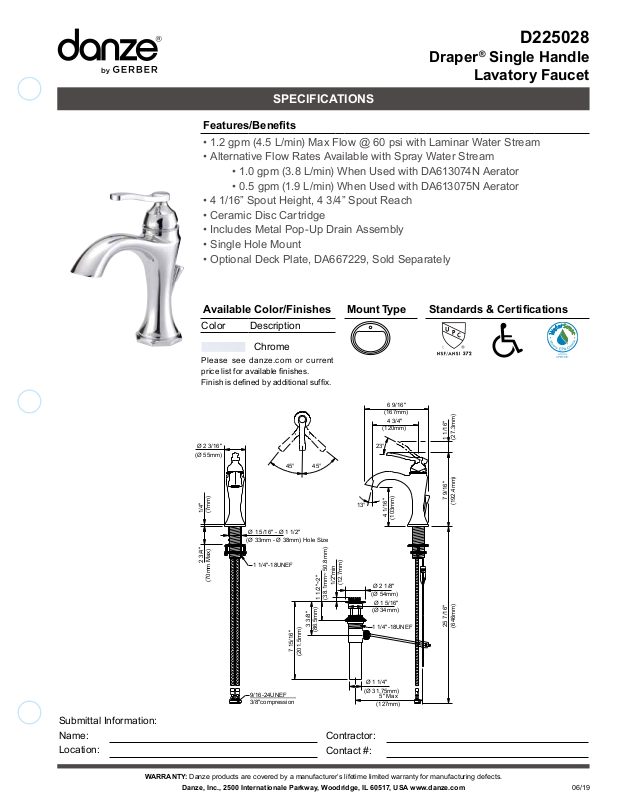

Gerber D225028BN, D225028 Specifications

(127mm)

D225028

Draper® Single Handle

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613074N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613075N Aerator

• 4 1/16” Spout Height, 4 3/4” Spout Reach

• Ceramic Disc Cartridge

• Includes Metal Pop-Up Drain Assembly

• Single Hole Mount

• Optional Deck Plate, DA667229, Sold Separately

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

Ø

(Ø

2 3/16"

55mm)

1/4"

(7mm)

2 3/4"

(70mm Max)

45° 45°

Ø 1 5/16" - Ø 1 1/2"

(Ø 33mm - Ø 38mm) Hole Size

1 1/4"-18UNEF

3 3/8"

(86.5mm)

7 15/16"

(201.5mm)

9/16-24UNEF
3/8"compression

6 9/16"

(167mm)

4 3/4"

(120mm)

23°

13°

1/2"min

(12.7mm)

1 1/2"~2"

(38.1mm~ 50.8mm)

4 1/16"

Ø 2 1/8"

(Ø 54mm)

Ø

1 5/16"

(Ø

34mm)

1 1/4"-18UNEF

Ø 1 1/4"

(Ø 31.75mm)

5" Max

(103mm)

1 1/16"

(27.3mm)

7 9/16"

(192.4mm)

25 7/16"

(646mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

06/19
