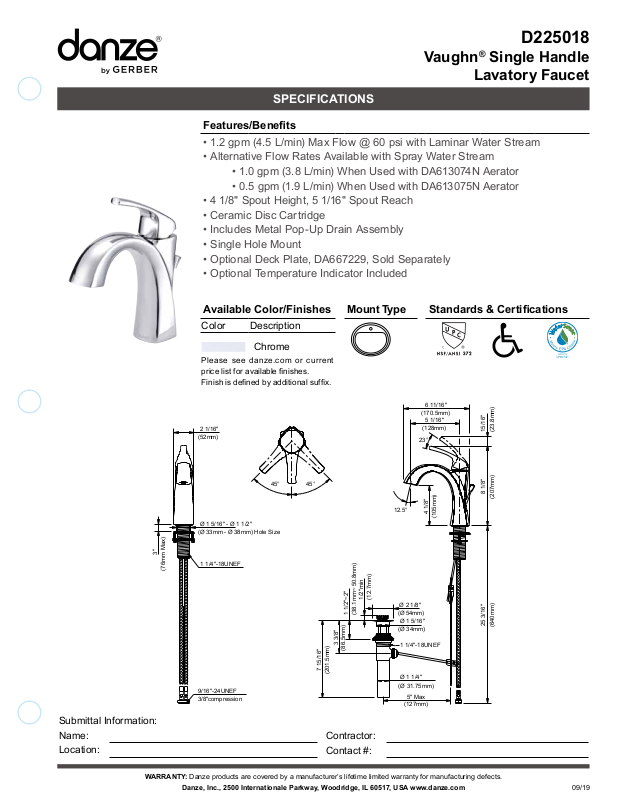

Gerber D225018BS, D225018, D225018BN Specifications

D225018

Vaughn® Single Handle

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613074N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613075N Aerator

• 4 1/8" Spout Height, 5 1/16" Spout Reach

• Ceramic Disc Cartridge

• Includes Metal Pop-Up Drain Assembly

• Single Hole Mount

• Optional Deck Plate, DA667229, Sold Separately

• Optional Temperature Indicator Included

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

6 11/16"

(170.5mm)

5 1/16"

23°

12.5°

Ø 2 1/8"

(Ø 54mm)

Ø

1 5/16"

(Ø

34mm)

1 1/4"-18UNEF

Ø 1 1/4"

(Ø 31.75mm)

5" Max

(127mm)

(128mm)

4 1/8"

(105mm)

15/16"

(23.8mm)

8 1/8"

(207mm)

25 3/16"

(640mm)

2 1/16"

(52mm)

45° 45°

Ø 1 5/16" - Ø 1 1/2"

(Ø 33mm - Ø 38mm) Hole Size

3"

(76mm Max)

1 1/4"-18UNEF

9/16"-24UNEF
3/8"compression

1/2"min

(12.7mm)

1 1/2"~2"

(38.1mm~ 50.8mm)

3 3/8"

(86.5mm)

7 15/16"

(201.5mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

09/19
