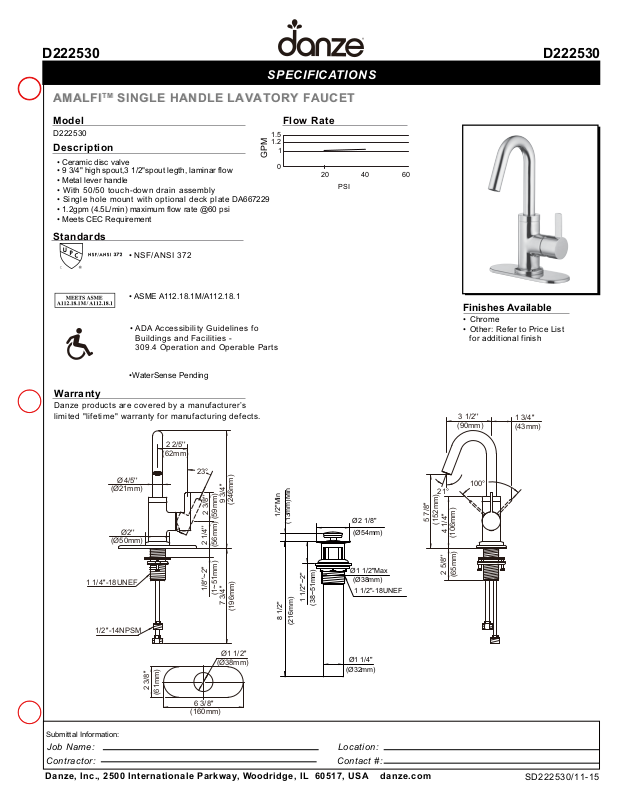

Gerber D222530, D222530BN Specifications

SPECIFIC ATIONS

035222D035222D

AMALFI

AMALFITM SINGLE HANDLE LAVATORY FAUCET

Model

D222530

Description

• Ceramic disc valve
9 3/4" high spout,3 1/2"spout legth, laminar flow

•

• Metal lever handle

• With 50/50 touch-down drain assembly

• Single hole mount with optional deck plate DA667229

• 1.2gpm (4.5L/min) maximum flow rate @60 psi

• Meets CEC Requirement

TM

SINGLE HANDLE LAVATORY FAUCET

Flow Rate

1.5

1.2
1

GPM

0

20 40 60

PSI

Standards

• NSF/ANSI 372

• ASME A112.18.1M/A112.18.1

• ADA Accessibility Guidelines fo
Buildings and F acilities -

309.4 Operation and Operable Parts

•WaterSense Pending

Finishes Available

• Chrome

• Other: Refer to Price List
for additional finish

Warranty

Danze products are covered by a manufact urer’s
limit ed "lifet ime" wa rranty for manufac turing defe cts.

2 2/5''

(62mm)

Ø4/5''

(Ø21mm)

Ø2''

(Ø50mm)

1 1/4''-18UNEF

1/2''-14NPSM

23°

2 3/8''

(59mm)

2 1/4''

(56mm)

1/8''~2''

(1~51mm)

Ø1 1/2''

(Ø38mm)

9 3/4''

(246mm)

7 3/4''

(196mm)

1/2"Min

(13mm)Min

8 1/2"

(216mm)

1 1/2"~2"

(38~51mm)

Ø2 1/8"

(Ø54mm)

Ø1 1/2"Max

(Ø38mm)

1 1/2"-18UNEF

Ø1 1/4"

(Ø32mm)

21°

5 7/8''

(152mm)

3 1/2''

(90mm)

4 1/4''

(106mm)

2 5/8''

(65mm)

1 3/4''
(43mm)

100°

2 3/8''

(61mm)

6 3/8''

(160mm)

Submittal Information:

Jo b Name: Loca tion :

Cont ract or : Cont ac t #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

SD222530/11-15
