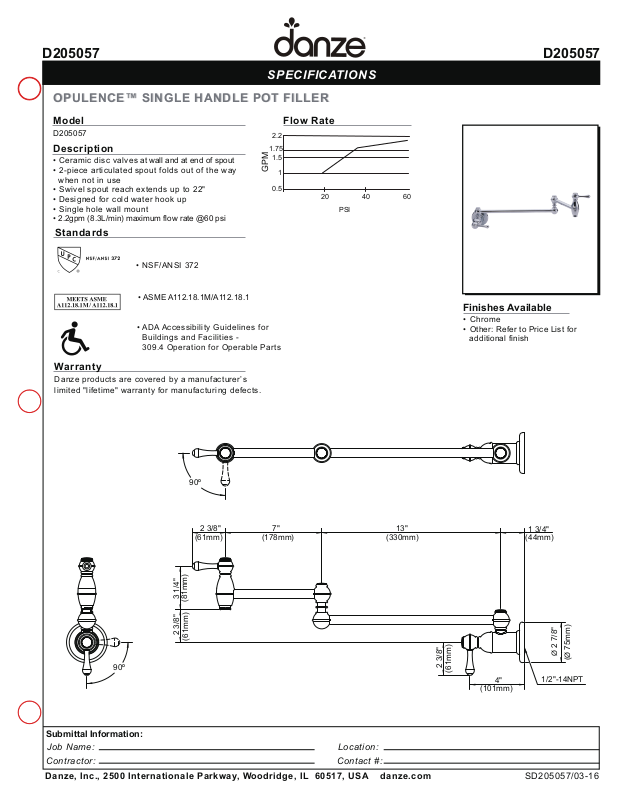

Gerber D205057BR, D205057, D205057SS, D205057BS Specifications

SPECIFICATIONS

OPULENCE™ SINGLE HANDLE POT FILLER

OPULENCE™ SINGLE HANDLE POT FILLER

750502D750502D

Model

D205057

Description

• Ceramic disc valves at wall and at end of spout

• 2-piece articulat ed spout folds out of the way
when not in use

• Swivel spout reach extends up to 22"

• Designed for cold water hook up

• Single hole wall mount

• 2.2gpm (8.3L/min) maximum flow rate @60 psi

Standards

• NSF/ANSI 372

• ASME A112.18.1M/A112.18.1

• ADA Accessibility Guidelines for
Buildings and Facilities -

309.4 Operation for Operable Parts

Warranty

Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufa cturing defects.

Flow Rate

2.2

1.75

1.5

GPM

1

0.5
20 40 60

PSI

Finishes Available

• Chrome

• Other: Refer to Price List for
additional finish

90º

90º

3 1/4"

(81mm)

2 3/8"

(61mm)

2 3/8"

(61mm)

7"

(178mm)

Submittal Information:

Job Name: Locat ion:

Contract or: Contact #:

13"

(330mm)

2 3/8"

(61mm)

4"

(101mm)

1 3/4"

(44mm)

1/2"-14NPT

SD205057/03-16Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

Ø 2 7/8"

Ø 75mm)

(
