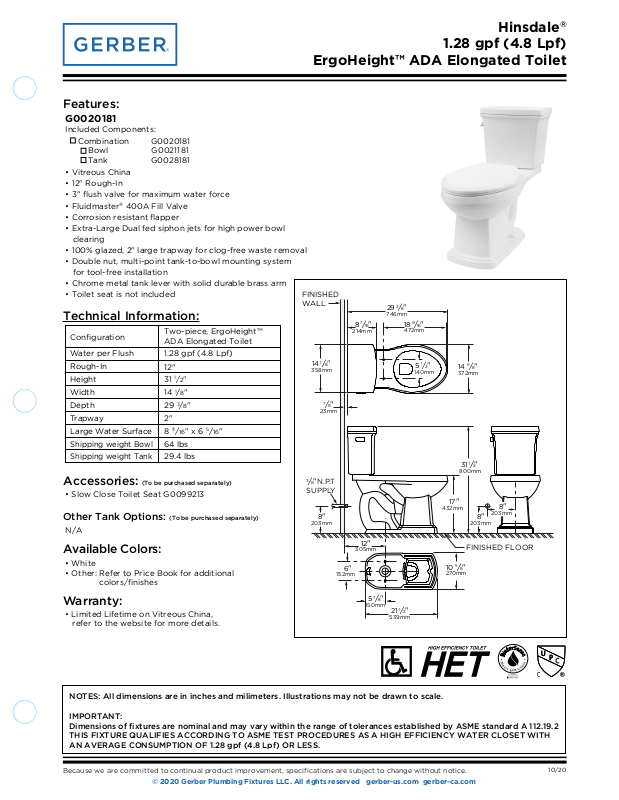

Gerber CBGG1322 Specifications
Features:
G0020181
Included Components:
Combination G0020181
Bowl G0021181
Tank G0028181
• Vitreous China
• 12" Rough-In
• 3" flush valve for maximum water force
• Fluidmaster
• Corrosion resistant flapper
• Extra-Large Dual fed siphon jets for high power bowl
clearing
• 100% glazed, 2" large trapway for clog-free waste removal
• Double nut, multi-point tank-to-bowl mounting system
for tool-free installation
• Chrome metal tank lever with solid durable brass arm
• Toilet seat is not included
®
400A Fill Valve
Technical Information:
Configuration
Water per Flush
Rough-In
Height
Width
Depth
Trapway
Large Water Surface
Shipping weight Bowl
Shipping weight Tank
Two-piece, ErgoHeight™
ADA Elongated Toilet
1.28 gpf (4.8 Lpf)
12"
1
/2"
31
1
14
/8"
3
29
/8"
2"
11
8
/16" x 6 5/16"
64 lbs
29.4 lbs
Accessories: (To be purchased separately)
• Slow Close Toilet Seat G0099213
Other Tank Options: (To be purchased separately)
N/A
Available Colors:
• White
• Other: Refer to Price Book for additional
colors/finishes
Warranty:
• Limited Lifetime on Vitreous China,
refer to the website for more details.
Hinsdale
1.28 gpf (4.8 Lpf)
ErgoHeight™ ADA Elongated Toilet
FINISHED
WALL
14
358mm
3
/8"
N.P.T
SUPPLY
8"
203mm
1
/8"
7
/8"
23mm
6"
152mm
7
8
/16"
214mm
12"
305mm
150mm
3
29
/8"
746mm
9
18
/16"
472mm
1
5
/2"
140mm
17 "
432mm
5
14
/8"
372mm
1
31
/2"
800mm
203mm
8"
203mm
8"
FINISHED FLOOR
5
10
/8"
270mm
7
5
/8"
1
21
/2"
539mm
®
NOTES: All dimensions are in inches and milimeters. Illustrations may not be drawn to scale.
IMPORTANT:
Dimensions of fixtures are nominal and may vary within the range of tolerances established by ASME standard A 112.19.2
THIS FIXTURE QUALIFIES ACCORDING TO ASME TEST PROCEDURES AS A HIGH EFFICIENCY WATER CLOSET WITH
AN AVERAGE CONSUMPTION OF 1.28 gpf (4.8 Lpf) OR LESS.
Because we are committed to continual product improvement, specifications are subject to change without notice.
© 2020 Gerber Plumbing Fixtures LLC. All rights reserved gerber-us.com gerber-ca.com
10/20
