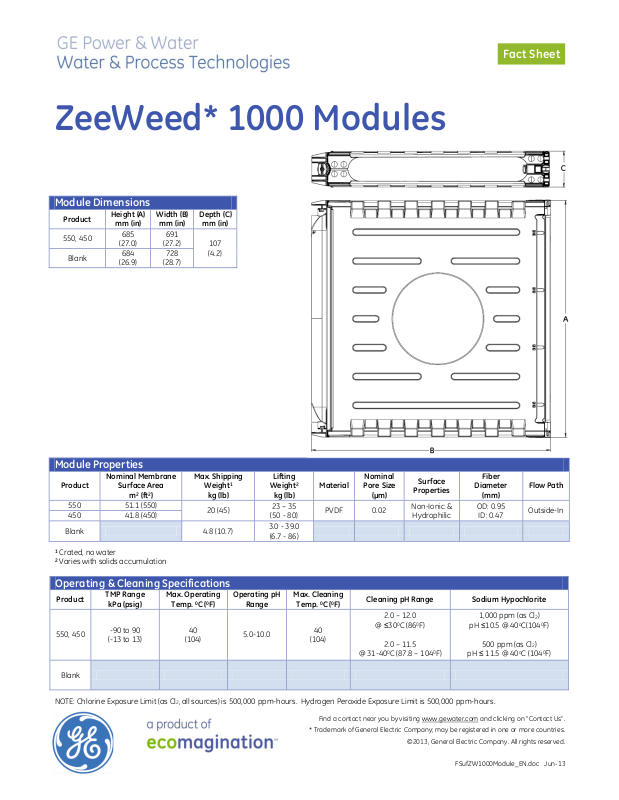

GE P&W ZeeWeed 1000 User Manual

Fact Sheet

Find a contact near you by visiting www.gewater.com and clicking on “Contact Us”.

* Trademark of General Electric Company; may be registered in one or more countries.

©2013, General Electric Company. All rights reserved.

FSufZW1000Module_EN.doc Jun-13

Module Properties

Product

Nominal Membrane

Surface Area

m2 (ft2)

Max. Shipping

Weight1

kg (lb)

Lifting

Weight2

kg (lb)

Material

Nominal

Pore Size

(µm)

Surface

Properties

Fiber

Diameter

(mm)

Flow Path

550

51.1 (550)

20 (45)

23 – 35

(50 - 80)

PVDF

0.02

Non-Ionic &

Hydrophilic

OD: 0.95

ID: 0.47

Outside-In

450

41.8 (450)

Blank 4.8 (10.7)

3.0 - 39.0
(6.7 - 86)

Operating & Cleaning Specifications

Product

TMP Range

kPa (psig)

Max. Operating

Temp. 0C (0F)

Operating pH

Range

Max. Cleaning

Temp. 0C (0F)

Cleaning pH Range

Sodium Hypochlorite

550, 450

-90 to 90

(-13 to 13)

40

(104)

5.0-10.0

40

(104)

2.0 – 12.0

@ ≤300C (860F)

2.0 – 11.5

@ 31-400C (87.8 – 1040F)

1,000 ppm (as Cl2)

pH ≤10.5 @ 40oC(1040F)

500 ppm (as Cl2)

pH ≤ 11.5 @ 40oC (1040F)

Blank

Module Dimensions

Product

Height (A)

mm (in)

Width (B)

mm (in)

Depth (C)

mm (in)

550, 450

685

(27.0)

691

(27.2)

107
(4.2)

Blank

684

(26.9)

728

(28.7)

ZeeWeed* 1000 Modules

1

Crated, no water

2

Varies with solids accumulation

NOTE: Chlorine Exposure Limit (as Cl2, all sources) is 500,000 ppm-hours. Hydrogen Peroxide Exposure Limit is 500,000 ppm-hours.
