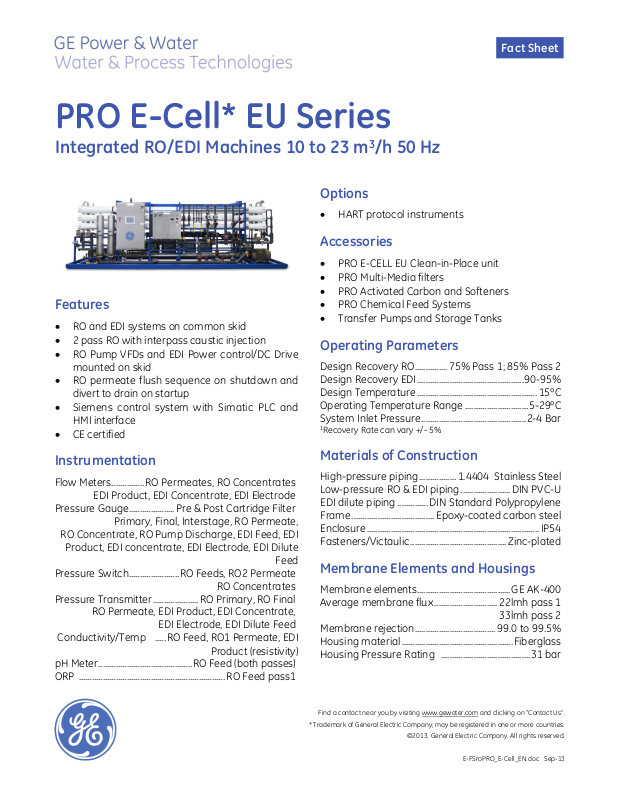

Fact Sheet
PRO E-Cell* EU Series
Integrated RO/EDI Machines 10 to 23 m3/h 50 Hz
Options
HART protocol instruments
Accessories
PRO E-CELL EU Clean-in-Place unit
PRO Multi-Media filters
PRO Activated Carbon and Softeners
Features
RO and EDI systems on common skid
2 pass RO with interpass caustic injection
RO Pump VFDs and EDI Power control/DC Drive
mounted on skid
RO permeate flush sequence on shutdown and
divert to drain on startup
Siemens control system with Simatic PLC and
HMI interface
CE certified
PRO Chemical Feed Systems
Transfer Pumps and Storage Tanks
Operating Parameters
Design Recovery RO ............... 75% Pass 1; 85% Pass 2
Design Recovery EDI ................................................. 90-95%
Design Temperature ....................................................... 15ºC
Operating Temperature Range ............................. 5-29ºC
System Inlet Pressure ................................................ 2-4 Bar
1
Recovery Rate can vary +/- 5%
Instrumentation
Flow Meters ............... RO Permeates, RO Concentrates
EDI Product, EDI Concentrate, EDI Electrode
Pressure Gauge ..................... Pre & Post Cartridge Filter
Pressure Switch....................... RO Feeds, RO2 Permeate
RO Concentrates
Pressure Transmitter ..................... RO Primary, RO Final
RO Permeate, EDI Product, EDI Concentrate,
EDI Electrode, EDI Dilute Feed
pH Meter ........................................... RO Feed (both passes)
ORP ................................................................... RO Feed pass1
Primary, Final, Interstage, RO Permeate,
RO Concentrate, RO Pump Discharge, EDI Feed, EDI
Product, EDI concentrate, EDI Electrode, EDI Dilute
Feed
Conductivity/Temp ..... RO Feed, RO1 Permeate, EDI
Product (resistivity)
Materials of Construction
High-pressure piping ................. 1.4404 Stainless Steel
Low-pressure RO & EDI piping ....................... DIN PVC-U
EDI dilute piping .............. DIN Standard Polypropylene
Frame ...................................... Epoxy-coated carbon steel
Enclosure ............................................................................... IP54
Fasteners/Victaulic ............................................ Zinc-plated
Membrane Elements and Housings
Membrane elements ........................................... GE AK-400
Average membrane flux ............................. 22lmh pass 1
33lmh pass 2
Membrane rejection ..................................... 99.0 to 99.5%
Housing material ................................................... Fiberglass
Housing Pressure Rating ......................................... 31 bar
EDI Stacks
MODEL
PRO E-Cell EU-10DP
PRO E-Cell EU-20DP
RO Feed Rate:
RO Concentrate Rate:
EDI Product Rate:
EDI Concentrate Rate:
EDI Electrode Rate:
19 m3/hr
4.8 m3/hr
9-12.4 m3/hr
0.6 m3/hr
0.2 m3/hr
34 m3/hr
9.5 m3/hr
18-24.8 m3/hr
1.2 m3/hr
0.4 m3/hr
High pressure pumps
Model:
Manufacturer:
Quantity:
Motor Power and type:
Installed Power:
CRN 20-14 Pass 1
CRN 15-14 Pass 2
Grundfos
2
15kW TEFC Pass 1
11kW TEFC Pass 2
26 KW
CRN 45-7 Pass 1
CRN 45-7 Pass 2
Grundfos
2
30 kW TEFC Pass 1
30 kW TEFC Pass 2
60. KW
Membrane Elements and Housings EDI Stacks
Membrane Quantity:
Memb. Housing Style:
Banking Arrangement:
20 Pass 1 ; 12 Pass 2
4 element long,
4 port
32 Pass 1 ; 21 Pass 2
36 Pass 1 ; 18 Pass 2
6 element long,
4 port
42 Pass 1 ; 21 Pass 2
Stack Model :
Stack Quantity:
Power (DC drive, 400 VDC):
GE E-Cell 3X
2
16 A max
GE E-Cell 3X
4
32 A max
Cartridge Filtration
Housing Model:
Housing Quantity:
Cartridge Filter Model:
Cartridge Filter Length:
Cartridge Filter Qty:
HX-0740-80-V-316-A-EMEA
1
ROSave.Zs, RO.Zs01-40XK
40-inch (120 cm)
7
HX-0740-80-V-316-A-EMEA
2
ROSave.Zs, RO.Zs01-40XK
40-inch (102 cm)
14
Installation and Utility Requirements
RO Inlet Connection
EDI Product Outlet
RO1 Reject to Drain
RO2 Product Dump
EDI Product Dump
EDI Concentrate Outlet
EDI Electrode Outlet
Inlet Water Pressure:
Air Pressure:
Drain to be Sized for:
Power:
DN50 Flange PN10
DN40 Flange PN10
DN25 Flange PN10
DN40 Flange PN10
DN40 Flange PN10
DN15 Flange PN10
DN15 Flange PN10
2-4 bar
5.5 barg, oil-free, 90 slpm
22 m3/hr
400VAC, 50hz, 3-Phase
DN80 Flange PN10
DN50 Flange PN10
DN40 Flange PN10
DN50 Flange PN10
DN50 Flange PN10
DN15 Flange PN10
DN15 Flange PN10
2-4 bar
5.5 barg, oil-free, 90 slpm
35 m3/hr
400VAC, 50hz, 3-Phase
Skid Dimensions and Weights (approx.)
Height:
Width:
Length:
Shipping Weight :
Operating Weight:
2.4m
1.4m
5.8m
3,500kg
4,500kg
2.4m
1.6m
7.2m
6,100kg
7,800kg
Cartridge Filtration
Model ...................................................................... GE E-Cell 3X
Stack product flow rate, nominal ........................ 5 m3/hr
Performance ..................................................... 16 MOhm-cm
Silica Removal ............................................................. <10 ppb
PRO E-Cell Models
Housing model............GE HX-0740-80-V-316-A-EMEA
Housing material ......................... 1.4404 Stainless Steel
Cartridge filter ................................. 1-µ nom, ROSave.Zs*,
RO.Zs01-40XK
EDI product flow rate varies with conductivity, hardness/silica, temperature.
Page 2 Fact Sheet
