Membrane

J-Series, Polyvinylidene Fluoride

Model

Spacer

mil (mm)

Active mrea

ft2 (m2)

Outer

wrap

Part

number

JW2540C-50P

30 (0.76)

27 (2.5)

Cage

1231008

JW2540F-50P

50 (1.27)

19 (1.8)

Fiberglass

1232680

JW4040C-50P

30 (0.76)

73 (6.8)

Cage

1229302

JW4040F1052, Stinger

30 (0.76)

91 (8.5)

Fiberglass

3050004

JW6338C-30D

50 (1.27)

62 (5.8)

Cage

3003332

JW8040F-34D

30 (0.76)

366 (34.0)

Fiberglass

1232946

Model1

Dimensions, inches (cm)

Boxed

A

B2

C3

Weight
lbs (kg)

JW2540C-50P

40.0

(101.6)

0.75

(1.9) OD

2.4

(6.1)

4

(1.8)

JW2540F-50P

40.0

(101.6)

0.75

(1.9) OD

2.4

(6.1)

4

(1.8)

JW4040C-50P

40.0

(101.6)

0.625
(1.59)

3.9

(9.9) 9 (4.1)

JW4040F1052, Stinger

40.0

(101.6)

0.75

(1.9) OD

3.9

(9.9) 9 (4.1)

JW6338C-30D

38.00
(96.5)

1.138
(2.89)

6.34

(16.1)

18

(8.2)

JW8040F-34D

40.0

(101.6)

1.125
(2.86)

7.9

(20.0)

29

(13.2)

Typical Operating Flux

5-20 GFD (8-34 LMH)

Typical Operating Pressure

80-135 psi (555 – 931 kPa)

Maximum Operating Pressure

100psi (700kPa)

Maximum Temperature

Continuous Operation: 122°F (50°C)
Clean-In-Place (CIP): 122°F (50°C)

pH Range

Continuous Operation: 2.0-10.0
Clean-In-Place (CIP): 1.0-11.5

Maxime Pressure Drop

Over an element: 15psi (103kPa)
Per housing: 60psi (414kPa)

Chlorine Tolerance

5,000+ ppm-days

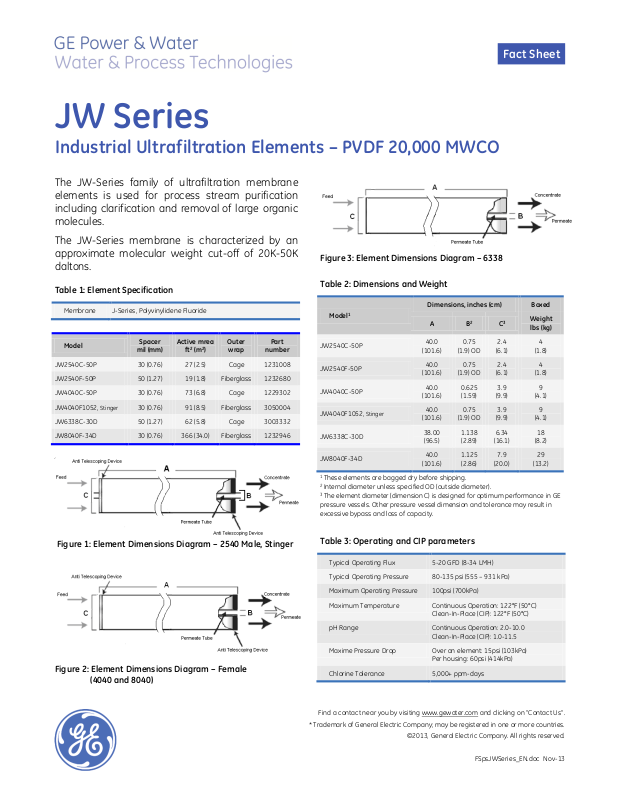

JW Series

Industrial Ultrafiltration Elements – PVDF 20,000 MWCO

The JW-Series family of ultrafiltration membrane
elements is used for process stream purification
including clarification and removal of large organic
molecules.

The JW-Series membrane is characterized by an
approximate molecular weight cut-off of 20K-50K
daltons.

Table 1: Element Specification

Figure 1: Element Dimensions Diagram – 2540 Male, Stinger

Figure 3: Element Dimensions Diagram – 6338

Table 2: Dimensions and Weight

1

These elements are bagged dry before shipping.

2

Internal diameter unless specified OD (outside diameter).

3

The element diameter (dimension C) is designed for optimum performance in GE
pressure vessels. Other pressure vessel dimension and tolerance may result in
excessive bypass and loss of capacity.

Table 3: Operating and CIP parameters

Figure 2: Element Dimensions Diagram – Female
(4040 and 8040)
