PKS7000BN/FN/SN
Cutout width
25" MIN.
25-1/4" MAX.
B
A
C
Cutout height
27-5/8" MIN.
28-1/8" MAX.
Recommended
cutout location
from the floor
32-1/2"
Cutout width
25" MIN.
25-1/4" MAX.
A
C
Cutout height
27-5/8" MIN.
28-1/8" MAX.
Recommended
cutout location
from the floor
32-1/2"
27''
PKS7000BNTS, PKS7000FNDS, PKS7000SNSS,
CKS70DM2NS5, CKS70DP2NS1, JKS3000DNBB,
JKS3000DNWW, JKS3000SNSS, JKS5000DNBB,
JKS5000DNWW, JKS5000SNSS
Cabinet 27"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 1"
C - Overlap of oven at bottom of cutout 1"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 28-7/8"
F - Overall width 26-3/4"
Cutout width
25" MIN.
25-1/4" MAX.
B
A
C
Cutout height
27-5/8" MIN.
28-1/8" MAX.
Recommended
cutout location
from the floor
32-1/2"
27''
F
E
22"
Conduit
48"
Cutout depth
23-1/2" MIN
23" minimum
door opening
allowance
22" to
bottom of
junction box
Junction box
location
8-3/4" MAX.
D
PKS7000BNTS, PKS7000FNDS, PKS7000SNSS,
CKS70DM2NS5, CKS70DP2NS1, JKS3000DNBB,
JKS3000DNWW, JKS3000SNSS, JKS5000DNBB,
JKS5000DNWW, JKS5000SNSS
GE Profile

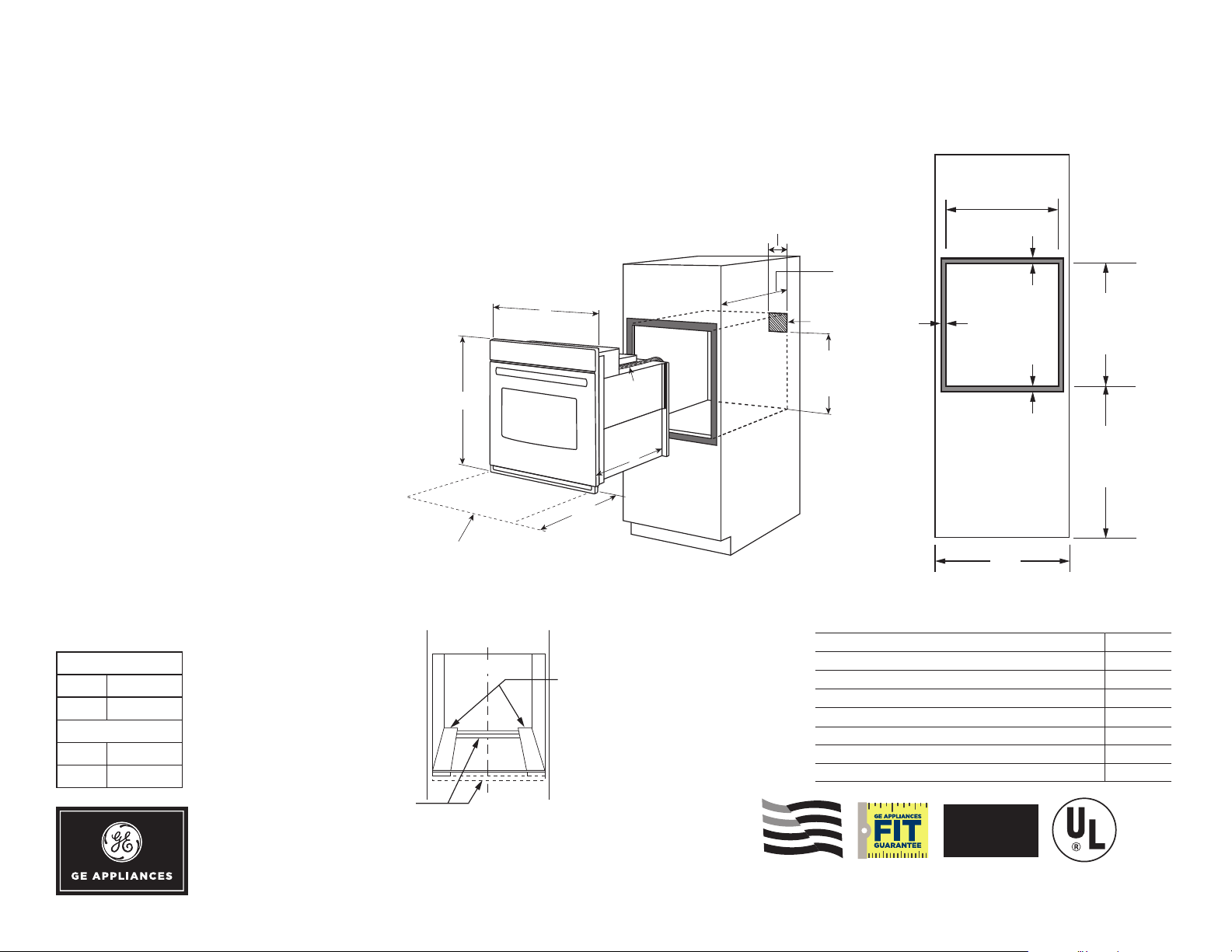

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Single wall ovens are NOT approved
for stacking above or below another single
wall oven.
NOTE: Wall coverings, countertops and
cabinets surrounding the wall oven must
be able to withstand a temperature of up to
200°F (94°C).
NOTE: If the cabinet in which the wall oven
is installed does not have a solid bottom, two
braces or runners must be installed to support
the weight of the oven. The runners and
braces must support up to 220 lbs (99 kg).
NOTE: Door handle protrudes 3" from door
face. Cabinets and drawers on adjacent 45°
and 90° walls should be placed to avoid
interference with the handle.
ATTENTI O N INSTALLE R: Electric wall
ovens are NOT approved for installation with
a plug and receptacle. They must be hard
wired into an approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with product
for current dimensional data.
KW R AT I NG
24 0V 3.6
208V 2.7
BREAKER SIZE
24 0V 20 Amps
208V 20 Amps
™
Series 27" Built-In Single Electric Convection Wall Oven
For answers to your GE Profile™ or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Suitable
bracing
to support
runners
E
23" minimum
door opening
allowance
C
L
(must support 220 lbs.)
F
Conduit
22"
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
48"
D
Dimension and installation information are shown in inches.
8-3/4" MAX.
Cutout width
25" MIN.
25-1/4" MAX.
Cutout depth
23-1/2" MIN
Junction box
location
22" to
bottom of
junction box
B
A
Cutout height
27-5/8" MIN.
28-1/8" MAX.
C
Recommended
cutout location
from the floor
32-1/2"
27''
PKS7000
Cabinet 27"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 1"
C - Overlap of oven at bottom of cutout 1"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 28-7/8"
F - Overall width 26-3/4"
Listed by
ADA
COMPLIANT
Specif ication Revised 1/22
Underwriters
Laboratories
Page 2
PKS7000BN/FN/SN
Gas or Electric Cooktops May Be Installed Over This Oven.
See Cooktop Installation Instructions for Cutout Size.
See Label on Top of Oven for Approved Models.
240V/208V
Junction Box
Location
(junction box may
be in adjacent
cabinet)
Gas or Electric Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right
Top and/or Side Fillers
May Be Necessary if
Unit is Positioned
Between Existing
Cabinets. Be Sure
They Are Attached
Securely, Since They
Will Anchor the Oven
in the Cabinet.
22" (55.9 cm) min.
Above Support
Platform
36" (91.4 cm)
Countertop
Height
Must Match
Toekick Height
24" (61 cm)
4" (10.2 cm)
Toekick
25" (63.5 cm)
MUST SUPPORT 220 lbs. (99 kg) FOR SINGLE OVENS
3/4" (1.9 cm)
Support Platform
Required
Side-bySide Installations
Install two ovens in separate cutouts.
Location
cabinet)
Gas or Electric Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right
22" (55.9 cm) min.
Above Support
Platform
36" (91.4 cm)
Countertop
Height
Must Match
Toekick Height
24" (61 cm)
4" (10.2 cm)
Toekick
Gas or Electric Cooktops May Be Installed Over This Oven.
See Cooktop Installation Instructions for Cutout Size.
See Label on Top of Oven for Approved Models.
240V/208V
Junction Box
Location
(junction box may
be in adjacent
cabinet)
Gas or Electric Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right
Top and/or Side Fillers
May Be Necessary if
Unit is Positioned
Between Existing
Cabinets. Be Sure
They Are Attached
Securely, Since They
Will Anchor the Oven
in the Cabinet.
2 1/2" min. (6.4 cm)
31 1/4" min.
(79.4 cm)
Cooktop
Wall Oven
SIDE OVEN
IMPORTANT:
Maintain a minimum
distance of 31 1/4"
from the top surface
of the countertop to
the wall oven
platform to ensure
that the cooktop and
wall oven do not
interfere with each
other (see picture).
22" (55.9 cm) min.
Above Support
Platform
36" (91.4 cm)
Countertop
Height
Must Match
Toekick Height
24" (61 cm)
4" (10.2 cm)
Toekick
25" (63.5 cm)
MUST SUPPORT 220 lbs. (99 kg) FOR SINGLE OVENS
3/4" (1.9 cm)
Support Platform
Required
Side-bySide Installations
Install two ovens in separate cutouts.
GE Profile
™
Series 27" Built-In Single Electric Convection Wall Oven

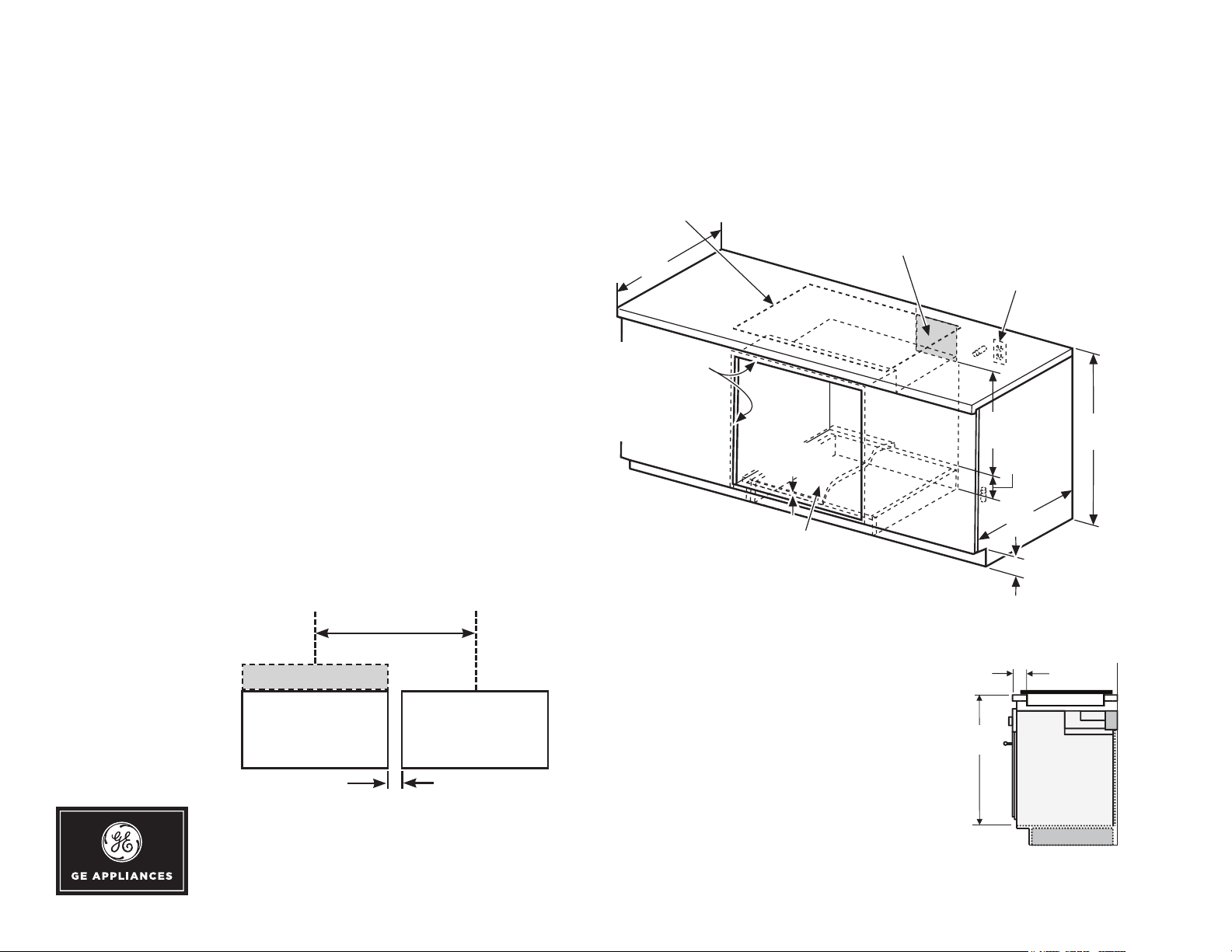

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: 27" Single electric wall ovens are
approved for installation below a countertop,
and below certain gas and electric cooktops.
Refer to the Approved Combinations Matrix
available at geappliances.com for specific
information.
NOTE: 27" Single electric wall ovens are
approved for installation above 27" warming
drawers.
ATTENTION INSTALLER: Electric wall
ovens are NOT approved for installation with
a plug and receptacle. They must be hard
wired into an approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with ALL
products for current dimensional and
combination data.
(TWO OVENS IN SEPARATE CUTOUTS)
Cutout – observe
all dimensions and
requirements
NOTE: One cooktop may be centered over either
oven in the side-by-side installation.
SIDE-BY-SIDE INSTALLATION
Center Line Center Line
30.5" (77.5 cm) 30" models
27" (68.58 cm) 27" models
Cooktop
Cutout – observe
all dimensions and
requirements
For answers to your GE Profile™ or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer Center® Service, 800.626.2000.
2" (5.1 cm) min.
UNDERCOUNTER INSTALLATION
INSTALLATION BELOW A COOKTOP
2 1/2" min. (6.4 cm)
IMPORTANT:
Maintain a minimum
distance of 31 1/4"
from the top surface
of the countertop to
the wall oven
platform to ensure
that the cooktop and
wall oven do not
interfere with each
other (see picture).
31 1/4" min.
(79.4 cm)
Cooktop
Wall Oven
SIDE OVEN
Specif ication Revised 1/22
Page 3
PKS7000BN/FN/SN
GE Profile
FEATURES AND BENEFITS
Brilliant Touch 7" Display – A bright, interactive touch screen makes it fun
and easy to program the oven.
True European Convection – Achieve delicious results from a third heating
element and fan combination.
Built-In WiFi, Powered by SmartHQ App – Connect, control and manage
your oven from anywhere with your smartphone or tablet.
GE Profile Connect + – Ensure your oven always has the latest features, like
new Air Fry modes, with downloadable software updates.
Never scrub, smooth glide racks – Easily remove even the heaviest dishes
with a roller rack that’s engineered to glide seamlessly out of the oven.
Precision temperature probe – Internal probe allows monitoring of roasts
and meats to assure they are thoroughly and accurately cooked without
opening the oven door.
Never scrub racks – Save time and effort with racks that are specially
engineered to withstand the heat of the self-clean cycle.
10-pass hidden bake element – Even baking and quick cleanup are assured,
with a 10-pass element that heats a large cooking area and is hidden for an
easy-to-wipe surface.
™
Series 27" Built-In Single Electric Convection Wall Oven
8-pass broil element – Get full broil coverage and even browning from edge
to edge.
Scan-to-cook – Prepare your favorite packaged foods to perfection simply by
scanning the barcode on the package with your smartphone and letting your
oven adjust settings automatically.
Model PKS7000BNTS – Black Stainless
Model PKS7000FNDS – Black Slate
Model PKS7000SNSS – Stainless steel
FIT GUARANTEE
Replacing a similar wall oven from GE Appliances or
another brand? GE wall ovens are guaranteed for an
exact fit or GE Appliances will pay up to $300 toward
modifications.
Visit geappliances.com for more info
Specif ication Revised 1/22
