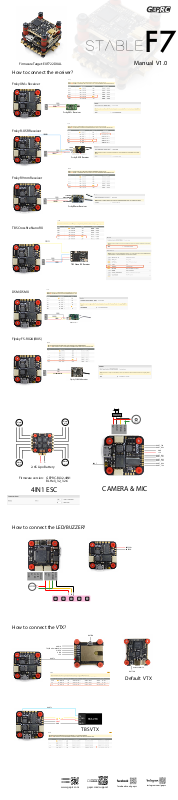

GEPRC Stable F7 User Manual
F7
Firmware Target:EXF722DUAL
How to connect the receiver?
Manual V1.0
Frsky XM+ Receiver
GND
5V
RX4
3.3V
GND
5V
S.Bus
Frsky XM+ Receiver
Frsky R-XSR Receiver
S.Port
SBUS_IN
GND
5V
RX4
3.3V
S.Bus
GND
5V
SUBS_OUT/CPPM
S.Port
+5v
GND
Frsky R-XSR Receiver
Frsky R9mm Receiver
SBUS_OUT
GND
5V
RX4
3.3V
GND
5V
S.Port
S.PORT/F.PORT
GND
+5v
Inverted S.Port
Frsky R9mm Receiver
TBS Crossre Nano RX
CH1
GND
5V
RX4
3.3V
GND
5V
CH2
TBS Nano RX Receiver
DSM/DSMX
GND
5V
RX4
3.3V
DSMX
3.3V
GND
3.3V
GND
DSMX
DSMX Receiver
Flysky FS-RX2A(IBUS)
GND
5V
RX4
3.3V
GND
5V
UART RX4(IBUS)
Flysky FS-RX2A Receiver
Motor
M4
Motor
M2
5V
5V
Camera
GND
SIN
GND
Video
Audio
-
+
S
MIC
Motor
M3
+
-
Motor
M1
BOOT
UART_TX3
UART_RX3
GND
+5V
UART_RX1
UART_TX1
UART_RX5
UART_TX5
UART_RX4
UART_TX4
2-6S Lipo Battery
Firmware version：GEPRC-BL32-4IN1
BLHeli_32_32.6
4IN1 ESC
CAMERA & MIC
How to connect the LED/BUZZER?
BUZZER+
BUZZER-
GND
BUZZER
5V
U1RX
U1TX
+
-
PWM5
5V
LED
BUZZER-
GND
5V
LED
GND
How to connect the VTX?
AUDIO
BUTTON
TX(IRC or SmartAudio)
VIDEO
GND
+5V
UART2
Antenna MMCX
BUTTON
Default VTX
UART3
VIDEO_IN
5V
VBAT
GND
TX
VIDEO
TBS VTX
5V
GND
TBS VTX
Official
website
www.geprc.com
Manual
instagram.com/geprc
facebook.com/geprc
geprc.com/support
