Georg Fischer 8350 Data Sheet

‡ SIGNET 8350 Temperature Transmitters

3-8350-X (Field)

Description

+GF+

The

SIGNET 8350 Temperature

Transmitter converts the signal from the

+GF+

SIGNET 2350 temperature sensor
into a 4 to 20mA signal. Offers excep­tional repeatability and accuracy over a
wide operating temperature range.
Configurations include open collector
outputs or relays for process control or

Technical Features

Mounting Version Part No. 4 to 20 mA

Wire

Power

3-8350-XP (Panel)

alarming. Chemical resistant NEMA
4X/IP65 packaging options include
highly visible field mount or black panel
mount with standard 1/4 DIN cutout.
Dual input version allows difference
calculation (∆T) and offers cost savings
with independent dual outputs capable
of difference calculation and output.

Sensor

Input

Output

Open Collector/

Relay

Features

•S3L Input

• Field Scaleable

• Temperature and mA
loop indication

• Deg. C or Deg. F

• Output Simulation
function for complete
system testing

• Dual sensor input
option with difference
calc.

• Relay option with
status indicators

• 2 x 16 character
dot matrix LCD

• NEMA 4X/IP65
enclosure and
self-healing window

Application

• Process temperature
monitoring

• Plating Bath
Temperature Control

• Heat Exchange
Monitor

• R.O. system monitor

• DI system monitor

• Hot/Cold Mixing
system monitor

• Data Acquisition

• Cooling loops

• Effluent monitoring

• HVAC

• Chemical Processing

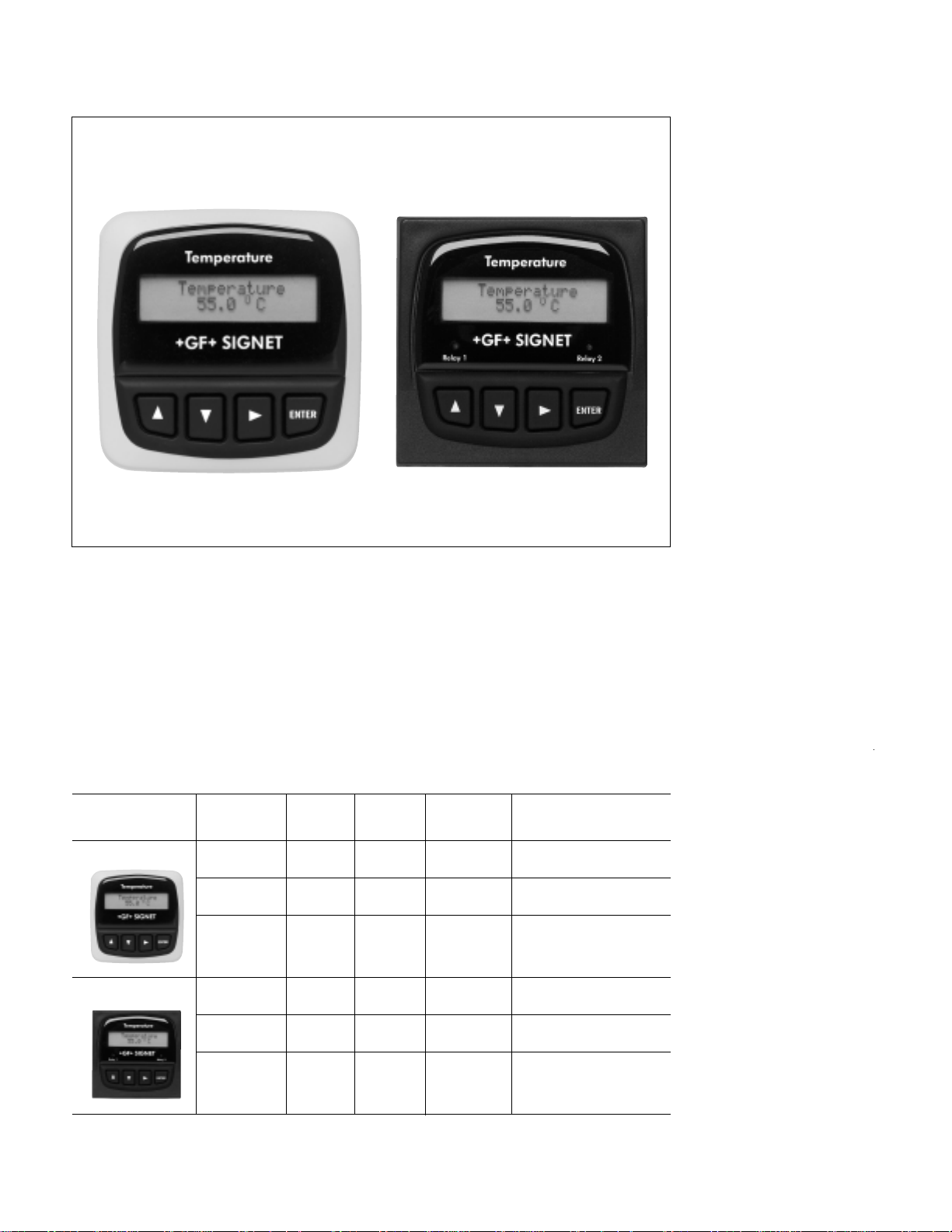

Field

Panel

144

3-8350-1

3-8350-2

3-8350-3

3-8350-1P

3-8350-2P

3-8350-3P

2

4

4

2

4

4

1

1

2

1

1

2

1

1

2

Sensor1,

Sensor 2

or delta T

1

1

2

Sensor1,

Sensor 2

or delta T

1 O.C. Hi, Lo,

Pulse or Off

2 Relays Hi, Lo,

Pulse or Off

2 O.C.’s Hi, Lo,

Pulse or Off

1 O.C. Hi, Lo,

Pulse or Off

2 Relays Hi, Lo,

Pulse or Off

2 O.C.’s Hi, Lo,

Pulse or Off

www.gfsignet.com

Dimensions

Panel Mount

96 mm (3.8 in.)

96 mm;
(3.8 in.)

41 mm;
(1 .6 in.)

Optional;
Rear Cover

56 mm;
(2.2 in.)

97 mm;
(3.8 in.)

Panel Cutout
92 x 92 mm;

(+0.8, -0 mm)

3.6 x 3.6 in.;
(+0.031, -0 in.)

Integral/Universal Mount

96 mm (3.8 in.)

96 mm;
(3.8 in.)

108 mm;
(4.25 in.)

82 mm;
(3.23 in.)

Installation

The transmitter is available in a panel mount or a field version. Select either the universal mount kit (3-8050) to
mount the transmitter on a surface near the sensor or select the integral mount kit (3-8052) to mount the transmitter
onto the sensor.

1. Panel Mount

3-8350-XP

2. Universal Mount

3-8050 Kit

3. Integral Mount

3-8350-X Transmitter3-8350-X Transmitter
3-8052 Kit

All panel mount transmitters
(3-8350-XP) include everything for
panel installation. Panel mount
transmitters fit into a standard 1/4
DIN panel cutout.

Temperature

Temp Units:
°C °F

Relay 1

The Universal Mount Kit (3-8050)
includes a conduit base, locking
ring, and universal adapter for
mounting the transmitter on a pipe,
wall, or other stationary surface.

Relay 2

ENTER

The Integral Mount Kit (3-8052)
includes a conduit base, locking
ring, and integral adapter for
mounting the transmitter and sensor
directly onto a pipe.

www.gfsignet.com

145

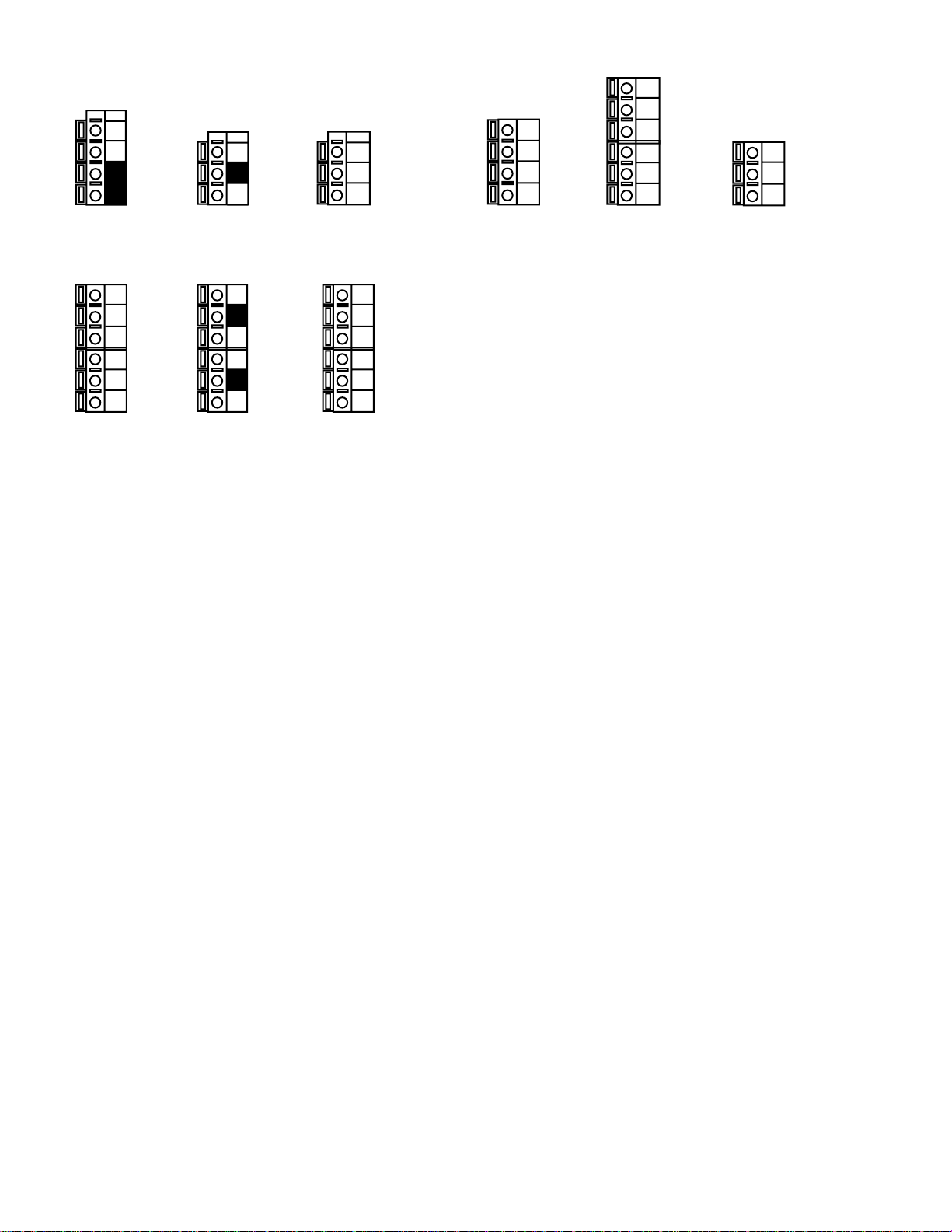

Rear Terminal View

System Pwr<

2<

Loop -

1

System Pwr<
Loop +

Output -

4<
<

Output +

3

7<
6<
5

<

Sensr Gnd<
(WHITE)<
<
Sensr IN<
(RED)<
<
Sensr V+<
(BLACK)

Terminal 8350-1 Terminal 8350-2

4<
3<
2<
1

System Pwr<
Loop -<
<

<

System Pwr<
Loop +<
<
AUX<
Power - <
<
AUX<
Power +

10<

<

Relay 2<
(NO)<
<
Relay 2<

9<

(COM)<
<
Relay 2<

8<

(NC)<
<
Relay 1<

7<

(NO)<
<

<

Relay 1<

6<

(COM)<
<
Relay 1<

5

(NC)<
<

13<
12<
11

Sensr Gnd<
(WHITE)<
<
Sensr IN<
(RED)<
<
Sensr V+<
(BLACK)

6<
5<
4<
3<
2<
1

Loop 2-<
<
<
Loop 2+<
<
<
System Pwr<
Loop -<
<
System Pwr<
Loop +<
<
AUX<
Power -<
<
AUX<
Power +

10<

<
9<
8<

<
7

Output 2-<
<
<
<
<
<
Output 2+<
<
<
Output 1-<
<
<
<
<
<
Output 1+

Terminal 8350-3

Technical Data

General

Compatibility:

Temperature Sensors

Accuracy: ±0.5°C
Enclosure:

• Rating: NEMA 4X/IP65 front

• Case: PBT

• Panel case gasket: Neoprene

• Window: Polyurethane coated
polycarbonate

• Keypad:
Sealed 4-key silicone rubber

Display:

• Alphanumeric 2 x 16 LCD

• Update rate: 1 second

• Contrast: User selected, 5 levels

Shipping Weight: 0.325 kg (0.8 lbs.)

Environmental

Operating temperature:

-10 to 70°C (14 to 158°F)

Storage temperature:

-15 to 80°C (5 to 176°F)

Relative humidity:

0 to 95%, non-condensing

Standards and Approvals

• CSA, CE, UL listed

• Manufactured under ISO 9001 and
ISO 14001

+GF+

SIGNET 3-2350

Snsr 2 Gnd<

16<

(SHIELD)<
<

15<
14<
13<
12<
11

Snsr 2 IN<
(RED)<
<
Snsr 2 V+<
(BLACK)<
<
Snsr 1 Gnd<
(WHITE)<
<
Snsr 1 IN<
(RED)<
<
Snsr 1 V+<
(BLACK)

Note: The terminal blocks are not labeled on the
back of the unit. An adhesive label is supplied with
terminal descriptions to serve as a remote terminal
display.

Electrical

Power:

• 12 to 24 VDC ±10% regulated

(-1) 21 mA max.: (-2) 200 mA max.:
(-3) 31mA max.

Sensor input:

• Range: -10 to 100°C
Current output:

• 4 to 20 mA, isolated, fully adjustable
and reversible

• Max loop impedance:
50Ω max. @ 12 V
325Ω max. @ 18 V
600Ω max. @ 24 V

• Update rate: 200 ms

• Accuracy: ±0.03 mA

Relay output:

• Mechanical SPDT contacts: Hi, Lo,
Pulse, Off

• Maximum voltage rating: 5 A @ 30
VDC, 5 A @ 250 VAC resistive load

• Hysteresis: User adjustable

• Max 400 pulses/min.

Open-collector output: Hi, Lo, Pulse, Off

• Open-collector, optically isolated,
50 mA max, sink, 30 VDC max.
pull-up voltage.

• Hysteresis: User adjustable

• Max 400 pulses/min.

146

www.gfsignet.com

Ordering Information

Mfr. Part No. Code Description

3-8350-1 159 000 192 Temp transmitter, Field mount
3-8350-1P 159 000 193 Temp transmitter, Panel mount
3-8350-2 159 000 194 Temp transmitter, Field mount with relays
3-8350-2P 159 000 195 Temp transmitter, Panel mount with relays
3-8350-3 159 000 196 Temp transmitter, Field mount with dual input/output
3-8350-3P 159 000 197 Temp transmitter, Panel mount with dual input/output

Accessories

Mfr. Part No. Code Description

3-8050 159 000 184 Universal mounting kit
3-8050.395 159 000 186 Transmitter NEMA 4X cover
3-8052 159 000 188 3/4 in. Integral mounting kit
3-8052-1 159 000 755 3/4 in. NPT mount junction box
3-8050.396 159 000 617 RC Filter kit (for relay use)
3-0000.596 159 000 641 Heavy duty wall mount bracket
3-5000.598 198 840 225 Surface Mount Bracket
3-9000.392 159 000 368 Liquid tight connector kit for rear cover (includes 3 connectors)
3-9000.392-1 159 000 839 Liquid tight connector kit, NPT (1 piece)
3-9000.392-2 159 000 841 Liquid tight connector kit, PG13.5 (1 piece)

Engineering Specifications

• The transmitter shall be CSA, UL and CE listed.

• The transmitter shall be manufactured under ISO 9001 and ISO 14001 certified processes.

• The transmitter shall be field or panel mountable.

• The temperature shall be displayed in °C or °F.

• The device shall meet NEMA 4X and IP65 standards.

• The operating voltage shall be 12 to 24 VDC.

• The transmitter shall have an isolated 4 to 20 mA output with an open collector output, 5 to 30 VDC or a 4 to
20 mA output with 2 relays or a 4 to 20 mA output with dual open collector with delta capability.

• The transmitter shall have hold and simulate capability.

• The transmitter shall be

+GF+

SIGNET 8350 Temperature Transmitter.

www.gfsignet.com
