Signet 5800CR Conductivity Monitor
Member of the ProPointTM Family of Monitors
Analog and Digital Display
Description
The Signet 5800 ProPointTM Conductivity Monitor features a unique analog/
digital display, making it the preferred
measurement instrument for applications requiring routine monitoring. The
digital display guides the user through
the simple menu system and provides
precision information, while the analog
dial serves as a quick, at-a-glance
indicator of the measurement process.
The 5800CR offers 2 fully programmable dry contact relays and a 4 to 20mA
current. The monitor requires 12 to
24 VAC or VDC and is packaged in a
convenient 1/4 DIN, NEMA 4X/IP65
front panel. The enclosure is hardcoated, high-impact, UV resistant
polycarbonate.
In addition to programmable outputs
and relays, the unit can also be set up
to measure raw conductivity values,
hence meeting USP requirements.
Features
• Meets USP
requirements for raw
conductivity/resistivity
measurements
• Display units: μS, mS,
kΩ, MΩ, PPM (TDS)
• Temperature
compensation
• Two programmable
relays
• Dual proportional control capability
• Scaleable 4 to 20 mA
output
• Simple push-button
operation
• Intuitive software
• Non-volatile memory
• Compatible with ALL
Signet conductivity
electrodes
• 12 to 24VAC or VDC
power
System Overview
In-line Sensor Installation
Panel Mount
Signet
5800CR
Conductivity Monitor
Signet 2819-2823 in-line,
submersible, sanitary
versions;
2839-2842
Threaded
Conductivity
Electrodes
(sold separately)
Fittings - Customer supplied
122
Submersible Sensor Installation
Panel Mount
Signet
5800CR
Conductivity Monitor
Pipe extension
or conduit
with 3/4 in.
FNPT threads
(customer supplied)
Signet 2819-2823, 2839-2842
Conductivity Electrodes
Note: Submersible installation not
applicable for Sanitary Electrode.
(sold separately)
• NEMA 4X/IP65
Application
• Water Quality
Monitoring
• Reverse Osmosis
• Demineralizer Regeneration and Rinse
• Cooling Tower &
Boiler Protection
• Chemical
Concentration
• Rinse Tanks
• Desalination
• Artificial Saltwater
Production
• Aquatic Animal Life
Support Systems
• Aquaculture
• Environmental Studies
C
US
E171559
www.gfsignet.com

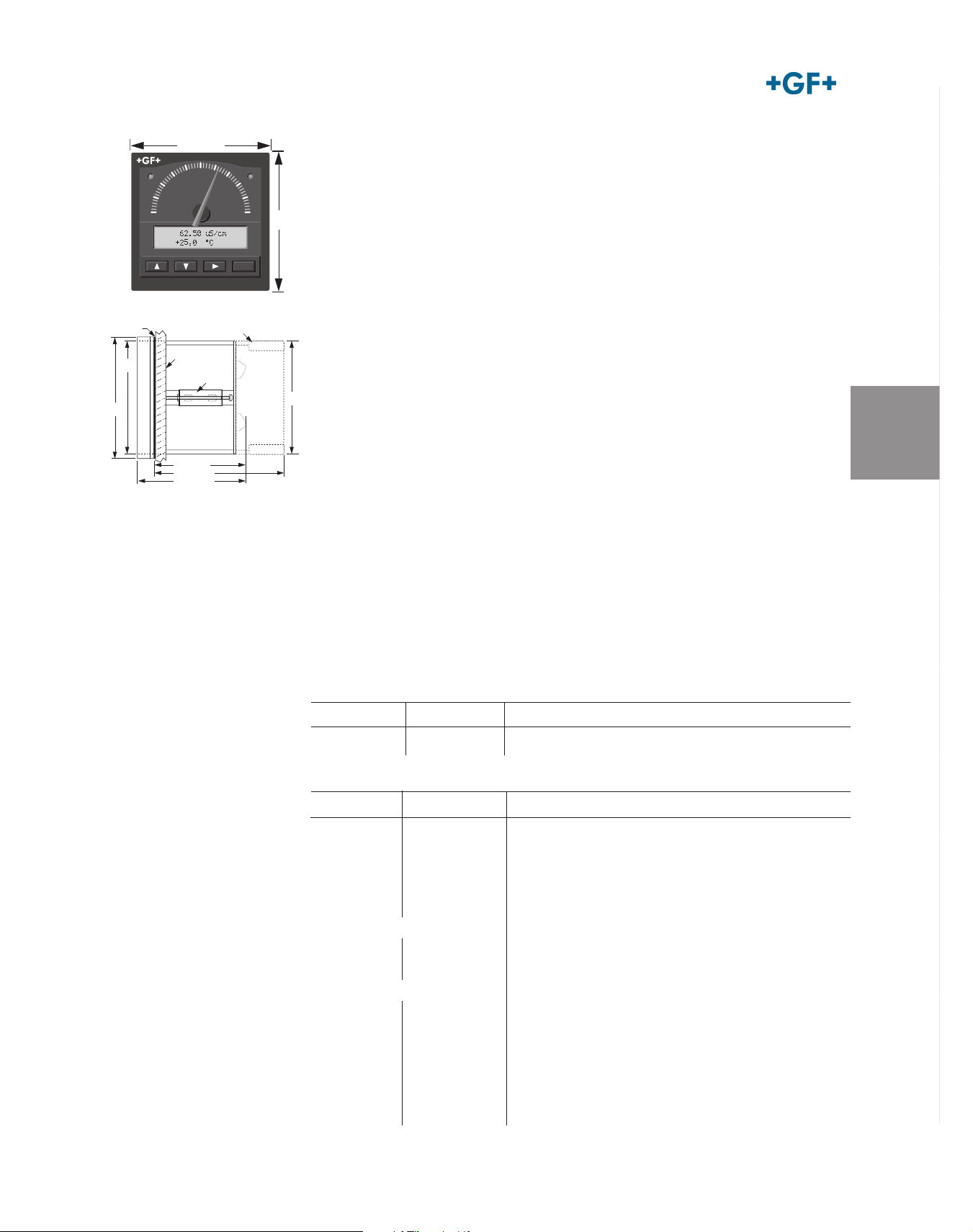

Dimensions
96 mm (3.8 in.)
40
Relay 1
20
0
Signet Monitor
Front View
Panel
Gasket
Mounting Panel
76 mm (3 in.)
96 mm (3.8 in.)
88 mm (3.5 in.)
Side View
96 mm
(3.8 in.)
91 mm
(3.6 in.)
60
S/cm
Optional Splashproof
Rear Cover
Mounting
Clamp (2 ea.)
Choosing
Products
Specifications
General
Operating Range:
• Conductivity: 0.055 to 400,000 μS/cm
Relay 2
80
100
• Resistivity: 10 kΩ•cm to 18.2 MΩ•cm
(0.055 to 100 μS/cm)
Solution temperature must be greater than
96 mm
(3.8 in.)
20°C for Resistivity above 10MΩ•cm
• Temperature:
ENTER
0°C to 100°C (32°F to 212°F) using
PT-1000
Display
• Analog: Reversible dials: 0 to 2, 4,
6, 8, 10 and 100
• Digital: Backlit LCD, 2x16 alpha
numeric character
Electrical
Power Requirements:
88 mm
(3.5 in.)
12 to 24 Volts, AC or DC, unregulated,
50 to 60 Hz, 10W max.
Current Output
• 4 to 20 mA, non-isolated, active, internally powered
• Loop impedance:
350Ω max. @ 12V
950Ω max. @ 24V
• Accuracy: ± 0.1%
Materials
• Enclosure: ABS Plastic
• Keypad: Silicone Rubber
• Panel and case gasket: Neoprene
• Window: Hard-coated polycarbonate
Environmental
Enclosure rating: NEMA 4X/IP65 front
Operating temperature:
-10°C to 55°C (14°F to 131°F)
Relative humidity:
0 to 95%, non-condensing
Shipping Weight: 0.8 kg (1.76 lb)
Standards and Approvals
• CE, UL
• Immunity: EN50082-1
• Emissions: EN55011
• Safety: EN61010-1
• Manufactured under ISO 9001:2000
for Quality & ISO 14001:2004 for
Environmental Management
Instrument
Multi-Pa-
rameter
Flow
pH/ORP
Conductivity/
Resistivity
Pressure, Level
Temperature,
Model 5800CR
Ordering Notes:
1) Panel cutout should
be 92 x 92 mm (3.62 x
3.62 in.)
2) Reversible dials are
included and are
scaled from 0 to 2, 0
to 4, 0 to 6, 0 to 8, 0 to
10, and 0 to 100.
3) An optional splash
proof rear cover can
be ordered separately
if needed.
4) Unit tags are provided
for labeling dials.
5) Use RC filter kits to
protect relays from
voltage spikes.
Please refer to
Wiring, Installation
and Accessories
sections for more
information.
www.gfsignet.com
Alarm Contacts:
• Two SPDT relays:
5A @ 30VDC, 5A @ 125VAC, or
3A @ 250VAC max.
• High/Low/Pulse programmable with
adjustable hysteresis
Ordering Information
Mfr. Part No. Code Description
3-5800CR 198 825 005 Conductivity/Resistivity Monitor
Accessories and Replacement Parts
Mfr. Part No. Code Description
Mounting
3-5000.395 198 840 227 Splashproof rear cover kit
3-5000.598 198 840 225 Surface mount bracket
3-0000.596 159 000 641 Heavy duty bracket for wall mounting
3-5000.399 198 840 224 5 x 5 inch adapter plate for Signet retrofit
3-8050.392 159 000 640 Model 200 retrofit adapter
Liquid tight connectors
3-9000.392 159 000 368 Liquid tight connector kit for rear cover (3 connectors)
3-9000.392-1 159 000 839 Liquid tight connector kit, NPT (1 piece)
3-9000.392-2 159 000 841 Liquid tight connector kit PG13.5 (1 piece)
Replacement Parts
3-5000.390 159 000 323 Installation kit
3-5000.525-1 198 840 226 Bezel, 5000 series
3-5500.390 159 000 347 Dial kit
3-5500.611 198 840 230 Unit tags
3-5000.397 159 000 326 5000 Series Window (window, keypad, and screws)
Other
3-5000.398 159 000 646 Protective Overlay kit (10 pcs)
3-8050.396 159 000 617 RC Filter kit (for relay use), 2 per kit
