serving CONTACT SUBMERSIBLE
4
USE AND CARE MANUAL
GUIDE D’UTILISATION ET D’ENTRETIEN
GRES060BSC
portions GRIL DOUBLE FACE SUBMERSIBLE
www.georgeforemancooking.com
TM
GRILL
TM
1
PLEASE READ AND SAVE THIS USE AND CARE BOOK.
IMPORTANT SAFEGUARDS.
When using electrical appliances, always follow basic safety precautions to
reduce the risk of fire, electric shock, and/or injury, including the following:
• Read all instructions.
• Do not touch hot surfaces. Use handles or
knobs.
• The appliance is not intended to be operated by
means of an external timer or separate remotecontrol system.
• To protect against electrical shock do not
immerse cord, plugs, or probe in water or
other liquid.
• Close supervision is necessary when any
appliance is used by or near children.
• Unplug from outlet when not in use and
before cleaning. Allow to cool before putting
on or taking off parts and before cleaning the
appliance.
• Do not operate any appliance with a damaged
cord or plug, or after the appliance malfunctions
or has been damaged in any manner. Contact
customer support or call the appropriate toll-free
number in this manual.
• The use of accessory attachments not
recommended by the appliance manufacturer
may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or
counter, or touch hot surfaces.
• Do not lift by probe or cord
• Do not place on or near a hot gas or electric
burner, or in a heated oven.
• Extreme caution must be used when moving an
appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug
cord in the wall outlet. To disconnect, turn any
control to “off”, then remove plug from wall
outlet.
• Do not use this appliance for other than
intended use.
• The appliance is only to be operated in the
closed position.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
SAVE THESE INSTRUCTIONS.
This product is for household use only.
TAMPER-RESISTANT SCREW
Warning: This appliance is equipped with a
tamper-resistant screw to prevent removal of
the outer cover. To reduce the risk of re or
electric shock, do not attempt to remove the
outer cover. There are no user-serviceable
parts inside. Repair should be done only by
authorized service personnel.
GROUNDED PLUG
This appliance is equipped with a grounded
plug. To reduce the risk of electric shock, this
plug is intended to t into a grounded outlet
only one way. If the plug does not t fully into
the outlet, reverse the plug. If it still does not t,
contact a qualied electrician. Do not attempt
to modify the plug in any way.
ELECTRICAL CORD
a) A short power-supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
b) Extension cords are available and may be
used if care is exercised in their use.
c) If an extension cord is used:
1) The marked electrical rating of the extension
cord should be at least as great as the
electrical rating of the appliance;
2) If the appliance is of the grounded type, the
extension cord should be a grounding-type
3-wire cord; and
3) The cord should be arranged so that it will
not drape over the counter top or tabletop
where it can be pulled on by children or
tripped over.
Note: If the power cord is damaged, please
contact the warranty department listed in these
instructions.
3
GETTING TO KNOW YOUR GRILL
5
6
1
2
3
7
8
1. Power indicator light (red)
2. Preheat indicator light (green)
3. Probe
4. Probe connections
5. Handle
4
3
4
6. Grill Top
7. Grill Bottom
8. Nested drip tray*
Note: * indicates consumer replaceable/
removable parts.
Product may vary slightly from what is
illustrated.
HOW TO USE
This product is for household use only.
GETTING STARTED
• Remove all packing material, any stickers, and plastic bands around the
power plug and unit before use.
• Remove and save literature.
• Please go to www.prodprotect.com/georgeforeman to register your
warranty.

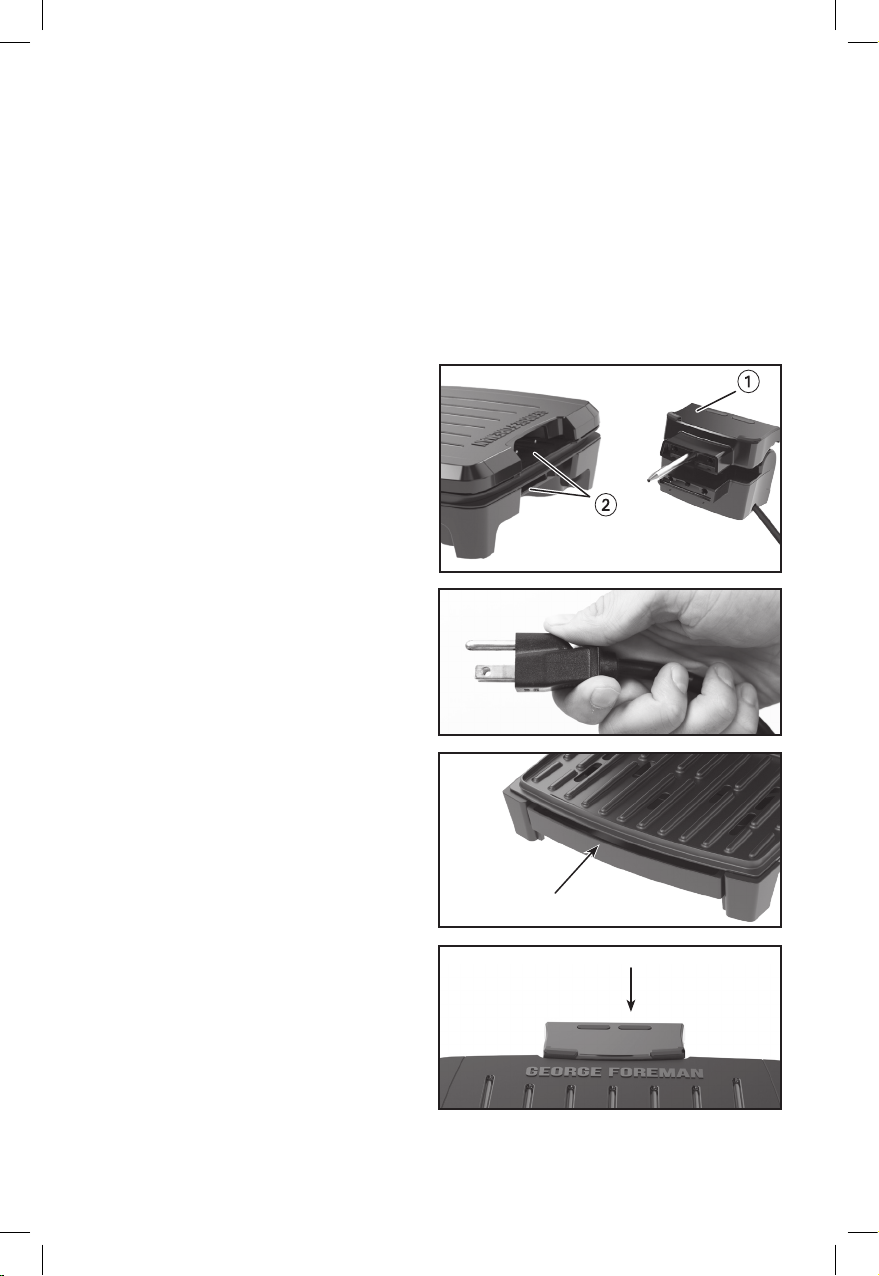

ASSEMBLING AND PREHEATING THE GRILL
• Place the grill top on the grill
bottom as shown.
• Align the probe (1) with the probe
connections (2) and push the parts
together until the probe is firmly
inserted into both the top and
bottom grill plate/housings.
• Slide drip tray under front of grill.
Note: Do not use the grill without the
drip tray. Always ensure the drip tray
is installed before plugging the unit in.
• Once the grill is plugged in, the
indicator light will turn on. If grill is
not assembled correctly, the light
will not turn on, the unit will not
heat, and the probe will need to be
inserted further into the grill.
• Allow grill to preheat
approximately 4½ minutes in the
closed position before grilling.
When grilling temperature is
reached, the green preheat
indicator light turns on.
GRILLING
• Once grill is preheated (the green
preheat indicator light turns on)
using a pot holder, carefully open
the lid.
Note: Aerosol cooking spray should
not be used on nonstick surface.
Chemicals that allow spray to come out of a can build up on surface of grill
5
plates and reduce their efficiency.
• Carefully place foods to be cooked on lower grilling plate. Close lid.
Note: Do not overload grill.
• Allow food to cook for desired time. (See cooking chart.)
Note: Always use heatproof plastic, nylon or wood utensils to avoid
scratching nonstick surface of grill plates. Never use metal skewers,
tongs, forks or knives.
• Using a potholder or oven mitts, carefully open the lid and remove the
food.
• When finished cooking, unplug the appliance to cool it down.
• Allow drip tray to cool before removing it from under the grill.
• Allow unit to cool before removing probe and before washing.
• Wash and dry the drip tray and the grill top and bottom after each use.
USING ADJUSTABLE COOKING HEIGHT
This grill has a unique hinge that allows the grill cover to adjust to the
thickness of food. For even browning and cooking, when grilling more than
one sandwich or piece of meat, it is important that the thickness of each be
about the same.
SUGGESTED COOKING CHART
The cooking times and temperatures in the below chart are meant to be used
as a guideline only. Cooking time will depend upon the food thickness and
cut being used. Use a meat thermometer to test for doneness by inserting the
6
