GEO-FL-100W-IP65-007

100W LED Flood Light User Manual

Beam Angle

IP Rate：

：

15°x 15° 30°x 30° 40°x 40° 60°x 60°

60°x 135°(Symmetric) 85°x 135° (Asymmetric)

IP65

1. Introduction

Materials

Patented fin aluminum heat-sink structure; High quality aluminum processing technique; Special
surface treatment process; High brightness LED light source, high efficiency and long life power
supply

Applications

Suitable for Warehouses, Production and logistics workshops, Retail stores, Theme restaurants,
Amusement parks, Indoor stadiums and public places, and other industrial and commercial
lighting purposes.

Features

1. LEDs from Philips Lumileds/CREE/LG/Osram with high thermal conductivity, good
heat-radiation, small light decay , pure light, no ghosting, stable performance and quality
advantages.

2. Unique thermal management design low LED junction temperature effectively, ensure the
lifespan of the light source and power.

3. Extremely light weight for safety use and installation

4. Eco-friendly and energy saving, dust-proof, no radiation and emitting heat, no mercury, lead
and other pollution elements.

5. High color rendering index to show the physical color rendering more real. Various colors is
optional to meet the needs of different environments. Eliminating the repressed emotions caused
by the traditional lamp in high or low color temperature , the light is visual comfort, and improve
the work efficiency.

6. Power by constant current and voltage, can work in wide voltage range AC90V-305V.
Overcome the unstable on the light caused by ballast disturbance, noise pollution, avoid the
stimulus work to eye fatigue.

7. Using a special surface treatment process, new design on appearance. Simple installation,
easy disassembly. Wide range of application.

.

1/6

2. Specification

100W LED Flood light Parameter:

Input Voltage 90-305 VAC, 50/60 Hz

LED Light Source

LED Qty 50 pcs

LED Power 100W

To tal System Power 110W

Led Luminous Efficiency 110~130lm /W

Light Lighting efficiency

Led Initial Luminous Flux 10000 Lm

Illuminance Uniformity

Color Temperature 4000K-7000K

Color Rendering Index Ra=70

Light Distribution Symmetric/Rectangle (60*135 degree)

Illuminance Design LED+lens

LED Junction Temperature

Working Temperature -40℃～45℃

Philips Lumileds/Cree/LG/OSRAM

≥85lm /W

＞0.8

≤70℃ (@Ta=30℃)

Storage Temperature -25℃～+65℃

IP Rating IP65

Net weight 7.0Kg

Life-span >50000H

Power Cable 1.0mm2 triple shield wire

Brown L live

Connecting Wire

Certificate

Light Fixture Color Black, Gray, White or other customed color

Remark：The light parameters may different between different color temperature, tolerances ≤ 5%.

Blue N Neutral

Yell ow / Gr ee n G/Y Earth

2/6

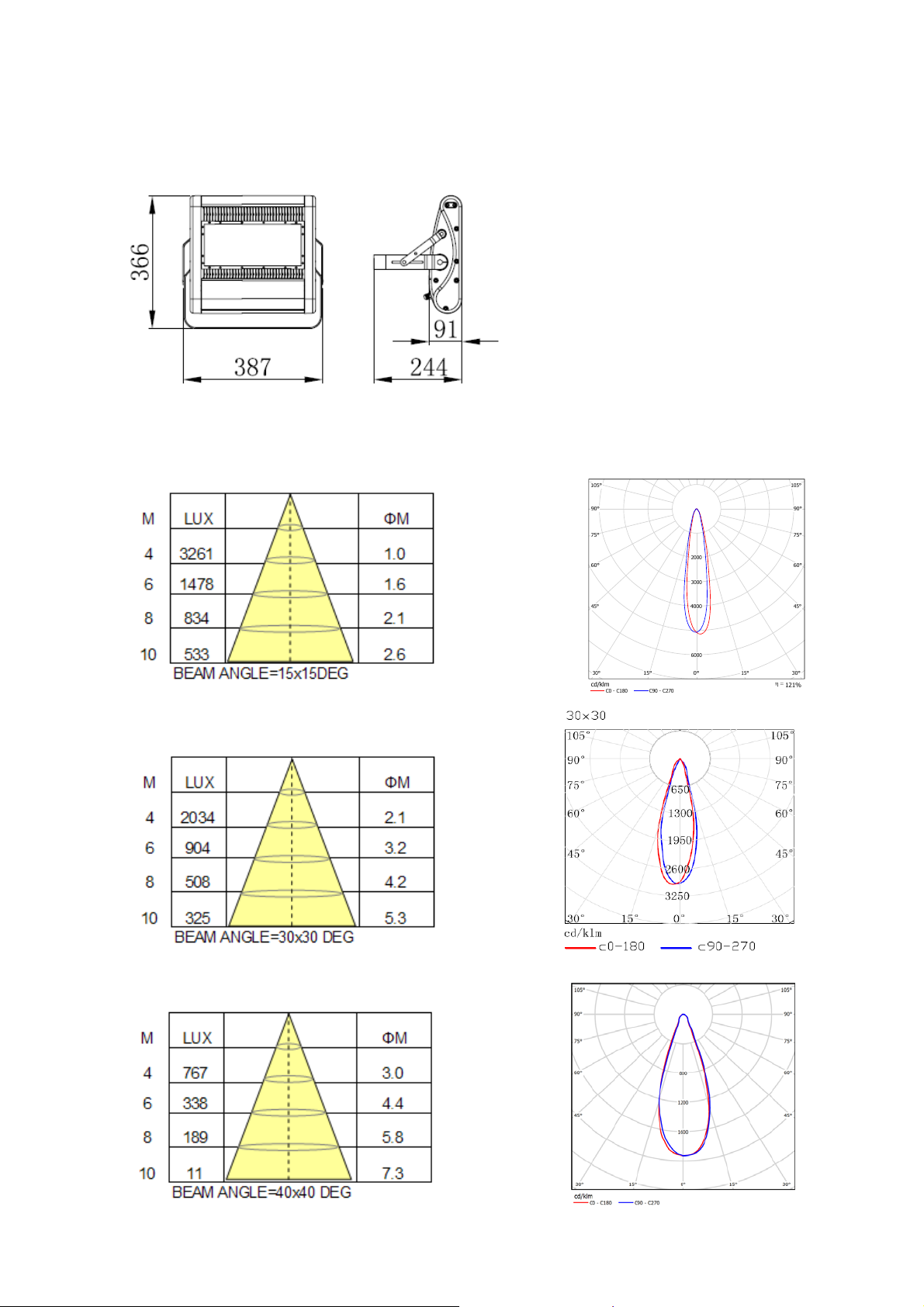

Product Dimension & Photometric Distribution:

3.

1、Dimension

2、Photometric Distribution

Beam Angle:15°x 15°

Beam Angle:

Beam Angle:40°x40°

30°x 30°

3/6 页

Beam Angle:60°x60°

Beam Angle:60°x135°

Beam Angle:85°x135°

4/6

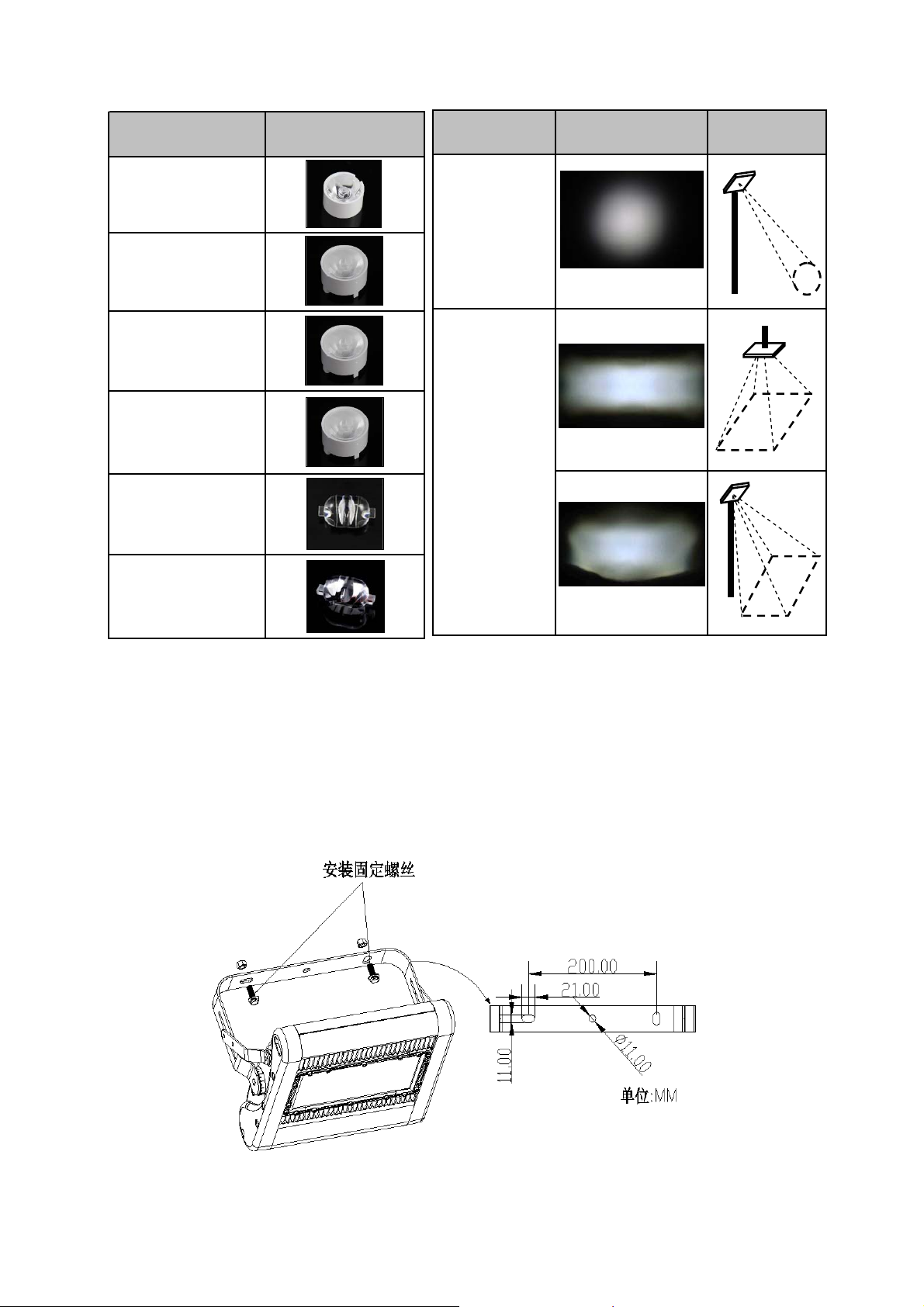

Accessories:

Item Item Photo

15°x 15° lens

Lens Type Light Pattern

Round Type

Projection
Schematic

30°x 30° lens

40°x 40° lens

60°x 60° lens

60°x 135° lens

(symmetric)

85°x 135° lens

(asymmetric)

4. Installation Guideline

round

symmetric

Aspherical Type

asymmetric

1. Take out the lamp from packing box.
Fix the light on mounting frame and keep stable placement. For safety, make sure the power

2.

cables are connected by electricians. The power cord is 1.0MM

2

triple shield wire, the brown is

live wire, blue is neutral wire, and yellow/green is earth wire.

3.

.

5/6

Maintenance / Repairing Instructions:

1

Make sure the power has been turned off before maintenance or repairing.

、

2、Clean the glass cover regularly to maintain high transmission of light.
3 、 Clean up the dust from the glass cover and heat-sink regularly to keep sound heat
dispersion.
4、Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.

5、When install or replace power supply, directly open the back cover with a screwdriver, then
remove the power supply.
On DC power output, the red cable corresponds to the positive power polarity, and black
corresponds to the negative. Pay attention do not reverse the positive and the negative in any
circumstance.

5. Package

Packing Size, weight

1PC/CTN 2PCS/CTN
N.W 7.0kg 14.0kg
G.W 8.0kg 17.0kg
Packing Size(W ,L,H) 440*425*168 mm 450*450*375 mm
