Acoustic pillow alarm
user instructions

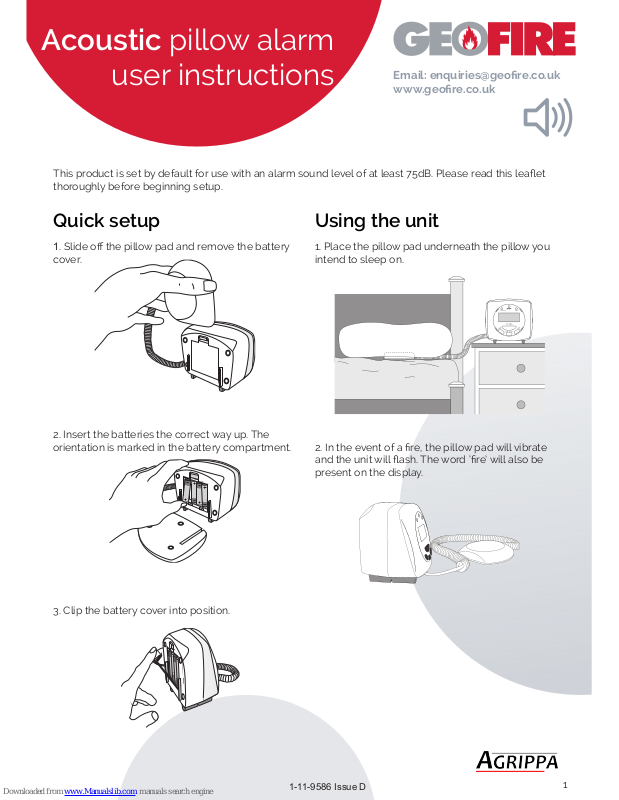

Quick setup
1. Slide o the pillow pad and remove the battery
cover.
2. Insert the batteries the correct way up. The
orientation is marked in the battery compartment.
3. Clip the battery cover into position.
1. Place the pillow pad underneath the pillow you
intend to sleep on.
2. In the event of a re, the pillow pad will vibrate
and the unit will ash. The word ‘re’ will also be
present on the display.
1-11-9586 Issue D
1
This product is set by default for use with an alarm sound level of at least 75dB. Please read this leaet
thoroughly before beginning setup.
+
-
-
-
+
+
+
Using the unit
Snooze / +
Back light
Alarm on-off / -
Set
Time
Set
Alarm
Low Battery
Status
1. Press and hold the ‘Set Time’ button.
2. Press the up or down buttons to set the time.
2
Daily timed alarm
Status
Press
and
hold
Status
Up
Down
1. Press and hold the ‘Set Alarm’ button and use
the up and down buttons to set the alarm time.
2. To enable/disable the alarm at any instant,
press the ‘Alarm on-o’ button.
Status
Se
Low Battery
3. When the alarm triggers the pillow pad will
vibrate. Pressing the ‘Snooze’ button will pause the
alarm for ve minutes.
Status
Snooze
Press
and
hold
Up
Down
Status
Command options
Press and release the ‘+’ and ‘-’ buttons together,
PΞ0 will be shown. Press the ‘+’ button until the
desired option is displayed then press ‘Set Time’ to
select that option.
Option 1. Set the unit to 75dB level in the 2kHz -
4kHz frequency range
Option 2. Set the unit to 70dB level in the 2kHz -
4kHz frequency range
Option 3. Display the battery voltage in millivolts
(6000 or higher is very good, 4000 or
lower, consider replacing the batteries)
Option 4. Set the current alarm time to be the start
of disable period time
Option 5. Set the current alarm time to be the end
of disable period time
Option 6. Display disable times (start time for 4s,
followed by end time for 4s)
Option 7. Perform a learn on the sounder (the re
alarm must be running before this option
is selected)
Option 8. Alarm bell setting. Use if the alarm sound
is produced by a bell. Only select after
the learning process has been completed
(see page 4)
Setting the time
Check all pillow alarms trigger correctly as part of a
regular re test routine. In normal operation, the unit
will go into re state within 20 seconds of the alarm
sounding.
Replace the batteries annually or when indicated by
a low battery warning.
Power 4 x alkaline “AA” Cells
Typical battery life 12 months +
Default Release Volume 75 dB
If the alarm triggers
Maintenance
Displays
Specication
3
Fire: When the unit is in a re state, FIrE will be
displayed on the screen and the pillow alarm unit
will ash. The pillow pad will also vibrate with a
continuous pattern.
Alarm: When the timed alarm comes round, the
screen backlight will ash and the time will be
displayed on the screen. The pillow pad will also
vibrate with an interrupted pulse pattern.
Status LED: If the status LED is lit, the unit is
listening to a loud noise. If it is ashing on every
13 seconds, the acoustic circuit is disabled (see,
disabling the unit).
Low battery LED: If the low battery LED is lit,
the batteries are low and should be replaced
immediately.
Bell symbol: If the bell symbol is shown in the top
left hand corner of the screen, the alarm is enabled.
Er followed by 4: The sound level
detected in the learn process is below
65dB and the default parameters of
75dB have been used.
Er followed by 5: The sound level
detected in the learn process was
found to be intermittent, but its timing
could not be identied. The sound levels detected
are set, but the pillow alarm may be slow in waking
up. It is recommended a dierent alarm pattern is
used on the sounder.
Er followed by 6: The intermittent
sound level detected during the
learn process is below 65dB and the
default parameters of 75dB have been used.
Er followed by 7: The unit has not been
put through the learn cycle or has been
set back to default settings. Perform a
learn process before choosing option 9 (see learning
the alarm).
Er followed by 8: The bell tone
recorded is intermittent, but its timing
could not be identied. Perform the
learn process again.
Error codes
If the unit enters re alarm state when there
is no re alarm sounding, pressing the ‘Alarm
on-o’ button will clear the re state. If the unit
subsequently detects a sounds it will trigger back
into re state.
If displayed on the screen, exit this mode
by choosing option 0 (EΞ0). Use ‘+’ or ‘-’
to get to 0 and press ‘Set Time’ to select.
The time will be displayed and the unit will operate
normally.
This mode should only be used when in
consultation with Geore.
Engineering mode
Why perform a learn?
Learning the alarm
4
1. Press ‘+’ and ‘-’ together. When released PΞ0 will
be shown on the display.
2. Press ‘+’ until option 7 is shown (PΞ7).
3. Start the re alarm sounding in the appropriate
location.
4. Press ‘Set Time’ to start the learn process. There
must be no background noise while the alarm is
recording.
During the alarm process the display changes.
When the unit is initialising the learn,
two vertical bars will ash from side to
side.
When the unit is recording the sound,
three horizontal bars will ash up in
sequence.
When the unit is processing the
sound, one digit will chase round in
sequence. At this point the alarm may
be silenced.
Once the learn process is complete, the time will
again be displayed on the screen.
If an error code appears (Er), look at the ‘Error codes’
section on page 3 for further details.
In a hotel or commercial property, the sound level
at the bed head is required to be 75dB or greater. In
a domestic property where the sound level may be
lower, performing the learn cycle will improve the
unit’s response to the re alarm.
If the unit is moved e.g. to another room, it will be
necessary to repeat the learn cycle.
Make sure any doors between the sounder and
pillow alarm are shut during the learn cycle.
If the alarm sound is generated by a bell, you
may nd that the Agrippa is sensitive to general
background noise after the learning process. This
can be improved by selecting command option 8
(see page 2).
This can be done any time after completing the
learning process as long as the Agrippa has not
been returned to default settings. Once selected,
the display will show a rotating pattern for around
10 seconds.
If the unit has already been returned to default
settings, you will have to repeat the learning
process before selecting option 8.
Bells as alarms
Patent serial number: GB2507582
It may be desirable to disable the acoustic circuitry
on the unit; e.g. to stop false triggering during
scheduled maintenance or cleaning or during a re
test. This may be done by setting an alarm disable
time:
1. Set an alarm time corresponding to the start of
the disablement.
2. Choose command option 4 (see page 2).
3. Set an alarm time corresponding to the end of
the disablement.
4. Choose command option 5 (see page 2).
Command option 6 allows the checking of the
times.
5. To stop the disablement period in future, set
either the start or end time to 0:00 as per steps 1
and 2 or 3 and 4 above.
Disabling the unit
Status
Status
