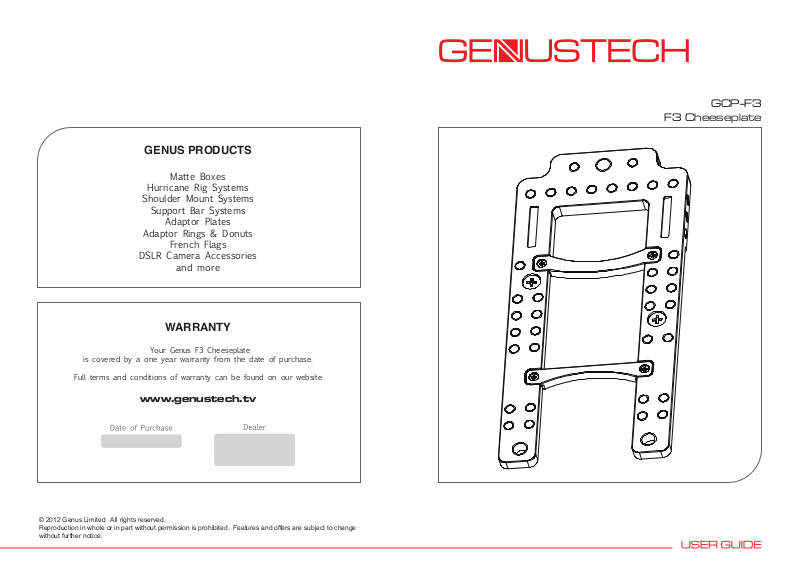

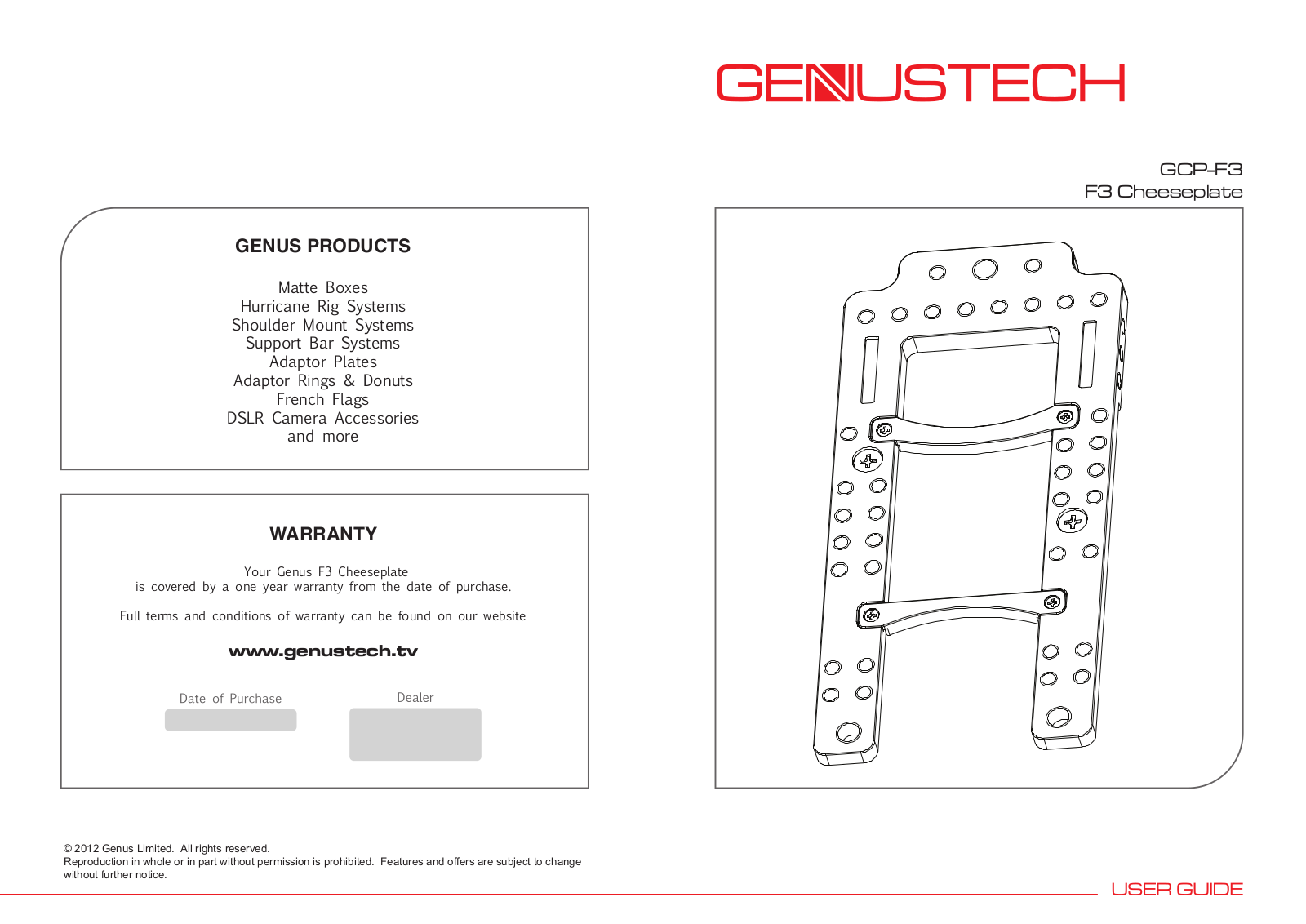

Genustech GCP-F3 User manual

GENUS PRODUCTS

Matte Boxes

Hurricane Rig Systems

Shoulder Mount Systems

Support Bar Systems

Adaptor Plates

Adaptor Rings & Donuts

French Flags

DSLR Camera Accessories

and more

WARRANTY

GCP-F3

F3 Cheeseplate

is covered by a one year warranty from the date of purchase.

Full terms and conditions of warranty can be found on our website

Your Genus F3 Cheeseplate

www.genustech.tv

© 2012 Genus Limited. All rights reserved.
Reproduction in whole or in part without permission is prohibited. Features and offers are subject to change
without further notice.

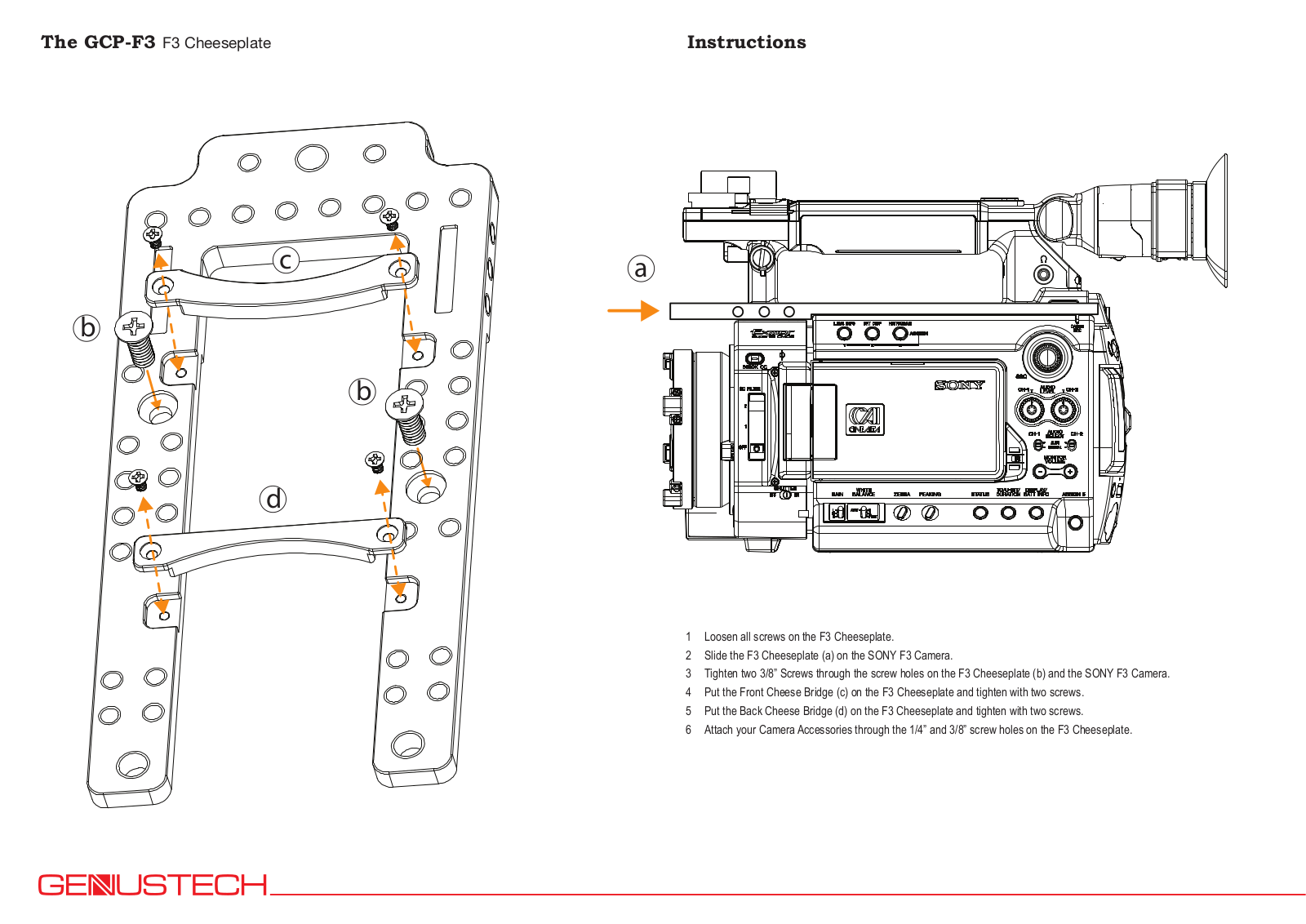

InstructionsThe GCP-F3 F3 Cheeseplate

b

d

c

b

a

Loosen all screws on the F3 Cheeseplate.

1

Slide the F3 Cheeseplate (a) on the SONY F3 Camera.

2

Tighten two 3/8” Screws through the screw holes on the F3 Cheeseplate (b) and the SONY F3 Camera.

3

Put the Front Cheese Bridge (c) on the F3 Cheeseplate and tighten with two screws.

4

Put the Back Cheese Bridge (d) on the F3 Cheeseplate and tighten with two screws.

5

Attach your Camera Accessories through the 1/4” and 3/8” screw holes on the F3 Cheeseplate.

6
