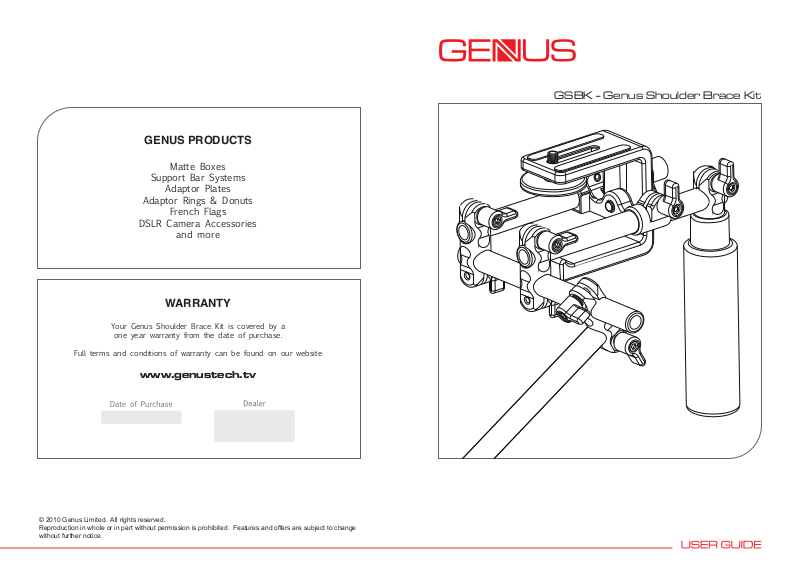

Genus Gsbk User Manual

GENUS PRODUCTS

Matte Boxes

Support Bar Systems

Adaptor Plates

Adaptor Rings & Donuts

French Flags

DSLR Camera Accessories

and more

WARRANTY

Your Genus Shoulder Brace Kit is covered by a

one year warranty from the date of purchase.

Full terms and conditions of warranty can be found on our website

GSBK - Genus Shoulder Brace Kit

www.genustech.tv

© 2010 Genus Limited. All rights reserved.
Reproduction in whole or in part without permission is prohibited. Features and offers are subject to change
without further notice.

The GSBK

Shoulder Brace Kit

Description

1 Shoulder Brace with protective pad
2 215mm Support Rod with Lock-Off Knob
3 Handle Grip
4 170mm Rod with a Right Angle Bracket
5 DSLR Camera Mount with 2 x 170mm Support Rods

and 2 x Right Angle Brackets pre-assembled

CAMERA

Installation

Take the 215mm Support Rod and attach it to the Shoulder Brace and lock off.

1

Slide the end of the 215mm rod into the socket of the right angle bracket that is pre-assembled onto the 170mm Rod and

2

lock off.
Place and lock off the handle on the right hand side of the 170mm Rod.

3

Take the DSLR Camera Mount with pre-assembled rods and slide the other end of the 170mm rod through the two right

4

angle brackets and lock off.
Please note to mount the DSLR Camera Mount with the camera lock off knob on the up-side.

5

Attach your camera to the DSLR Camera Mount by the thumb wheel screw provided.

6
