THE SOUND OF SAFETY
INSIDE:
Battery Charging.......2
Assembly. . .. . . .. . . .. . 2
Cautions .............3
Certications ..........4
Replacements. . .. . . .. . 4
Contact ...............4
USER MANUAL
Two-Gang Battery Charger
PIN: 05-012001
Page 2
2 | TWO-GANG BATTERY CHARGER

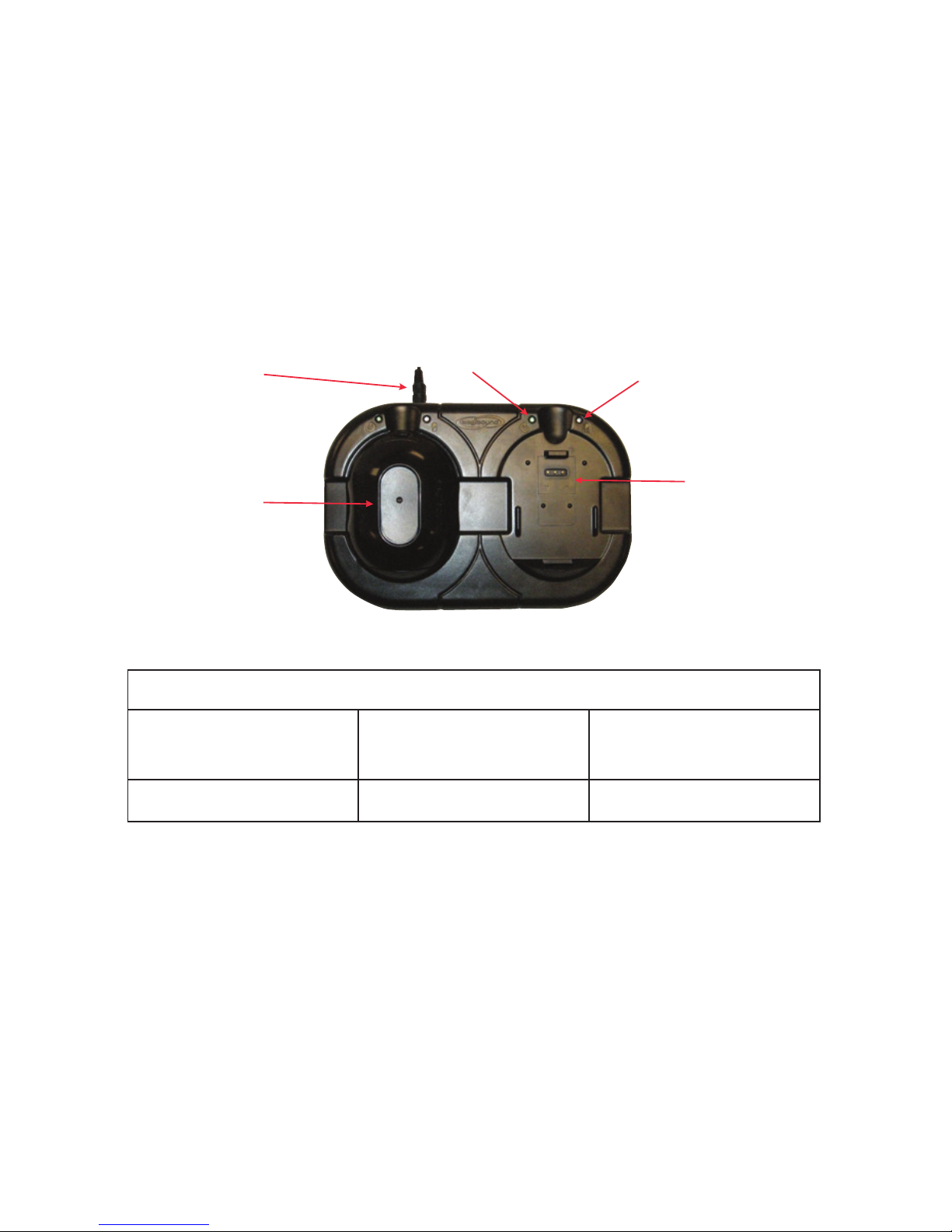

AC to DC
Power
Supply
Charge
Status LED
Charging
Terminals
Battery Shown
Installed in
Charger Bay
(battery not
included)
Power LED
NOTE: The battery is a UL recognized battery with integrated short circuit protection.
The lithium-ion battery should be disposed of properly when it will no longer support a
useful charge.
Charge Status LED
No Battery
Connection
Battery
Charging
Battery Fully
Charged
Off Red Green
Battery Charging
The Two-Gang Battery Charger is designed to charge the batteries used on the
DANR THP, DANR THPC, and Argonaut DHPC products. The battery charger takes
a maximum of 5 hours to fully recharge a battery. The battery does not need to be
fully discharged before recharging. The charger comes with its own AC to DC power
supply. Each charger can charge either one or two batteries at a time.
Page 3
USER MANUAL | 3
Caution
Risk of Electric Shock. Use only in indoor dry locations. The unit charges
2300mAh capacity batteries. Insert only the battery designated on the charger
label. Do not insert any other battery or object into any of the charging bays.
Do not charge if the battery pack is outside the range 0˚C to 40˚C.
The charger is rated for use with both 115VAC and 230VAC.
If the portable box power cord is damaged, it must be replaced by a special
cord or assembly available from the manufacturer.
This charger is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the charger by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the charger.
Input: AC 115-230 50/60Hz 0.64-0.39A
Output: DC 4.2V 450-900mA
IP 40
Assembly
1. Plug the AC to DC power supply into the back of the Battery Charger
2. Plug the AC to DC power supply into the 115-230V, 50/60Hz AC power outlet
3. Remove any protective packaging from the battery and its terminals prior to
placing into charger bay
4. Place the battery onto one of the two charging bays with the battery terminals in
contact with the charging terminals
Page 4
4 | TWO-GANG BATTERY CHARGER
To order, please contact Gentex Corporation at (603) 657-1200
Please refer to the following part numbers when ordering:
Replacements
Certications
CE Marked in accordance with Low Voltage (2006/95/EC) and EMC Directives
(2004/108/EC). The EC Declaration of Conformity is available upon request from
Gentex Corporation.
Part Number Description
05-012001 Two-Gang Battery Charging Panel
05-012002 Two-Gang Replacement AC to DC Power Supply
05-005023 Replacement Battery
01-000005, Revision 7
Gentex Corporation
645 Harvey Road, Suite 102
Manchester, NH 03103 USA
MADE IN THE USA
(603) 657-1200
[email protected]
