Genotech GWL2400P Users Manual

GWL-2400P

( WIRELESS LANCARD )

GENOTECH CO . LTD

NOTICES

This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions .

1. This device may not cause harmful interference.

2. This device mus t accept any interference received, including interference that
may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected

• Consult the dealer or an experienced ratio/TV technician for help

WARNING!
Any changes or modifications of equipment not expressly approved by Intersil
could void the user’s authority to operate the equipment.

1

GWL-2400P Technical Support

Your comments and suggestion help us to improve the quality and usefulness of
our documentation, you may response to the following contact e-mail.
If you encounter problems when installing or using this product, or would like
more information about our other products, you can contact us with the telephone
numbers listed below.

Useful information

TEL:[phone]
FAX:[phone]
E-Mail: [e-mail]
World Wide Web: http://www. genoi.com
#308 GUNKOOK BLG, 288-1, DOKSAN-DONG
GUMCHON-GU, SEOUL, KOREA

2

Important Safety Information

• Read these simple guidelines. Breaking the rules may be dangerous or illegal.
GENOTECH will not be responsible for any damages caused by breaking the
rules.

• Wireless LAN Card described in this document is approved for use in a wireless
local area network.

• Remember to make backup copies of important data.

• GENOTECH Wireless PCMCIA LAN card supports 3.3V Notebook computers

only.

• When you are transferring data, keep your laptop computer stationary Roaming
between access points (AP) may break the connection.

• Only qualified service personnel must repair the equipment.

• All wireless devices may get interference, which could affect performance.

• Use only the region settings appropriate for the area where the wireless LAN
Card is used at the present time. Using the card in any other region or with an
incorrect region setting is prohibited and may be illegal.

• Operation of any radio transmitting equipment, including a Wireless LAN Card,
may cause interference with the functionality of inadequately protected medical
devices.

• Do not use the wireless LAN Card on aircraft.

• Do not use the wireless LAN Card at a refueling po int.

• Do not use the wireless LAN Card near inflammable materials or chemicals.

• Do not use the wireless LAN Card where blasting is in progress.

• Do not use the wireless LAN Card when the use of wireless device may cause
interference or danger.

• Do not use the wireless LAN Card where the use of cellular terminals is
prohibited.

• Microwave oven degrades the performance of wireless LAN drastically. So do not
use the wireless LAN Card in the environment where Microwave oven is being
used.

3

1. GENERAL

1-1 Overview of IEEE 802.11
1-2 Characteristic
1-3 Composition

2. SPECIFICATION

2-1 General Specification

2-2 Network Specification
2-3 Environmental Specification
2-4 Physical Characteristics

3. INSTALLATION
3-1 Installation Procedure

3-2 Uninstall ation Method

CONTENT

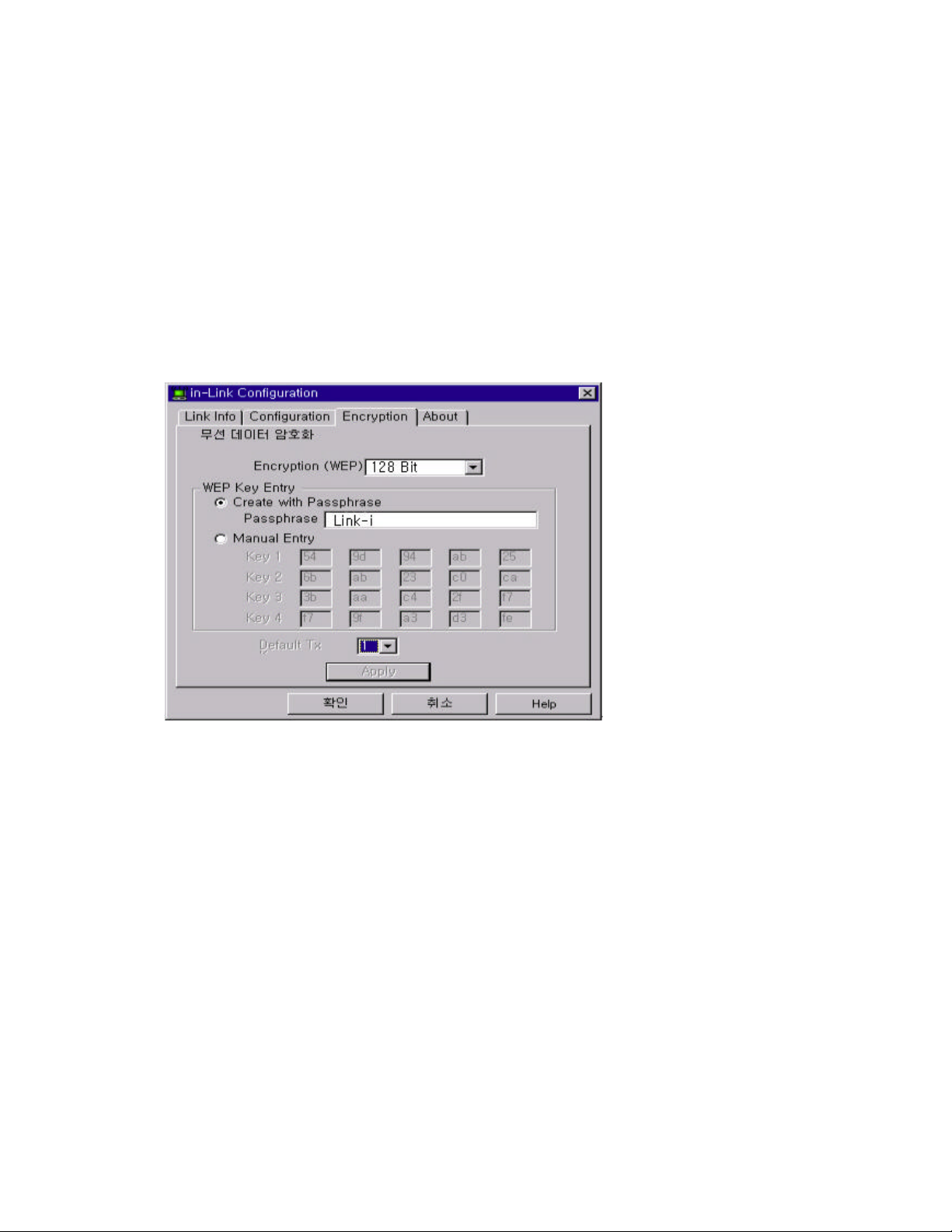

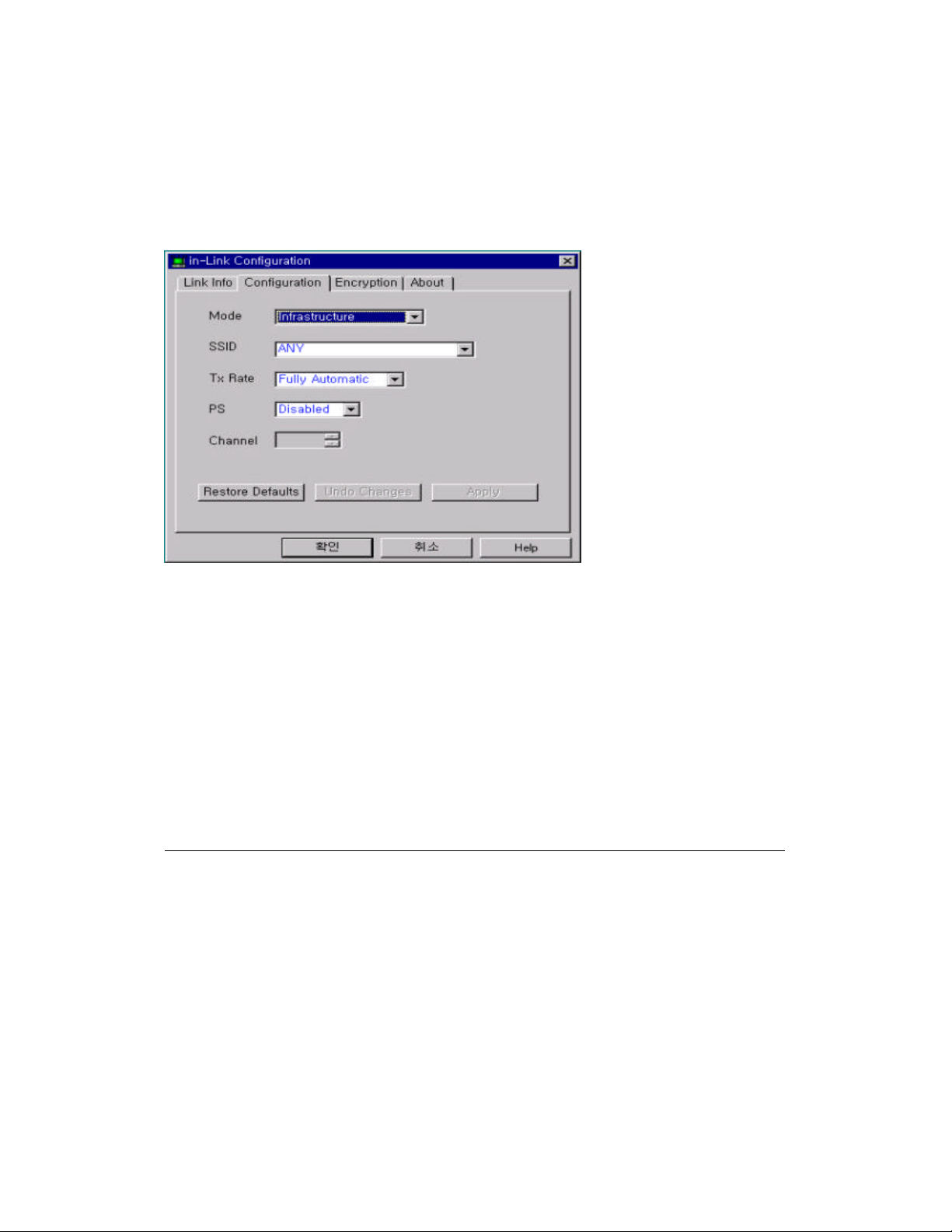

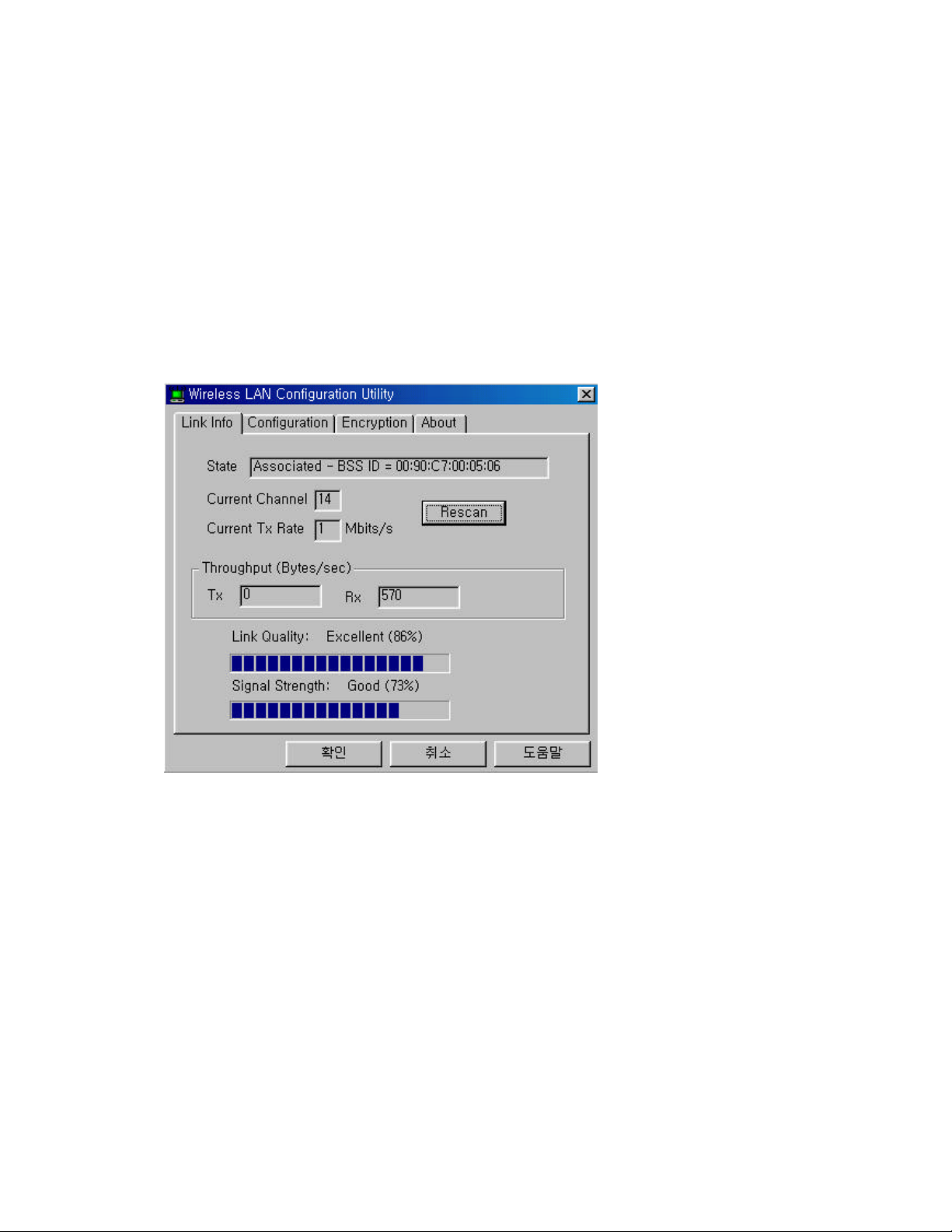

3-3 Configuration utility

4
