Bluetooth®iFrog Quick Start Guide

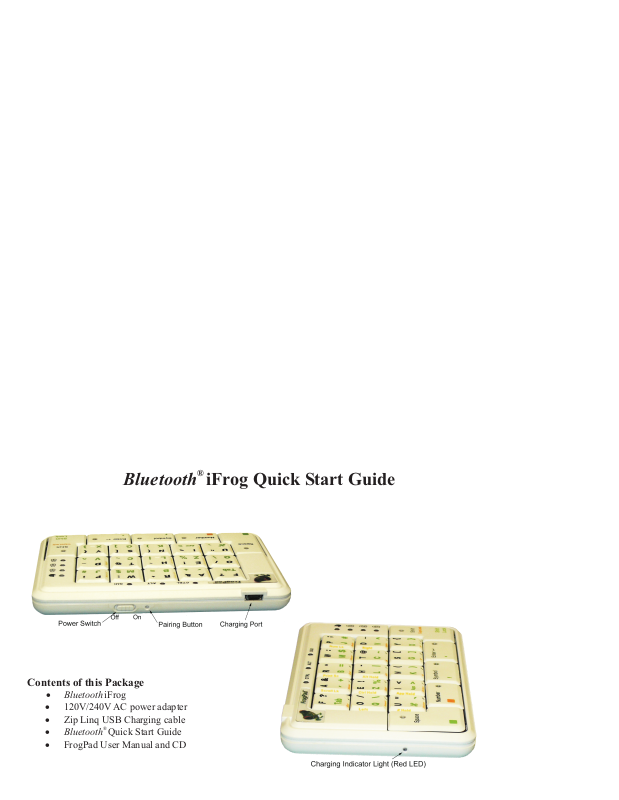

Contents of this Package
·
Bluetooth
·
120V/240V AC power adapter
·
Zip Linq USB Charging cable
·
Bluetooth
·
FrogPad User Manual and CD
iFrog
®
Quick Start Guide
Compatibility
The iFrog is compatible with any PC or MAC that has capability and which also supports the HID
Bluetooth Bluetooth Bluetooth
HID profile, a dongle with the necessary drivers may be purchased separately.
FrogPad is compatible with many handheld devices from Palm, HP, Nokia, Dell, Sony Ericsson and many
more. To see the latest compatibility list, visit the FrogPad website at www.Frogpad.com.
® ®
® ® ®
profile. If the PC or MAC does not have a capability or does not support the
Bluetooth
®
Bluetooth
Charging
Caution: The iFrog includes a lithium polymer rechargeable battery. Use only the included
charger and specified method for charging the battery. Risk of explosion if battery is replaced
by an incorrect type. Dispose of used batteries according to local regulations.
FrogPad is rechargeable and must be charged before use. Recharge fully for 2 hours before use.
Turn OFF the (see section below on Turning On/Off)
·
Insert the larger connector on the charging cable into the AC power adapter
·
Insert the smaller connector of the charging cable into the FrogPad's charging port
·
Plug the AC power adapter into an electrical wall outlet
·
You will see a red light on the Charging Indicator Light (Red LED)
·
The red light will turn off when charging is complete
·
®
solid
Alternate Charging Method
·
Insert the smaller connector of the charging cable into the iFrog 's charging port
·
2
Insert the larger connector on the charging cable into your PC or MAC USB port
®
·
You will see a red light on the Charging Indicator Light (Red LED)
·
The red light will turn off when charging is complete
solid
Low Battery Indicator
The FrogPad requires recharging when you see a solid red light on the Charging Indicator Light (Red LED)
·
Turn OFF your iFrog
·
Refer to Charging section above on how to recharge the iFrog
You may turn your iFrog ON if you would like to continue using the iFrog while it is charging,
Note:
®
®
® ®
Turning On/Off
·
To turn ON, slide the on/off switch to the ON position as indicated in the diagram above.
·
To turn OFF, slide the on/off switch to the OFF position as indicated in the diagram above.
Connecting to the PC or MAC
To connect to the PC or MAC, you must first place the iFrog into Pairing mode.
·
Press the PAIRING button (To Press the RESET/PAIRING button, insert a thin straight object e.g. a
Bluetooth
paper clip into the hole of the pairing button)
·
The red charging indicator light will flash rapidly to indicate the iFrog is in pairing mode
·
Follow the PC or MAC procedures for connecting to a keyboard
®®
Bluetooth
®
®
3
Connecting to a MAC:
Note: Mac OS 10.2.8 or later does
not require additional
Bluetooth
software.

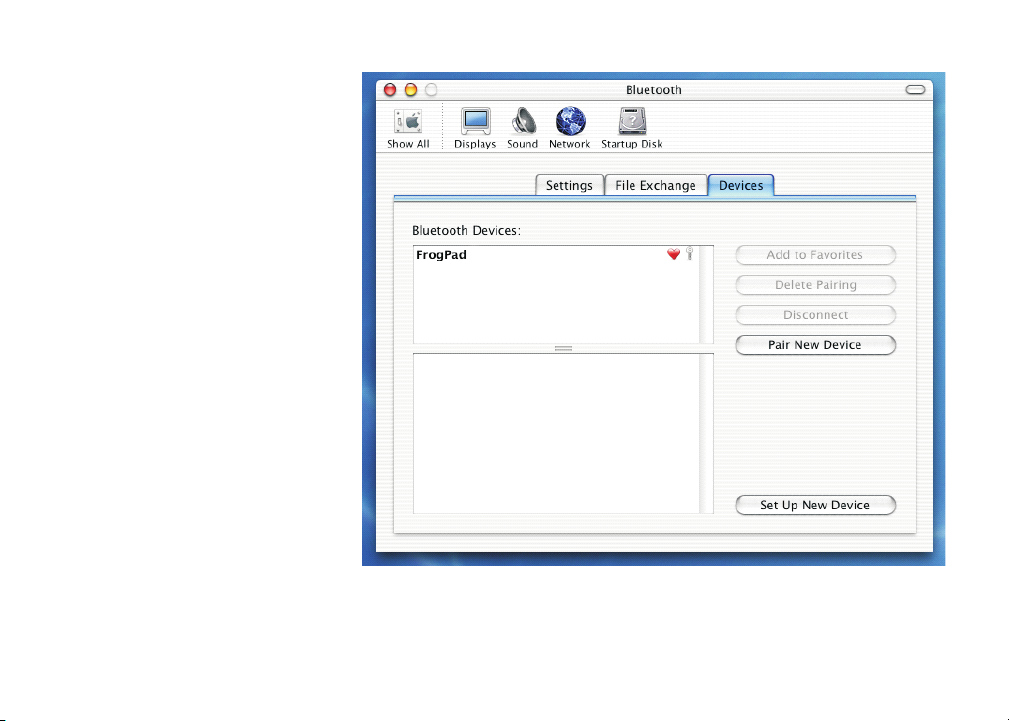

Click on the Icon in
·
the Hardware Panel and open
Bluetooth
the Window
Click on the Tab
·
Turn on the iFrog keyboard
·
Bluetooth
®
Devices
®
and press the PAIRING button.
The red light on the side of the
keyboard should be blinking
rapidly.
Click on .
·
Pair New Device
Enter a code on the apple
keyboard when prompted, then
enter the code on the iFrog
Keyboard when prompted.
Click OK
(Ensure iFrog is in number
®
mode ie. Number LED is lit
when entering the numeric code)
: Once the iFrog is paired, it can be turned on and off without repeating the pairing procedure. It will
Note
®
connect automatically.
4
®
®
®
Connecting to a PC:
Note: Windows requires additional
Bluetooth
Bluetooth
below are based on WIDCOMM
Bluetooth
running on Windows XP . Follow
the instructions which come with
your particular adapter.
Turn the iFrog on and press the
·
®
software to pair a
®
device. Instructions
®
Software Version 1.4.2
Bluetooth
®
®
®
PAIRING button. The red LED on
the side should flash rapidly
indicating FrogPad is in pairing
mode.

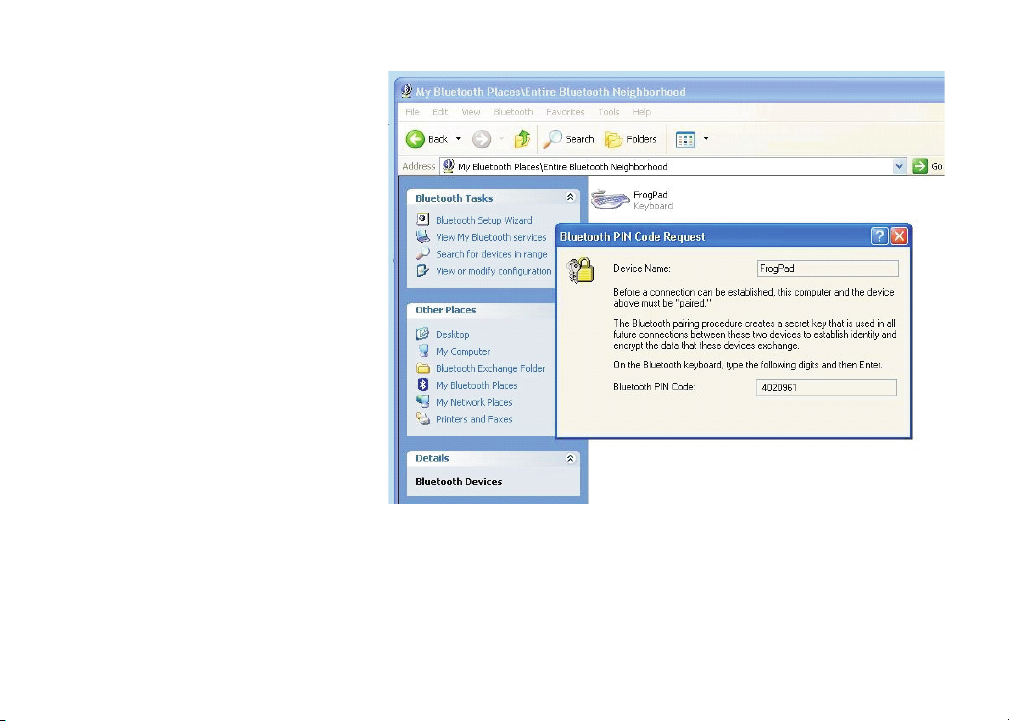

Click on . A
·
View devices in range
FrogPad icon will appear in the
window.
Right click on the icon and select
·
Connect to device
Click yes to connect to an HID device
·
Enter code PIN code when prompted and press enter (ensure the iFrog is in number mode ie. Number
·
LED is lit)
®®
iFrog is connected! Once the iFrog is paired, it can be turned on and off without repeating the pairing
·
from the menu
®
procedure. It will connect automatically
5
Connecting to a Handheld Device
To connect to most handheld devices you will require additional drivers. The drivers are specific to the family
of device you are using. Installation instructions and drivers are available from the FrogPad website.
Wake Up
After 15 minutes of no keyboard input, the iFrog will enter into sleep mode to preserve battery power. To
wake it up, press the <Shift> for three seconds.
®
Low Battery Indicator
The FrogPad requires recharging when you see a solid red light on the Charging Indicator Light (Red LED)
·
Turn OFF your iFrog
·
Refer to Charging section above on how to recharge the iFrog
Note:
You may turn your iFrog ON if you would like to continue using the iFrog while it is charging,
FrogPad Keyboard Limited Warranty
FrogPad, Inc.(FrogPad) warrants that your FrogPad iFrog keyboard will be free from defects in material or workmanship for a period of
one (1) year after the date of purchase, under normal use and conditions.
technical@frogpad.com
During this period, if the keyboard is found to be defective in materials or workmanship FrogPad will repair or replace it, at the sole option
of FrogPad, at no charge to you. In no event shall FrogPad be liable for damages exceeding the sale price for your keyboard.
You are responsible for packing the defective keyboard properly and for the cost of shipping. Shipping instructions will be given by tech
support at FrogPad. Warranty repairs are completed at no charge for parts or labor, and FrogPad will pay the cost of shipping the repaired
or replaced product back to you. Warranty repairs may use new or equal replacement parts.
6
TM
®
®
® ®
®
For all warranty and service related matters, please contact
FrogPad reserves the right to make the final decision on any warranty claim that may be questionable. This limited warranty does not
cover and FrogPad will not be responsible for failures or defects due to misuse, neglect, abuse, accidents, alterations, improper or
unauthorized installation or service, unauthorized removal or repairs, failure to follow instructions, fire, floods, acts of God, or spills of
food or liquids.
EXCEPT FORTHE EXPRESS LIMITEDWARRANTY PROVIDEDABOVE, THEFROGPADKEYBOARD, FIRMWARE, SOFTWARE,
ACCOMPANYING DRIVERS AND WRITTEN MATERIALSARE PROVIDED “AS IS” WITHOUTREPRESENTATION, CONDITION
OR WARRANTY OF ANY KIND, WHETHER EXPRESS, IMPLIED OR STATUTORY, AND FROGPAD SPECIFICALLY EXCLUDES
ALL OTHER CONDITIONS AND WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED CONDITIONS AND
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL FROGPAD BE
LIABLE FORANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING DIRECTLYOR INDIRECTLY
IN CONNECTION WITH THE KEYBOARD, THE USE OF THE KEYBOARD OR OTHERWISE, WHETHER FOR LOSS OF PROFITS,
BUSINESS REVENUES OR OTHERWISE.
This warranty sets forth the entire responsibility of FrogPad with respect to the keyboard, firmware, software, accompanying drivers and
written materials. Your exclusive remedy is repair or replacement as stated herein. In no event shall FrogPad's liabilities exceed the cost of
correcting defects as provided herein and any such liabilities will terminate upon expiration of the warranty period.
This warranty is valid only when the keyboard is purchased from a FrogPad Inc. Authorized Dealer, and applies only to the original
purchaser. Keyboards with the serial number or model designation removed, altered, replaced or defaced are not covered by this warranty.
Trademarks™ and Registered Trademarks
Bluetooth
The trademark is owned by Bluetooth SIG, Inc., and used by FrogPad, Inc. under license.
®
®
FROGPAD and the FROGPAD logo are trademarks of FrogPad, Inc.
