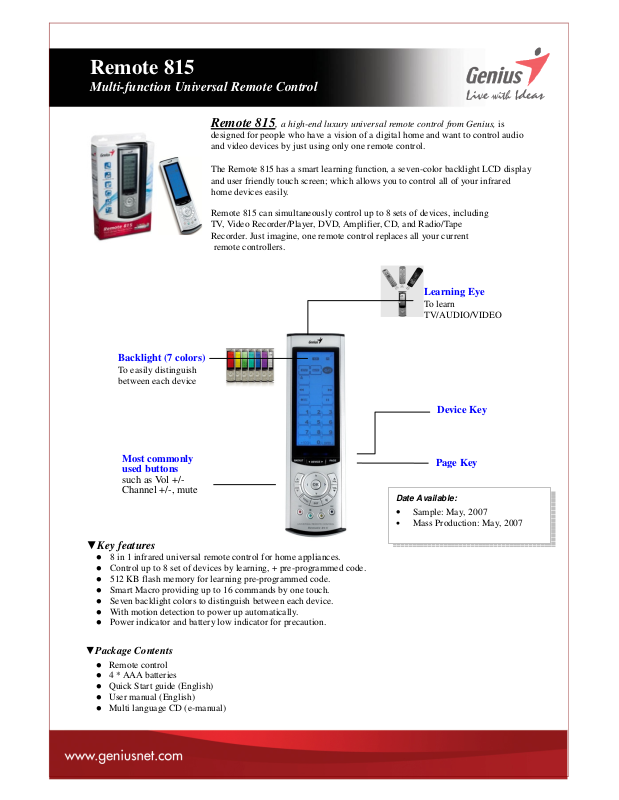

Genius REMOTE 815 User Manual

Backlight (7 colors)

Learning Eye

M

ost commonly

Page Key

Device Key

Remote 815

Multi-function Universal Remote Control

Remote 815, a high-end luxury universal remote control from Genius, is

designed for people who have a vision of a digital home and want to control audio
and video devices by just using only one remote control.

The Remote 815 has a smart learning function, a seven-color backlight LCD display
and user friendly touch screen; which allows you to control all of your infrared
home devices easily.

Remote 815 can simultaneously control up to 8 sets of devices, including
TV, Video Recorder/Player, DVD, Amplifier, CD, and Radio/Tape
Recorder. Just imagine, one remote control replaces all your current

remote controllers.

▼Key features

▼Package Contents

To easily distinguish
between each device

used buttons

such as Vol +/­Channel +/-, mute

 8 in 1 infrared universal remote control for home appliances.
 Control up to 8 set of devices by learning, + pre-programmed code.
 512 KB flash memory for learning pre-programmed code.
 Smart Macro providing up to 16 commands by one touch.
 Seven backlight colors to distinguish between each device.
 With motion detection to power up automatically.
 Power indicator and battery low indicator for precaution.

 Remote control
 4 * AAA batteries
 Quick Start guide (English)
 User manual (English)
 Multi language CD (e-manual)

To learn
TV/AUDIO/VIDEO

Date Available:

• Sample: May, 2007

• Mass Production: May, 2007

Remote 815

Multi-function Universal Remote Control

Specification

Learning Frequency 20KHz - 455KHz and pulse up to 256 bits long

Learning Distance 2” to 4” (5cm up to 10 cm)

IR Operating Distance Up to 10 meters

Memory 512KB Flash Memory

Keys 59 Keys/2 Pages/8 Devices

Integrating Capability Control up to 8 devices

Display LCD

Backlight Multicolor LED

Batteries 1.5V 4 x AAA Alkaline Batteries

Power
Consumption

WEEE
data

Shipping
information

Operation current 170mA (max)

LCD on Current 160 µA

LCD off Current 40 µ

Dimension (W x H x L) 64 x 23 x 220 (mm)

Weight (without battery) 8.5 oz (240 g)

Gift box size(mm) 320 x 175 x 50 mm

PCs/CTN 10

CUFT/CTN 1.77

EAN code 4710268 222163

UPC code 091163 222163
