Welcome
Congratulations on your purchase of the Remote 300 and receiver for Media
Center PC with Windows Vista™ Home Premium and Windows Vista™
Ultimate. The infrared (IR) remote control and receiver let you access and
manage your Media Center PC and other peripheral devices.
※※※※Important: If your Media Center PC has a receiver installed, you can
skip the sections in this manual that describe working with the receiver
STEP 1 Insert the Batteries
The remote control uses two AAA batteries, which are included in the
package. Whenever you insert the batteries, make sure both of them are
new.
To insert the batteries
1. Remove the battery compartment cover by
pushing on its release and lifting up.
2. Insert the batteries, making sure to properly
orient the positive (+) and negative (－) ends as
specified by the battery compartment labels.
3. Replace the battery compartment cover.
STEP 2 Position the Receiver
For optimum performance, make sure that the
distance between the remote control and the
receiver doesn’t exceed 10 meters. Keep a direct,
unobstructed line of sight between the receiver
and the remote control, and don’t let any natural
or artificial light shine directly on the receiver’s IR
sensor.
1
ENGLISH
STEP 3 Connect the Receiver
The receiver relays input from your remote control to your computer.
To connect the receiver
With your computer turned on, plug the
rectangular universal serial bus (USB) connector
into your computer’s USB port.
USING THE REMOTE CONTROL
You use the remote control to interact with most of the features in the Media
Center. Just point the remote control at the receiver, and then enter your
commands.
Your remote control has five types of buttons:
Navigation buttons, to move between items on the screen. (for example,
up arrow or enter)
Playback buttons, to control your media (for example, pause or stop).
Audio-visual (AV) and power buttons, to change channels and adjust
volume. (for example, channel up or mute)
Shortcut buttons, to provide a quick way for users to access key media
experiences in Windows Media Center.
Numeric keypad buttons, to enter alphanumeric characters or TV
channels.
[if available] Teletext buttons to access Teletext functionality. For more
information, see “Teletext Buttons” later in this User Manual.
2
ENGLISH
NAVIGATION BUTTONS
Use the navigation buttons on the remote control to move between items on
the screen in Media Center.
Command Task Icon
START Takes the user to the Windows
Media Center Start menu
UP Moves the pointer up one position
DOWN Moves the pointer down one position
LEFT Moves the pointer to the left one position
RIGHT Moves the pointer to the right one position
OK Performs the action at the focus point
BACK Moves back one position in the user interface stack
MORE Provides information about the pointer
3
ENGLISH
PLAYBACK BUTTONS
Playback buttons in the Media Center behave just like similar controls on
common home electronic devices, such as CD or DVD players. Playback
buttons are used to control the playback or display of your media – music,
pictures, video, and radio.
Command Task Icon
PLAY Starts playing media at the current position. If play
back is paused, pressing this button begins playback
from the current position.
PAUSE Pauses media playback at the current position
STOP Stops playing media at the current position and
moves the pointer to the starting point of the digital
media file
RECORD Record the TV show to disk. If pressed while live TV
is on, record the current show. If pressed from the
Electronic Programming Guide, records a TV show
or TV series to disk (for Windows Media Center
computers that include TV tuner hardware).
FAST Speeds up the time base of the digital media file to
FORWARD the first fast forward value (3X). If a slide show is
currently playing, the next picture is displayed when
this button is pressed.
REWIND Reverses direction of the digital media stream and
speeds up the time base to the first rewind value (3X).
If a slide show is currently playing, the previous
picture is displayed when this button is pressed.
4
ENGLISH
Command Task Icon
SKIP Skips forward one increment when this button is
FORWARD pressed. The meaning of an increment depends on
the type of media that is playing:
• If a CD or playlist is playing, the next song is played.
• If a DVD is playing, the next chapter is played.
• If a slide show is playing, the next picture is displayed.
• If a recorded TV show is playing, playback skips
ahead 29 seconds.
SKIP Skips backward one increment when this button is
BACK pressed. The meaning of an increment depends on
the type of media that is playing:
• If a CD or playlist is playing, the previous song is
played.
• If a DVD is playing, the previous chapter is played.
• If a slide show is playing, the previous picture is
displayed.
• If a recorded TV show is playing, playback skips
backward 7 seconds.
5
ENGLISH
AV AND POWER BUTTONS
Use the AV and power buttons to change channels, adjust volume, access a
DVD menu, or to put Media Center in standby mode.
Command Task Icon
PC POWER Puts the Windows Media Center computer into
(STANDBY) standby mode if the computer is running. If the
computer is in standby mode, the computer wakes
from standby mode.
TV POWER [if available] By default, the TV button has no
command assigned to it. This button can “learn” to
turn on the TV. For more information, see “Using the
Remote Control Learning Functionality”
VOLUME Increases the current volume by one unit. If the audio
UP is currently muted when this button is pressed, muting
is disabled and the volume increases by one unit.
VOLUME Decreases the current volume by one unit. If the audio
DOWN is currently muted when this button is pressed, muting
is disabled and the volume decreases by one unit.
CHANNEL Increases the current channel number by one. If
UP Windows Media Center is in list view when this
button is pressed, the pointer moves forward
one page in the list.
CHANNEL Decreases the current channel number by one. If
DOWN Windows Media Center is in list view when this
button is pressed, the pointer moves backward
one page in the list.
MUTE Mutes the computer audio
PC
6
ENGLISH
SHORTCUT BUTTONS [if available]
These buttons provide a quick way for users to access key media
experiences in Windows Media Center.
Command Task Icon
GUIDE Displays the Guide in Windows Media Center.
LIVE TV Shows live TV on the currently selected channel.
RECORD Displays the Recorded TV page in Windows
TV Media Center.
DVD Displays the DVD menu.
MENU
PC Change to PC mode
TV [if available] Change to TV mode
AUX [if available] Change to AUX mode
AV [if available] Change to AV mode
7
ENGLISH
NUMERIC KEYPAD
The numeric keypad consists of numbers from 0 through 9 and two other
keys: ENTER and CLEAR. You can use the numeric keypad to type
alphanumeric characters anywhere in the Media Center that you can enter
text. If you want to delete characters you have typed, press CLEAR; press
ENTER to submit the characters you have typed. You can also use the
numeric keypad to enter TV channels.
TRIPLE TAP FUNCTION (CHARACTER INPUT)
If you have used an address book in a mobile phone, you are familiar with
how to use the numeric keypad to type text. Each time you press a key, you
scroll through the characters that are available for that key.
To type text by using the numeric keypad
1. Press a number to scroll through the choices that are available for that
key. Each time you press that key, a different character appears. To
backspace, press CLEAR.
2. When the character you want is displayed, press ENTER.
8
ENGLISH
TELETEXT BUTTONS [if available]
Media Center supports Teletext when it is available. The colored Fastext
buttons on the remote control for Media Center PC work much like the
Teletext buttons on a standard Teletext-enabled TV. Additionally, these
buttons are used for Integrated Services Digital Broadcasting (ISDB) data
functions in addition to Teletext. Teletext buttons should appear below the
numeric keypad on the remote control.
To display Page 100 (Teletext home page)
Press the TELETEXT button. Page 100 will appear in a few seconds
and completely replace the TV picture, but it will not affect the TV
sound.
To access Teletext pages
Type the three-digit number of the page you want to display by using
the numeric keypad. For example, enter 300 to access the A-Z
Teletext Index.
To navigate between Teletext pages
Press the UP and DOWN buttons on your remote control to navigate
between Next and Previous pages.
To use the Fastext buttons
The red, green, yellow, and blue buttons on your remote control
correspond to the same colored buttons on your TV. Press a colored
button on your remote control to go to a preset page.
9
ENGLISH
How to learn?
※※※※Features:
Except PC mode, TV, AV, and AUX modes are able to learn.
The learning remains if the batteries have lost their power.
The learning end by pressing the DVD menu or if you wait for five
seconds.
Instruction
1. Press the mode button you want to learn. The mode button will emit a
blue light.
2. Hold DVD menu first, and press OK . The indicator will emit a
green light. Press the button you want to learn. The indicator will blink
once.
Indicator
10
ENGLISH

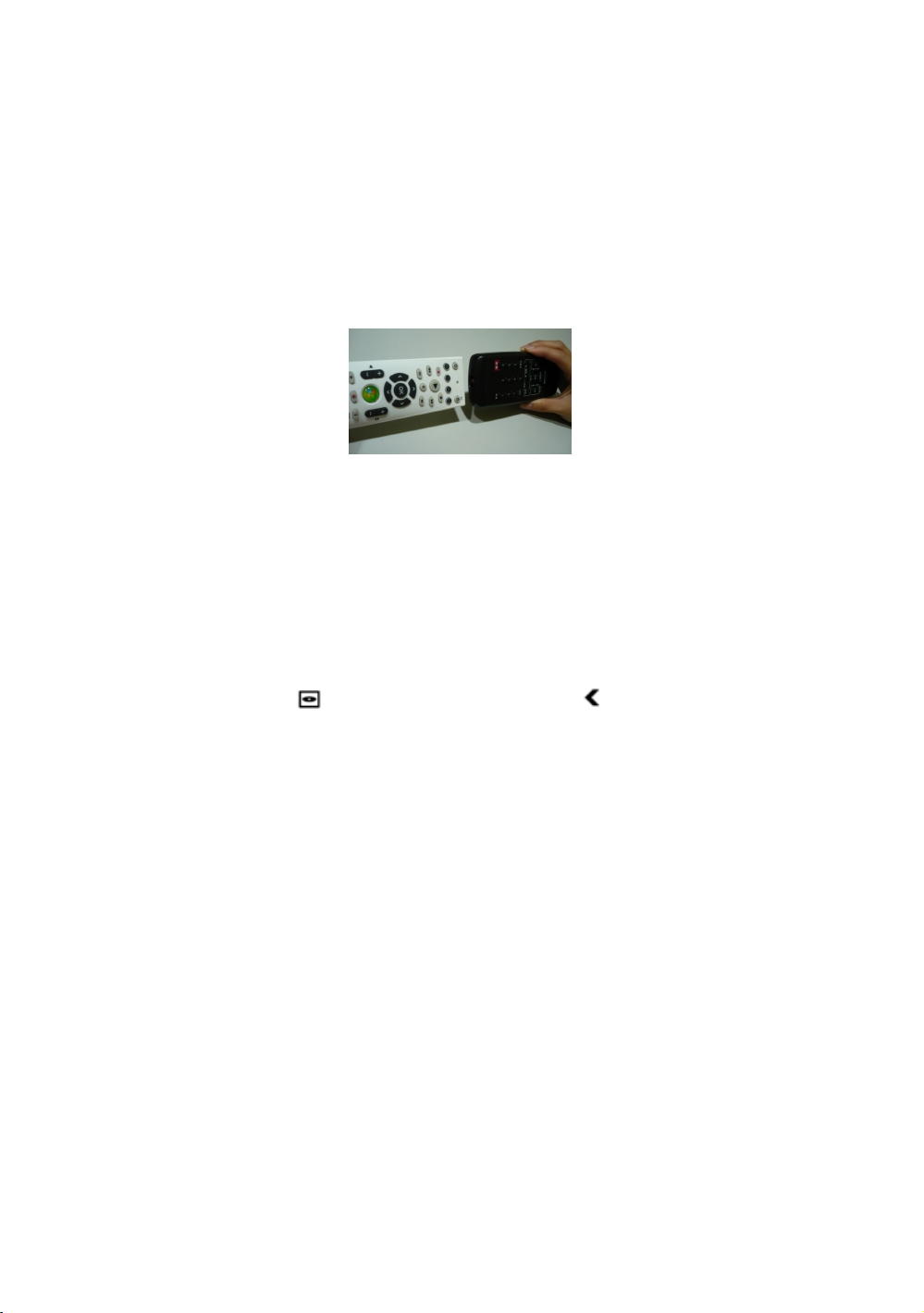

3. Perform a head to head learning (about a 5cm gap) as shown below.
Press the button on the other remote you want to learn for 2 seconds. If
you succeed, the indicator will blink a green light twice. If you failed, the
indicator will blink a red light four times. Step 3 must be completed within
five seconds once you press the button you want to learn.
4. If you want to learn another button, repeat Step 2 and 3.
How to delete old learning?
1. Press a mode button you want to restore (TV, AV or AUX).
2. Hold DVD MENU first and press LEFT button , the indicator will turn
green. Press OK in five seconds to confirm the delete. If you succeed, the
indicator will blink a green light twice slowly. If you failed, the indicator will
blink a red light four times quickly.
3. The buttons learned in the mode you chose to delete will all be deleted.
11
ENGLISH
Warning:
CAUTION: any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
Federal Communications commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
To protect against risk of fire, bodily injury, electric shock or damage to the
equipment:
Do not immerse any part of this product in water or other liquid.
Do not spray liquid on this product or allow excess liquid to drip inside.
Do not use this product if it has sustained damage, such as a damaged
cord or plug.
Disconnect this product or remove its batteries before cleaning.
12
Loading...
