Genie W96EBV, W96EBVW User Manual

Page 1
W96EBV | W96EBVW
Vandal Resistant Dome Camera with IR LED’s
User Manual
Page 2
Vandal Resistant Dome Camera with IR LED’s
2
DO NOT ATTEMPT TO DISASSEMBLE THE CAMERA.
Risk of Electric Shock, Do Not Open
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSON
This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the
product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operation and maintenance instructions in the literature accompanying the appliance.
Page 3
Vandal Resistant Dome Camera with IR LED’s
3
1. This product is patented for conguration, appearance and design; copying is not permitted.
2. If this product fails to operate normally contact your authorised distributor or service centre. Never
disassemble or modify the product in any way. Problems caused by disassembly, modication or
repair invalidates the product warranty.
3. Electromagnetic elds at specic frequencies may cause image interference.
4. Only use a standard regulated power adapter. Using any other adapter could result in re, electric
shock or damage to the product.
5. Incorrectly connecting the power supply may result in re, electric shock or damage to the product.
6. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal
heat generation or re.
7. Securely plug the power cord into the power receptacle. A loose connection may result in re.
8. When installing the camera on a wall or ceiling, fasten it safely and securely. A falling camera may cause personal injury.
9. Do not place conductive objects (e.g. screwdrivers, coins etc.) on top of the camera.
10. Do not install the unit in humid, dusty locations.
11. If any unusual smell or smoke comes from the unit, please stop using the product. In such cases, please immediately disconnect the power source and contact your local authorised distributor or service centre.
1. Do not drop objects on the products or apply strong shocks to it. Keep it away from locations subject
to excessive vibration or magnetic-eld interference.
2. Do not install in a location subject to high temperatures (over 122°F or +50℃), low temperatures (below 14°F or -20℃) it may cause a re.
3. If want to relocate the installed product, turn off the power before moving or reinstalling it.
4. Remove the power plug from the outlet if there is a lightning storm. Neglecting to do so may cause
re or damage to the product.
5. Avoid a location which is exposed to direct sunlight, or near heat sources. Neglecting to do so may
cause re.
6. Install in a well-ventilated location.
7. Avoid aiming the camera directly towards extremely bright objects such as the sun, as this may damage the image sensor.
Warning
Cautions
Page 4
Vandal Resistant Dome Camera with IR LED’s
4
1. Read these instructions
2. Keep these instructions for later use.
3. Pay attention to all warnings and adhere to them.
4. Follow all instructions.
5. Do not immerse this product in water.
6. Clean only with a lint free dry cloth.
7. Do not block any ventilation openings.
8. Do not install near any heat sources such as radiations, heat registers, or other products
(including ampliers) that produce heat.
9. Protect the power cord from being walked on or being pinched, especially at power receptacles,
and the point where they exit from the camera.
10. Only use accessories specied by the manufacturer.
11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power.
12. Refer all servicing to qualied service personnel. Servicing is required when the product has
been damaged in any way, such as power supply cord or plug is damaged, it does not operate normally, or has been dropped.
13. Do not operate the camera beyond its temperature, humidity or power source ratings. Operating
temperature: 14F-122F (-20℃-50℃), Humidity >85%
14. Do not point the camera towards the sun, spotlights or reective surfaces.
15. Laser beams will damage the image sensor. Do not project laser beam directly into the lens of the camera.
Important Safety Instructions
Page 5
Vandal Resistant Dome Camera with IR LED’s
5
1. Features
The W96EBV Series cameras are equipped with a 1/3” SONY 960H
CCD and an advanced Digital Signal Processor (DSP). It has a horizontal resolution of 700TVL, which provides clear and vivid images.
2.8-12mm Varifocal Auto Iris Lens.
Integrated 36-piece IR LED array for high resolution and full motion video capture - even in total darkness.
IR illumination distance 20m in ideal environmental conditions.
Built-in CDS photo sensor for automatic operation of the IR LED array.
OSD Menu
DC12V (Genie PSU1SM)
External adjustments for Focus and Zoom
Manual Pan /Tilt mechanism.
Weatherproof design IP65.
Optional Stand Off Base Accessory (W96EBSB or W96EBSBW)
2. Cover Removal
Undo the retaining ring by unscrewing it from the mounting base.
3. Safety Precautions
Camera installation should only be carried out by suitably qualied service personnel and
conrm to all local safety codes.
Page 6
Vandal Resistant Dome Camera with IR LED’s
6
Power Supply
(1) Only use a regulated CE approved DC12V power supply, such as the Genie PSU1SM.
(2) To prevent re or electrical shocks UL listed Class 2 wiring should be used on the DC12V
input terminals.
(3) Make sure that the power wiring is connected to the correct terminals. Incorrect
connection can cause permanent damage to the camera.
4. Operation and Storage
(1) Never point the camera directly at the sun, or any other extremely bright objects, as it
causes image smear and leads to CCD (Charge Coupled Device) damage.
(2) If the camera is installed next to equipment, such as wireless devices which emit strong
electromagnetic elds, some noise may appear on the monitor.
(3) Make sure the mounting surface is strong enough to support the weight of the camera.
(4) Assemble the camera’s main parts in a clean and dry environment.
(5) Do not stretch the cable, it may cause a disconnection.
(6) Do not touch the inside of camera, even if something is wrong.
(7) Before installation, be sure to disconnect the power supply rst and check the ground
connection.
(8) Operating temperature range: -10°C ~ +50°C (14°F ~ 122°F)
Storage temperature range: -20°C ~ +60°C (-4°F ~ 140°F).

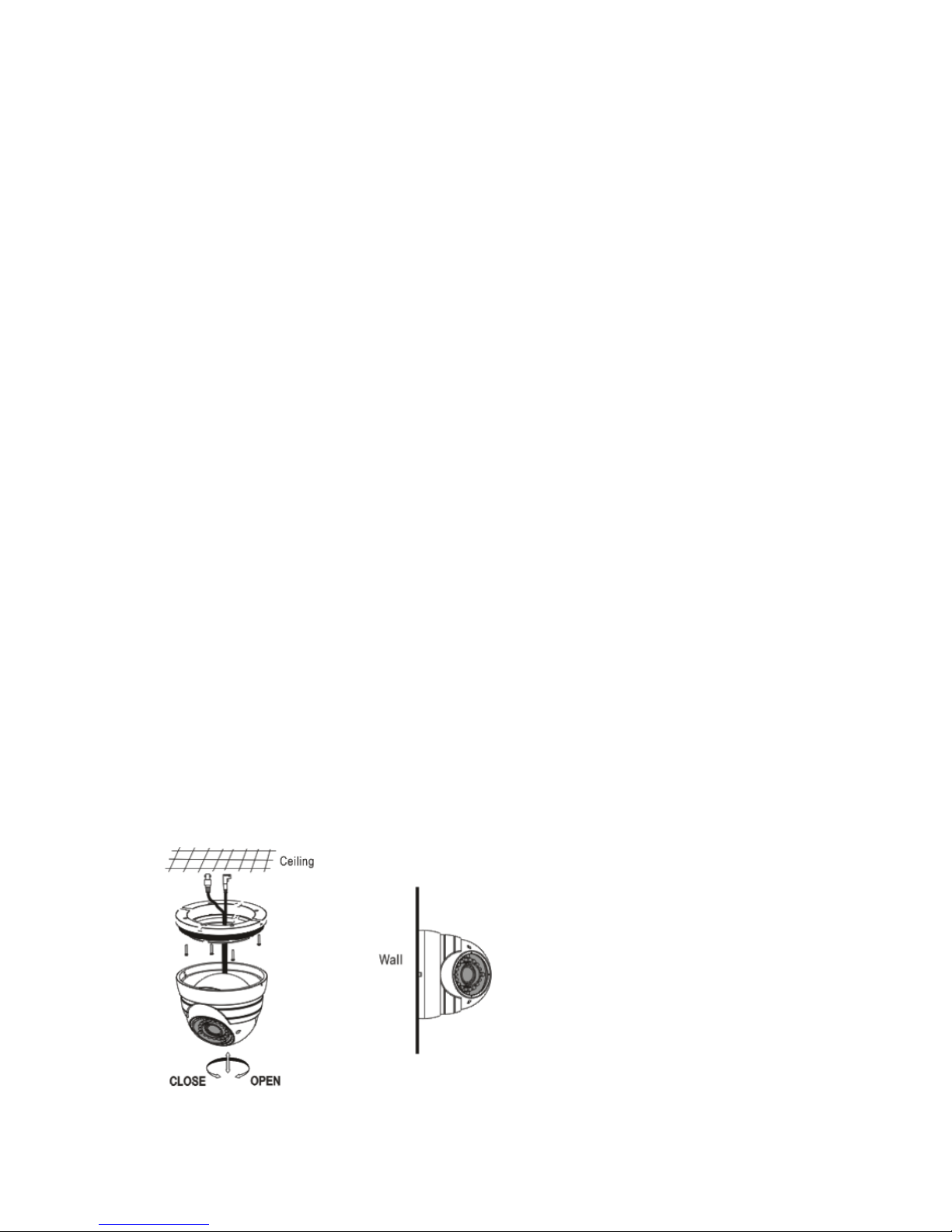

5. Installation
1. Carefully unpack the camera and remove it from the packaging. Undo the locking ring to
disassemble the camera – as detailed in section 2.
2. Drill the appropriate holes in the required mounting surface. Use the camera mounting
base as a template to position the xing holes. Holes may also be necessary for the power
and video cables.
Page 7
Vandal Resistant Dome Camera with IR LED’s
7
• Connecting Low Voltage Power & Video Signal
The wiring harness has a BNC connector to output the video signal and the other
connector is used to input DC12V low voltage power – polarity conscious.
An adapter is provided to connect directly to bare cable ends.
• AdjustingtheCameraDirection
The built-in 3 axis camera mechanism makes it very easy to rotate the camera in any
direction and direct the lens toward the target.
• AdjustingtheViewingAngle
Use the supplied adjusting tool to alter the camera zoom and focus screws – these are
marked on the camera case.
6. Dimensions
Make sure the ring is rmly tightened before and after adjusting the lens.
OSD
DC12V
VIDEO
Page 8
Vandal Resistant Dome Camera with IR LED’s
8
Model Number W96EBV W96EBVW
Image Device 1/3” Sony Efo-E 960H CCD
TV System PAL
Total Pixels 1020 (H) x 596 (V)
Effective Pixels 976 (H) x 582 (V)
Scanning System 2:1 Interlaced
Synchronisation Internal
Horizontal Resolution 700TV Lines
Minimum Illumination 0Lux (IR On)
S/N Ratio >50dB
Video Output 1Vp-p, 75ohm, BNC
Lens Focal Length (Zoom Ratio) 2.8-12mm Varifocal Lens
Regular Field of View D:94.26°/H:79.37°/V:69.8°
Shutter/AGC Auto
Backlight On/Off
Mirror On/Off
Brightness Auto
Contrast 1-128
Sharpness 1-128
Hue 1-128
Gain Auto
Motion Detection On/Off
Detect Sense 0- 111
Motion Area On/Off (4 Areas)
Privacy Masking On/Off (4 Areas)
Camera ID On/Off
Noise Reduction 2D-DNR
NR Mode Y/C (Y Level 0-4; C Level 0-4)
HLC On/Off
OSD Menu 8 languages
White Pixel Compensation Static and Dynamic
White Balance ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK
Burst On/Off
Delay Count 0-10
Electronic Shutter Speed 1/50 ~ 1/100,000sec
Infrared LED / Wavelength 36-Piece, 850nm
IR Distance 20 Metres in Ideal Conditions
Operational Temperature -10℃~ +50℃
Storage Temperature -20℃~ +60℃
Weatherproof IP65
Input Voltage/Current DC12V, 370mA
Dimensions 150*100mm
Weight 800g
Specication
*Design and Specications are subject to change without notice.
Page 9
Vandal Resistant Dome Camera with IR LED’s
9
Memo
Page 10
GENIE CCTV LTD.
CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT
Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543
www.geniecctv.com
Edition. GN-January 2014
