CONGRATULATIONS!

You now own the most stable and durable vertical lift on the market today--a Genie Vertical Lift. Genie takes pride in designing products that stand for quality, value, and service. You can be assured that your new Genie Vertical Lift will offer all of these.

This manual has been prepared to assist you with the initial unpacking and operation of your new Genie Vertical Lift. In addition, this manual will illustrate how to transport and troubleshoot the machine, as well as how to perform periodic maintenance.

We have tried to answer all possible questions and project any service situation that you might encounter. But, as with any publication of this type, we cannot guarantee that it is all inclusive. If you have a question or situation that has not been addressed in this manual, please contact us. WE RELY ON YOUR FEEDBACK!

Write:	GENIE INDUSTRIES
	Attention: Service Manager
	18340 North East 76th Street
	P.O. Box 69
	Redmond, WA 98073-0069

Call: Toll free, 800-426-8089 In Washington state (206) 881-1800

Once again, congratulations on the purchase of your new Genie Vertical Lift. We are confident it will provide you with quality, value and years of service.

Sincerely,

GENIE INDUSTRIES

Genie Service Department Manager

Page 3

Page 4

Page

1.	INTI	RODUCTION AND GENERAL INFORMATION
	1.1 1.2 1.3 1.4	Purpose Item Description Identification Operation	.1.01 .1.02 .1.03 .1.05
2.	SAF	ETY
	2.1	Mandatory Precautions	.2.01
3.	OPE	ERATING INSTRUCTIONS
	3.1 3.2 3.3 3.4 3.5 3.6 3.7	Unpacking Preoperation Inspection Operating Instructions V-2470 Transport V-2470RT Transport V-2470 Theory Of Operation V-2470RT Theory Of Operation	.3.01 .3.02 .3.06 .3.07 .3.10 .3.13 .3.13
4.	ΜΑΙ	INTENANCE
	4.1 4.2 4.3 4.4 4.5	Maintenance Schedule Consumable Materials Specifications Torque Requirements Troubleshooting	.4.01 .4.04 .4.05 .4.07 .4.09
5.	SC⊦	IEMATICS AND DIAGRAMS
	5.1 5.2 5.3	Hydraulic Schematics Electrical Schematics And Diagrams Parts Reference Guide	.5.01 .5.04 .5.19
6.	MAN	NUFACTURERS APPENDICES
	6.1	Component List	.6.01

Page 5

Page 6

INTRODUCTION

Page 7

1.1 PURPOSE

This manual provides instructions for the operation and maintenance of the Genie Vertical Lift models V-2470 & V-2470RT. After reading this manual be sure to keep it as a ready reference. If you require further information:

Write:	GENIE INDUSTRIES
	Attn: Customer Service Department
	18340 N.E. 76th Street
	P.O. Box 69
	Redmond, WA 98073-0069

Call: Toll free, 800-426-8089 In Washington state (206) 881-1800
Telex: 152351
- Fax: (206) 885-4638

We are happy to help you and answer any questions you may have about your Genie Vertical Lift.

All information, illustrations and product descriptions contained in this manual are valid at the time of publication.

Genie Industries reserves the right to make changes in design, additions to, or improvements on any Genie products without imposing any obligation upon itself to install them on previously manufactured products.

Page 8

Page 9

1.2 ITEM DESCRIPTION

Physical

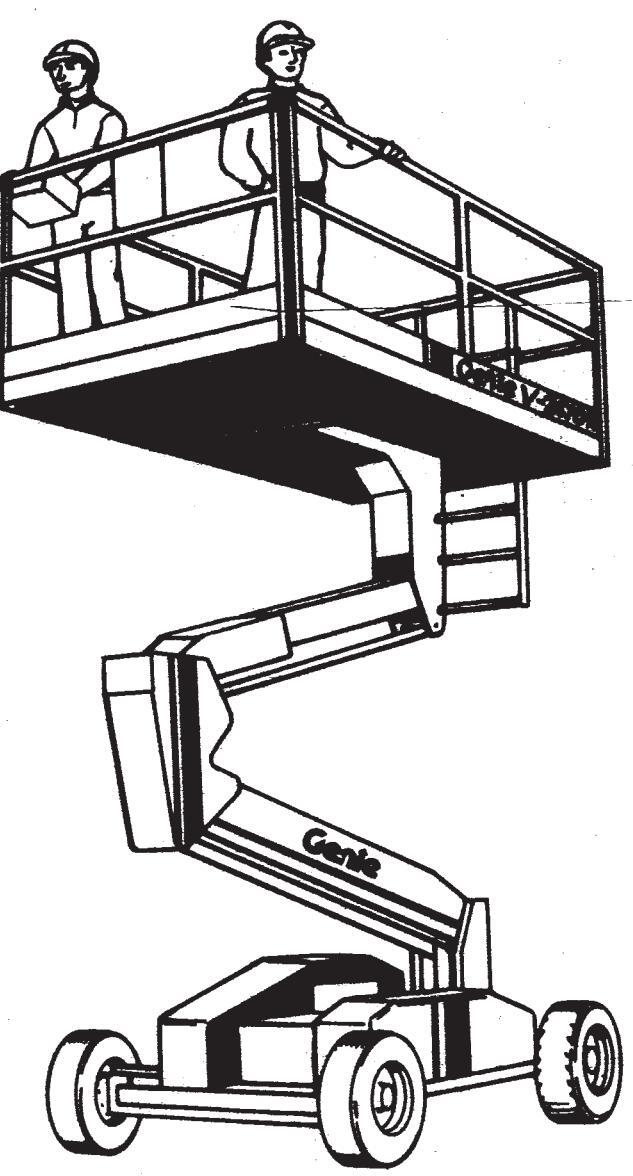

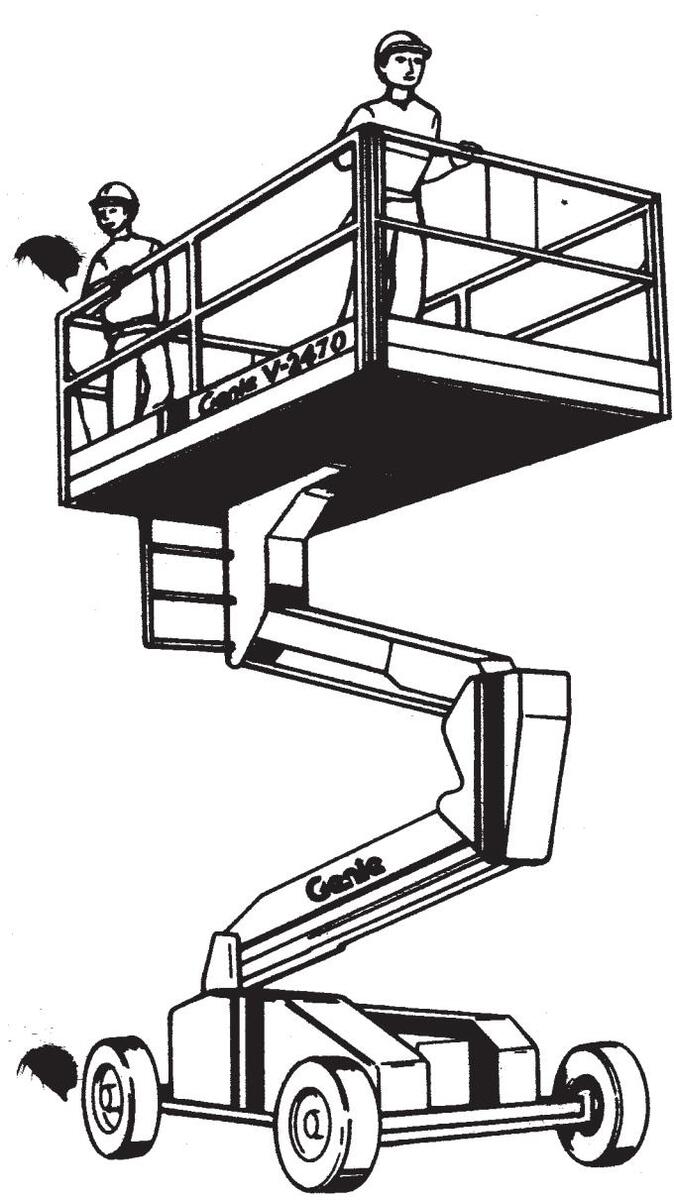

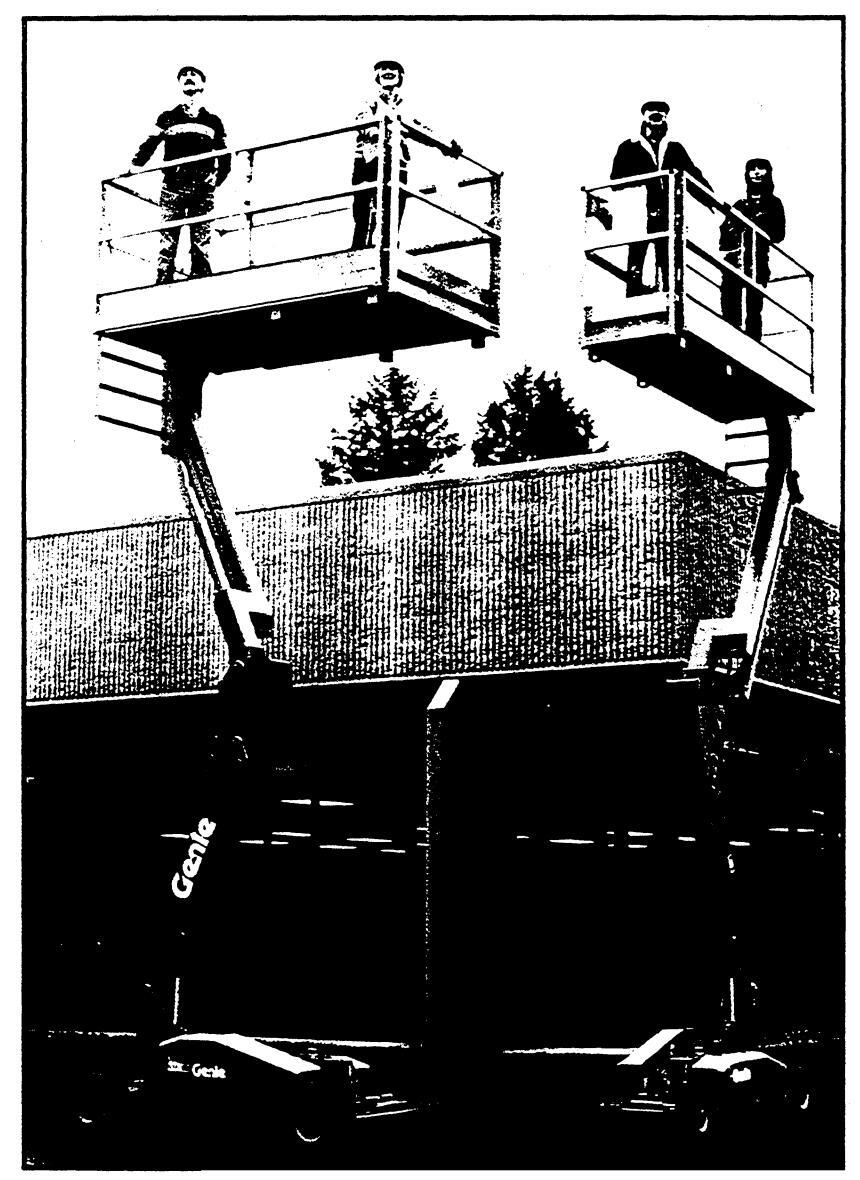

The Genie Vertical Lift V-2470 & V-2470RT are two person self-propelled, integral frame, elevating work platforms. The machines are capable of elevating personnel, along with their tools and materials, to a platform height of 24 ft. (7.3 m).

V-2470 : Obstacle clearance is 6 in. (152 mm). High center clearance is 8.25 in. (210 mm). The V-2470 has a stowed height of 7 ft. 9 in. (2.4 m) and a chassis width of 70 in. (1.78 m).

V-2470RT : Obstacle clearance is 8.25 in. (210 mm). High center clearance is 10.75 in. (273 mm). The V-2470RT has a stowed height of 7 ft. 11 in. (2.41 m) and a chassis width of 74 in. (1.88 m).

Power

Power for all machine functions on the Genie V-2470 is provided by stored electrical energy. Power for the machine functions on the Genie V-2470RT is provided by a dual fuel internal combustion engine. All machine functions (for both machines) are operated by a hydraulic pump. The pump supplies hydraulic oil to the machine function actuators (elevate cylinder, steering cylinder, and drive motors) allowing the machine to elevate, steer and drive.

Movement

With the platform fully lowered, the machines have a variable drive speed of 0-3 mph (0-4.8 km/h). Drive speed decreases to 0.8 mph (1.3 km/h) when traveling with the platform elevated.

V-2470 : Gradeability is 25%. When the wheels are turned to maximum in either direction, the Genie V-2470 has an outside turning radius of 16 ft. (4.9 m) and inside turning radius of 8 ft. (2.4 m).

V-2470RT : Gradeability is 35%. When the wheels are turned to maximum in either direction, the Genie V-2470RT has an outside turning radius of 17 ft. (5.2 m) and inside turning radius of 9 ft. (2.7 m).

Note: For a complete description of Genie Vertical Lift machine functions, refer to sections 3.6 and/or 3.7, Theory of Operation.

First Edition - Page 1.02

Page 10

Page 11

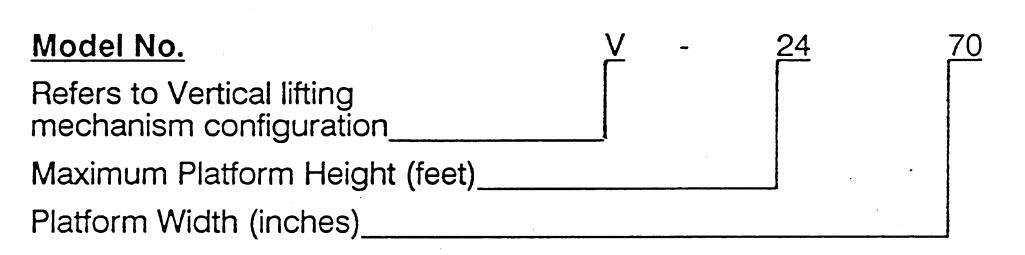

1.3 IDENTIFICATION

Geniel	ndus	tries
MODEL NO.	SERIAL NO
	LBS.
PLATFORM HEIGHT	FT.
		VOLTS
MAX. HYDRAULIC SYSTE		PSI.
THIS EQUIPMENT COMPLIES	WITH ANSI STAN	IDARD A92.
BEFORE OPERATING, READ A AND SAFETY INFORMATION ON THIS PLACARD.	ND UNDERSTAND IN MANUAL AND I	ALL OPERATIONS ALL INFORMATION
INSPECT EQUIPMENT FOR DA BEFORE USE REPORT ANY DE USE EQUIPMENT UNTIL CORI	AMAGE AND EXCES FECTS IMMEDIAT RECTED.	SSIVE WEAR DAILY ELY AND DO NOT
THIS EQUIPMENT IS NOT ELI	ECTRICALLY INSU	LATED.
Genie Industries	18340 North East 76th Redmond, Washingtor (206) 881-1800 - Cabl	h Street, P.O. Box 69 1 U.S.A. 98073-0069 le "Genieoist" Telex 152351 45228

The identification plate (above) is attached to the base weldment (at the time of manufacture) of every Genie Vertical Lift. Refer to the following page for a complete description of each item listed on the plate.

First Edition - Page 1.03

Page 12

Section 1.3 Identification Continued

NOTE: The "RT" (Rough Terrain) designation on the Genie V-2470RT does not appear on the identification plate.

Serial No.

This number identifies a particular machine with reference to the original owner. This number should always be referred to when requesting information or ordering service parts for the machine.

Rated Work Load

This is the maximum distributed platform capacity. It designates the maximum safe load which can be evenly distributed on the platform at any elevation.

Platform Height

This is the maximum attainable platform height and is measured from level ground surface to the floor of the platform.

Nominal Operating Voltage

The number stamped into this box designates the voltage at which the unit operates.

Maximum Hydraulic System Pressure

This is the maximum achievable operating hydraulic pressure.

ANSI

This is the standard of the AMERICAN NATIONAL STANDARD INSTITUTE (ANSI) the machine complies to.

Page 13

1.4 OPERATION

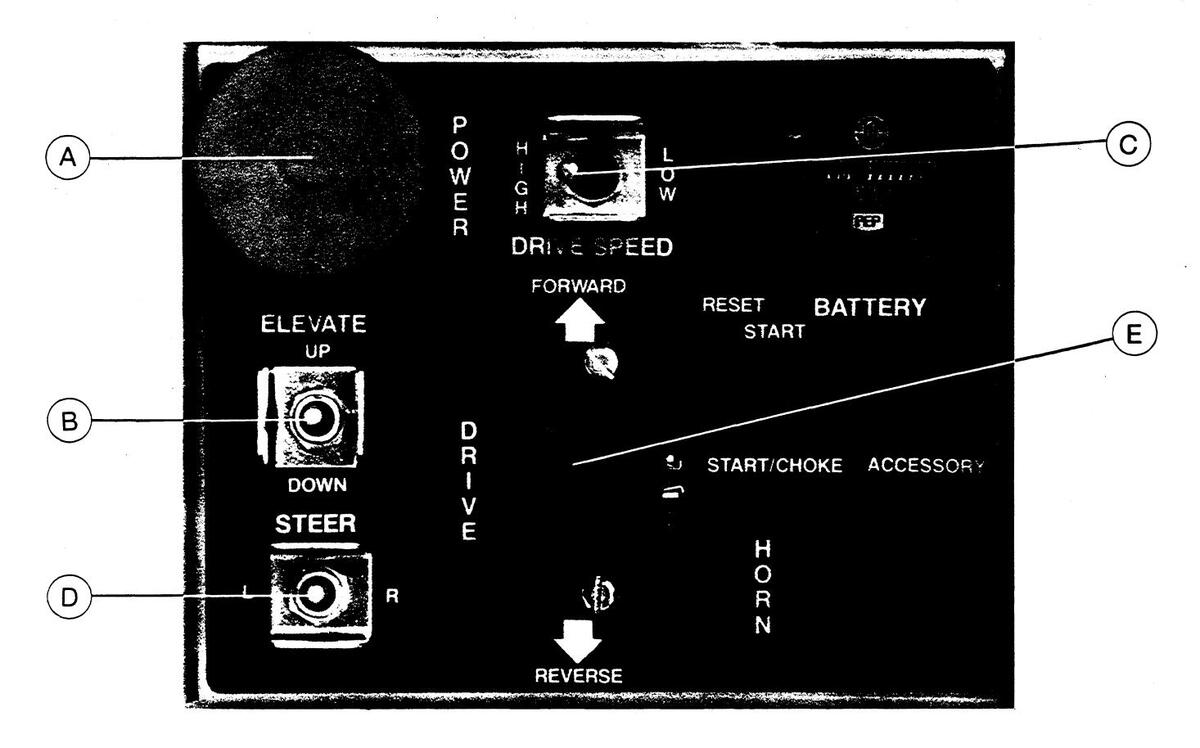

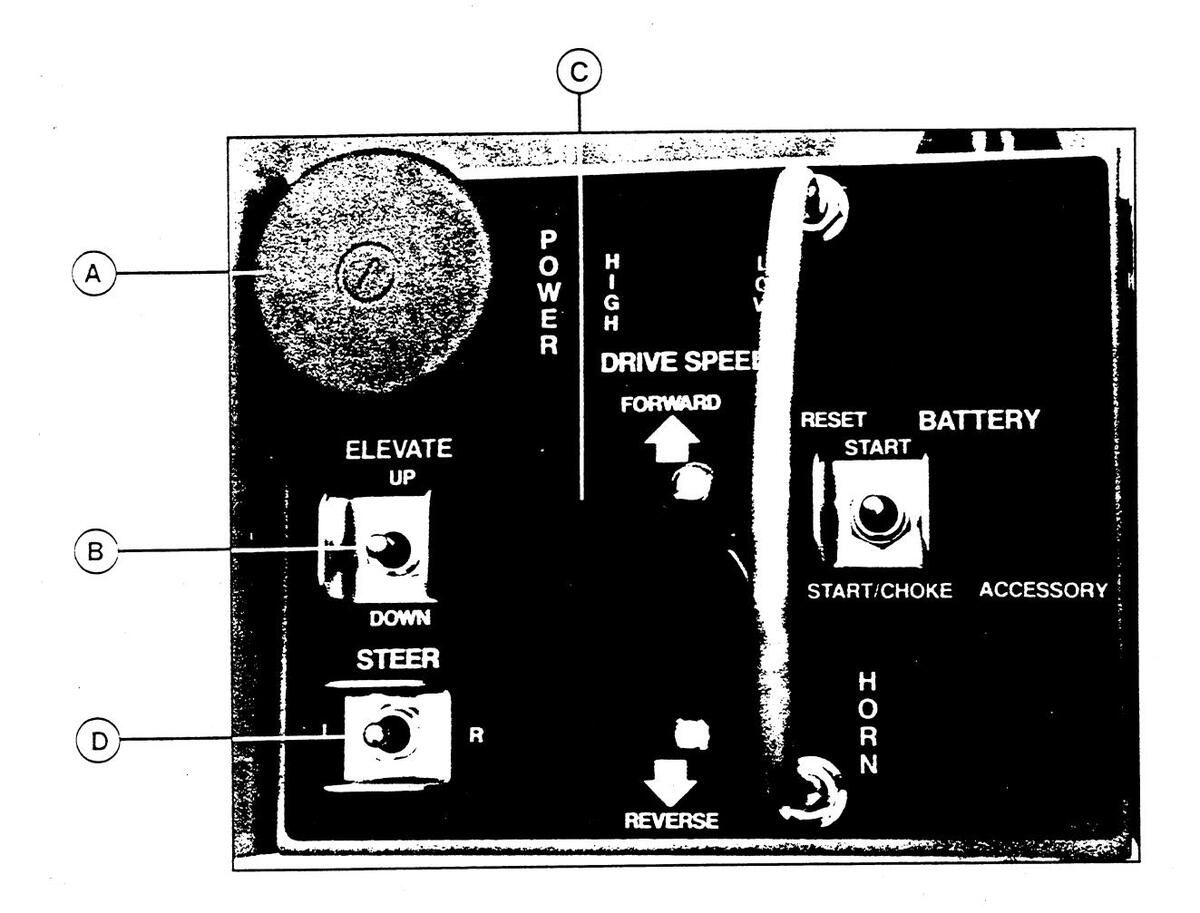

The Genie V-2470 & V-2470RT are controlled from the platform control station. This control station consists of a DRIVE Forward/Reverse joystick, a DRIVE SPEED High/Low toggle switch (Genie V-2470 only), STEER Left/Right toggle switch, an ELEVATE Up/Down toggle switch, and on the Genie V-2470RT a START/CHOKE toggle switch.

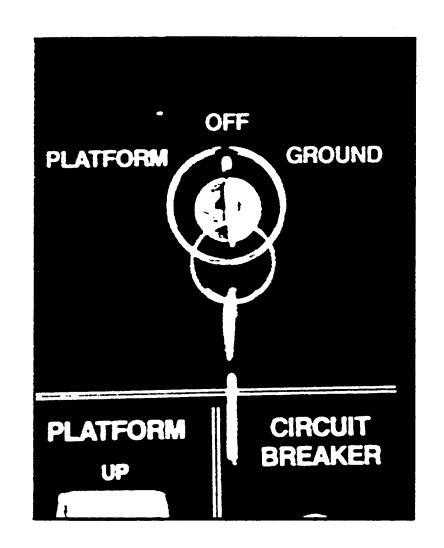

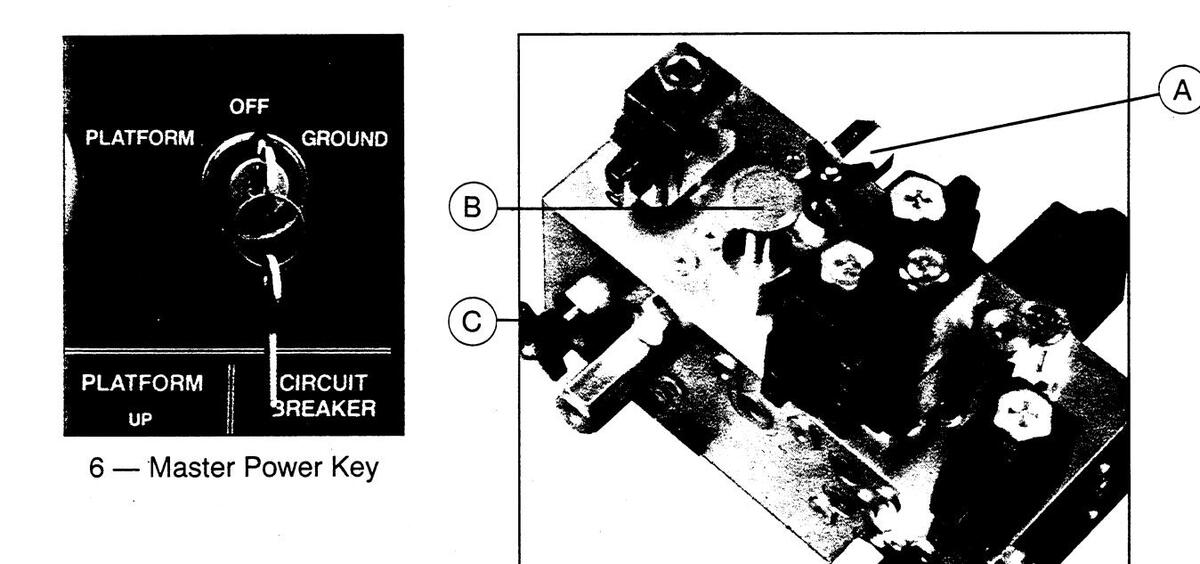

To operate the machine, the operator turns the key switch to the PLATFORM position and pulls up on the red POWER On/Off button located on the ground control station. The operator may now enter the platform and pull up on the platform control station POWER On/Off button. The Genie V-2470 is now operational. Follow the above instructions for the Genie V-2470RT and add these simple steps: Select the desired fuel (on the ground control station), then actuate the Start/Choke toggle switch to the proper position. The Genie V-2470RT should now be operational.

The machine may then be driven to the work location, and the platform elevated to the task. The chassis may be repositioned while the platform is elevated by driving the machine to the desired position.

IMPORTANT: NEVER ELEVATE THE PLATFORM OR DRIVE THE MACHINE WITH THE PLATFORM ELEVATED UNLESS THE MACHINE IS ON A FIRM LEVEL SURFACE.

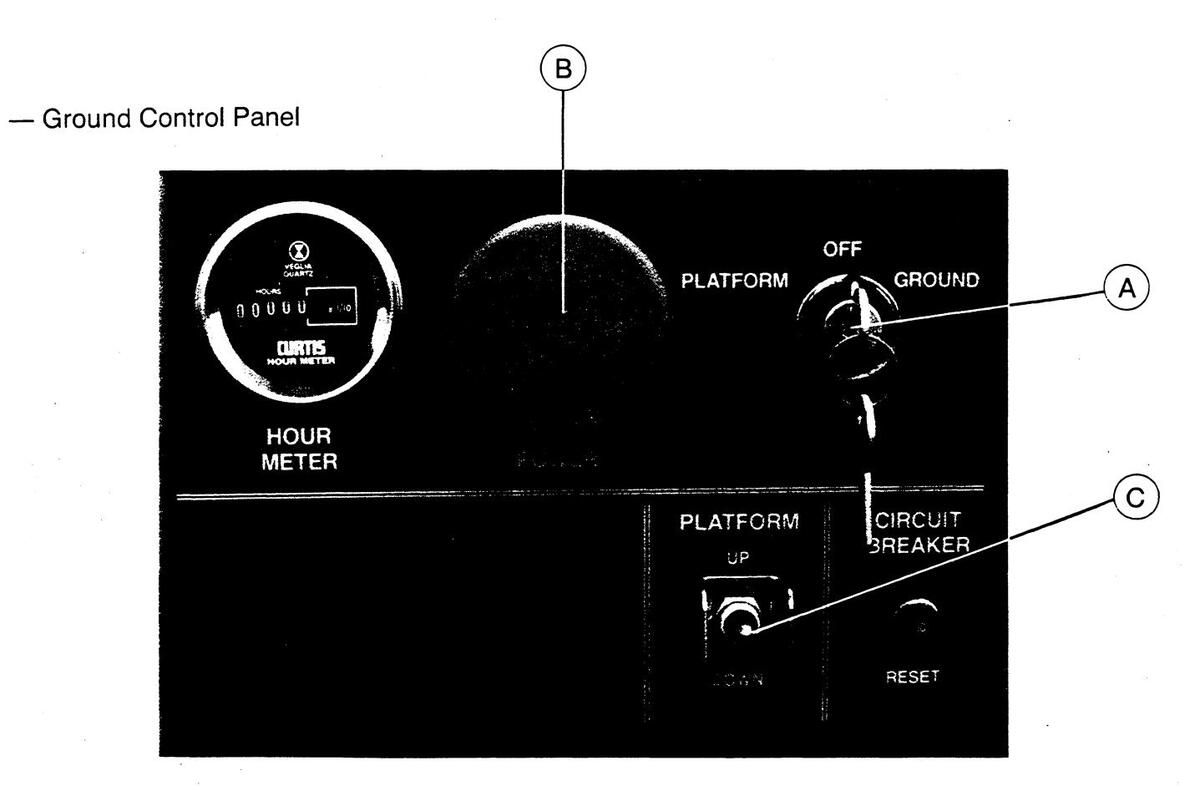

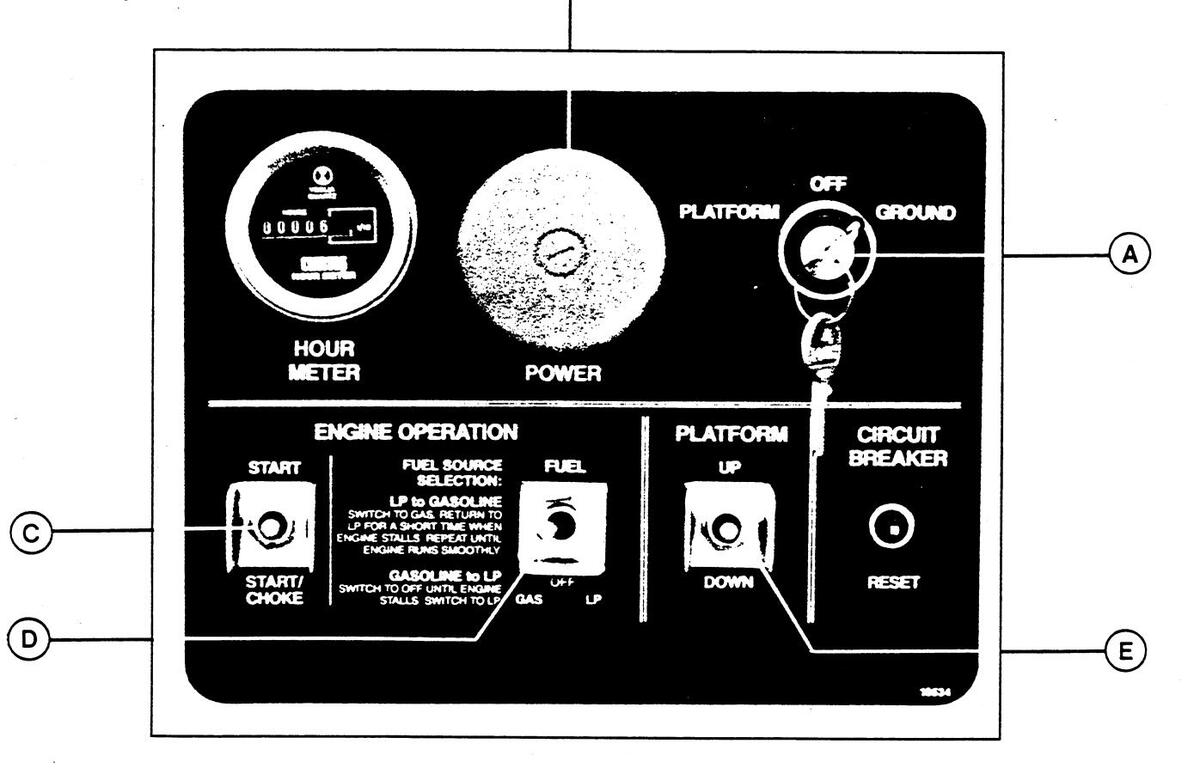

The ground control station provides controls for the elevate functions, and on the Genie V-2470RT, controls for START/CHOKE and FUEL Select.

In the event of a control circuit or hydraulic system power loss, the machine incorporates a manual lowering valve, located on the elevate cylinder.

At the end of each day the key switch should be turned off. The integral battery charger on the Genie V-2470 should be connected to the appropriate AC power source, and the fuel levels on the Genie V-2470RT should be checked.

Note: Refer to the Vertical Lift Operating Instructions in Section 3.3 for detailed instructions on Vertical Lift operation.

First Edition - Page 1.05

Page 14

Page 15

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Safety

SAFETY

Page 16

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Safety

2.1 MANDATORY PRECAUTIONS

Your safety is Genie's utmost concern. Please make certain each person operating or servicing the machine reads and understands all of the following precautions. Please do not hesitate to call our Customer Service department toll free at 800-426-8089 if you have any questions regarding the proper use or maintenance of this equipment.

Before using a Genie Vertical Lift, perform the preoperation inspection detailed in section 3.2.

IMPORTANT: DO NOT USE DAMAGED EQUIPMENT.

WARNING: FAILURE TO COMPLY WITH THE SAFETY REGULATIONS LISTED IN THIS SECTION MAY RESULT IN SERIOUS PERSONAL INJURY AND PROPERTY DAMAGE.

o DO NOT change operating or safety systems.
o DO NOT operate any machine on which DANGER, WARNING, CAUTION or instruction placards or decals are missing or illegible.
o Only those personnel who have demonstrated that they understand safe and proper operation of the machine shall be authorized to operate the machine.
o Never use the Genie Vertical Lift for any purpose other than positioning personnel, their tools and equipment.
o Always familiarize yourself with the location and operation of ground control station.
o Always close gate across entrance after mounting platform.
Always use safety belts and lanyards when occupying the platform. The belt should be positioned at the occupant's waist with the lanyard attached in the rear. *

First Edition - Page 2.01

Page 17

Section 2.1 Mandatory Precautions Continued

o Never EXCEED THE RATED PLATFORM LOAD or elevate the platform with more than two persons aboard.
o Keep oil, mud and slippery substances cleaned off footwear and platform floor.
o DO NOT stand, sit or climb on the platform guard rail or gate.
o DO NOT attach overhanging loads or increase platform size.
o Never position ladders, steps or similar items on the unit to provide additional height or reach for any purpose.
o Always survey work area for surface hazards such as holes, drop offs, bumps and debris before elevating platform. Do not operate machine near pits, loading docks or other dropoffs.
o Before driving on floors, bridges, trucks and other surfaces, check allowable weight capacity of surfaces.
o Never elevate the platform or drive the machine while elevated unless the machine is on a firm, level surface.
o Always post a look-out and sound the horn when driving in areas where vision is obstructed.
o The operator is responsible for avoiding ground personnel and warning them not to work or walk under an elevated vertical lift.
o Never lower the platform unless the area below the platform and boom is clear of personnel and obstructions.
o Never lean a ladder against the platform or subject the platform to a horizontal or side force by pushing or pulling the platform.
Always look up and around for overhead obstructions and electrical conductors. Do not operate the machine or position the platform within 10 ft. (3.1 m) of power lines or any other apparatus carrying up to 50,000 volts. One foot (.3 m) additional clearance is required for every additional 30,000 volts.

WARNING: THIS MACHINE IS NOT ELECTRICALLY INSULATED.

First Edition - Page 2.02

Page 18

Section 2.1 Mandatory Precautions Continued

o Never use the Genie Vertical Lift as a crane. This may result in structural damage or tipping.
o DO NOT tow the machine unless it is in free-wheel configuration and equipped with provisions for towing.
o DO NOT actuate the DRIVE joystick through Neutral to the opposite direction. Instead, return the lever to Neutral, stop, then proceed in the opposite direction.
o DO NOT change limit switch actuators, interlocks or relief valves from their recommended settings.
o Stow the machine, shut off the key switch and all POWER switches, and on a Genie V-2470RT, close each fuel tank valve before leaving the machine.
o DO NOT recharge batteries near sparks or open flame. Batteries being charged emit highly explosive hydrogen gas.
o Battery acid is corrosive. Wear protective clothing, gloves and safety glasses when servicing.
o V-2470RT: Never start the machine if you can smell liquid propane or gasoline.
o V-2470RT: Always refuel the machine in an open, well-ventilated area free of flame, smoke, sparks and fire.

* As required by ANSI A92.6 1979 14.2.6: "Personnel shall maintain a firm footing on the platform while working thereon unless they are secured by safety harness/lanyard devices fixed to manufacturer-approved hard points."

First Edition - Page 2.03

Page 19

Page 20

OPERATING INSTRUCTIONS

First Edition - Page 3.00

Page 21

3.1 UNPACKING

Upon delivery, it is important to promptly and correctly, unpack and inspect your new Genie Vertical Lift. Follow the steps listed below to unpack the machine. Prior to use, refer to section 3.2 and complete the preoperation inspection.

Steps

1. Remove all restraints used to secure the machine to the transport vehicle.

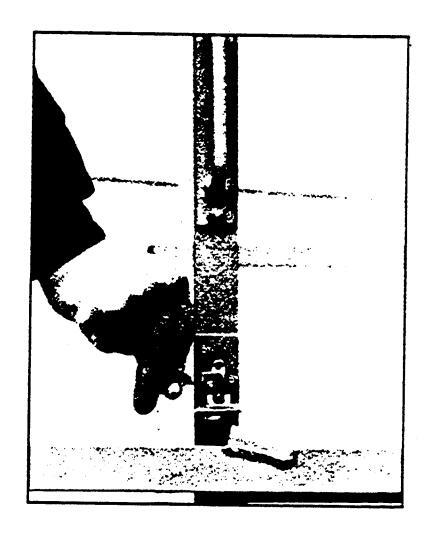

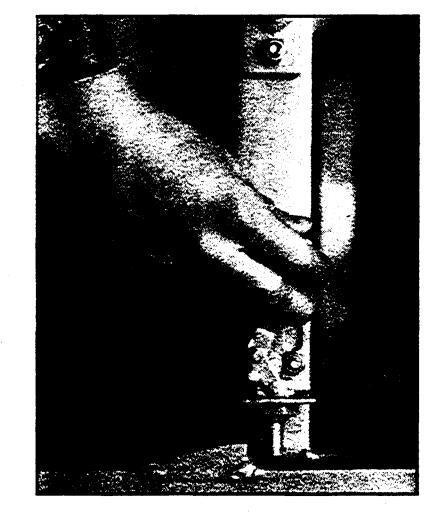

2. Close the manual lowering valve located at the base of the elevate cylinder.
3. Ensure that the ramp upon which the machine will be driven is capable of withstanding the 5400 lb. (2449 kg) machine weight [add 200 lbs. (91 kg) for the optional slide deck].
4. On a Genie V-2470, connect the battery packs at the Anderson connectors on each side of the chassis.
5. Before driving the machine off of the transport vehicle, ensure that you understand the functions of the controls (refer to section 3.3, Operating Instructions). Turn the key switch on the ground control station to the PLATFORM position and, for a Genie V-2470RT, move the FUEL SELECT switch to the GAS position. Enter the platform and familiarize yourself with the platform control station. On the Genie V-2470RT, push the START/CHOKE toggle switch to the appropriate position to start the engine.
6. Push the DRIVE joystick in the direction of desired travel. To slow down the machine, move the DRIVE joystick toward the Neutral position. To stop, return the DRIVE joystick to the Neutral position.

Page 22

Page 23

3.2 PREOPERATION INSPECTION

IMPORTANT : IT IS ESSENTIAL THAT THE INFORMATION CONTAINED IN THIS SECTION BE READ AND UNDERSTOOD BEFORE ANY ATTEMPT IS MADE TO OPERATE THE MACHINE.

Initial Inspection

Before a new Genie Vertical Lift is put into operation, it must be carefully inspected for any evidence of damage resulting from shipment. Use the following check list to detect defective, damaged or improperly installed parts.

Inspection Prior To Use

Before operating the vertical lift each day, the following inspection should be performed to ensure maximum safety for the machine operator and others using the machine. It is recommended that each user inspect the vertical lift before operation even if the machine has already been put into service by another user. The most efficient method for inspecting your vertical lift is by conducting a brief, but thorough, walk-around inspection.

IMPORTANT: NEVER OPERATE A DEFECTIVE MACHINE. ANY DEFECT OR DAMAGE NOTED DURING THIS INSPECTION MUST BE CORRECTED BEFORE THE MACHINE IS USED.

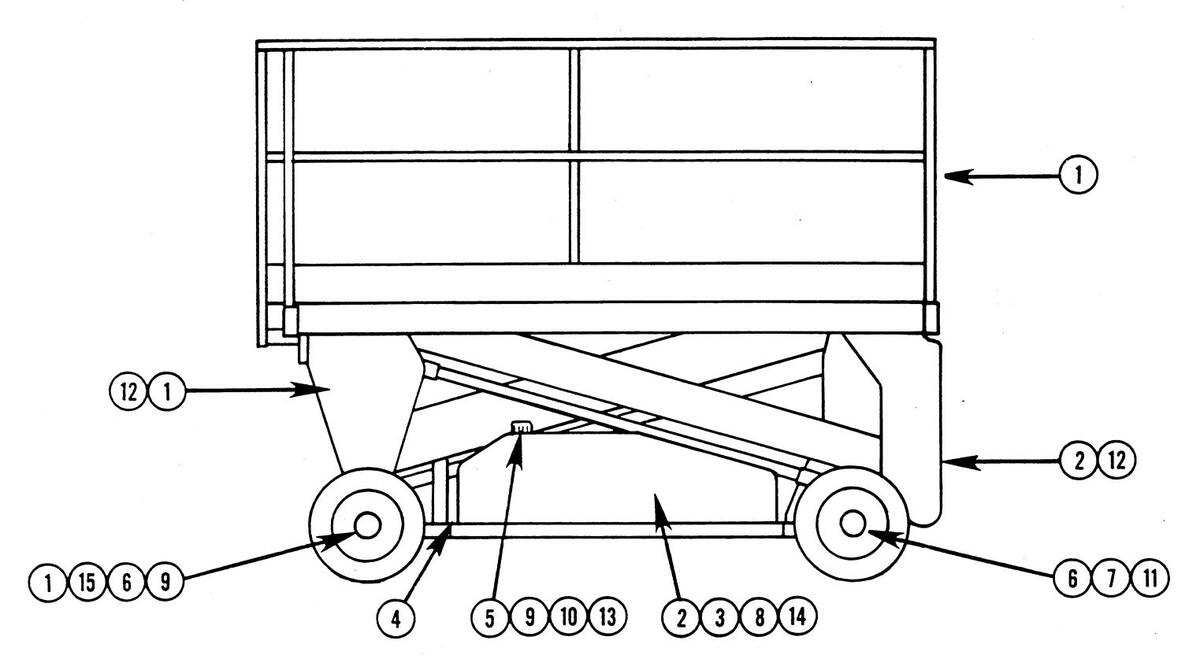

Steps

IMPORTANT: BEGIN THE PREOPERATION INSPECTION WITH THE MACHINE IN THE STOWED POSITION ON A FIRM LEVEL SURFACE.

1. Overall cleanliness Check for hydraulic oil residue and foreign objects. Inspect the surface upon which the machine is resting for any indication of leaks.

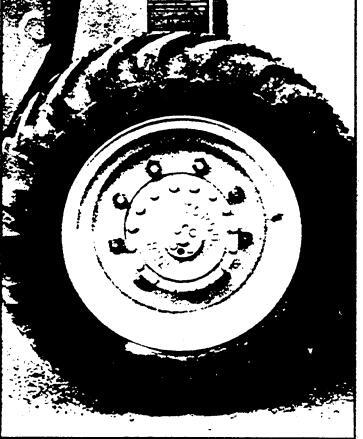

2. Front Tire and Wheel Assemblies Check for damaged, loose or missing parts. Look for worn spindles, defective components and hardware, and worn or damaged tires.

Page 24

Section 3.2 Preoperation Inspection Continued

3. Steering Assembly Check for damaged, loose or missing parts. Check for loose or bent tie rod. Inspect steering cylinders and hydraulic lines for leaks and proper installation.
4. Chassis Covers Check for damaged, loose or missing parts. Ensure proper operation of latches and wing nuts.
5. Fuel Tanks (V-2470RT) Check for damaged, loose or missing parts. Make sure that the tanks are secure and properly installed.
6. Battery Charger (V-2470) Check for damaged, loose or missing parts. Ensure connecting terminals are secure and free of corrosion. Confirm charger operates properly when plugged into appropriate AC power source.
7. Batteries Check for damaged, loose or missing vent caps. Ensure battery posts and connecting terminals are secure and free of corrosion. Ensure that the hold-down brackets are tight. Check batteries for state of charge, and (if appropriate) check electrolyte levels and specific gravity (between 1.20 and 1.25). Add only clean, distilled water to the battery after charging. Add water to a wet cell battery prior to charging only if it is dry.

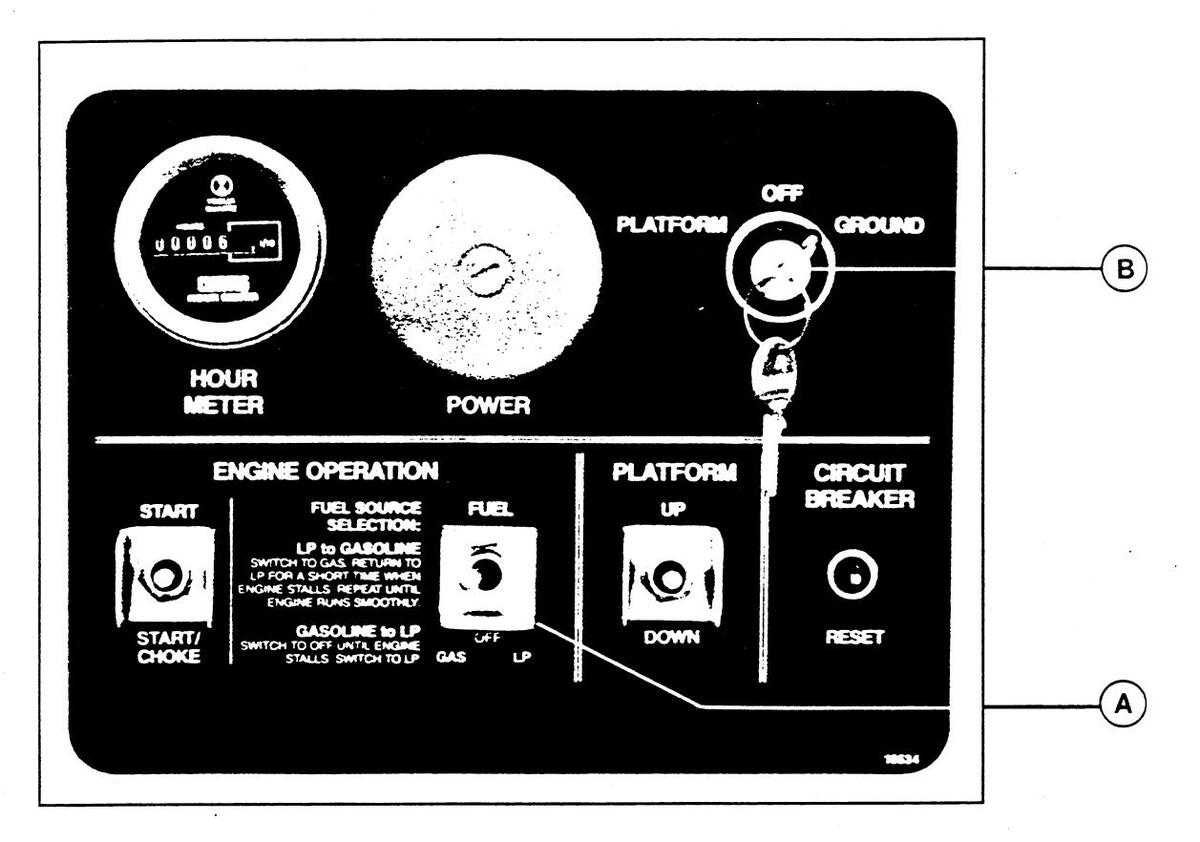

8. Ground Control Station Check for damaged, loose or missing parts and confirm that electrical connections are secure and corrosion free. Inspect wiring for insulation damage. Ensure all switches operate properly.

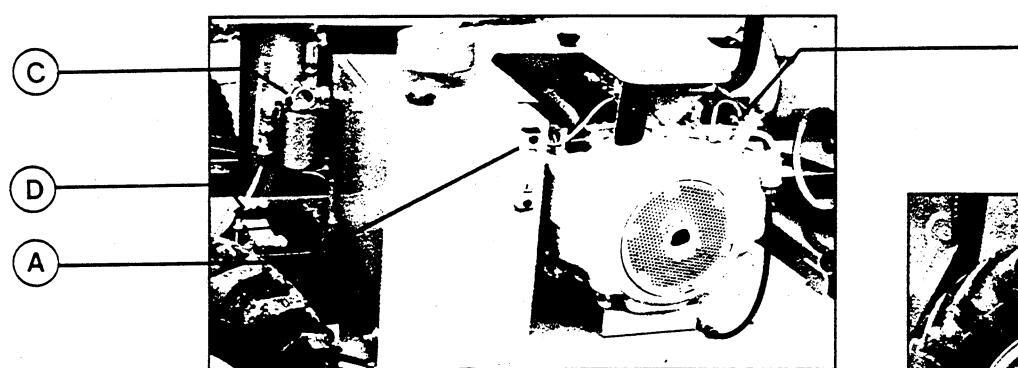

9. Hydraulic Control Manifold and Hydraulic Power Unit (V-2470) -Check for damaged, loose or missing parts. Inspect manifold, pump and hydraulic lines for leaks. Ensure motor and solenoid electrical connections are secure and free of corrosion.
10. Hydraulic Control Manifold and Hydraulic Pump (V-2470RT) -Check for damaged, loose or missing parts. Inspect manifold pump and hydraulic lines for leaks. Ensure solenoid electrical connections are secure and free of corrosion.
11. Internal Combustion Engine (V-2470RT) Check for damaged, loose or missing parts. Ensure that the engine oil is at the proper level.

Page 25

Section 3.2 Preoperation Inspection Continued

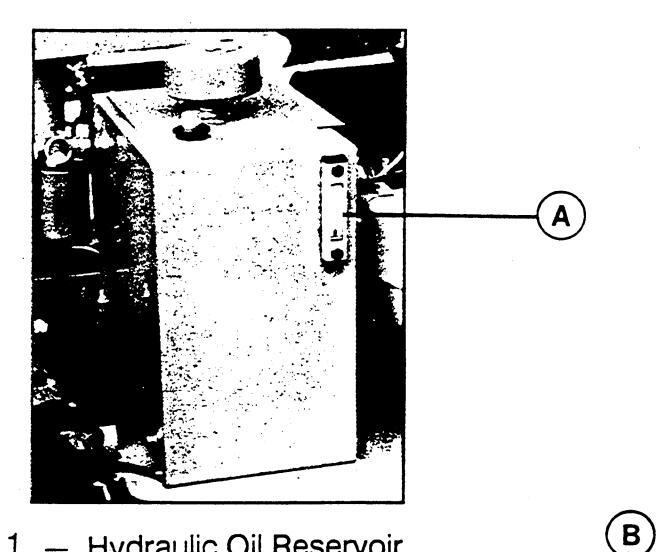

12. Hydraulic Oil Reservoir Be sure that the machine is in the stowed position, then check for damaged, loose or missing parts. Ensure that the hydraulic oil level is at approximately the 180^oF mark on the oil level/temperature indicator. Inspect the reservoir, oil filters, breather cap, and hydraulic lines for leaks.
13. Drive Motor and Rear Wheel Assembly Check for damaged, loose or missing parts. Inspect drive torque hubs, hydraulic drive motors, drive brakes, and all hydraulic lines for damage and leaks. The torque hubs should be approximately one half full of 90 weight oil.
14. Placards and Decals Ensure that all placards and decals are clean, unobstructed, legible, and in the proper location. Make sure the operating instructions are included at the platform.
15. Elevate Assembly Check for security, damage, loose or missing parts. Make certain that all pivot pins and retaining clips for securing pivot pins are in place. Inspect elevate cylinder and hydraulic lines for leaks.
16. Platform Assembly Check for damaged, loose or missing parts. Ensure that the platform entrance gate and guard rails and the safety belts/lanyards that you plan to use are in good working condition.

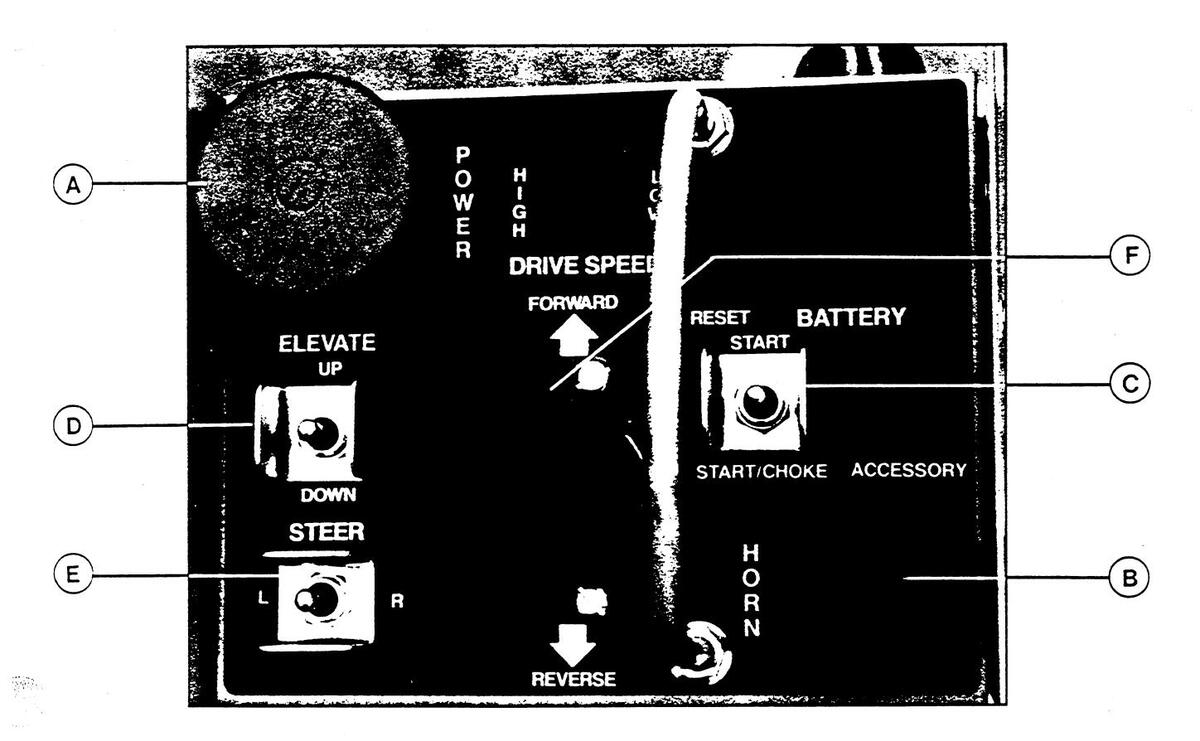

17. Platform Control Station Check for damaged, loose or missing parts. Confirm electrical connections are secure and corrosion free. Inspect wiring for insulation damage. Ensure all switches operate properly.

IMPORTANT: PERFORM ALL INSPECTION TESTS WHERE THE PLATFORM IS ELEVATED WITH THE MACHINE POSITIONED ON A FIRM LEVEL SURFACE.

18. Elevate Function Test - A test of the elevate function must be performed to ensure proper operation. The test should be executed first from the ground control station and then from the platform control station. The platform should be elevated to its maximum height, then fully lowered. Repair any defects.

Page 26

Section 3.2 Preoperation Inspection Continued

19. Manual Lowering Test A test of the manual lowering function must be performed to ensure proper operation. With the platform elevated, operate the manual lowering valve (located at the base of the elevate cylinder) until the platform is fully lowered. Repair any defects.
20. Drive System Test A test of all drive functions must be performed after testing the manual lowering function. With the platform fully lowered, DRIVE Forward/Reverse speed should vary proportionally from zero to approximately 3 mph (4.8 km/h). With the platform elevated, DRIVE Forward/Reverse speed should vary proportionally from zero to a maximum of 0.8 mph (1.3 km/h).

IMPORTANT: DO NOT OPERATE THE MACHINE IF IT IS CAPABLE OF DRIVING FASTER THAN 0.8 mph (1.3 km/h) WITH THE PLATFORM ELEVATED (refer to section 4.5, Troubleshooting).

Operate the STEER Left/Right function to ensure proper operation in both directions. Check that the drive brakes hold when the machine is driven up a grade and stopped. Do not operate the machine if the brakes do not hold. Repair any defects.

Page 27

3.3 OPERATING INSTRUCTIONS

Refer to the following inserts for Genie V-2470 & V-2470RT Operating Instructions.

Page 28

Page 29

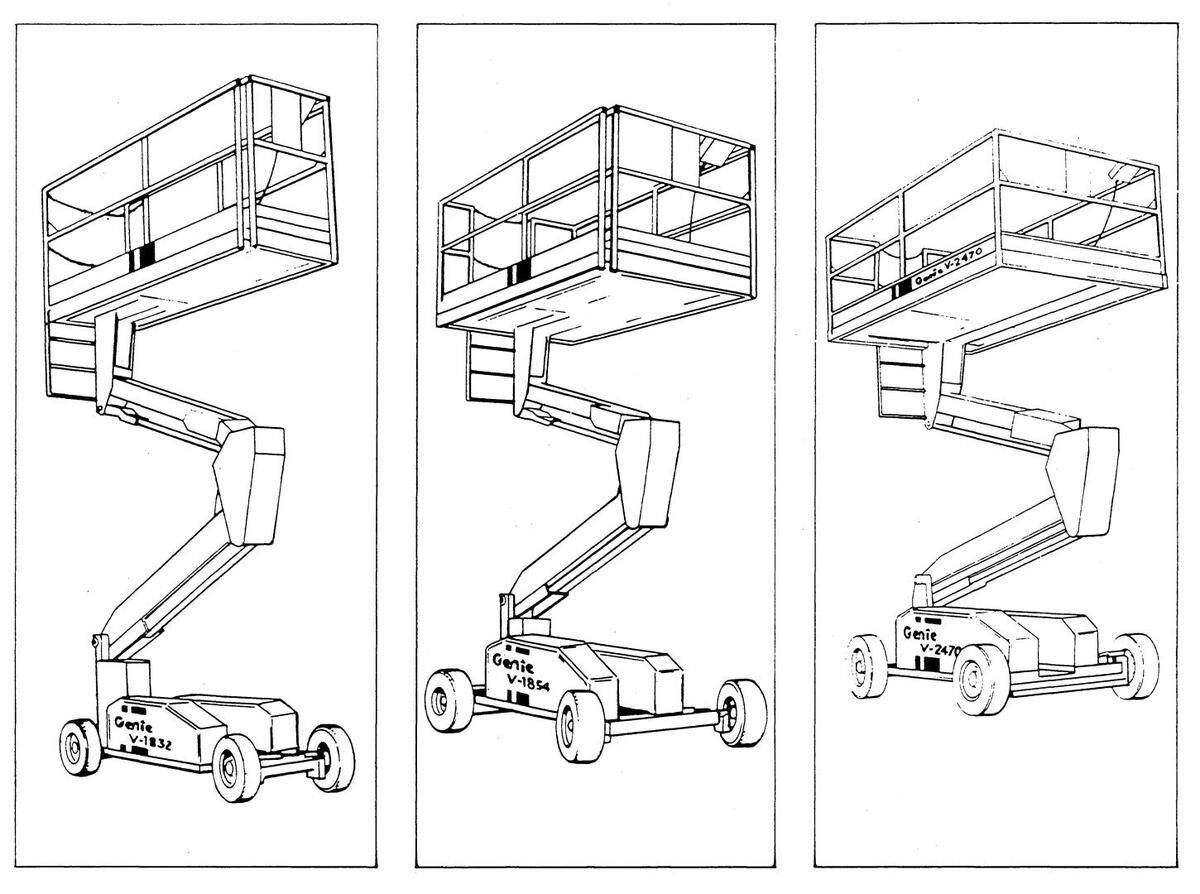

GENIE VERTICAL LIFT (Models V-1832, V-1854 & V-2470) OPERATING INSTRUCTIONS

Part No. 20955

CAUTION

Understanding these Safety Rules and Operating Instructions is critical to the safe operation of Genie Vertical Lifts. Please study this brochure carefully, and make sure that all personnel using the Genie Vertical Lift read and understand it completely before using this equipment.

Page 30

GENIE V-1832

GENIE V-1854

GENIE V-2470

SAFETY RULES & OPERATING INSTRUCTIONS

Read and understand these Safety Rules and Operating Instructions before operating the Genie Vertical Lift aerial platform. Do not permit anyone to use the machine who does not understand the material in this document. A duplicate set of these instructions is contained in a water-tight plastic tube on the platform and should be kept there at all times for operator reference.

If there is anything you do not understand, or if you have questions regarding the operation of the Genie Vertical Lift, call Genie Industries in the U.S.A., 800/426-8089 or 206/881-1800, or telex 152351, or FAX 206/885-4638. In Canada call 800/663-4475 or 604/984-4242, or FAX 604/988-2662.

Page 31

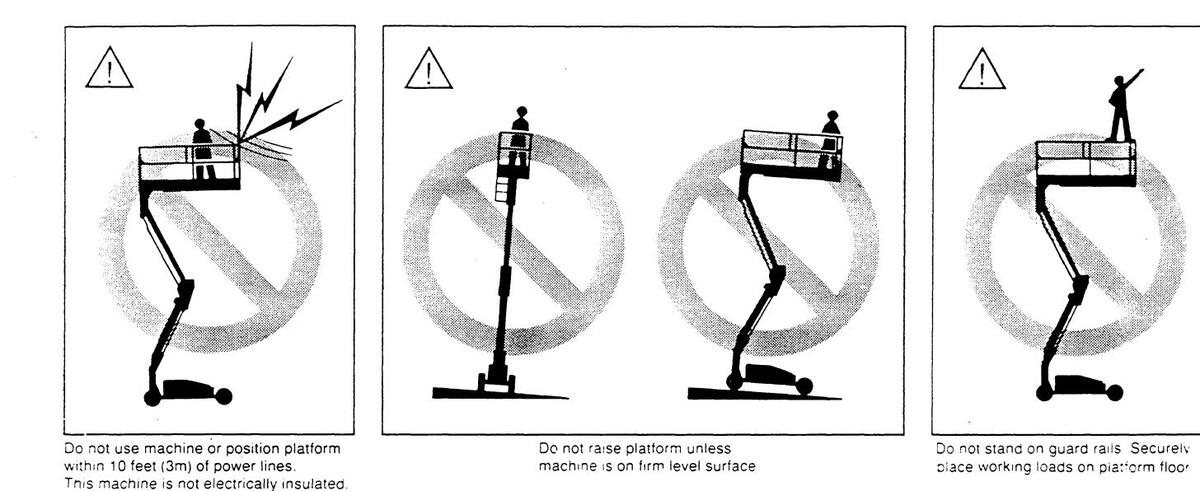

SAFETY RULES

On a daily basis before using the Genie Vertical Lift, conduct a visual inspection and functional test as detailed on pages 4-5 of these operating instructions and on the operating instructions on the unit.
Check the area in which the aerial platform is to be used for possible hazards such as drop-offs, holes, bumps and floor obstructions, debris, overhead obstructions and high voltage conductors.

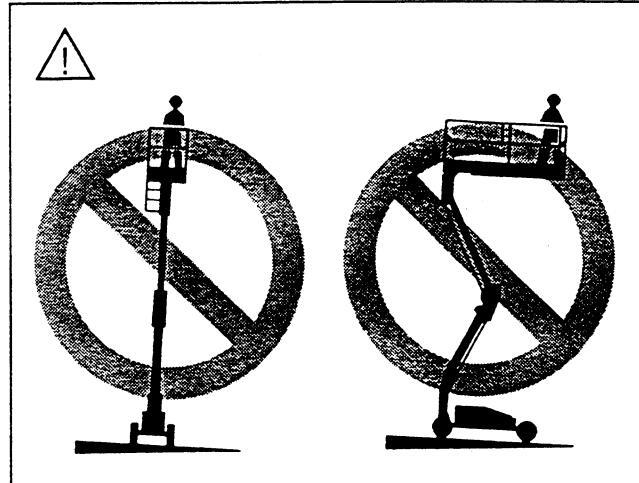

The aerial platform must be on a firm level surface before elevating the platform. Do not drive while elevated except on a firm level surface.
Close platform access openings before operating the aerial platform.
Batteries must be charged in an open, well-ventilated area free of flame, smoke, sparks, and fire.

Batteries emit an explosive gas during charging.

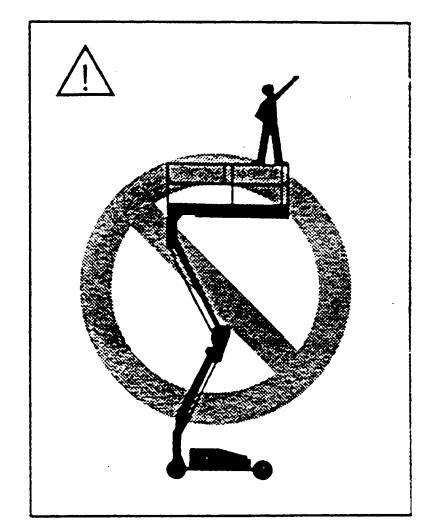

Maintain firm footing on the platform floor. Do not sit, stand or climb on guard rails.
Working loads must be securely placed on platform floor. Do not attach overhanging loads. Do not use ladders or scaffolding on or against the platform.
Do not operate or position aerial platform within 10 feet (3m) of power lines.

This machine is not electrically insulated.

WARNING: FAILURE TO UNDERSTAND AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS MIGHT RESULT IN SERIOUS INJURY OR DEATH.

Page 32

PRE-OPERATIONAL & SAFETY INSPECTION

PRE-START

DO NOT OPERATE A DEFECTIVE MACHINE.
Make a walk around check of machine before operating.
Inspect for frayed control cables, hydraulic oil leaks, missing or loose bolts, proper tire pressure, missing or loose wheel lug nuts, weld or structural cracks and any other defects or missing parts.
Check battery pack condition and hydraulic oil level.

GROUND CONTROL TEST

DO NOT ELEVATE PLATFORM UNLESS MACHINE IS ON A FIRM LEVEL SURFACE.
Make sure batteries are properly connected.
Check overhead for personnel, electrical cables, lights and other obstructions before operating.
Insert key in control switch (Photo 1, detail A) and rotate to GROUND.
Pull out red POWER button. To stop all functions, push in red POWER button (Photo 1, detail B).
Operate PLATFORM switch in both directions to ensure proper operation (Photo 1, detail C). Repair any defective functions.
Switch key to PLATFORM (Photo 1, detail A).

PLATFORM CONTROL TEST

DO NOT OPERATE A DEFECTIVE MACHINE.
Check surface area for possible drop-offs, holes, bumps, floor obstructions and personnel before driving or steering. DO NOT ELEVATE PLATFORM UNLESS MACHINE IS ON A FIRM LEVEL SURFACE.
Make sure platform access closure is closed completely.
Pull out red POWER button. To stop all functions, push red POWER button (Photo 2, detail A).
Operate horn. Repair if it does not sound.
Operate ELEVATE switch in both directions to ensure proper operation (Photo 2, detail B).
Switch DRIVE SPEED (Photo 2, detail C) to LOW.
Operate STEER switch L (left) or R (right) (Photo 2, detail D). Repair any defective functions.
Move DRIVE lever just off center in both FORWARD and REVERSE directions to ensure proper operation of each (Photo 2, detail E). Repair any defective functions. NOTE: LIFT MECHANICAL LOCK ON DRIVE LEVER TO MOVE FORWARD OR REVERSE.
Switch DRIVE SPEED (Photo 2, detail C) to HIGH.
Move DRIVE lever just off center in both FORWARD and REVERSE directions to ensure proper operation of each (Photo 2, detail E). Repair any defective functions.

Contact your authorized Genie Service Center for information regarding service and repairs.

Page 33

? — Platform Control Panel

Page 34

OPERATING INSTRUCTIONS

BEFORE OPERATING MACHINE UNDERSTAND FUNCTIONS OF ALL CONTROLS

EMERGENCY STOP

• To deactivate elevate and drive control, push red POWER button (Photo 2, detail A). Operate all functions to test for proper shut down. Repair if any function operates with POWER button pushed in.

RAISING AND LOWERING PLATFORM

DO NOT ELEVATE PLATFORM UNLESS MACHINE IS ON A FIRM LEVEL SURFACE.
Check below and overhead for personnel, electrical cables, lights and other obstructions before raising or lowering platform.
Make sure platform access closure is closed completely.
Operate ELEVATE toggle switch UP or DOWN in desired motion direction (Photo 2, detail B).

TRAVELING WITH PLATFORM DOWN

Maximum travel speed is attainable only when platform is down.
Always check to be sure route is clear of persons and obstructions.
Select HIGH or LOW drive speed to meet travel and safety conditions (Photo 2, detail C).
To increase speed, move DRIVE lever slowly in desired direction of travel (Photo 2, detail E).
To slow down to stop, move DRIVE lever slowly to center position (Photo 2, detail E).

TRAVELING WITH PLATFORM UP

OPERATE ON FIRM LEVEL SURFACE ONLY.
Always check to be sure route is clear of persons and obstructions.
With platform up, machine travel speed is restricted.
To increase speed, move DRIVE lever in desired direction of travel (Photo 2, detail E).
To slow down or stop, move DRIVE lever slowly to center position (Photo 2, detail E).

AUXILIARY LOWERING

IF PLATFORM FAILS TO DESCEND, NEVER CLIMB DOWN ELEVATE ASSEMBLY. Ask person on ground to actuate manual lowering valve to lower platform (Photo 3). The manual lowering valve is attached to the base of the elevate cylinder at the ground control station. Check for obstructions before lowering platform.

SLIDE DECK (Accessory)

Push down on slide deck latch (photo 4) until pin is completely disengaged.
Grasp the slide deck handle (photo 5) and push out platform deck.
Pull up on slide deck latch until pin is completely engaged to lock slide deck.

MAXIMUM	PLATFORM CAPACITY	LOAD D	ISTRIBUTION
MODEL	STANDARD PLATFORM (or optional slide deck retracted)	PLATFORM WITH OPTIONAL SLIDE DECK EXTENDED ) LOAD CAPACITY ON PLATFORM LOAD CAPACITY ON EXTENSION
V-1832	750 lbs. (335 kg)	450 lbs. (200 kg)	300 lbs. (135 kg)
V-1854	1000 lbs. (460 kg)	700 lbs. (325 kg)	300 lbs. (135 kg)
V-2470	1250 lbs. (570 kg)	950 lbs. (435 kg)	300 lbs. (135 kg)

Page 35

3 — Auxiliary Lowering

4 — Slide Deck Latch

5 — Slide Deck Handle

Page 36

TRANSPORT

SECURING TO TRUCK OR TRAILER FOR ROAD TRANSIT

Weight of Genie V-1832 is 3,800 lbs. Weight of Genie V-1854 is 4,000 lbs. Weight of Genie V-2470 is 5,200 lbs.
Use chains or straps of ample load capacity.
Always chock wheels on truck or trailer bed (see instructional decal on machine).
Use tie points on chassis for anchoring down to truck or trailer bed (see instructional decal on machine).
Turn off master power key and remove key before transporting (Photo 6).

MOVING A DISABLED MACHINE

To release brake:

Close brake isolator valve (Photo 7, detail A) by turning it clockwise.
Pump the brake release pump (Photo 7, detail B) 5-10 times.

• Open drive motor loop valve (Photo 7, detail C) by turning it counterclockwise.

To re-engage brake:

Open brake isolator valve (Photo 7, detail A) by turning it counterclockwise.
Close drive motor loop valve (Photo 7, detail C) by turning it clockwise.

Page 37

7 — Brake Release

Page 38

Maintenance Schedule
	SERVICE INTERVAL
SERVICE OPERATION		* Monthly	* Every 6 months	* Every 2 yrs.
	*Daily	or Every 50 hours	Every 250 hours	Every 1000 hrs.
1 Inspect for physical damage	٠
2 Inspect for hydraulic leaks	•
3 Check battery fluid level**	•
(4) Charge batteries	•
5 Check hydraulic fluid level	•
6 Check lug nuts *	٠
7 Check brake operation, bleed if necessary	•
8 Check battery condition**		•
9 Clean or replace hydraulic tank screen			•
(10) Change hydraulic filter			•
(1) Change oil in drive gear box ( model V-2470 only)			•
(12) Inspect all boom linkage pivot points for wear			•
(13) Change hydraulic oil				٠
14 Check electric motor brushes				•
(15) Repack front axle bearings				٠

* For complete list of required Maintenance Service consult Operating and Maintenance Manual.

** Applies to standard (non-maintenance-free) batteries only

Page 39

OPERATING INSTRUCTIONS

Part No.20956

CAUTION

Page 40

SAFETY RULES & OPERATING INSTRUCTIONS

SAFETY RULES

On a daily basis, before using the Genie Vertical Lift, conduct a visual inspection and functional test as detailed on pages 4, 5 and 6 of these operating instructions and on the operating instruction decal located on the platform.
Check the area in which the Vertical Lift is to be used for possible hazards such as drop-offs, holes, bumps and floor obstructions, debris, overhead obstructions and high voltage conductors.
The machine must be on a firm level surface before elevating the platform. Do not drive while elevated except on a firm level surface.
Make sure platform entrance is properly closed before operating the Vertical Lift.
Fasten occupants' safety belt lanyards to anchor points on platform. *
Do not climb down the elevate assembly.
Maintain a firm footing on the platform floor. Do not sit, stand or climb on guard rails or gate. *
Working loads must be securely placed on platform floor. Do not attach overhanging loads. Do not use ladders or scaffolding on or against the platform. *
* As required by ANSI A92.6 1979 14.2.6.

Page 41

o not use machine or position platform ithin 10 feet (3m) of power lines. his machine is not electrically insulated.

Do not raise platform unless machine is on firm level surface.

Do not stand on guard rails. Securely place working loads on platform floor.

SAFETY RULES

• Do not operate or position the Vertical Lift within 10 ft. (3 m) of power lines.

THIS MACHINE IS NOT ELECTRICALLY INSULATED.

• Battery must be charged in an open, well-ventilated area free of flame, smoke, sparks and fire.

• Machine must be refueled in an open, well-ventilated area free of flame, smoke, sparks and fire.

LIQUID PROPANE & GASOLINE ARE EXTREMELY FLAMMABLE.
NEVER START THE MACHINE IF YOU CAN SMELL LIQUID PROPANE OR GASOLINE. AN EXPLOSION OR FIRE COULD RESULT!

WARNING: FAILURE TO UNDERSTAND AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS MIGHT RESULT IN SERIOUS INJURY OR DEATH.

Page 42

PRE-OPERATIONAL & SAFETY INSPECTION

PRE-START

DO NOT OPERATE A DEFECTIVE MACHINE.
Make walk-around check of machine before operating.
Inspect for frayed control cables, hydraulic oil leaks, gasoline or liquid propane leaks, missing or loose bolts, proper tire pressure, missing or loose wheel lug nuts, weld or structural cracks and any other missing parts or defects.
Check hydraulic oil level (Photo 1, detail A).

GROUND CONTROL TEST

DO NOT ELEVATE PLATFORM UNLESS MACHINE IS ON A FIRM LEVEL SURFACE.
Check overhead for personnel, electrical cables, lights and other obstructions before operating.
Insert key in key switch and turn to GROUND position (Photo 2, detail A).
Pull out red POWER button. To stop all functions, push in red POWER button (Photo 2, detail B).
WARNING! NEVER START MACHINE IF YOU CAN SMELL LIQUID PROPANE (LP) OR GASOLINE (GAS). AN EXPLOSION OR FIRE COULD RESULT!
Select GAS or LP. If engine is cold, push engine start switch in START/CHOKE position. If engine is hot, push switch in START position (Photo 2, detail C). NOTE: 1. When it is very cold, always start engine on GAS and then switch to LP if required (Photo 2, detail D).
- 2. If engine fails to start after 30 seconds, determine cause and wait one minute before recranking.
Operate PLATFORM toggle switch UP then DOWN to ensure proper operation (Photo 2, detail E).

FUEL REQUIREMENTS

Gasoline : Unleaded Regular gasoline is preferred (Photo 3, detail A). Leaded Regular gasoline can be used, but its use may result in shorter maintenance intervals due to spark plug fouling, etc.
Liquid Propane (LP) Gas: Clean, dry liquid propane gas from a bulk storage tank is preferred. Observe correct tank filling instructions (located on tank).
NOTE: Install the LP gas tank so that the mounting pin engages the hole in the tank handle (Photo 3, detail B) and both tank latches close properly. Improper installation may result in reduced engine performance.

Page 43

1 – Hydraulic Oil Reservoir

2 — Ground Control Panel

3 – LP and Gasoline Tank Installation

Page 44

PRE-OPERATIONAL & SAFETY INSPECTION (CONTINUED)

FUEL SELECTION

When starting, select fuel (Photo 4, detail A) as detailed on page 4.
To switch from GAS to LP. (engine running): Push FUEL selector switch from the GAS position to the center OFF position. When the engine hesitates, push the FUEL selector switch to the LP position (Photo 4, detail A).
To switch from LP to GAS (engine running): Push FUEL selector switch back and forth from the LP position to the GAS position until the engine continues to run on GAS (Photo 4, detail A).
Turn key switch to PLATFORM position (Photo 4, detail B).
Repair any defects before operating machine.

PLATFORM CONTROL TEST

DO NOT OPERATE A DEFECTIVE MACHINE.
Check surface area for possible drop-off holes, bumps, floor obstructions and personnel before driving or steering. DO NOT ELEVATE PLATFORM UNLESS MACHINE IS ON A FIRM LEVEL SURFACE.
Make sure platform entrance is properly closed.
Fasten occupants' safety belt lanyards to anchor points on platform as required by ANSI A92.6 1979 14.2.6 (Photo 5).
Pull out red POWER button. To stop functions, push in red POWER button (Photo 6, detail A).
Operate horn. Repair if it does not sound (Photo 6, detail B).
Start machine (Photo 6, detail C) as detailed on page 4.
Operate ELEVATE toggle switch UP then DOWN to ensure proper operation (Photo 6, detail D). Repair any defects.
Operate STEER toggle switch LEFT (L) and RIGHT (R) to ensure proper operation (Photo 6, detail E). Repair any defects.
Move DRIVE lever just off center in both FORWARD and REVERSE positions to ensure proper operation of each (Photo 6, detail F). Repair any defects.
NOTE: LIFT MECHANICAL LOCK ON DRIVE LEVER TO MOVE FORWARD OR REVERSE.

Contact your authorized Genie Service Center regarding service and repairs.

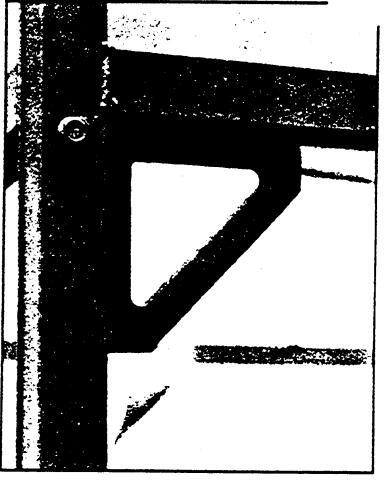

5 — Lanyard Anchor Point

Page 45

4 — Ground Control Panel

Page 46

OPERATING INSTRUCTIONS

BEFORE OPERATING MACHINE UNDERSTAND FUNCTIONS OF ALL CONTROLS

EMERGENCY STOP

To deactivate ELEVATE, STEER, and DRIVE controls, push in red POWER button (Photo 7, detail A).
Operate all functions to test for proper shut down.
Repair if any function operates with POWER button pushed in.

RAISING AND LOWERING PLATFORM

DO NOT ELEVATE PLATFORM UNLESS MACHINE IS ON A FIRM, LEVEL SURFACE.
Check below and overhead for personnel, electrical cables, lights and other obstructions before raising or lowering platform.
Make sure platform entrance is properly closed.
Operate ELEVATE toggle switch UP or DOWN in desired direction (Photo 7, detail B).

TRAVELING WITH PLATFORM DOWN

Maximum travel speed is attainable only when platform is down.
Always check to be sure route is clear of persons and obstructions.
To increase speed, move DRIVE lever slowly in desired direction of travel (Photo 7, detail C).
To slow down or stop, move DRIVE lever slowly to center position (Photo 7, detail C).

TRAVELING WITH PLATFORM UP

OPERATE ON FIRM, LEVEL SURFACE ONLY.
Always check to be sure route is clear of persons and obstructions.
With platform up, machine travel speed is restricted by the drive speed limit switch (Photo 8).
To increase speed, move DRIVE lever in desired direction of travel (Photo 7, detail C).
To slow down or stop, move DRIVE lever slowly to center position (Photo 7, detail C).

STEERING

Always check to be sure area around wheels is clear of persons and obstructions.
Operate STEER toggle switch LEFT (L) or RIGHT (R) as required (Photo 7, detail D). NOTE: Steering is not self-centering. To return wheels to straight ahead position use STEER toggle switch.

Page 47

7 — Platform Control Panel

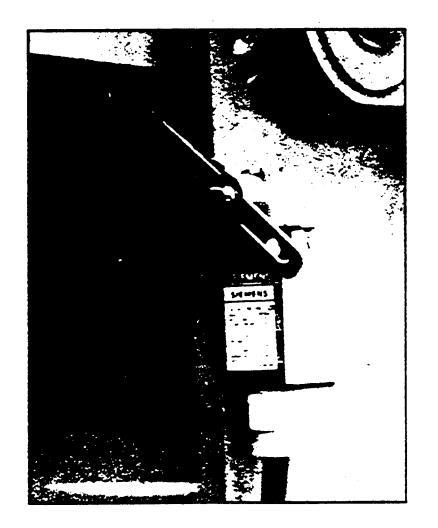

8 — Drive Speed Limit Switch

Page 48

OPERATING INSTRUCTIONS (CONTINUED)

AUXILIARY LOWERING

IF PLATFORM FAILS TO DESCEND, NEVER CLIMB DOWN ELEVATE ASSEMBLY. Ask person on ground to actuate manual lowering valve to lower platform (Photo 9). The manual lowering valve is attached to the base of the elevate cylinder.
Check for obstructions before lowering platform.

SLIDE DECK (Accessory) Push down on slide deck latch (Photo 10) until pin is completely disengaged.
Grasp the slide deck handle (Photo 11) and push out deck.
Pull up on slide deck latch (Photo 12) until pin is completely engaged to lock slide deck.

9 — Manual Lowering Valve

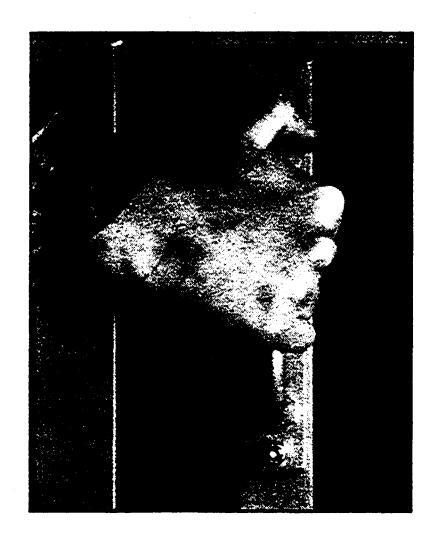

10 — Slide Deck Latch

11 — Slide Deck Handle

12 — Slide Deck Latch

			ISTRIBUTION
MODEL	STANDARD PLATFORM (or optional slide deck retracted)	PLATFORM WITH OPTIONAL SLIDE DECK EXTENDED ) LOAD CAPACITY ON PLATFORM LOAD CAPACITY ON EXTENSION DEC
V-2470RT	1250 lbs. (570 kg)	950 lbs. (435 kg)	300 lbs. (135 kg)

Page 49

MAINTENANCE & ROUTINE SERVICE

DAILY SERVICE CHECK

Thoroughly inspect the entire machine for physical damage and wear. Repair any defects before operating the machine
Thoroughly inspect all hoses and hydraulic connections. Repair any defects.
heck all electrical wires and cables for abrasions and proper connections.

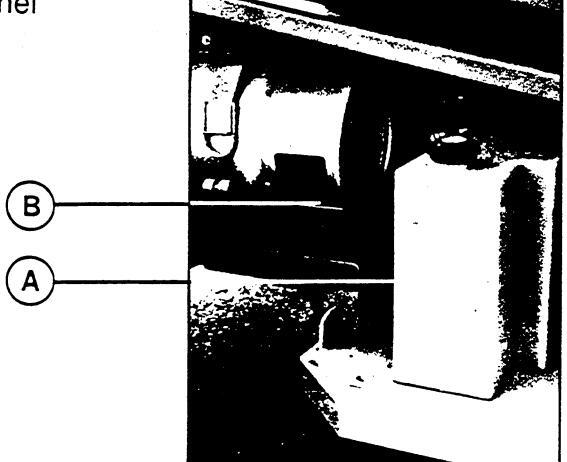

Check hydraulic fluid level (Photo 13. detail A).
Check engine oil level (Photo 13, detail B). +
Maintain tire pressure of 35 psi (Photo 14).
Check lug nuts for tightness. Torque to 140-150 ft.-lbs (Photo 14).

FIRST TWO WEEKS (25 HOURS)

Change engine oil filter (Photo 13, detail B). +
Change engine crankcase oil (Photo 13. detail B). +
Service engine air filter every 25 hours (Photo 13, detail B). *+

FIRST MONTH (OR FIRST 50 HOURS)

Change oil in drive gear boxes. Use EP-90 weight (Photo 14)
Change hydraulic oil filters (Photo 13. detail C).
Check battery electrolyte level and clean battery tops and posts (Photo 13. detail D).
Change engine oil filter every 50 hours (Photo 13, detail B). *+
Change engine crankcase oil every 50 hours (Photo 13, detail B). *+

13 — Motor, Hydraulic Reservoir and Battery

EVERY SIX MONTHS (OR EVERY 250 HOURS)

Inspect elevate assembly pivot points for signs of wear.
Inspect steering and front end assembly for signs of wear. Check engine RPM. Set at 3100 to 3200 RPM (Photo 13,
detail B)
Change engine air filter (Photo 13, detail B). *+
Clean engine crankcase breather valve (Photo 13, detail B). *+
Check engine fuel filter (Photo 13, detail B). *+
Change oil in drive gear boxes. Use EP-90 weight (Photo 14). •
Change hydraulic oil filters (Photo 13, detail C). *
Service hydraulic reservoir, replace suction screens and filler breather (Photo 13, detail A). *

EVERY TWO YEARS (OR EVERY 1000 HOURS)

Repack front axle bearings. Use Texaco Marfax or equivalent multipurpose lithium grease.
Change hydraulic oil. Use Shell Tellus T-46 or quivalent (Photo 13, detail A). *

Refer to the engine manufacturer's operating manual for proper maintenance and service.

Extreme dust or temperature conditions will require more frequent servicing.

For complete list of required maintenance service consult Operating and Maintenance Manual.

14 — Wheel and Drive Installation

Page 50

TRANSPORT

SECURING TO TRUCK OR TRAILER FOR ROAD TRANSIT

Weight of Genie V-2470RT is 5400 lbs (2450 kg).
Use chains or straps of ample load capacity.
Always chock wheels on truck or trailer bed (see instructional decal on machine).
Use tie points on chassis for anchoring down to truck or trailer bed (see instructional decal on machine).
Turn master power key switch to OFF position and remove key before transporting (Photo 15).

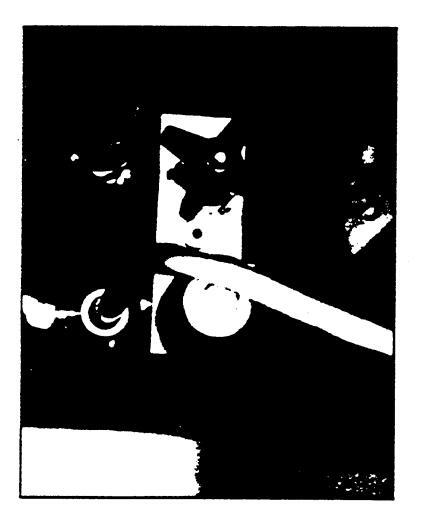

15 — Master Power Key Switch

Page 51

3.4 GENIE V-2470 TRANSPORT

The Genie V-2470 may be transported by truck, ship or airplane. It is not recommended to ship by train due to possible shock or vibration damage. The machine is capable of climbing a 25% slope. We recommend driving the machine on to the truck bed or shipping vessel. If driving is impractical, the machine has free-wheeling capabilities to allow towing or winching into the shipping position.

The instructions listed below are designed to prevent any undue stress on the mechanical and hydraulic systems during transport. All transport loads should be carried through the tie down points on the chassis weldment and the tire blocking points.

Steps

1. Park the machine with the platform fully lowered. Ensure that the steering wheels are straight, and remove any material from the platform. Lock optional slide deck in retracted position.
2. The machine may now be driven or winched on to the transport vehicle.
- A. Driving: The machine is capable of driving onto the transport vehicle as long as the ramp* does not exceed a 25% grade.

NOTE: Maximum drive speed is available only when the platform is fully lowered, the drive speed control limit switch is in the held position, and the DRIVE SPEED High/Low toggle switch is in the High position.

IMPORTANT: DO NOT DRIVE THE MACHINE ON AN UNLEVEL SURFACE UNLESS THE PLATFORM IS FULLY LOWERED.

Page 52

Section 3.4 Genie V-2470 Transport Continued

B. Winching : Before winching* the machine must be placed in the free-wheel configuration (see instructions on the next page).

WARNING: WHEN THE MACHINE IS IN THE FREE-WHEEL CONFIGURATION IT HAS NO BRAKING CAPABILITIES. BE SURE TO SECURE THE MACHINE TO PREVENT IT FROM ROLLING BEFORE PLACING THE MACHINE IN THE FREE-WHEEL CONFIGURATION.

Secure the winch cable to the tie down points on the chassis of the machine.

3. The wheels should be blocked from rolling by wood pieces nailed to the transport vehicle and binder chains used to prevent sideways and fore/aft movement.
4. If the machine was placed in the free-wheel configuration, be sure to re-engage the drive brakes after it has been secured in position for shipment. To re-engage the brakes, open the brake isolation valve and close the drive motor loop valve.
5. Secure the elevate assembly to its resting pad and open the manual lowering valve on the base of the elevate cylinder to prevent bouncing during transport.
6. Disconnect the batteries at the Anderson connectors on each side of the chassis.
7. Shut off the key switch and all POWER switches. Inspect unit thoroughly before shipping for loose or unsecured items.

Ensure that the transport vehicle ramp, winch (if a winch is to be used) and winch cable are of sufficient strength to support the machine. The Genie V-2470 weighs approximately 5400 lbs. (2450 kg).

NOTE: Add 200 lbs. (91 kg) for an optional slide deck.

First Edition - Page 3.08

Page 53

Section 3.4 Genie V-2470 Transport Continued

How To Place The Machine In Free-Wheel Configuration

1. Chock the wheels to prevent the machine from rolling.
2. Close the brake isolator valve by turning the handle clockwise.
3. Pump the brake release pump five (5) to ten (10) times.
4. Open the drive motor loop valve by turning the handle counter clockwise. The brakes are now released--the machine is in the free-wheel configuration.

Page 54

Page 55

3.5 GENIE V-2470RT TRANSPORT

The Genie V-2470RT may be transported by truck, ship or airplane. It is not recommended to ship by train due to possible shock or vibration damage. The machine is capable of climbing a 35% slope. We recommend driving the machine on to the truck bed or shipping vessel. If driving is impractical, the machine has free-wheeling capabilities to allow towing or winching into the shipping position.

Steps

1. Park the machine with the platform fully lowered and retracted. Ensure that the steering wheels are straight, and remove any material from the platform. Lock optional slide deck in retracted position.
2. The machine may now be driven or winched on to the transport vehicle.
- A. Driving: The machine is capable of driving onto the transport vehicle as long as the ramp* does not exceed a 35% grade.

NOTE: Maximum drive speed is available only when the platform is fully lowered and the drive speed control limit switch is in the held position.

IMPORTANT : DO NOT OPERATE THE MACHINE ON AN UNLEVEL SURFACE UNLESS THE PLATFORM IS FULLY LOWERED.

Page 56

Section 3.5 Genie V-2470RT Transport Continued

B. Winching : Before winching* the machine must be placed in the free-wheel configuration (see instructions on the next page).

WARNING: WHEN THE MACHINE IS IN THE FREE-WHEEL CONFIGURATION IT HAS NO BRAKING CAPABILITIES. BE SURE TO SECURE THE MACHINE TO PREVENT IT FROM ROLLING BEFORE PLACING THE MACHING IN THE FREE-WHEEL CONFIGURATION.

Secure the winch cable to the tie down points on the chassis of the machine.

3. The wheels should be blocked from rolling by wood pieces nailed to the transport vehicle and binder chains used to prevent sideways and fore/aft movement.
4. If the machine was placed in the free-wheel configuration, be sure to re-engage the torque hubs after the machine is placed into position and secured for shipment. To re-engage the torque hubs, simply perform the steps (listed on the next page) in reverse order.
5. Secure the elevate assembly to its resting pad and open the manual lowering valve on the base of the elevate cylinder to prevent bouncing during transport.
6. Shut off the key switch and all POWER switches, and close each fuel tank valve. Inspect the machine thoroughly before shipping for loose or unsecured items.

Ensure that the transport vehicle ramp, winch (if a winch is to be used) and winch cable is of sufficient strength to support the machine. The Genie V-2470RT weighs approximately 5400 lbs. (2450 kg).

NOTE: Add 200 lbs. (91 kg) for an optional slide deck.

First Edition - Page 3.11

Page 57

Section 3.5 Genie V-2470RT Transport Continued

How To Place The Machine In Free-Wheel Configuration

WARNING: WHEN THE MACHINE IS IN THE FREE-WHEEL CONFIGURATION IT HAS NO BRAKING CAPABILITIES. BE SURE TO SECURE THE MACHINE TO PREVENT IT FROM ROLLING BEFORE PLACING THE MACHINE IN THE FREE-WHEEL CONFIGURATION.

1. Chock the wheels to prevent the machine from rolling.
2. The drive torque hubs must be disconnected (released). Remove the two 1/4 20 x 3/4 in. bolts that secure the disconnect cap to the cover of each drive torque hub.
3. Turn the disconnect cap over and re-install, making sure that the cap's nipple will contact the disconnect rod. Secure the disconnect cap to the cover with the two 1/4 20 x 3/4 in. bolts. The machine is now in the free-wheel configuration.

Page 58

Page 59

3.6 GENIE V-2470 THEORY OF OPERATION

Energy Source

The Genie V-2470 vertical lift is powered by eight (8) 6 volt batteries connected in a series/parallel configuration to provide 24 volt DC power. Each battery is rated at 250 amp. hr. at a 20 hour rate.

Charging System

A 24 volt, 35 amp. line compensating battery charger is used to recharge the battery pack after each day's use. The charger utilizes an electronic current limiting system which automatically controls the charge rate, depending on battery condition. The charge rate tapers off as the batteries approach full charge.

Hydraulic System

The hydraulic system consists of ELEVATE Up/Down, STEER Left/Right and DRIVE Forward/Reverse. To power these functions the hydraulic system uses a hydraulic power unit incorporating a 24 volt electric motor and a two stage gear pump which delivers a total displacement of 6.5 gpm (24.6 liters per minute). A pump unloader valve is incorporated to regulate one stage of the pump. When pilot pressure to the unloader valve reaches a set pressure it will open, creating a flow path to the tank for the regulated pump stage. When the motor is supplied with 24 volts, it turns the pump to supply hydraulic oil to the hydraulic system directional control valves located on the chassis mounted hydraulic control manifold. When actuated, the directional control valves direct hydraulic oil to the hydraulic system actuators (elevate cylinder, steering cylinder, wheel drive motors and wheel drive brakes). A 3100 psi (21373 kPa) relief valve (located on the hydraulic control manifold) is used to prevent the hydraulic system from being over pressurized. To ensure that the steering system is always supplied with hydraulic oil, the hydraulic control manifold incorporates a priority flow divider. The priority flow divider ensures that the steering systems hydraulic oil requirement is met prior to supplying hydraulic oil to the drive system. Located on the hydraulic control manifold is a drive proportional control valve. The drive proportional control valve is used to control the speed of the DRIVE Forward/Reverse functions by regulating the flow of hydraulic oil in direct relation to the valves input voltage.

Page 60

Section 3.6 V-2470 Theory of Operation Continued

The ELEVATE Up/Down functions utilize one lifting cylinder. The ELEVATE Up function is accomplished by actuating the elevate up directional control valve (located on the hydraulic control manifold) thereby directing hydraulic oil to the elevate cylinder. The hydraulic control manifold incorporates a 3000 psi (20684 kPa) relief valve which prevents the elevate system from experiencing over pressurization. Another manifold, attached to the barrel end port of the cylinder, incorporates a down directional control valve, a manual lowering valve, flow control cartridge valve, and a check valve. The ELEVATE Down function is accomplished by actuating the down directional control valve, this allows a flow path for hydraulic oil to exit the cylinder causing it to retract. The manual lowering valve accomplishes the same tasks as the down directional control valve in the event of an electrical system failure. A pressure compensated flow control cartridge valve restricts the rate that the cylinder retracts by regulating the hydraulic oil exiting the cvlinder. The check valve is used to maintain cylinder pressure and prevent free descent in the event of a hydraulic line failure.

The STEER Left/Right functions utilize one dual acting cylinder. The steering functions are accomplished by actuating the steering left and right, 3-position, 4-way, directional control valve (located on the hydraulic control cylinder), thereby directing hydraulic oil to the steering cylinder. Located on the hydraulic control manifold is a 1100 psi (7584 kPa) relief valve which prevents the steering system from being over pressurized.

The DRIVE Forward/Reverse functions uses two 7.1 cubic in. (116 cm³) rotary drive motors, with 4.1:1 planetary torque hubs, and spring applied, hydraulically released brakes. The functions are accomplished by actuating the drive forward or reverse directional control valve (located on the hydraulic control manifold), thereby directing hydraulic oil to the drive brake shuttle valve (located in the hydraulic control manifold) and to the wheel drive motors. The shuttle valve directs hydraulic oil to the drive brakes releasing the brakes. The DRIVE functions use two counter balance valves (located on the hydraulic control manifold) to prevent the machine from exceeding the maximum drive speed and to aid in hydrodynamic braking. Located on the hydraulic control manifold is a series/parallel directional control valve. This valve gives the machine the capability of operating the drive functions in a low speed, high torque mode or in a high speed, low torque mode. When operating in Low range the valve creates a parallel path for hydraulic oil flowing to the wheel drive motors. This causes a low speed, high torque drive mode. When operating in High range the valve creates a series path for hydraulic oil flowing to the wheel drive motors. This causes a high speed, low torque drive mode.

Page 61

Section 3.6 Genie V-2470 Theory of Operation Continued

Electrical System

The electrical system consists of ELEVATE Up/Down, STEER Left/Right, and DRIVE Forward/Reverse. The electrical system uses stored electrical energy to power and control all machine functions. The electrical system can be divided into two categories the control circuit and the power circuit.

The control circuit incorporates the components and circuitry required to turn the machine on and off, or control other electrical devices. Components include the key switch, toggle switches, limit switches, POWER On/Off buttons, low voltage interrupt system (optional), diodes and solenoids. Since the control circuit typically conducts very low current, small diameter wire and multi-wire (19 conductor, 18 AWG) control cables are used, to connect the control circuit components.

The power circuit incorporates the components which convert stored electrical energy into a mechanical force to provide movement. Components include the batteries, electric motors and contacts. Since the power circuit must be able to conduct full operating current, heavy #2 and #4 welding cable is used to connect the power circuit components.

Before any machine functions can be operated, the key switch (located on the ground control station) must be turned to the appropriate PLATFORM or GROUND position and the POWER On/Off buttons must be pulled up. Turning the key switch to either position (PLATFORM or GROUND) and pulling up the POWER buttons completes a 24 volt circuit from the batteries to the printed circuit board located at the ground control station. At the printed circuit board current is used to energize a 24 volt control circuit master relay (located in the ground control station). The 24 volt control circuit master relay energizes a set of 24 volt contacts, which, when closed, completes a circuit supplying 24 volts from the batteries to the selected platform or ground control station actuators.

The ELEVATE Up/Down functions can be operated from either the platform control station or the ground control station by actuating the proper function control toggle switch. When the toggle switch is actuated a circuit is completed from the toggle switch to the 24 volt motor start relay and to the elevate up 24 volt directional control valve solenoid. The ELEVATE Down function is not a powered function and does not supply 24 volts to the motor start relay. When supplied with 24 volts, the motor start relay energizes a set of 24 volt contacts which when closed completes a circuit supplying 24 volts to the hydraulic power

Page 62

Section 3.6 Genie V-2470 Theory of Operation Continued

unit. When energized, the 24 volt directional control valve solenoids activate their respective control valves. Whenever the above-mentioned actions are accomplished, the appropriate elevate function will operate.

The STEER Left/Right functions are operated from the platform control station by actuating the STEER toggle switch to the desired position. When actuated the toggle switch completes a circuit to the 24 volt motor start relay and to the 24 volt steer left or right directional control valve solenoid. When supplied with 24 volts the motor start relay energizes a set of 24 volt contacts which, when closed, completes a circuit supplying 24 volts to the hydraulic power unit. When energized, the 24 volt directional control valve solenoids activate their respective control valve. Whenever the above mentioned actions are accomplished, the appropriate steer function will operate.

The DRIVE Forward/Reverse functions are operated from the platform control station. The direction of the DRIVE Forward/Reverse functions are accomplished by actuating the drive proportional control joystick in either the Forward or Reverse position. When actuated the joystick completes a circuit to the 24 volt motor start relay, the 24 volt forward or reverse directional control valve solenoid, and the drive proportional control valve solenoid. When supplied with 24 volts the motor start relay energizes a set of 24 volt contacts which, when closed, completes a circuit supplying 24 volts to the hydraulic power unit. When energized the 24 volt directional control valve solenoids actuate their respective control valves. The speed of the DRIVE Forward/Reverse functions is controlled by the variable current supplied to the drive proportional control valve from the drive proportional control joystick. Whenever the above-mentioned functions are accomplished, the appropriate drive function will operate.

Page 63

3.7 GENIE V-2470RT THEORY OF OPERATION

Energy Source

The Genie V-2470RT vertical lift is powered by a dual fuel 24 horsepower internal combustion engine.

Charging System

The internal combustion engine incorporates an integral flywheel mounted 12 volt-20 amp alternator and voltage regulator system.

Hydraulic System

The hydraulic system consists of ELEVATE Up/Down, STEER Left/Right and DRIVE Forward/Reverse. To power these functions the hydraulic system uses a three stage gear pump that delivers a total flow displacement of 17.5 gpm (66.2 liters per minute).

The first pump stage is used to supply the ELEVATE function with hydraulic oil, providing a total flow displacement of 2.5 gpm (9.5 liters per minute).

The last two stages are used to supply the STEER and DRIVE functions with hydraulic oil, providing a total flow displacement of 15 gpm (56.8 liters per minute). A pump unloader valve is incorporated to regulate one stage of the pump. When pilot pressure to the unloader valve reaches a set pressure it will open, creating a flow path to the tank for the regulated pump stage.

When the internal combustion engine is operating, it turns the pump to supply hydraulic oil to the hydraulic system directional control valves located on the chassis mounted hydraulic control manifold. When actuated, the directional control valves direct hydraulic oil to the hydraulic system actuators (elevate cylinder, steering cylinder, wheel drive motors, and wheel drive brakes). Two 3000 psi (20684 kPa) relief valves (located on the hydraulic control manifold) are used to prevent the hydraulic system from being over pressurized. To ensure that the steering system is always supplied with hydraulic oil, the hydraulic control manifold

Page 64

Section 3.7 Genie V-2470RT Theory of Operation Continued

incorporates a priority flow divider. The priority flow divider ensures that the steering systems hydraulic oil requirement is met prior to supplying hydraulic oil to the elevate system. Located on the hydraulic control manifold is a drive proportional control valve. This valve is used to control the speed of the DRIVE Forward/Reverse functions by regulating the flow of hydraulic oil in direct relation to the valves input voltage.

The ELEVATE Up/Down functions utilize one lifting cylinder. The ELEVATE Up function is accomplished by actuating the elevate up directional control valve (located on the hydraulic control manifold) thereby directing hydraulic oil to the elevate cylinder. Another manifold, attached to the barrel end port of the cylinder, incorporates a down directional control valve, a manual lowering valve, flow control cartridge valve, and a check valve. The ELEVATE Down function is accomplished by actuating the down directional control valve, this allows a flow path for hydraulic oil to exit the cylinder causing it to retract. The manual lowering valve accomplishes the same tasks as the down directional control valve in the event of an electrical system failure. A pressure compensated flow control cartridge value restricts the rate that the cylinder retracts by regulating the hydraulic oil exiting the cylinder. The check valve is used to maintain cylinder pressure and prevent free descent in the event of a hydraulic line failure.

The DRIVE Forward/Reverse functions uses two 3.6 cubic in. (59 cm³) rotary drive motors, with 24.85:1 planetary torque hubs, and spring applied, hydraulically released brakes. The functions are accomplished by actuating the drive forward or reverse directional control valve (located on the hydraulic control manifold), thereby directing hydraulic oil to the drive brake shuttle valve (located in the hydraulic control manifold) and to the wheel drive motors. The shuttle valve directs hydraulic oil to the drive brakes releasing the brakes. The DRIVE functions use two counter balance valves (located on the hydraulic control manifold) to prevent the machine from exceeding the maximum drive speed and to aid in hydrodynamic braking.

Page 65

Section 3.7 Genie V-2470RT Theory of Operation Continued

Electrical System

The electrical system consists of ELEVATE Up/Down, STEER Left/Right, and DRIVE Forward/Reverse. The electrical system stored electrical energy to control all machine functions. The electrical system is divided into two categories: The control circuit and the power circuit.

The control circuit incorporates the components and circuitry required to turn the machine on and off, or control other electrical devices. Components include the key switch, toggle switches, limit switches, POWER On/Off buttons, low voltage interrupt system (optional), diodes and solenoids. Since the control circuit typically conducts very low current, small diameter (19 conductor, 18 AWG) wire and multi-wire control cables are used, to connect the control circuit components.

The power circuit incorporates the components which convert stored electrical energy into a mechanical force to provide movement. Components include the batteries, starter motor and contacts. Since the power circuit must be able to conduct full operating current, heavy #2 and #4 welding cable is used to connect the power circuit components.

Before any machine functions can be operated, the key switch (located on the ground control station) must be turned to the appropriate PLATFORM or GROUND position, the POWER On/Off buttons must be pulled up.

Turning the key switch to either position (PLATFORM or GROUND) and pulling up the POWER buttons completes a 12 volt circuit from the battery to the printed circuit board located at the ground control station. At the printed circuit board current is used to energize a 12 volt control circuit master relay (located in the ground control station). This relay energizes a set of 12 volt contacts which, when closed, completes a circuit supplying 12 volts from the battery to the selected platform or ground control station actuators. At this point the START/CHOKE toggle switch may be actuated.

The ELEVATE Up/Down functions can be operated from either the platform control station or the ground control station by actuating the ELEVATE toggle switch to the desired position. When the ELEVATE toggle switch is actuated a circuit is completed from the toggle switch to the 12 volt elevate up or down directional control valve solenoid. When energized, the 12 volt directional control valve solenoids actuate their respective control valves. Whenever the above-mentioned actions are accomplished, the appropriate elevate function will operate.

Page 66

Section 3.7 Genie V-2470RT Theory of Operation Continued

The STEER Left/Right functions are operated from the platform control station by actuating the STEER toggle switch to the desired position. When actuated, the STEER toggle switch completes a circuit to the 12 volt steer right or left directional control valve solenoid. When energized, the 12 volt directional control valve solenoids actuate their respective control valves. Whenever the above mentioned actions are accomplished, the appropriate steer function will operate.

The DRIVE Forward/Reverse functions are operated from the platform control station. The direction of the DRIVE Forward/Reverse function is accomplished by actuating the drive proportional control joystick in either the Forward or Reverse position. When actuated, the joystick completes a circuit to the 12 volt forward or reverse directional control valve solenoid and the drive proportional control valve solenoid. When energized, the 12 volt directional control valve solenoids actuate their respective control valves. The speed of the DRIVE Forward/Reverse functions is controlled by the variable current supplied to the drive proportional control valve from the drive proportional control joystick. Whenever the above-mentioned functions are accomplished, the appropriate drive function will operate.

Page 67

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

MAINTENANCE

First Edition - Page 4.00

Page 68

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

4.1 Maintenance Schedule

To gain optimum performance from your Genie Vertical Lift, simply follow these routine maintenance and service procedures. Each procedure refers to both the Genie V-2470 & V-2470RT unless otherwise specified.

Daily

o Thoroughly inspect the entire machine for physical damage and wear. Complete the preoperation inspection detailed in section 3.2. Repair any defects before operating the machine.
o Check the electrolyte level on all batteries.**
o Check hydraulic fluid levels.
o Check brake operation.
o Maintain adequate tire pressure in air filled tires.
o Check lug nuts for tightness:

V-2470 (front and rear) - Torque to 45 ft. lbs. (61 Nm).

V-2470RT - Front: Torque to 45 ft. lbs. (61 Nm). Rear: Torque to 140-150 ft. lbs. (189-203 Nm).

o V-2470RT - Check engine oil level.+

First Two Weeks Or After The First 25 Hours Of Use (V-2470RT Only)

o V-2470RT Change the engine oil filter.+
o V-2470RT Change the engine crankcase oil.+
o V-2470RT Service the engine air filter every 25 hours.*+

Page 69

Section 4.1 Maintenance Schedule Continued

First Month Or After The First 50 Hours Of Use

o Change the oil in the drive gear boxes. Use EP-90 weight.
o Change the hydraulic oil filters.*
o V-2470RT Check engine rpm. Set at 3100 to 3200 rpm.*+

Monthly Or Every 50 Hours

o Check the electrolyte level on all batteries.** Clean all battery tops and posts.
o V-2470RT Change the engine oil filter.*+
o V-2470RT Change the engine crankcase oil.*+

Every Six Months Or Every 250 Hours

o Inspect the elevate assembly pivot points for signs of wear.
o Inspect the steering and front end assembly for signs of wear.
o Change the oil in the drive gear boxes. Use EP-90 weight.
o Change the hydraulic oil filters.*
Service the hydraulic oil reservoir, replace suction screens and filler breather. *
o V-2470RT Clean the engine cooling fins.
o V-2470RT Check engine rpm. Set at 3100 to 3200 rpm.*+
o V-2470RT Clean the engine crankcase breather valve.*+
o V-2470RT Check the engine fuel filter.*+
o V-2470RT Check spark plugs.*+
o V-2470RT Replaced air cleaner element.*+

Page 70

Section 4.1 Maintenance Schedule Continued

Every Two Years Or Every 1000 Hours

o Repack the front axle bearings. Use Texaco Marfax (or equivalent multipurpose lithium grease).
o Change the hydraulic oil. Use Shell Tellus T-46 (or equivalent).*
o V-2470 Check electric motor brushes and field coils.

+ Refer to section 6.2, Manufacturers Appendices for specific engine maintenance and service information.
* Extreme dust or temperature conditions will require more frequent servicing.
** Applies to standard (non-maintenance-free) batteries only.

Page 71

Page 72

4.2 CONSUMABLE MATERIALS

MATERIAL	DESCRIPTION	LOCATION
Hydraulic Oil	Shell Tellus T-46	Hydraulic Oil Reservoir
Gear Oil	SAE 90 multipurpose Gear Lubricant, API service classification GL-5	Drive Torque Hubs
Thread Adhesive	Loctite Removable Thread Locker 242	Fasteners
Paint	Rudd 91-869, Blue Rudd 91-841, Grey	Painted Surfaces
Wheel Bearing Grease	Texaco Marfax (or equivalent multi- purpose lithium grease)	Front Wheel Hubs
Motor Oil +	API service classifi- cation SF or SF/CC Oil.*	Engine Crankcase
Gasoline +	Unleaded regular gasoline preferred.*	Gasoline Tank
Liquid Propane +	Clean, dry liquid propane gas.*	Propane Tank

* Refer to section 6.2, Manufacturers Appendices for specific oil and fuel requirements.
+ V-2470RT only.

Page 73

Page 74

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

4.3 SPECIFICATIONS

The following page details specifications for Genie Vertical Lift models V-2470 & V-2470RT.

Page 75

Section 4.3 Specifications Continued

Genie V-2470 & V-2470RT Specifications*

MODEL		V-2470	V-2470RT
Height-working max.	U.Sft.	3	1
	Metric-m	9.4	45
Height-platform max.	U.Sft.	24
	Metric-m	7.3	31
Height-stowed	U.Sft.	7′9″	7′11″
_	Metric-m	2.36	2.41
Width drive chassis	U.Sin.	70	74
	Metric-m	1.78	1.88
Length-stowed	U.Sft.	11
_	Metric-m	3.35
Lift capacity	U.Slbs.	12	50
(evenly distributed)	Metric-kg	56	57
Wheelbase	U.Sin.	8	4
	Metric-m	2.1	13
Turning radius (outside)	U.Sft.	16	17
	Metric-m	4.87	5.18
Turning radius (inside)	U.Sft.	8	9
	Metric-m	2.44	2.74
Power Source		24 volts DC	24 hp Gas/LP
Batteries (included)		(8) 6 volt Deep cycle	12 volt DC
Travel speed-stowed	U.Smph	0-3
	Metric-km/h	0-4.8
Travel speed-raised * *	U.Smph	0-0.8
	Metric-km/h	0-1	.3
Controls-drive		Proportional
Platform dimensions	U.Sin.	126 × 70	126 × 70
(length × width)	Metric-m	3.20 × 1.78	3.20 × 1.78
AC outlet in platform		Stan	dard
Hydraulic pressure max.	U.SPSI	3100	3000
	Metric-kPa	21373	20684
Tires Front	U.Sin.	23×8.5×12	27×8.5×15
	Metric-mm	584×216×305	686×216×381
Rear	U.Sin.	Sama an Front	27×10.5×15
	Metric-mm	Same as From	686×267×381
Gradeability**†		25%	35%
Ground clearance	U.Sin.	6/8.25	8.25/10.75
obstacle/high center	Metric-mm	152/210	210/273
Hydraulic oil reservoir	U.Sgal.	8	17
capacity	Metric-I	30.28	64.34
Weight (gross)***	U.Slbs.	54	00
	Metric-kg	2449

* All specifications are subject to change without notice. ** In lift mode (platform elevated), the machine is designed for operation on firm level surfaces only. ** Add 200 lbs. (91 kg) for optional slide deck. † Affected by battery condition on DC models.

Page 76

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

4.4 TORQUE REQUIREMENTS

The purpose of this section is to allow the user to take prompt, effective action in the event an unacceptable condition is discovered during the inspection procedure. The table on the following page lists the standard torque values based on bolt diameters, grades, and lubricated or dry conditions.

Page 77

Section 4.4 Torque Requirements Continued

Torque Requirement Table

Cine	Threada	Bell	Tomolio	SAE Grade 5 Bolts		S	AE Grade 8 Bol	ts
Size	Per Inch	Diameter D (In.)	Stress Area (Sq. In.)	Clamp Load P (lb.)	Torque Dry K = 0.20	Torque Lub. K = 0.15	Clamp Load P (lb.)	Torque Dry K = 0.20	Torque Lub. K = 0.15
					In. Lb.	In. Lb.	·	In. Lb.	In. Lb.
4	40	0.1120	0.00604	380	8	6	540	12	9
	48	0.1120	0.00661	420	9	7	600	13	10
6	32	0.1380	0.00909	580	16	12	820	23	17
	40	0.1380	0.01015	610	18	13	920	25	19
8	32	0.1640	0.01400	900	30	22	1260	41	31
1	36	0.1640	0.01474	940	31	23	1320	43	32
10	24	0.1900	0.01750	1120	43	32	1580	60	45
1 1/2	32	0.1900	0.02000	1285	49	35	1800	68	109
'/4	20	0.2500	0.0310	2020	120	75	2000	169	100
	20	0.2500	0.0304	2320	FUD	Ftib	3200	=+ 1 b	FUD
5/16	18	0.3125	0.0524	3340	17	13	4720	25	18
1 10	24	0.3125	0.0580	3700	19	14	5220	25	20
3/8	16	0.3750	0.0775	4940	30	23	7000	45	35
	24	0.3750	0.0878	5600	35	25	7900	50	35
7/16	14	0.4375	0.1063	6800	50	35	9550	70	55
	20	0.4375	0.1187	7550	55	40	10700	80	60
1/2	13	0.5000	0.1419	9050	75	55	12750	110	80
	20	0.5000	0.1599	10700	90	65	14400	120	90
9/16	12	0.5625	0.1820	11600	110	80	16400	150	110
	18	0.5625	0.2030	12950	120	90	18250	170	130
5/8		0.6250	0.2260	14400	150	110	20350	220	170
	18	0.6250	0.2560	16300	170	130	23000	240	180
3/4	10	0.7500	0.3340	21300	260	200	30100	380	280
7/-	16	0.7500	0.3730	23800	300	220	33600	420	320
1/18	9	0.8750	0.4620	29400	430	320	41600	000	460
		1 0000	0.5090	32400	640	490	45600	000	500
1 '	12	1,0000	0.6630	42200	700	400 530	51500	1000	740
11/8	1 7	1,1250	0 7630	42300	800	000	68700	1280	960
1	12	1,1250	0.8560	47500	880	660	77000	1440	1080
11/4	7	1.2500	0.9690	53800	1120	840	87200	1820	1360
	12	1.2500	1.0730	59600	1240	920	96600	2000	1500
13/8	6	1.3750	1.1550	64100	1460	1100	104000	2380	1780
i i	12	1.3750	1.3150	73000	1680	1260	118100	2720	2040
11/2	6	1.5000	1.4050	78000	1940	1460	126500	3160	2360
	12	1.5000	1.5800	87700	2200	1640	142200	3560	2660

Grade 5 Grade 8

Page 78

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

4.5 TROUBLESHOOTING

Page

Troubleshooting Introduction	4.10
Genie V-2470 Troubleshooting Flow Charts	4.12
Genie V-2470RT Troubleshooting Flow Charts	4.33

Page 79

Section 4.5 Troubleshooting Continued

Troubleshooting Introduction

The following section is designed to aid in the diagnosis of problems which may occur on a Genie Vertical Lift. A system of troubleshooting flow charts is used to diagnose problems ranging from defective solenoids to the need for pump replacement. To use this section, a technician should have the following basic hand tools and test equipment: a voltmeter, ohmmeter, pressure gauges, and flow meters.

Included in this section are twenty seven (27) troubleshooting flow charts which cover various machine defective conditions for both the Genie V-2470 & V-2470RT. These flow charts include several numbered tests, and test results (shaded boxes), which are used to direct the technician to the recommended machine repair. Bold framed boxes indicate that the flow chart continues on another page.

Before performing any machine tests the following safety precautions should be observed:

o Read and understand sections 3.6 and/or 3.7, Theory of Operation.
o Read and follow all the safety instructions listed in section 2.1, Mandatory Precautions, and as indicated by decals on the Genie Vertical Lift.
o When troubleshooting, make certain the machine is resting on a firm, smooth, level surface.
When testing drive system defective conditions, make certain the machine is secured from rolling by chocking the front tires and by jacking the machine drive assembly off the ground before conducting any tests.
Two persons will be needed to safely conduct some drive system defective condition tests.

This Troubleshooting section deals primarily with malfunctions or defective components. Therefore, make certain all correct operating procedures are performed prior to conducting any of the recommended tests.

It should be noted that various degrees of a particular function loss may occur. For example: "ELEVATE Up function inoperative". This should mean "Elevate cylinder will not extend with the same speed or power of a properly functioning machine."

Page 80

Section 4.5 Troubleshooting Continued

NOTE : Proper diagnosis of a problem can only be done with batteries which are fully charged (discharged batteries will result in sluggish operation) and, on the Genie V-2470RT, have the engine running (if possible).

Throughout this Troubleshooting section, references are made to terminal numbers. For the exact location of these terminal points, refer to the electrical schematic and accompanying legend in section 5.2, Electrical Schematics & Diagrams.

Pages 4.12 (V-2470) and 4.33 (V-2470RT) contain a list of problems which may occur due to component malfunctions. Refer to the flow chart which most accurately describes your problem. In multiple-problem cases, solve one problem at a time beginning with the lowest number.

If you have any questions concerning this Troubleshooting section, you will be best served by referring to the defective condition flow chart number and machine test number when calling the Genie Service department toll free 800-426-8089.

Page 81

Page 82

Genie V-2470 Troubleshooting Flow Charts

		Page
	Troubleshooting Introduction	4.10
1.	Machine will not lift, lower, dirve or steer. All powered functions lost. Electric motor will not start	4.13
2.	Machine will not lift, lower, drive or steer. All powered functions lost. Electric motor starts and runs	4.18
3.	ELEVATE Up function inoperative	4.19
4.	ELEVATE Down function inoperative	4.21
5.	Machine will not DRIVE Forward or Reverse	4.23
6.	DRIVE Forward function inoperative.	4.25
7.	DRIVE Reverse function inoperative.	4.26
8.	Machine will not drive at full speed.	4.27

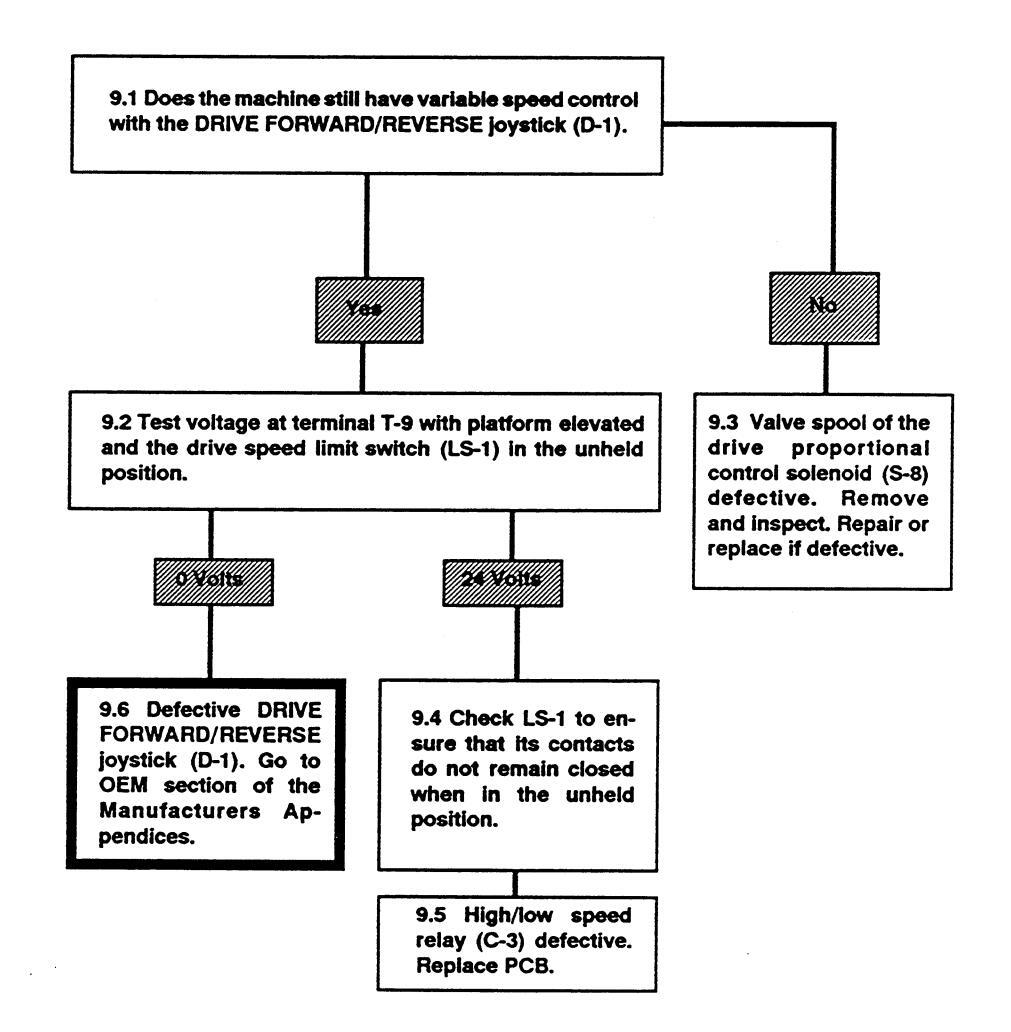

9.	Machine drives at full speed with platform elevated	4.29
10.	STEER Left function inoperative	4.30
11.	STEER Right function inoperative.	4.31
12.	Steering functions lost (hydraulic section).	4.32

Page 83

Page 84

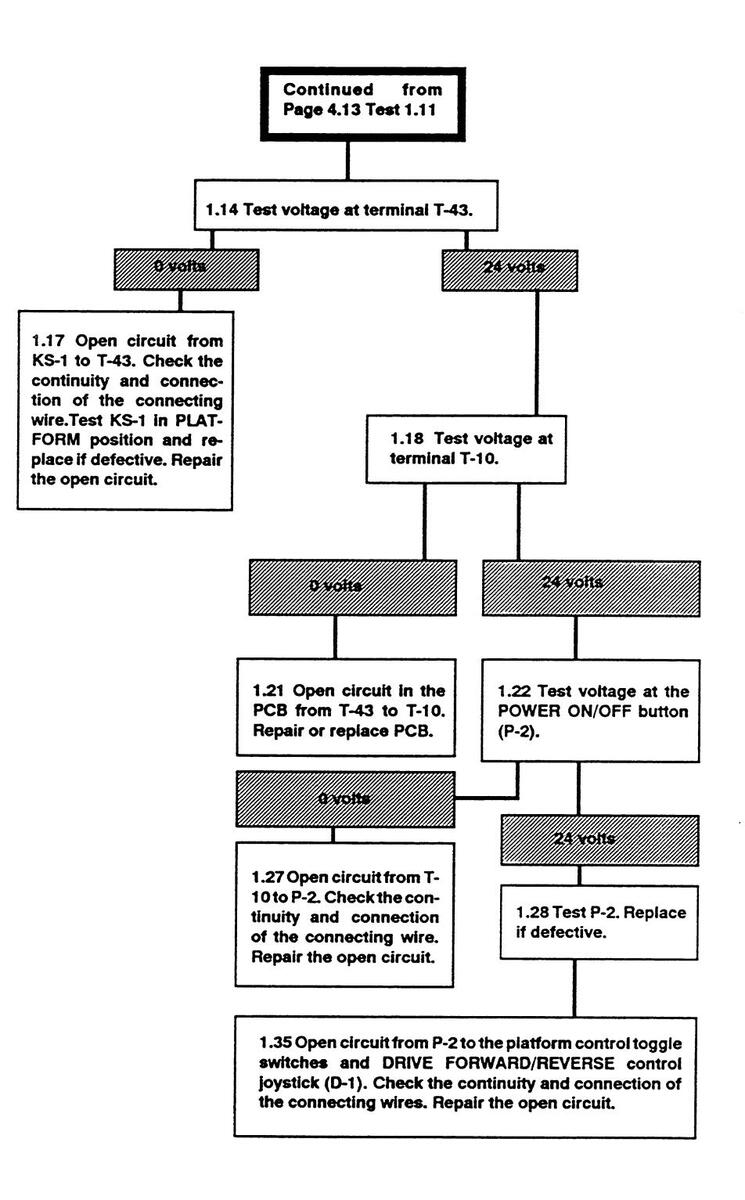

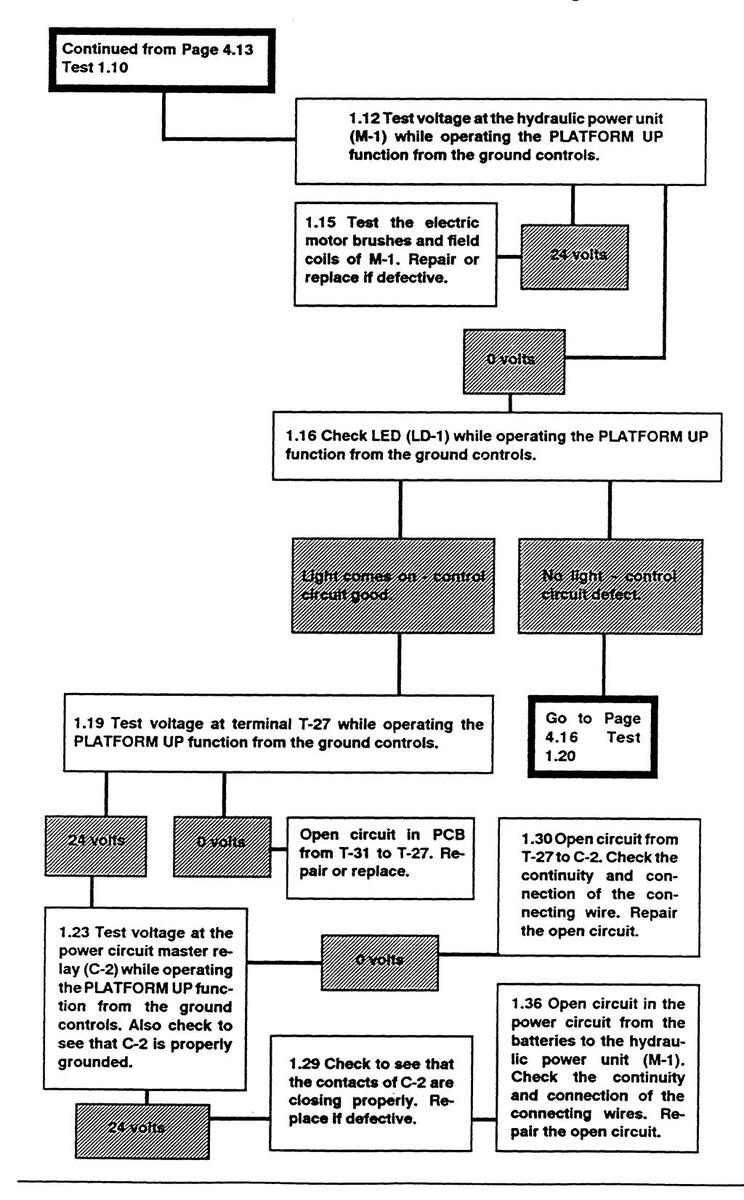

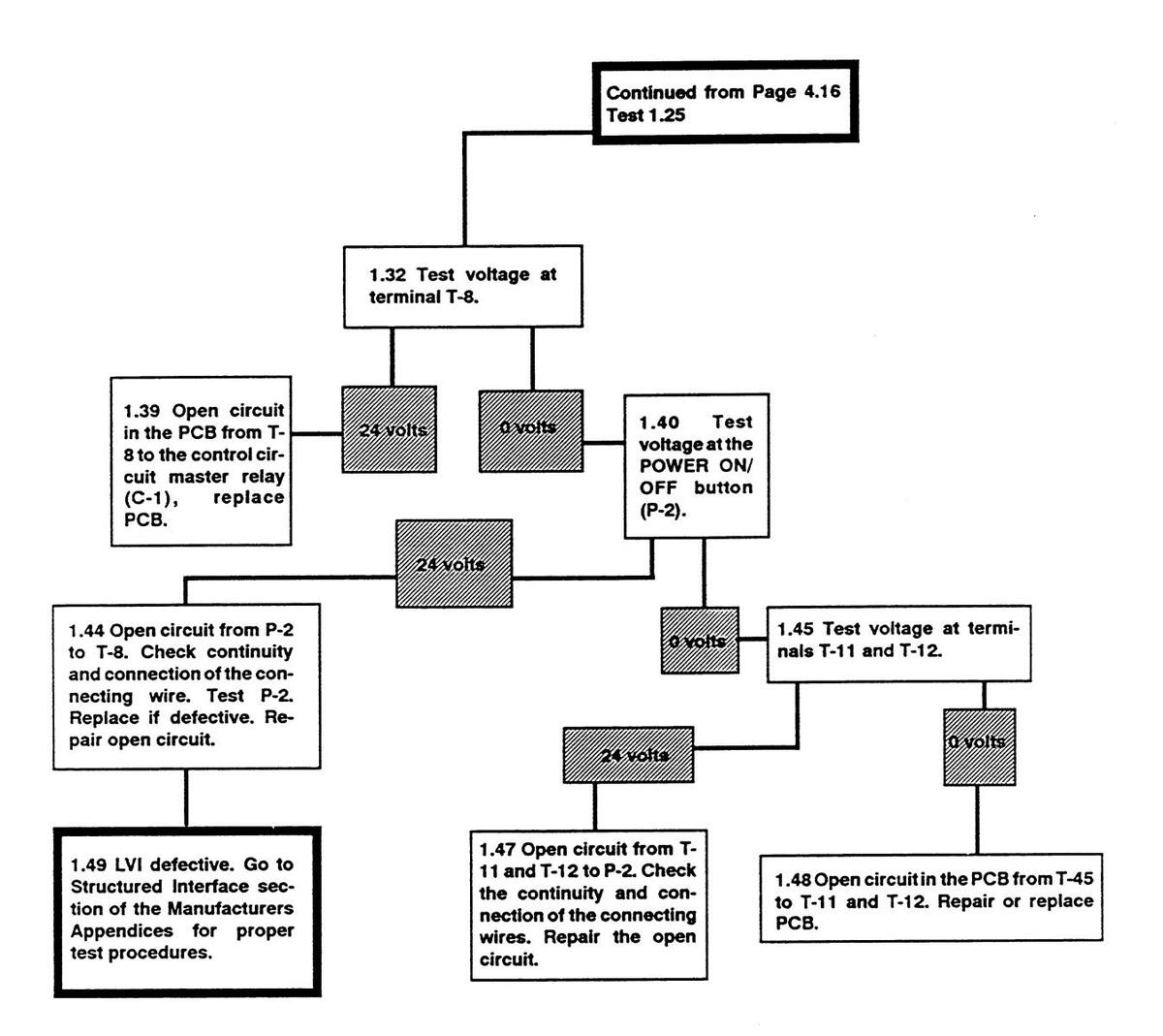

1. Machine will not lift, lower, drive or steer. All power functions lost. Electric motor will not start.

Page 85

Page 86

Section 4.5 Genie V-2470 Troubleshooting Flow Charts Continued

Page 87

Page 88

Page 89

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

2. Machine will not lift, lower, drive or steer. All powered functions lost. Electric motor starts and runs.

Page 90

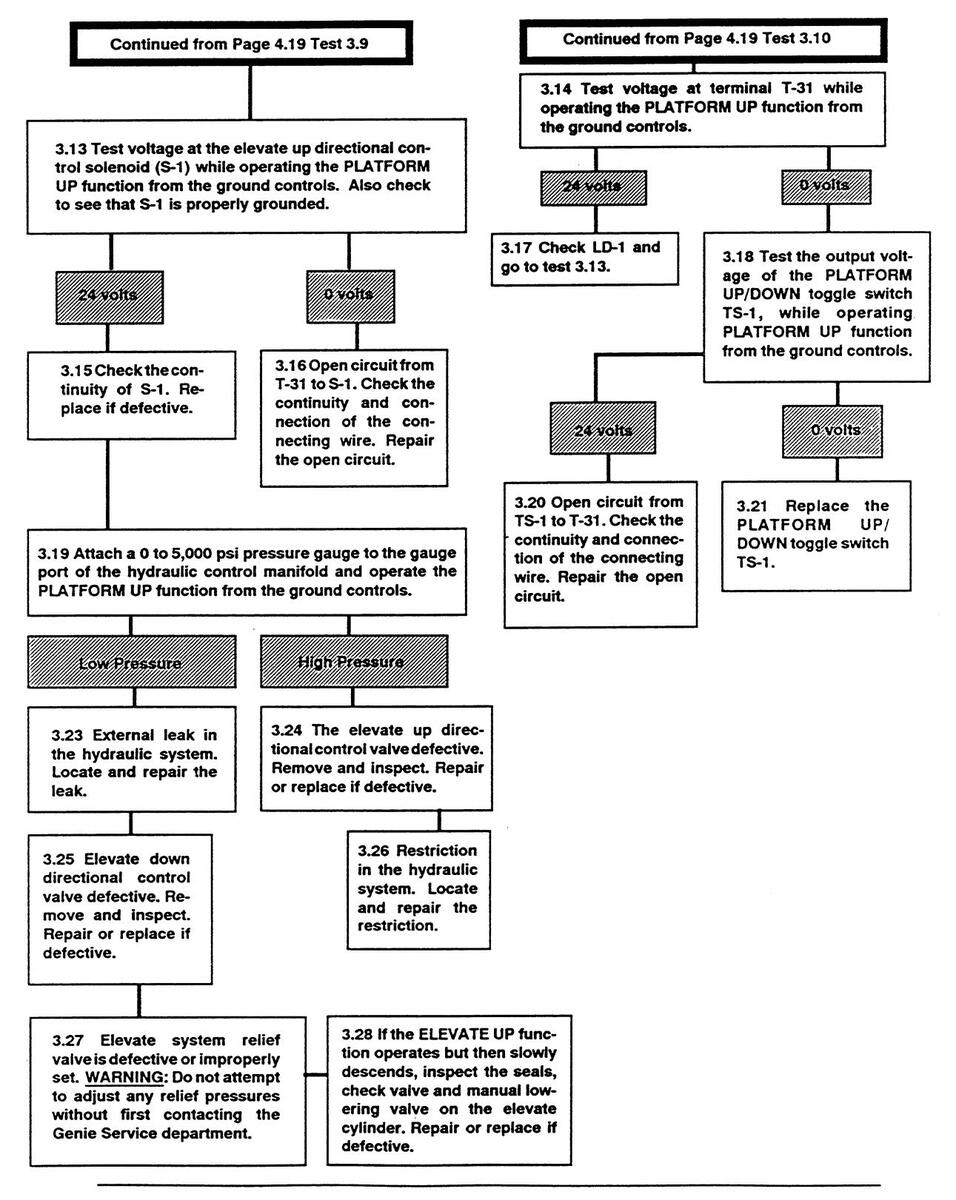

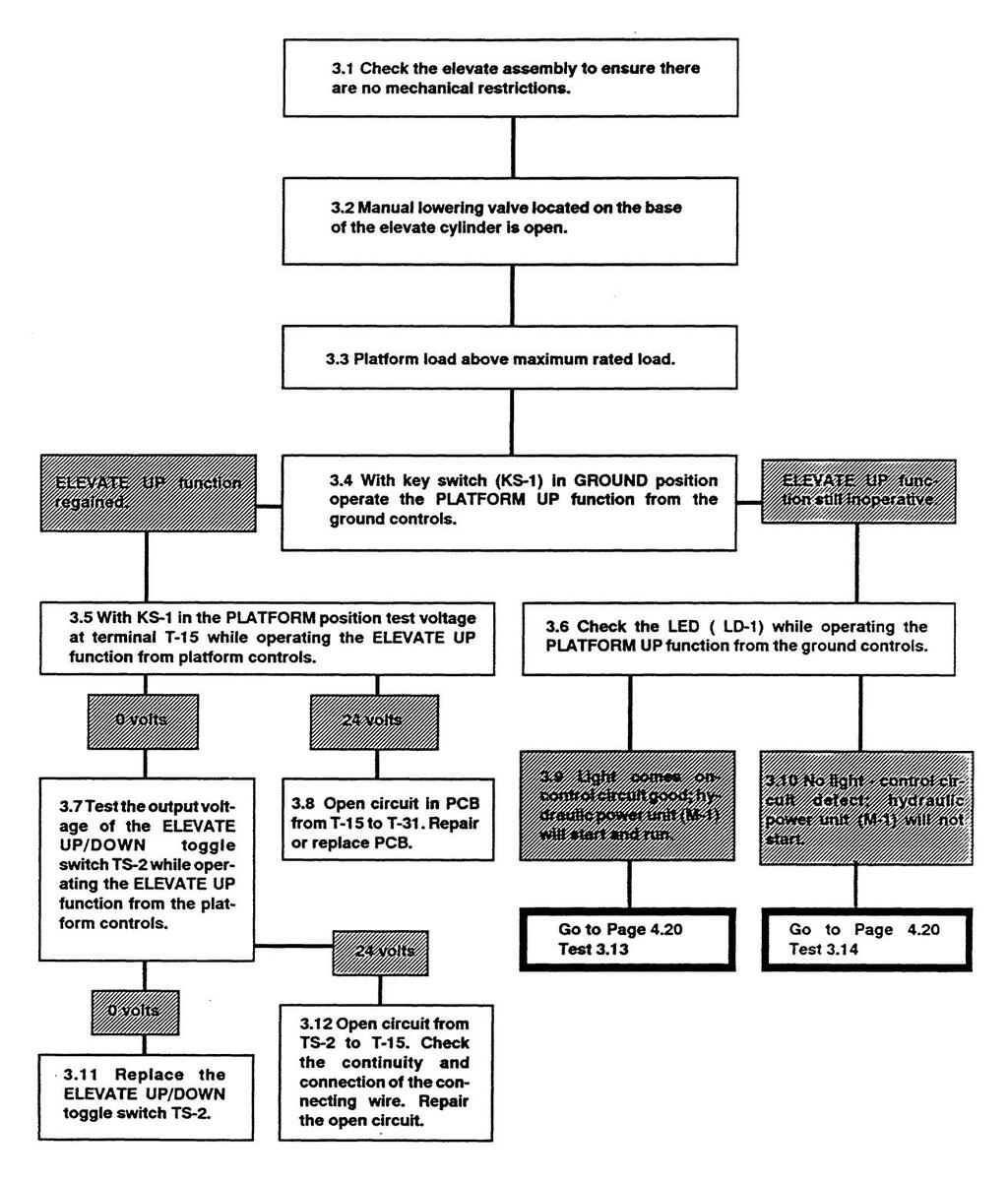

3. ELEVATE Up function inoperative.

Page 91

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

Section 4.5 Genie V-2470 Troubleshooting Flow Charts Continued

First Edition - Page 4.20

Page 92

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

Section 4.5 Genie V-2470 Troubleshooting Flow Charts Continued

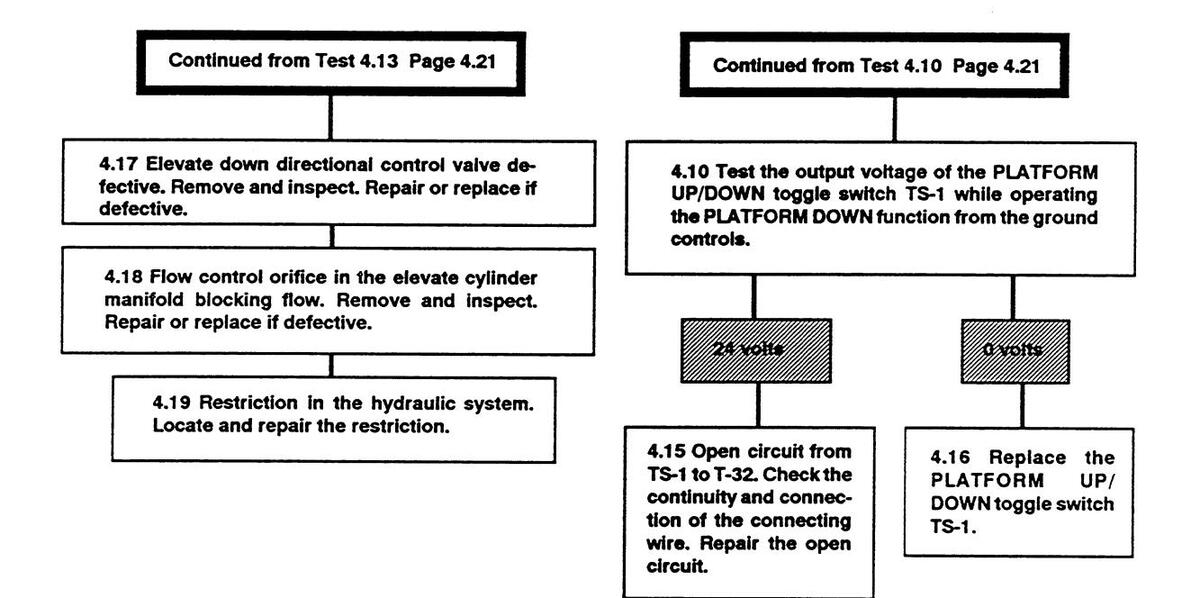

4. ELEVATE Down function inoperative.

Page 93

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

Page 94

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

Section 4.5 Genie V-2470 Troubleshooting Flow Charts Continued

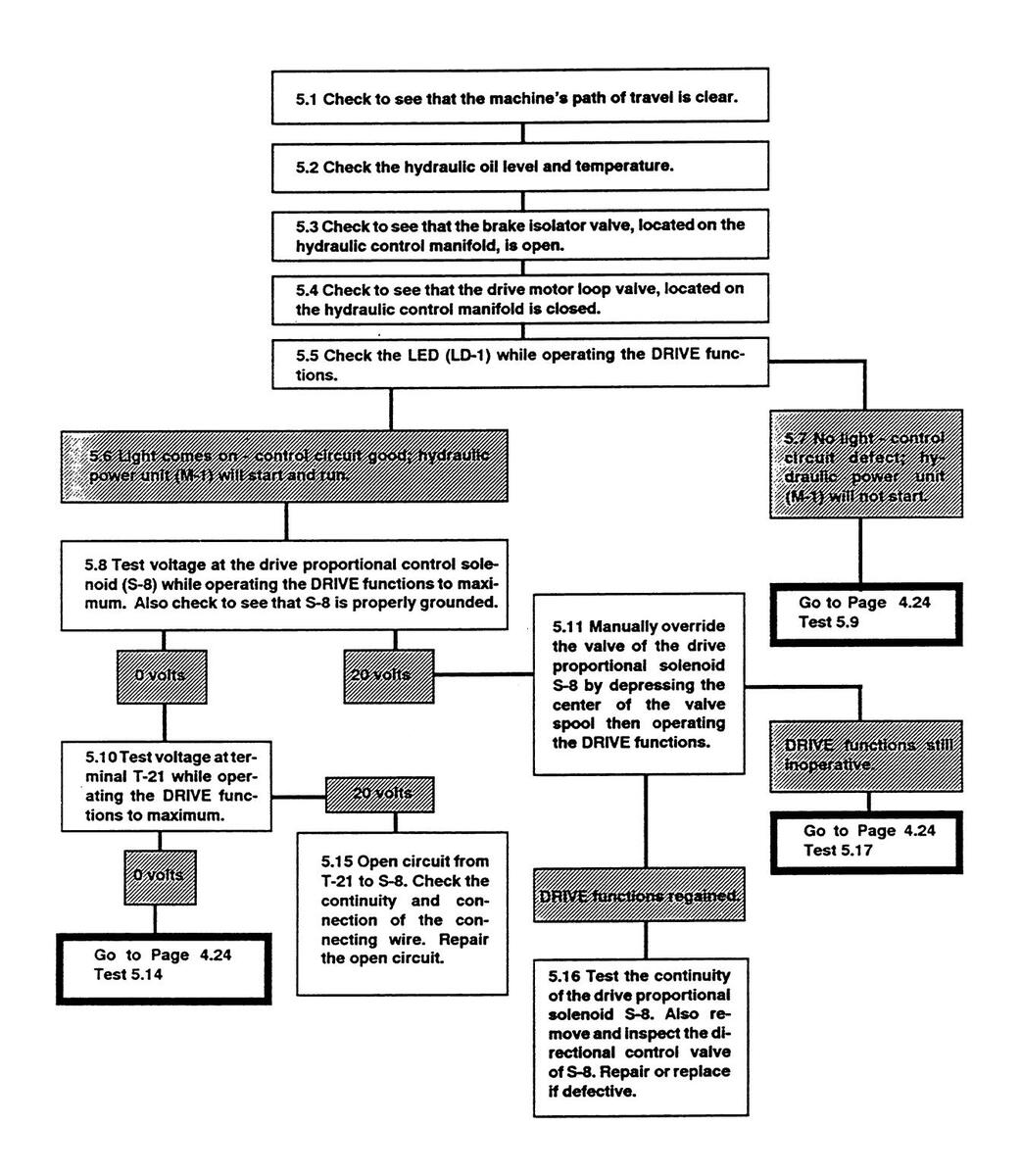

5. Machine will not DRIVE Forward or Reverse.

Page 95

Page 96

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

Section 4.5 Genie V-2470 Troubleshooting Flow Charts Continued

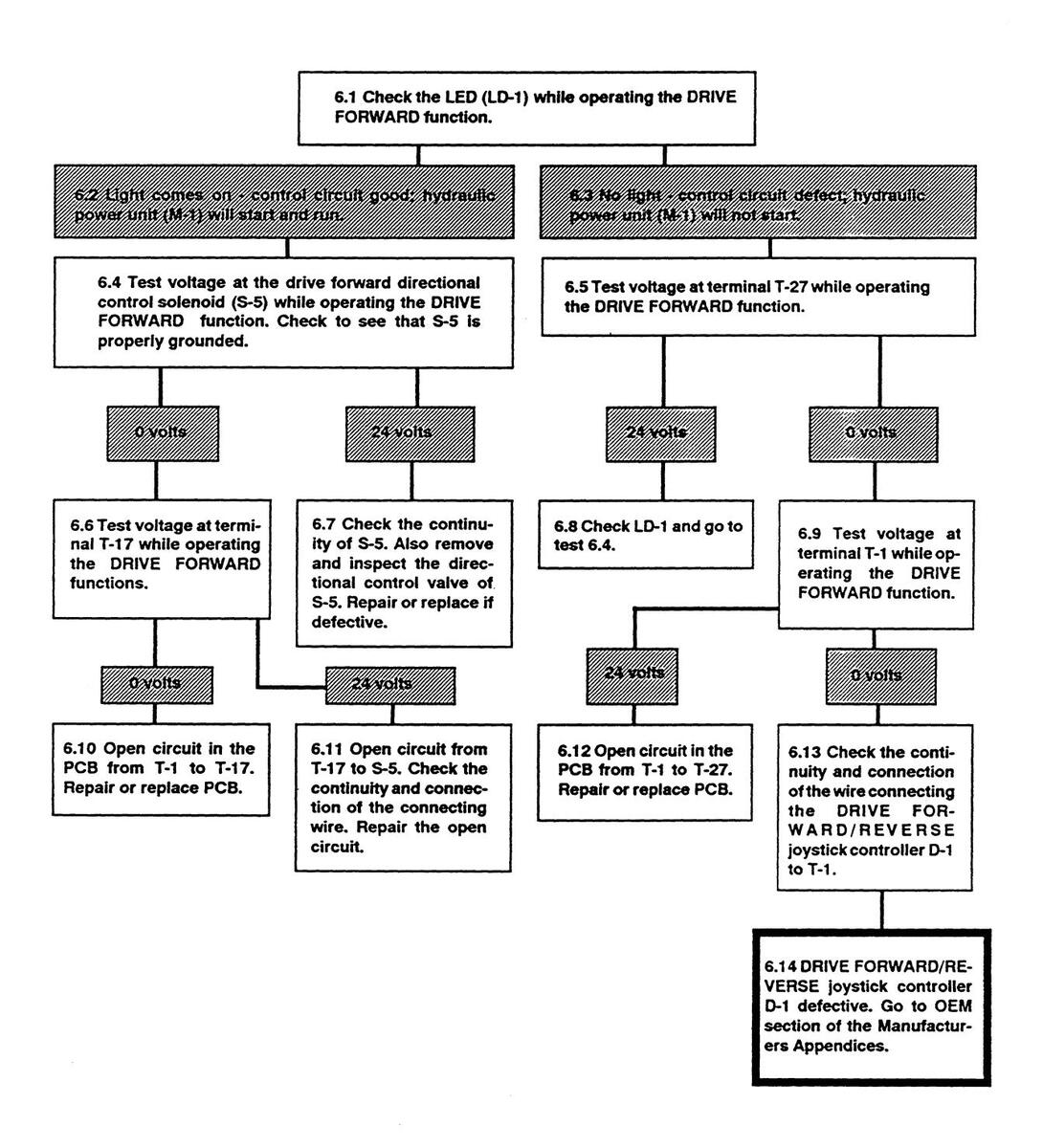

6. DRIVE Forward function inoperative.

Page 97

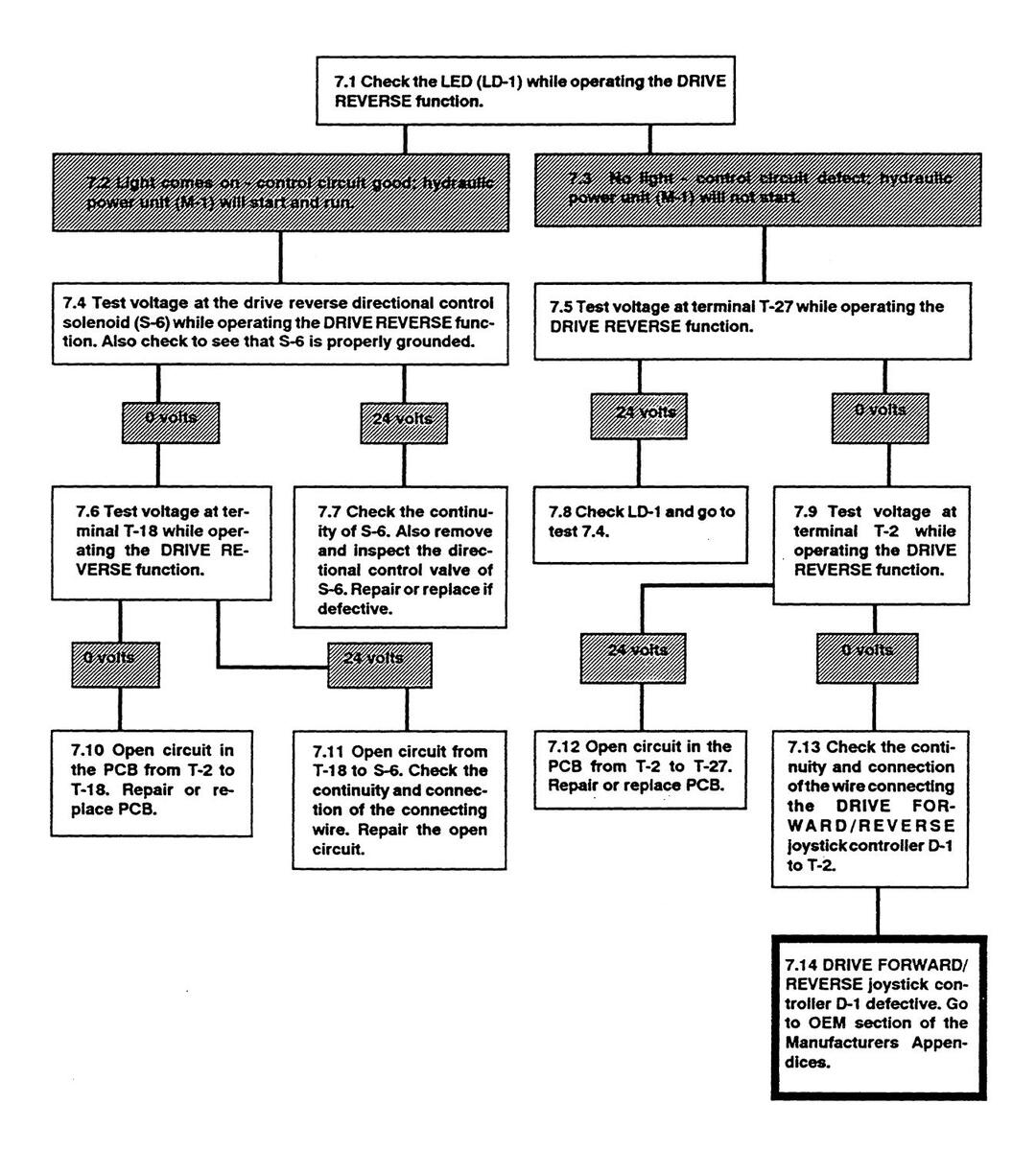

7. DRIVE Reverse function inoperative.

Page 98

Genie V-2470 & V-2470RT Operating and Maintenance Manual - Maintenance

Section 4.5 Genie V-2470 Troubleshooting Flow Charts Continued

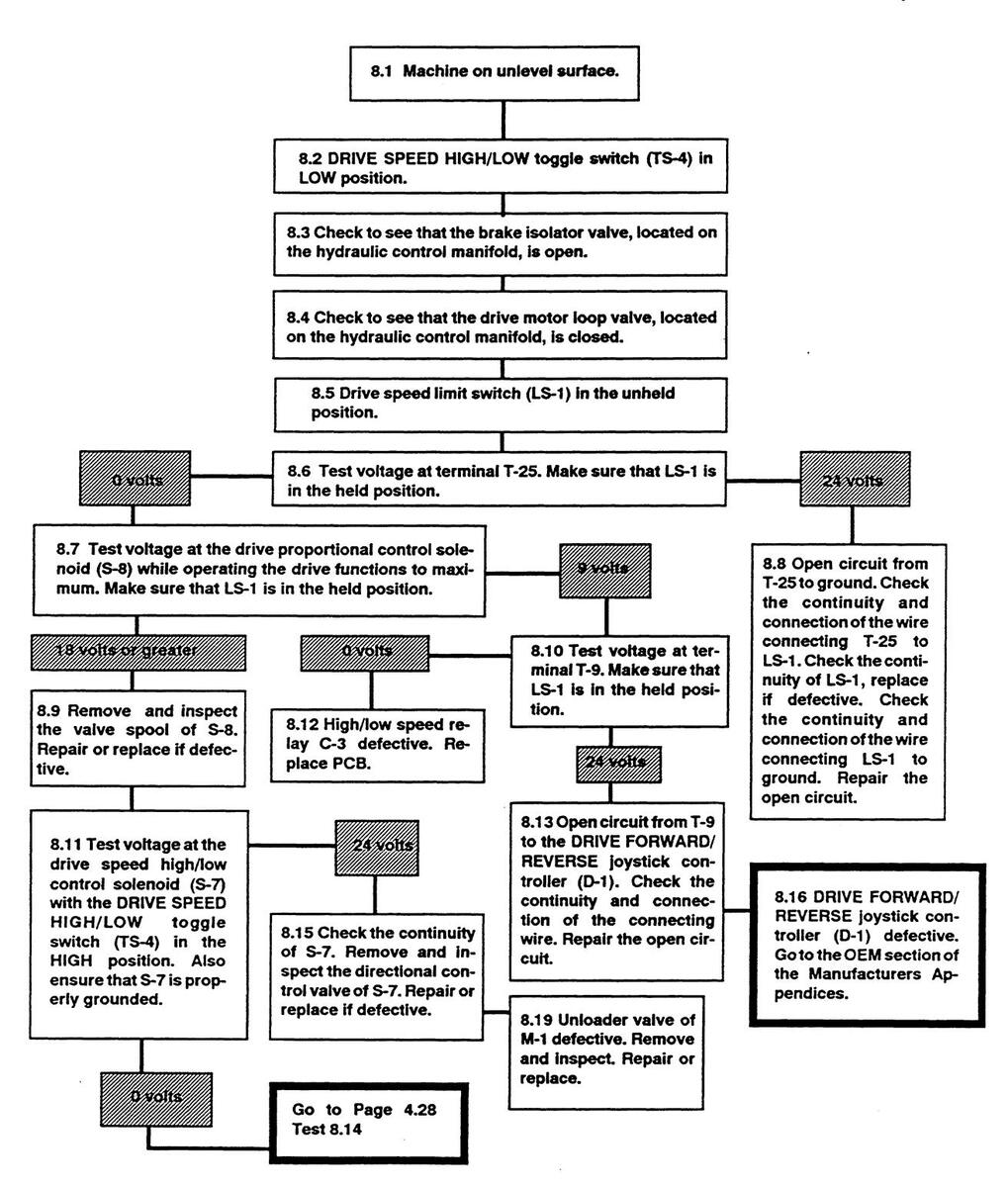

8. Machine will not drive at full speed.

Page 99

Page 100

Genie V Series Service Manuals Service Manual

CONGRATULATIONS!

TABLE OF CONTENTS

Page

INTRODUCTION

1.1 PURPOSE

1.2 ITEM DESCRIPTION

Physical

Power

Movement

1.3 IDENTIFICATION

Serial No.

Rated Work Load

Platform Height

Nominal Operating Voltage

Maximum Hydraulic System Pressure

ANSI

1.4 OPERATION

SAFETY

2.1 MANDATORY PRECAUTIONS

OPERATING INSTRUCTIONS

3.1 UNPACKING

Steps

3.2 PREOPERATION INSPECTION

Initial Inspection

Inspection Prior To Use

Steps

3.3 OPERATING INSTRUCTIONS

GENIE VERTICAL LIFT (Models V-1832, V-1854 & V-2470) OPERATING INSTRUCTIONS

CAUTION

SAFETY RULES & OPERATING INSTRUCTIONS

SAFETY RULES

WARNING: FAILURE TO UNDERSTAND AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS MIGHT RESULT IN SERIOUS INJURY OR DEATH.

PRE-OPERATIONAL & SAFETY INSPECTION

PRE-START

GROUND CONTROL TEST

PLATFORM CONTROL TEST

OPERATING INSTRUCTIONS

BEFORE OPERATING MACHINE UNDERSTAND FUNCTIONS OF ALL CONTROLS

EMERGENCY STOP

RAISING AND LOWERING PLATFORM

TRAVELING WITH PLATFORM DOWN

TRAVELING WITH PLATFORM UP

AUXILIARY LOWERING

SLIDE DECK (Accessory)

TRANSPORT

SECURING TO TRUCK OR TRAILER FOR ROAD TRANSIT

MOVING A DISABLED MACHINE

OPERATING INSTRUCTIONS

CAUTION

SAFETY RULES & OPERATING INSTRUCTIONS

SAFETY RULES

SAFETY RULES

PRE-OPERATIONAL & SAFETY INSPECTION

PRE-START

GROUND CONTROL TEST

FUEL REQUIREMENTS

PRE-OPERATIONAL & SAFETY INSPECTION (CONTINUED)

FUEL SELECTION

PLATFORM CONTROL TEST

OPERATING INSTRUCTIONS

EMERGENCY STOP

RAISING AND LOWERING PLATFORM

TRAVELING WITH PLATFORM DOWN

TRAVELING WITH PLATFORM UP

STEERING

8 — Drive Speed Limit Switch

OPERATING INSTRUCTIONS (CONTINUED)

AUXILIARY LOWERING

MAINTENANCE & ROUTINE SERVICE

DAILY SERVICE CHECK

FIRST TWO WEEKS (25 HOURS)

FIRST MONTH (OR FIRST 50 HOURS)

EVERY SIX MONTHS (OR EVERY 250 HOURS)

EVERY TWO YEARS (OR EVERY 1000 HOURS)

TRANSPORT

SECURING TO TRUCK OR TRAILER FOR ROAD TRANSIT

3.4 GENIE V-2470 TRANSPORT

Steps

How To Place The Machine In Free-Wheel Configuration
