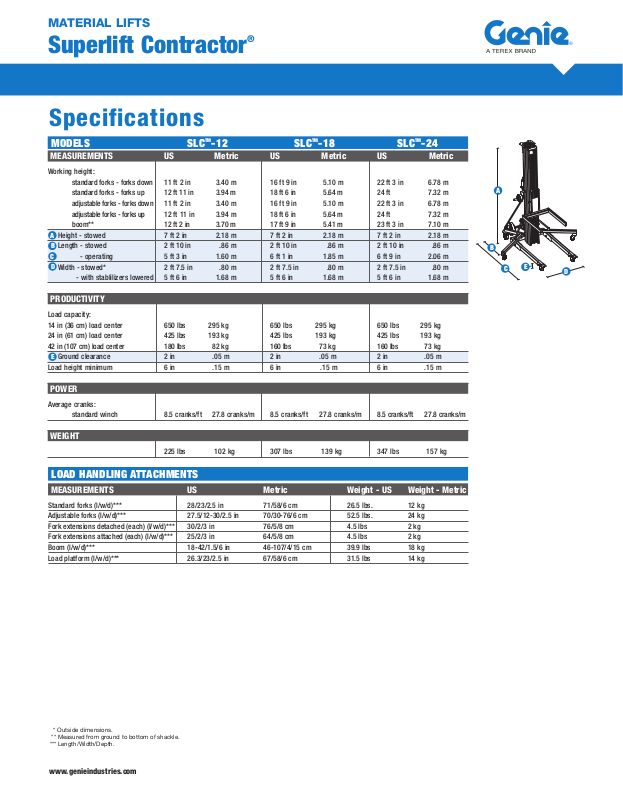

Page 1
MATERIAL LIFTS
®
Superlift Contractor
Specifications
MODELS SLCTM-12 SLCTM-18 SLCTM-24
MEASUREMENTS US Metric US Metric US Metric
Working height:
standard forks - forks down 11 ft 2 in 3.40 m 16 ft 9 in 5.10 m 22 ft 3 in 6.78 m
standard forks - forks up 12 ft 11 in 3.94 m 18 ft 6 in 5.64 m 24 ft 7.32 m
adjustable forks - forks down 11 ft 2 in 3.40 m 16 ft 9 in 5.10 m 22 ft 3 in 6.78 m
adjustable forks - forks up 12 ft 11 in 3.94 m 18 ft 6 in 5.64 m 24 ft 7.32 m
boom** 12 ft 2 in 3.70 m 17 ft 9 in 5.41 m 23 ft 3 in 7.10 m
A
Height - stowed 7 ft 2 in 2.18 m 7 ft 2 in 2.18 m 7 ft 2 in 2.18 m
Length - stowed 2 ft 10 in .86 m 2 ft 10 in .86 m 2 ft 10 in .86 m
B
C
- operating 5 ft 3 in 1.60 m 6 ft 1 in 1.85 m 6 ft 9 in 2.06 m
D
Width - stowed* 2 ft 7.5 in .80 m 2 ft 7.5 in .80 m 2 ft 7.5 in .80 m
- with stablilizers lowered 5 ft 6 in 1.68 m 5 ft 6 in 1.68 m 5 ft 6 in 1.68 m
PRODUCTIVITY
Load capacity:
14 in (36 cm) load center 650 lbs 295 kg 650 lbs 295 kg 650 lbs 295 kg
24 in (61 cm) load center 425 lbs 193 kg 425 lbs 193 kg 425 lbs 193 kg
42 in (107 cm) load center 180 lbs 82 kg 160 lbs 73 kg 160 lbs 73 kg
E
Ground clearance 2 in .05 m 2 in .05 m 2 in .05 m
Load height minimum 6 in .15 m 6 in .15 m 6 in .15 m
A
B
E
C
D
POWER
Average cranks:
standard winch 8.5 cranks/ft 27.8 cranks/m 8.5 cranks/ft 27.8 cranks/m 8.5 cranks/ft 27.8 cranks/m
WEIGHT
225 lbs 102 kg 307 lbs 139 kg 347 lbs 157 kg
LOAD HANDLING ATTACHMENTS
MEASUREMENTS US Metric Weight - US Weight - Metric
Standard forks (l/w/d)*** 28/23/2.5 in 71/58/6 cm 26.5 lbs. 12 kg
Adjustable forks (l/w/d)*** 27.5/12-30/2.5 in 70/30-76/6 cm 52.5 lbs. 24 kg
Fork extensions detached (each) (l/w/d)*** 30/2/3 in 76/5/8 cm 4.5 lbs 2 kg
Fork extensions attached (each) (l/w/d)*** 25/2/3 in 64/5/8 cm 4.5 lbs 2 kg
Boom (l/w/d)*** 18-42/1.5/6 in 46-107/4/15 cm 39.9 lbs 18 kg
Load platform (l/w/d)*** 26.3/23/2.5 in 67/58/6 cm 31.5 lbs 14 kg
* Outside dimensions.
** Measured from ground to bottom of shackle.
*** Length/Width/Depth.
www.genieindustries.com
Page 2
Features
MATERIAL LIFTS
®
Superlift Contractor
EASILY CONFIGURED TO MEET
YOUR NEEDS
PLATFORM OPTIONS
• Boom
• Standard forks
• Adjustable forks
• Fork extensions
• Pipe cradle
(available aftermarket only)
• Load platform
POWER OPTIONS
• One speed manual winch
• Two speed manual winch
(available aftermarket only)
BASE OPTIONS
• Standard base
• Stabilizer set
STANDARD FEATURES
MEASUREMENTS
SLC™-12
• 12 ft 11 in (3.94 m) maximum
lifting height
• Up to 650 lb (295 kg) lift capacity
SLC™-18
• 18 ft 6 in (5.64 m) maximum
lifting height
• Up to 650 lb (295 kg) lift capacity
SLC™-24
• 24 ft (7.32 m) maximum lifting height
• Up to 650 lb (295 kg) lift capacity
PRODUCTIVITY
• Standard forks
• Heavy-duty design
• Strong, lightweight aluminum
telescoping mast
• Single door access
• Quick set up requires no tools
• Interchangeable load handling
attachments
• Non-marking 4 in (10 cm) front
casters and 5 in (13 cm) rear casters
with side brakes
• Rear transport wheel assembly
• Glide rails allow easy loading and
unloading, on or off a vehicle, for
transport
• Hold-down bar secures mast assembly
during transport
• Captive stabilizer set (standard on
SLC™-18, -24)
OPTIONS & ACCESSORIES
PRODUCTIVITY
• Boom
• Adjustable forks
• Fork extensions
• Pipe cradle
(available aftermarket only)
• Load platform
• Stabilizer set (option on SLC™-12)
POWER
• Two speed manual winch
(available aftermarket only)
POWER
• One speed manual winch
Genie United States
18340 NE 76th Street
P.O. Box 97030
Redmond, Washington 98073-9730
Telephone +1 (425) 881-1800
Toll Free in USA/Canada +1 (800) 536-1800
Fax +1 (425) 883-3475
Effective Date: January, 2010. Product specifications and prices are subject to change without notice or obligation. The photographs and/or drawings in this document are for illustrative purposes only. Refer to the appropriate Operator’s
Manual for instructions on the proper use of this equipment. Failure to follow the appropriate Operator’s Manual when using our equipment or to otherwise act irresponsibly may result in serious injury or death. The only warranty applicable
to our equipment is the standard written warranty applicable to the particular product and sale and we make no other warranty, express or implied. Products and services listed may be trademarks, service marks or trade-names of Terex
Corporation, Genie Industries, Inc. and/or their subsidiaries in the U.S.A. and many other countries. All rights are reserved. Terex is a Registered Trademark of Terex Corporation in the U.S.A. and many other countries. Genie and Superlift
Contractor are Registered Trademarks of Genie Industries, Inc. in the U.S.A. and many other countries. Genie is a Terex Company. © 2010 Terex Corporation.
