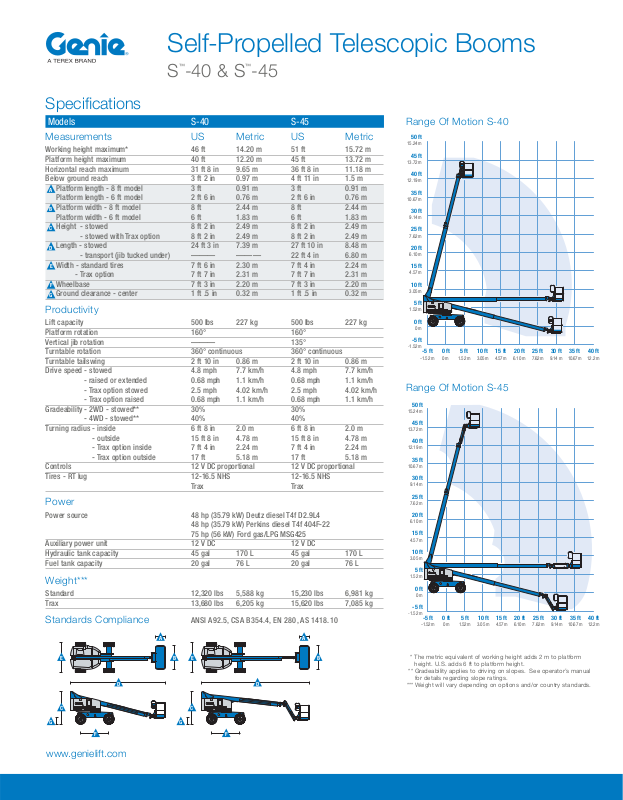

Genie S-40, S-40 Trax, S-45, S-45 Trax Product Specifications
Self-Propelled Telescopic Booms
S™-40 & S™-45
Specifi cations
Models S-40 S-45
Measurements US Metric US Metric
Working height maximum* 46 ft 14.20 m 51 ft 15.72 m
Platform height maximum 40 ft 12.20 m 45 ft 13.72 m
Horizontal reach maximum 31 ft 8 in 9.65 m 36 ft 8 in 11.18 m
Below ground reach 3 ft 2 in 0.97 m 4 ft 11 in 1.5 m
Platform length - 8 ft model 3 ft 0.91 m 3 ft 0.91 m
A
Platform length - 6 ft model 2 ft 6 in 0.76 m 2 ft 6 in 0.76 m
Platform width - 8 ft model 8 ft 2.44 m 8 ft 2.44 m
B
Platform width - 6 ft model 6 ft 1.83 m 6 ft 1.83 m
Height - stowed 8 ft 2 in 2.49 m 8 ft 2 in 2.49 m
C
- stowed with Trax option 8 ft 2 in 2.49 m 8 ft 2 in 2.49 m
Length - stowed 24 ft 3 in 7.39 m 27 ft 10 in 8.48 m
D
- transport (jib tucked under) ——— ——— 22 ft 4 in 6.80 m
Width - standard tires 7 ft 6 in 2.30 m 7 ft 4 in 2.24 m
E
- Trax option 7 ft 7 in 2.31 m 7 ft 7 in 2.31 m
Wheelbase 7 ft 3 in 2.20 m 7 ft 3 in 2.20 m
F
Ground clearance - center 1 ft .5 in 0.32 m 1 ft .5 in 0.32 m
G
Productivity
Lift capacity 500 lbs 227 kg 500 lbs 227 kg
Platform rotation 160° 160°
Vertical jib rotation ——— 135°
Turntable rotation 360° continuous 360° continuous
Turntable tailswing 2 ft 10 in 0.86 m 2 ft 10 in 0.86 m
Drive speed - stowed 4.8 mph 7.7 km/h 4.8 mph 7.7 km/h
- raised or extended 0.68 mph 1.1 km/h 0.68 mph 1.1 km/h
- Trax option stowed 2.5 mph 4.02 km/h 2.5 mph 4.02 km/h
- Trax option raised 0.68 mph 1.1 km/h 0.68 mph 1.1 km/h
Gradeability - 2WD - stowed** 30% 30%
- 4WD - stowed** 40% 40%
Turning radius - inside 6 ft 8 in 2.0 m 6 ft 8 in 2.0 m
- outside 15 ft 8 in 4.78 m 15 ft 8 in 4.78 m
- Trax option inside 7 ft 4 in 2.24 m 7 ft 4 in 2.24 m
- Trax option outside 17 ft 5.18 m 17 ft 5.18 m
Controls 12 V DC proportional 12 V DC proportional
Tires - RT lug 12-16.5 NHS 12-16.5 NHS
Trax Trax
Power
Power source 48 hp (35.79 kW) Deutz diesel T4f D2.9L4
48 hp (35.79 kW) Perkins diesel T4f 404F-22
75 hp (56 kW) Ford gas/LPG MSG425
Auxiliary power unit 12 V DC 12 V DC
Hydraulic tank capacity 45 gal 170 L 45 gal 170 L
Fuel tank capacity 20 gal 76 L 20 gal 76 L
Weight***
Standard 12,320 lbs 5,588 kg 15,230 lbs 6,981 kg
Trax 13,680 lbs 6,205 kg 15,620 lbs 7,085 kg
Standards Compliance ANSI A92.5, CSA B354.4, EN 280, AS 1418.10
A A
Range Of Motion S-40
50 ft
15.24 m
45 ft
13.72 m
40 ft
12.19 m
35 ft
10.67 m
30 ft
9.14 m
25 ft
7.62 m
20 ft
6.10 m
15 ft
4.57 m
10 ft
3.05 m
5 ft
1.52 m
0 ft
0 m
-5 ft
-1.52 m
-5 ft 0 ft 5 ft 10 ft 15 ft 20 ft 25 ft 30 ft 35 ft 40 ft
-1.52 m 0 m 1.52 m 3.05 m 4.57 m 6.10 m 7.62 m 9.14 m 10.67 m 12.2 m
Range Of Motion S-45
50 ft
15.24 m
45 ft
13.72 m
40 ft
12.19 m
35 ft
10.67 m
30 ft
9.14 m
25 ft
7.62 m
20 ft
6.10 m
15 ft
4.57 m
10 ft
3.05 m
5 ft
1.52 m
0 ft
0 m
-5 ft
-1.52 m
-5 ft 0 ft 5 ft 10 ft 15 ft 20 ft 25 ft 30 ft 35 ft 40 ft
-1.52 m 0 m 1.52 m 3.05 m 4.57 m 6.10 m 7.62 m 9.14 m 10.67 m 12.2 m
E E
D D
C C
G G
F F
www.genielift.com
B B
* The metric equivalent of working height adds 2 m to platform
height. U.S. adds 6 ft to platform height.
** Gradeability applies to driving on slopes. See operator’s manual
for details regarding slope ratings.
*** Weight will vary depending on options and/or country standards.
Self-Propelled Telescopic Booms
S™-40 & S™-45
Features
Measurements
S-40
• 46 ft (14.20 m) working height
• 31 ft 8 in (9.65 m) horizontal reach
• 500 lbs (227 kg) lift capacity
S-45
• 51 ft (15.72 m) working height
• 36 ft 8 in (11.18 m) horizontal reach
• 500 lbs (227 kg) lift capacity
Productivity
• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Fuel select switch on platform
and ground control panels
(Gas/LPG models)
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Locking turntable covers
• Positive traction drive
• Two speed wheel motors
Power
• 12 V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown
• Intake air heater (Deutz engine)
Easily Confi gured To Meet Your Needs Standard Features
Platform Options
• Steel 8 ft (2.44 m) (standard)
• Steel 6 ft (1.83 m)
• Steel 8 ft (2.44 m) tri-entry
Jib Options
• Non-jib (S-40 only)
• 5 ft (1.52 m) jib boom (S-45 only)
Engine Options
• 48 hp (35.79 kW) Deutz diesel T4f**
(standard)
• 48 hp (35.79 kW) Perkins diesel T4f**
• 75 hp (56 kW) Ford Gas/LPG
Drive Options
• 2WD
• 4WD (standard)
Axle Options
• Active oscillation (4WD)
• Non-oscillating (2WD)
Tire Options
• Rough terrain air-filled (standard)
• Rough terrain foam-filled*
• Rough terrain non-marking
(air or foam-filled)
• High flotation air-filled
• Sealant treated air-filled
• Trax (track system)
Options & Accessories
Productivity Options
• Platform swing gate
• Half-mesh platform inserts with
swing gate
• Platform top auxiliary rail
• Welder Ready package
• Weld leads to platform
• Air line to platform
• Hydraulic oil cooler
• Biodegradable hydraulic oil
• Hostile environment kit
• Deluxe hostile environment kit
• Aircraft protection package
(6 ft platform only)
• Thumb rocker steer
• Tool tray
• Alarm package
• Panel cradle package (tri-entry
platform only)
• Lockable platform control box covers
• Tow package
• Work light package
• Operator Protective Structure
Power Options
• Engine gauge package*
• AC generator packages (110V/60Hz 220V/50Hz, 2200W)
• Cold Weather Packages
• Diesel scrubber/spark arrestor muffler
(catalytic muffler, Tier 4i only)
• LPG tank 33.5 lbs (15.19 kg) capacity
• Intake air pre-cleaner (Tier 4i only)
* Available only with Ford engine
** Also available as Tier 4 in limited regions
Genie United States
18340 NE 76th Street
P.O. Box 97030
Redmond, Washington 98073-9730
Telephone +1 (425) 881-1800
Toll Free in USA/Canada +1 (800)-536-1800
Fax +1 (425) 883-3475
Effective Date: January, 2014. Product speci cations and prices are subject to change without notice or obligation. The photographs and/or drawings in this document are for illustrative purposes only. Refer to the appropriate Operator’s Manual for
instructions on the proper use of this equipment. Failure to follow the appropriate Operator’s Manual when using our equipment or to otherwise act irresponsibly may result in serious injury or death. The only warranty applicable to our equipment
is the standard written warranty applicable to the particular product and sale and we make no other warranty, express or implied. Products and services listed may be trademarks, service marks or trade names of Terex Corporation and/or their
subsidiaries in the USA and many other countries. Genie is a registered trademark of Terex South Dakota, Inc. © 2014 Terex Corporation.
S40 0210M. Part No. 109367
