Page 1
Part No. 115416GT
Rev: D.07
September 2024
from SN 3395-100 to
SN 3301-4263
from SN LL02-4264 to
LL16-10092
from SN LL16G-10093 to
LL16G-12199
Load Lifter
Serial Number Range
Parts Manual
Page 2
Part No. 115416GT
Load Lifter
September 2024
2
Page 3
Part No. 115416GT
Load Lifter
September 2024
3
Page 4
Part No. 115416GT
Load Lifter
September 2024
4
Page 5
Load Lifter
Part No. 115416GT
September 2024
5
Page 6
Part No. 115416GT
Load Lifter
September 2024
6
Page 7
Description
Page
100 Parts Figures
...............................................................................
101.1 Decals with Words
.............................................................................
101.2 Decals with Words
.............................................................................
102.1 Decals with Symbols
...........................................................................
201.1 Folding Legs and Rear Wheels
..................................................................201.2 Folding Legs and Rear Wheels
..................................................................201.3 Folding Legs and Rear Wheels
..................................................................301.1 Outer Frame and Attached Parts
................................................................301.2 Outer Frame and Attached Parts
................................................................301.3 Industrial Winch Assembly
.....................................................................
.
302.1 Load Platform and Inner Frame Assembly
.......................................................
.
302.2 Load Platform and Inner Frame Assembly
........................................................401.1 Rear Wheel Brake Option
.......................................................................
401.2 Rear Wheel Brake Option
.......................................................................
401.3 Rear Wheel Brake Option
.......................................................................
Part Number Index
...............................................................................
September 2024
Table of Contents
Part No. 115416GT
Load Lifter
8
8
10121418222632
384246
505254
56
7
Page 8
Part No. 115416GT
September 2024
101.1 Decals with Words
100 Parts Figures
Load Lifter
8
Page 9
Item
Part No.
Description
Qty.
2
33468GT
DECAL,WARNING,NO RIDERS
........................................................1335546GT
DECAL,WARNING,MACHINE SAFETY
.................................................14
35547GT
DECAL,NOTICE,MACHINE SETUP
....................................................1535548GT
SERIAL NUM PLATE,LOAD LIFTER
(to SN LL03-5144)
...................................................16
35552GT
DECAL, WARNING, TIP-OVER,
........................................................2735555GT
DECAL, NOTICE, MAX CAP 200LBS
...................................................18
35567GT
DECAL, WARNING, INJURY HAZARD
.................................................19
44754GT
DECAL, LABEL, RAISE/LOWER
.......................................................110
52981GT
DECAL,COSMTC,GENIE LOAD LIFTER
...............................................
1
11
97529GT
DECAL,CAUTION,MOVING PARTS
....................................................1
Part No. 115416GT
September 2024
101.1 Decals with Words
100 Parts Figures
Load Lifter
9
Page 10
Part No. 115416GT
September 2024
101.2 Decals with Words
100 Parts Figures
Load Lifter
10
Page 11
Item
Part No.
Description
Qty.
1
31072GT
DECAL,LABEL,OPER.MAN.STORAGE
.................................................12
33468GT
DECAL,WARNING,NO RIDERS
........................................................1335546GT
DECAL,WARNING,MACHINE SAFETY
.................................................24
35547GT
DECAL,NOTICE,MACHINE SETUP
....................................................1535548GT
SERIAL NUM PLATE,LOAD LIFTER
(to SN LL03-5144)
...................................................15A
80939GT
SERIAL # LABEL,MAT LIFT & SS**
(from SN LL03-5145)
....................................................1635552GT
DECAL, WARNING, TIP-OVER,
........................................................2735555GT
DECAL, NOTICE, MAX CAP 200LBS
...................................................18
35567GT
DECAL, WARNING, INJURY HAZARD
.................................................
1
9
44754GT
DECAL, LABEL, RAISE/LOWER
.......................................................
1
10
52981GT
DECAL,COSMTC,GENIE LOAD LIFTER
...............................................111
97529GT
DECAL,CAUTION,MOVING PARTS
....................................................1
Part No. 115416GT
September 2024
101.2 Decals with Words
100 Parts Figures
Load Lifter
11
Page 12
Part No. 115416GT
September 2024
102.1 Decals with Symbols
100 Parts Figures
Load Lifter
12
Page 13
Item
Part No.
Description
Qty.
1
52981GT
DECAL,COSMTC,GENIE LOAD LIFTER
...............................................12
80939GT
SERIAL # LABEL,MAT LIFT & SS**
....................................................1382487GT
DECAL,SYMBOL-READ THE MANUAL
................................................1482961GT
DECAL, LABEL, RAISE/LOWER SYMB
................................................1582962GT
DECAL,WARNING,NO RIDERS SYMBOL
..............................................1697514GT
DECAL,WARNING, MAX CAP 91KG
(200 lb)
...................................................17
97532GT
DECAL,CAUTION,MOVING PARTS SYM
...............................................18
97536GT
DECAL,WARNING,NO REACHING SYMB
..............................................1
Part No. 115416GT
September 2024
102.1 Decals with Symbols
100 Parts Figures
Load Lifter
13
Page 14
Part No. 115416GT
September 2024
201.1 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
14
Page 15
Item
Part No.
Description
Qty.
85281GT
FOLDING LEG ASSY (LL)
(includes items 10, 12, 15-22, 24, 26 and 28)
............................................1
6564GT
WASHER, SHIM,.765 X 1.312 X .093
...................................................232453GT
WHEEL,PERFORMA,8 X 2
(to SN 3300-3245)
............................................................22A57787-SGT
KIT,WHEEL,TPE,8 X 2,3/4,1/2
(from SN 3300-3246) (shown)
.........................................................
2B-
35909GT
WHEEL,8" PNEUMATIC
...............................................................385312GT
KIT,PIN
...............................................................................24
57198GT
TUBE, AXLE, L.L. **
to SN 8821
...................................................................25
35194GT
OUTER FRAME CHANNEL R.H.-GLL
..................................................1611890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6
7
35195GT
OUTER FRAME CHANNEL L.H.-GLL
..................................................1
8
10587GT
SCREW,HHC,1/2-13 X.75
(GR 5)
.............................................................935569GT
STAIR GLIDE ASSEMBLY,LS,GLL
(includes item 29 and 3 item 30)
.....................................................
1
10
7339GT
SCREW,HHC,1/4-20 X .5
(GR 5)
.............................................................
.
11
6356GT
WASHER, LOCK, .25
..................................................................12
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................
13
6091GT
NUT, NYLOCK, 1/4-20
.................................................................
14
6090GT
SCREW, HHC, 1/4-20 X .75
............................................................15
35558GT
PLATE,BASE WITH DECAL,LS,LL
.....................................................
1
16
35649GT
SCREW,LEG PIVOT L L
...............................................................
2
17
6052GT
WASHER,SHIM,.5 X .875 X .063
.......................................................184828GT
NUT, NYLOCK, 3/8-16
.................................................................
19
35994GT
SPRING,LEG,LOAD LIFTER
...........................................................
2
20
6889GT
NUT,LP NYLOCK,1/4-20
...............................................................2122283GT
SCREW,SHC,1/4-20 X .75
.............................................................
2
22
35646GT
LEG,MACHINED L.H.
.................................................................
1
23
37258GT
EXTRUSION PLASTIC, 1.5LG
(Quantity listed may not reflect spectific model configuration requirements.)
...............224
35648GT
LEG STIFFENER L.L.
.................................................................
1
25
35571GT
CASTER WITH MOUNTING BRACKET
(front caster option) (Quantity listed may not reflect spectific model configuration
requirements.)
..........2
Part No. 115416GT
September 2024
201.1 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
15
Page 16
Part No. 115416GT
September 2024
201.1 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
16
Page 17
Item
Part No.
Description
Qty.
25-
35553GT
CASTER,PLT. 2.0 X .75
...............................................................
25-
35550P-SGT
BRACKET,CASTER MNT."GRAY"
.....................................................2635645GT
LEG,MACHINED R.H
..................................................................12735190GT
ANGLE,REINFORCEMENT,BASE L/L
..................................................12835559GT
PLATE,BASE WITH DECAL,RS,GLL
...................................................129
35916GT
GLIDE STRIP,L.L
.....................................................................230
11974GT
RIVET,MAGNALOK,.192 #7
...........................................................631
35570GT
STAIR GLIDE ASSEMBLY,RS,GLL
(includes item 29 and 3 item 30)
.....................................................132
23903GT
SCREW,FHS,1/4-20 X .5 BLACK
.......................................................
Part No. 115416GT
September 2024
201.1 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
17
Page 18
Part No. 115416GT
September 2024
201.2 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
18
Page 19
Item
Part No.
Description
Qty.
85281GT
FOLDING LEG ASSY (LL)
(includes items 10, 12, 15-22, 24, 26 and 28)
............................................1
6564GT
WASHER, SHIM,.765 X 1.312 X .093
...................................................2A57787-SGT
KIT,WHEEL,TPE,8 X 2,3/4,1/2
(from SN 3300-3246) (shown)
.........................................................
2B-
35909GT
WHEEL,8" PNEUMATIC
...............................................................385312GT
KIT,PIN
...............................................................................24
57198GT
TUBE, AXLE, L.L. **
to SN 8821
...................................................................14A
230353GT
AXLE, L.L., 6 HOLE
from SN 8822 to 8831
.................................................................4B57198GT
TUBE, AXLE, L.L. **
from SN 8832
...................................................................535194GT
OUTER FRAME CHANNEL R.H.-GLL
..................................................1
6
11890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6
7
35195GT
OUTER FRAME CHANNEL L.H.-GLL
..................................................1810587GT
SCREW,HHC,1/2-13 X.75
(GR 5)
.............................................................
9A
35569GT
STAIR GLIDE ASSEMBLY,LS,GLL
(to SN LL08-7751) (includes items 29 and 30)
..........................................1
9B
124469GT
STAIR GLIDE ASSEMBLY,LH,LL
(from SN 7752) (includes items 29 and 30)
..............................................10
7339GT
SCREW,HHC,1/4-20 X .5
(GR 5)
.............................................................
.
11
6356GT
WASHER, LOCK, .25
.................................................................
.
12
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................136091GT
NUT, NYLOCK, 1/4-20
.................................................................
14
6090GT
SCREW, HHC, 1/4-20 X .75
...........................................................
.
15
35558GT
PLATE,BASE WITH DECAL,LS,LL
.....................................................116
35649GT
SCREW,LEG PIVOT L L
...............................................................
2
17
6052GT
WASHER,SHIM,.5 X .875 X .063
.......................................................
18
4828GT
NUT, NYLOCK, 3/8-16
.................................................................1935994GT
SPRING,LEG,LOAD LIFTER
...........................................................
2
20
6889GT
NUT,LP NYLOCK,1/4-20
...............................................................
21
22283GT
SCREW,SHC,1/4-20 X .75
.............................................................222
35646GT
LEG,MACHINED L.H.
.................................................................
1
23
37258GT
EXTRUSION PLASTIC, 1.5LG
(Quantity listed may not reflect spectific model configuration requirements.)
...............
2
Part No. 115416GT
September 2024
201.2 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
19
Page 20
Part No. 115416GT
September 2024
201.2 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
20
Page 21
Item
Part No.
Description
Qty.
24
35648GT
LEG STIFFENER L.L.
.................................................................
1
25
35571GT
CASTER WITH MOUNTING BRACKET
(from caster option) (Quantity listed may not reflect spectific model configuration
requirements.)
..........2
25-
35553GT
CASTER,PLT. 2.0 X .75
...............................................................
25-
35550P-SGT
BRACKET,CASTER MNT."GRAY"
.....................................................2635645GT
LEG,MACHINED R.H
..................................................................1
27
35190GT
ANGLE,REINFORCEMENT,BASE L/L
..................................................1
28
35559GT
PLATE,BASE WITH DECAL,RS,GLL
...................................................129
35916GT
GLIDE STRIP,L.L
.....................................................................
2
30
11974GT
RIVET,MAGNALOK,.192 #7
...........................................................
6
31A
35570GT
STAIR GLIDE ASSEMBLY,RS,GLL
(to SN LL08-7751) (includes items 29 and 30)
...........................................131B
124471GT
STAIR GLIDE ASSEMBLY,RH,LL
(from SN 7752) (includes items 29 and 30)
.............................................
.
32
23903GT
SCREW,FHS,1/4-20 X .5 BLACK
.......................................................
Part No. 115416GT
September 2024
201.2 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
21
Page 22
Part No. 115416GT
September 2024
201.3 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
22
Page 23
Item
Part No.
Description
Qty.
85281GT
FOLDING LEG ASSY (LL)
(includes items 10, 12, 15-22, 24, 26 and 28)
............................................1
6564GT
WASHER, SHIM,.765 X 1.312 X .093
...................................................232453GT
WHEEL,PERFORMA,8 X 2
(to SN 3300-3245)
............................................................2
2B-
35909GT
WHEEL,8" PNEUMATIC
...............................................................385312GT
KIT,PIN
...............................................................................24
57198GT
TUBE, AXLE, L.L. **
to SN 8821
...................................................................15
35194GT
OUTER FRAME CHANNEL R.H.-GLL
..................................................1611890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6735195GT
OUTER FRAME CHANNEL L.H.-GLL
..................................................1
8
10587GT
SCREW,HHC,1/2-13 X.75
(GR 5)
.............................................................
9
35569GT
STAIR GLIDE ASSEMBLY,LS,GLL
(includes item 29 and 3 item 30)
.....................................................110
7339GT
SCREW,HHC,1/4-20 X .5
(GR 5)
.............................................................
.
11
6356GT
WASHER, LOCK, .25
.................................................................
.
12
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................136091GT
NUT, NYLOCK, 1/4-20
.................................................................
14
6090GT
SCREW, HHC, 1/4-20 X .75
...........................................................
.
15
35558GT
PLATE,BASE WITH DECAL,LS,LL
.....................................................116
35649GT
SCREW,LEG PIVOT L L
...............................................................
2
17
6052GT
WASHER,SHIM,.5 X .875 X .063
.......................................................
18
4828GT
NUT, NYLOCK, 3/8-16
.................................................................1935994GT
SPRING,LEG,LOAD LIFTER
...........................................................
2
20
6889GT
NUT,LP NYLOCK,1/4-20
...............................................................
21
22283GT
SCREW,SHC,1/4-20 X .75
.............................................................222
35646GT
LEG,MACHINED L.H.
.................................................................
1
23
37258GT
EXTRUSION PLASTIC, 1.5LG
(Quantity listed may not reflect spectific model configuration requirements.)
...............
2
24
35648GT
LEG STIFFENER L.L.
.................................................................
1
25
35571GT
CASTER WITH MOUNTING BRACKET
(fron caster option) Quantity listed may not reflect spectific model configuration
requirements.
...........
2
25-
35553GT
CASTER,PLT. 2.0 X .75
...............................................................
Part No. 115416GT
September 2024
201.3 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
23
Page 24
Part No. 115416GT
September 2024
201.3 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
24
Page 25
Item
Part No.
Description
Qty.
25-
35550P-SGT
BRACKET,CASTER MNT."GRAY"
.....................................................2635645GT
LEG,MACHINED R.H
..................................................................12735190GT
ANGLE,REINFORCEMENT,BASE L/L
..................................................12835559GT
PLATE,BASE WITH DECAL,RS,GLL
...................................................129
35916GT
GLIDE STRIP,L.L
.....................................................................230
11974GT
RIVET,MAGNALOK,.192 #7
...........................................................631
35570GT
STAIR GLIDE ASSEMBLY,RS,GLL
(includes item 29 and 3 item 30)
.....................................................132
23903GT
SCREW,FHS,1/4-20 X .5 BLACK
.......................................................
Part No. 115416GT
September 2024
201.3 Folding Legs and Rear Wheels
100 Parts Figures
Load Lifter
25
Page 26
Part No. 115416GT
September 2024
301.1 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
26
Page 27
Item
Part No.
Description
Qty.
1
7339GT
SCREW,HHC,1/4-20 X .5
..............................................................2
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................335556GT
BRACKET,WINCH WITH DECALS. GLL
(to SN LL04-6053) (models with word decal)
............................................146356GT
WASHER, LOCK, .25
..................................................................5
22547GT
PIN,ROLL,.188 X 1.25**
...............................................................16
6091GT
NUT, NYLOCK, 1/4-20
.................................................................7124914GT
KIT,LATCH SHIM,LL
(to SN LL08-8060)
..................................................................8
6638GT
WASHER, FLAT, USS, 1/4"Y
..........................................................9
14182GT
SCREW,FHS,1/4-20 X 1
(from SN LL08-8061)
...............................................................
10
35537GT
HANDLE ASSEMBLY, GLL
(includes item 5)
............................................................1
10-
35983GT
HANDLE GRIP,LL
.....................................................................115224GT
SCREW,HHC,3/8-16 X 2
...............................................................
12
4828GT
NUT, NYLOCK, 3/8-16
.................................................................
13
35914GT
SHEAVE,2.75 LOAD LIFTER**
.........................................................114
11890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6
15
35195GT
OUTER FRAME CHANNEL L.H.-GLL
..................................................1
16
35194GT
OUTER FRAME CHANNEL R.H.-GLL
..................................................117115374GT
INSTRUCTION TUBE ASSY,WORD
(includes decal)
....................................................1
17-
6600GT
INSTRUCT.TUBE W/CAPS-1.75 X 12
..................................................1
17-
31822GT
CAP,INSTRUCTION TUBE (RED)
......................................................17-
6653GT
CLAMP, 1.88, #30 X 1/4, RUB CUSH
...................................................
2
17-
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................
2
17-
7339GT
SCREW,HHC,1/4-20 X .5
..............................................................2
17-
6356GT
WASHER, LOCK, .25
..................................................................2
17A
115375GT
INSTRUCTION TUBE ASSY,SYMBOL
(includes decal)
.................................................
1
17A-
6600GT
INSTRUCT.TUBE W/CAPS-1.75 X 12
..................................................1
17A-
31822GT
CAP,INSTRUCTION TUBE (RED)
.....................................................
.
17A-
6653GT
CLAMP, 1.88, #30 X 1/4, RUB CUSH
...................................................
2
Part No. 115416GT
September 2024
301.1 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
27
Page 28
Part No. 115416GT
September 2024
301.1 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
28
Page 29
Item
Part No.
Description
Qty.
17A-
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................217A-
7339GT
SCREW,HHC,1/4-20 X .5
..............................................................2
17A-
6356GT
WASHER, LOCK, .25
..................................................................21844891GT
RETAIN RING,EXT.,.7X.078 PLTD
.....................................................219
35623GT
SHAFT,DIRECT WINCH
...............................................................120
29849GT
BUMPER,RUBBER,1"TALL X 3/8DIA
(to SN LL08-8060)
...................................................121
35557GT
RATCHET KIT, GLL
...................................................................121-
4828GT
NUT, NYLOCK, 3/8-16
.................................................................
21-
5397GT
WASHER, FLAT, USS, 5/16-18
.......................................................
.
21-
35634GT
RATCHET PAWL,LOAD LIFTER
.......................................................
21-
35918GT
SPACER,RATCHET LOAD LIFTER.
....................................................21-
35989GT
SPRING,RATCHET L.L.
...............................................................
21-
8516GT
SCREW, HCC, 3/8-16 X 1.50
.........................................................
.
21-
29849GT
BUMPER,RUBBER,1"TALL X 3/8DIA
...................................................2235920GT
BUSHING,BRONZE,.75 X 1.0 X .62
....................................................2
23
6563GT
WASHER,SHIM,.75 X 1.125 X.030
.....................................................
24
35650GT
WINCH DRUM,LOAD LIFTER
..........................................................12535629GT
BRAKE DISK,DIRECT WINCH
.........................................................
1
26
35625GT
GEAR,RATCHET LOAD LIFTER
.......................................................
1
27
35630GT
BRAKE DISK,ULTREX UHMW
.........................................................128
35626GT
PLATE,END CAP
.....................................................................
1
29
35922GT
SPACER,WINCH HANDLE
............................................................1
30
40703-341GT
TUBE,HYD,SS .375 X .049 WL
.........................................................131
11413GT
SCREW,HHC,1/4-20 X 4
...............................................................
32
16342GT
WINCH HANDLE-O.A.LENGTH-11"
....................................................1
33
8886GT
NUT,WING,1/2-13
.....................................................................348887GT
WASHER,STAR,EXTERNAL,.5
.......................................................
.
35
6034GT
NUT,HEX,JAM,1/2-13
.................................................................
Part No. 115416GT
September 2024
301.1 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
29
Page 30
Part No. 115416GT
September 2024
301.1 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
30
Page 31
Item
Part No.
Description
Qty.
36
35543GT
CABLE ASSEMBLY, GLL-95'**
.........................................................
1
Part No. 115416GT
September 2024
301.1 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
31
Page 32
Part No. 115416GT
September 2024

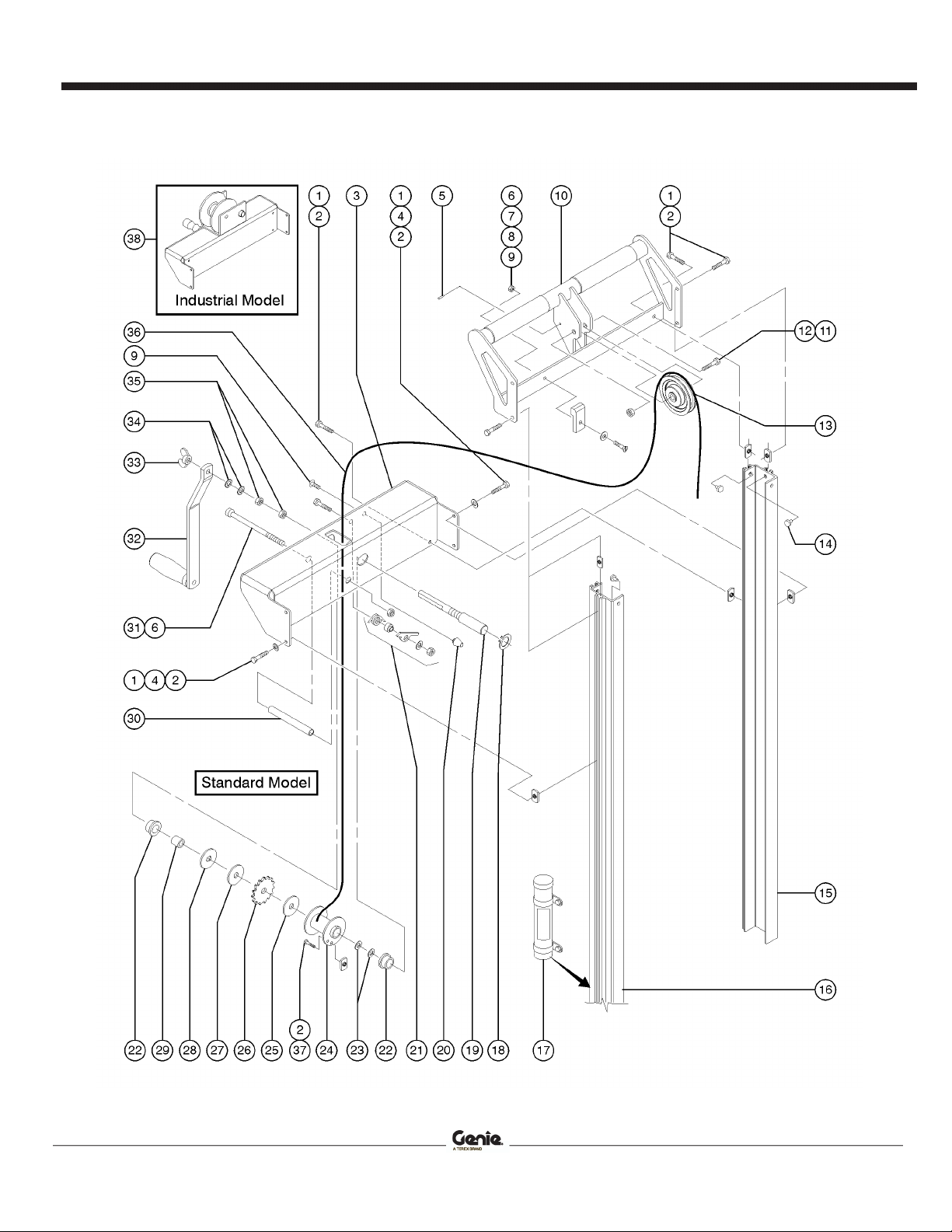

301.2 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
32
Page 33
Item
Part No.
Description
Qty.
1
7339GT
SCREW,HHC,1/4-20 X .5
..............................................................2
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................335556GT
BRACKET,WINCH WITH DECALS. GLL
(to SN LL04-6053) (standard models with word decal)
...................................13A
107224GT
BRACKET,WINCH W/WORD DECALS.LL
(from SN LL04-6054) (standard models with word decal)
.................................3B107225GT
BRACKET,WINCH W/SYMBOL DECALS
(from SN LL04-6054) (standard models with symbol decal)
...............................3C145140GT
FORMING, WINCH MOUNT
Industrial models
...........................................................46356GT
WASHER, LOCK, .25
..................................................................5
22547GT
PIN,ROLL,.188 X 1.25**
...............................................................16
6091GT
NUT, NYLOCK, 1/4-20
.................................................................
7
124914GT
KIT,LATCH SHIM,LL
(to SN LL08-8060)
.................................................................
.
7A
124913GT
SHIM,LATCH RELEASE
(from SN LL08-8061)
...............................................................86638GT
WASHER, FLAT, USS, 1/4"Y
.........................................................
.
9
14182GT
SCREW,FHS,1/4-20 X 1
(from SN LL08-8061)
...............................................................
10
35537GT
HANDLE ASSEMBLY, GLL
(includes item 5)
............................................................1
10-
35983GT
HANDLE GRIP,LL
.....................................................................
11
5224GT
SCREW,HHC,3/8-16 X 2
...............................................................
12
4828GT
NUT, NYLOCK, 3/8-16
.................................................................1335914GT
SHEAVE,2.75 LOAD LIFTER**
.........................................................
1
14
11890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6
15
35195GT
OUTER FRAME CHANNEL L.H.-GLL
..................................................11635194GT
OUTER FRAME CHANNEL R.H.-GLL
..................................................1
17
115374GT
INSTRUCTION TUBE ASSY,WORD
(includes decal)
....................................................1
17-
6600GT
INSTRUCT.TUBE W/CAPS-1.75 X 12
..................................................1
17-
31822GT
CAP,INSTRUCTION TUBE (RED)
.....................................................
.
17-
6653GT
CLAMP, 1.88, #30 X 1/4, RUB CUSH
...................................................
2
17-
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................217-
7339GT
SCREW,HHC,1/4-20 X .5
..............................................................2
17-
6356GT
WASHER, LOCK, .25
..................................................................2
Part No. 115416GT
September 2024
301.2 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
33
Page 34
Part No. 115416GT
September 2024
301.2 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
34
Page 35
Item
Part No.
Description
Qty.
17A
115375GT
INSTRUCTION TUBE ASSY,SYMBOL
(includes decal)
.................................................117A-
6600GT
INSTRUCT.TUBE W/CAPS-1.75 X 12
..................................................1
17A-
31822GT
CAP,INSTRUCTION TUBE (RED)
......................................................17A-
6653GT
CLAMP, 1.88, #30 X 1/4, RUB CUSH
...................................................217A-
35991GT
NUT,WELD 1/4-20, PLATED L.L.**
.....................................................217A-
7339GT
SCREW,HHC,1/4-20 X .5
..............................................................2
17A-
6356GT
WASHER, LOCK, .25
..................................................................21844891GT
RETAIN RING,EXT.,.7X.078 PLTD
.....................................................219
35623GT
SHAFT,DIRECT WINCH
...............................................................
1
20
29849GT
BUMPER,RUBBER,1"TALL X 3/8DIA
(to SN LL08-8060)
...................................................
1
20A
124906GT
NUT,WELL 1/4-20
(from SN LL08-8061)
..................................................................12135557GT
RATCHET KIT, GLL
...................................................................
1
21-
4828GT
NUT, NYLOCK, 3/8-16
.................................................................
21-
5397GT
WASHER, FLAT, USS, 5/16-18
........................................................21-
35634GT
RATCHET PAWL,LOAD LIFTER
.......................................................
21-
35918GT
SPACER,RATCHET LOAD LIFTER.
...................................................
.
21-
35989GT
SPRING,RATCHET L.L.
...............................................................
21-
8516GT
SCREW, HCC, 3/8-16 X 1.50
.........................................................
.
21-
29849GT
BUMPER,RUBBER,1"TALL X 3/8DIA
...................................................
22
35920GT
BUSHING,BRONZE,.75 X 1.0 X .62
....................................................2236563GT
WASHER,SHIM,.75 X 1.125 X.030
.....................................................
24
35650GT
WINCH DRUM,LOAD LIFTER
..........................................................1
25
35629GT
BRAKE DISK,DIRECT WINCH
.........................................................126
35625GT
GEAR,RATCHET LOAD LIFTER
.......................................................
1
27
35630GT
BRAKE DISK,ULTREX UHMW
.........................................................
1
28
35626GT
PLATE,END CAP
.....................................................................129
35922GT
SPACER,WINCH HANDLE
............................................................1
30
40703-341GT
TUBE,HYD,SS .375 X .049 WL
.........................................................
1
Part No. 115416GT
September 2024
301.2 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
35
Page 36
Part No. 115416GT
September 2024
301.2 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
36
Page 37
Item
Part No.
Description
Qty.
31
11413GT
SCREW,HHC,1/4-20 X 4
...............................................................3216342GT
WINCH HANDLE-O.A.LENGTH-11"
....................................................1338886GT
NUT,WING,1/2-13
.....................................................................348887GT
WASHER,STAR,EXTERNAL,.5
........................................................35
6034GT
NUT,HEX,JAM,1/2-13
.................................................................3635543GT
CABLE ASSEMBLY, GLL-95'**
Standard model
.........................................................136A
40167GT
CABLE ASSEMBLY, LL IND
Industrial model
...........................................................3712011GT
SCREW,BHHS,1/4-20 X .5,Y/ZINC
.....................................................138
WINCH, INDUSTRIAL MODELS
refer to 301.2
.......................................................
Part No. 115416GT
September 2024
301.2 Outer Frame and Attached Parts
100 Parts Figures
Load Lifter
37
Page 38
Part No. 115416GT
September 2024
301.3 Industrial Winch Assembly
100 Parts Figures
Load Lifter
38
Page 39
Item
Part No.
Description
Qty.
-
37149GT
WINCH ASSY (DLB800)***
complete; includes the handle and fasteners
............................................-
37023GT
WINCH,GENIE LIFT (DLB800)
does not include the handle
.........................................................137068GT
RATCHET KIT,DLB800
(includes mounting fasteners)
..........................................................1285183GT
CABLE DRUM-DLB800A**
.............................................................36878GT
BOLT,CARRIAGE,1/4-20 X .75,G2
.....................................................14
6357GT
NUT,HEX,1/4-20
......................................................................5
37066GT
COVER,GEAR,DLB800
................................................................1637065GT
CABLE KEEPER, DLB800
.............................................................17
37067GT
SPACER,DRUM BOLT,DLB800
........................................................1
8
12981GT
SCREW,HHC,3/8-16 X 4.5
.............................................................
9
12012GT
NUT,LOCK,3/8-16
.....................................................................1085185GT
WINCH FRAME-DLB800A**
...........................................................
11
37151GT
WINCH HANDLE ASSY.
(includes items 12-13)
...............................................................
1
11-
1257748GT
ASSEMBLY,WINCH HANDLE, GL/LL
(replaced 37255)
..................................................112124781GT
WASHER,FLAT,0.625X.875X.031
.....................................................
.
13
6825GT
PIN,OUTRIGGER LOCK
...............................................................
1
14
85060GT
NUT,HANDLE ADAPTER
..............................................................15
37060GT
SPRING, WINCH HANDLE
............................................................1
16
37069GT
HANDLE ADAPTER WELDMENT
......................................................1
17
85182GT
SINTERED IRON BEARING,1-1/4**
....................................................18
37063GT
PINION PLATE, DLB800
...............................................................
1
19
37062GT
RATCHET GEAR, DLB800
.............................................................
1
20
37061GT
BRAKE FACE,DLB800
................................................................12185184GT
PINION SHAFT-DLB800A*
.............................................................
22
37058GT
RETAINER RING,0.625
................................................................1
23
37057GT
BUSHING,PINION SHAFT,SM,DLB800
.................................................124
WINCH MOUNT
refer to 301.1
.......................................................................
1
25
6175GT
SCREW,HHC,3/8-16 X 1
...............................................................
3
Part No. 115416GT
September 2024
301.3 Industrial Winch Assembly
100 Parts Figures
Load Lifter
39
Page 40
Part No. 115416GT
September 2024
301.3 Industrial Winch Assembly
100 Parts Figures
Load Lifter
40
Page 41
Item
Part No.
Description
Qty.
26
6097GT
WASHER, FLAT, USS, 3/8", Y
.........................................................327
4828GT
NUT, NYLOCK, 3/8-16
.................................................................
3
Part No. 115416GT
September 2024
301.3 Industrial Winch Assembly
100 Parts Figures
Load Lifter
41
Page 42
Part No. 115416GT
September 2024
302.1 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
42
Page 43
Item
Part No.
Description
Qty.
124501GT
LOADLIFTER LATCH KIT
(to SN LL08-7751)
..............................................................90337GT
BOE LUBE
aluminum dry lubricant
.................................................................11
35582GT
INNER FRAME W/ DECAL, GLL
.......................................................12
6090GT
SCREW, HHC, 1/4-20 X .75
............................................................3
6638GT
WASHER, FLAT, USS, 1/4"Y
..........................................................4
6091GT
NUT, NYLOCK, 1/4-20
.................................................................56584GT
SCREW,SHS,10-24 X .625
............................................................6
5365GT
NUT,NYLOCK,10-24
..................................................................7
38862GT
GUARD,PULLEY,GLL
.................................................................
1
8
11224GT
PULLEY LOAD LIFTER, W/BUSHING
.................................................
3
9
6054GT
NUT,HEX,3/8-24
......................................................................10
6021GT
WASHER, LOCK, .375
.................................................................
11
6097GT
WASHER, FLAT, USS, 3/8", Y
.........................................................
12
12013GT
SHIM,.375 X .063
(quantities vary)
.....................................................................
12A
7267GT
WASHER,SHIM,.375 X.625X.016 AL
(quantities vary)
...................................................
13
11906GT
ROLLER-NYLATRON, 1.625" O.D.
.....................................................
4
14
21280GT
BOLT-ROLLER,3/8-24 X 1.69-ZINC
....................................................41521279GT
BUTTON, .800 O.D. X .281
............................................................4
16
35203GT
BRACKET-CARRIAGE
(to SN LL08-7751)
................................................................1
16A
124176GT
WELDMENT,CARRIAGE
(from SN LL08-7752 (shown)
...........................................................117
7713GT
NUT, LP NYLOCK, 3/8-16
.............................................................
18
5397GT
WASHER, FLAT, USS, 5/16-18
.......................................................
.
19
11335GT
SCREW,SHS,3/8-16 X .5
..............................................................20
11978GT
WASHER,FLAT,NYLON.515X.88X.093
.................................................
21
6052GT
WASHER,SHIM,.5 X .875 X .063
.......................................................
22
35185GT
WELDMENT,PLATFORM L.L.
..........................................................12311890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6
24
35200GT
BRACKET,PULLEY MOUNT
...........................................................
2
Part No. 115416GT
September 2024
302.1 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
43
Page 44
Part No. 115416GT
September 2024
302.1 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
44
Page 45
Item
Part No.
Description
Qty.
25
6708GT
SCREW,HHC,3/8-16 X 2.25
............................................................25-
4828GT
NUT, NYLOCK, 3/8-16
(not shown)
.................................................................26Ref. Cable Assembly
(refer to Figure 301.1)
.................................................................127
124908GT
KIT,LL LATCH
(to SN LL08-8046) (replaced 124171)
...................................................286-5205-16GT
SCREW,HHC,5/16-18 X 2.00,GR8
(from SN LL08-7752)
.....................................................296782GT
NUT, NYLOCK, 5/16-18
(from SN LL08-7752)
...............................................................30124908GT
KIT,LL LATCH
(to SN LL08-8046) (replaced 124463)
...................................................31124984GT
SPRING,TORSION,45 DEGREE
(from SN LL08-7752)
.......................................................3235732GT
SPACER,TUBE,1/4 X 3/8 **
(from SN LL08-7752)
...........................................................
.
33
109949GT
ROLLER,LATCH RELEASE
(from SN LL08-7752)
...........................................................
.
34
8915GT
SCREW, HHC, 1/4-20 X 1.25
(from SN LL08-7752)
.........................................................
.
Part No. 115416GT
September 2024
302.1 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
45
Page 46
Part No. 115416GT
September 2024
302.2 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
46
Page 47
Item
Part No.
Description
Qty.
-
124501GT
LOADLIFTER LATCH KIT
(to SN LL08-7751)
..............................................................90337GT
BOE LUBE
aluminum dry lubricant
.................................................................11
35582GT
INNER FRAME W/ DECAL, GLL
Standard model
.......................................................11A
145292GT
INNER FRAME W/DECAL IND LL
Industrial model
......................................................2
6090GT
SCREW, HHC, 1/4-20 X .75
............................................................3
6638GT
WASHER, FLAT, USS, 1/4"Y
..........................................................4
6091GT
NUT, NYLOCK, 1/4-20
.................................................................56584GT
SCREW,SHS,10-24 X .625
............................................................6
5365GT
NUT,NYLOCK,10-24
.................................................................
.
7
38862GT
GUARD,PULLEY,GLL
.................................................................
1
8
11224GT
PULLEY LOAD LIFTER, W/BUSHING
.................................................39
6054GT
NUT,HEX,3/8-24
.....................................................................
.
10
6021GT
WASHER, LOCK, .375
.................................................................
11
6097GT
WASHER, FLAT, USS, 3/8", Y
.........................................................1212013GT
SHIM,.375 X .063
(quantities vary)
.....................................................................
12A
7267GT
WASHER,SHIM,.375 X.625X.016 AL
(quantities vary)
...................................................
13
11906GT
ROLLER-NYLATRON, 1.625" O.D.
.....................................................414
21280GT
BOLT-ROLLER,3/8-24 X 1.69-ZINC
....................................................4
15
21279GT
BUTTON, .800 O.D. X .281
............................................................4
16
35203GT
BRACKET-CARRIAGE
(to SN LL08-7751)
................................................................1
16A
124176GT
WELDMENT,CARRIAGE
(from SN LL08-7752 (shown)
...........................................................
1
17
7713GT
NUT, LP NYLOCK, 3/8-16
.............................................................
18
5397GT
WASHER, FLAT, USS, 5/16-18
........................................................19
11335GT
SCREW,SHS,3/8-16 X .5
.............................................................
.
20
11978GT
WASHER,FLAT,NYLON.515X.88X.093
.................................................
21
6052GT
WASHER,SHIM,.5 X .875 X .063
.......................................................2235185GT
WELDMENT,PLATFORM L.L.
..........................................................1
23
11890GT
GLIDE BUTTON,SIDE,GLL,.100 TK
....................................................6
Part No. 115416GT
September 2024
302.2 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
47
Page 48
Part No. 115416GT
September 2024
302.2 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
48
Page 49
Item
Part No.
Description
Qty.
24
35200GT
BRACKET,PULLEY MOUNT
...........................................................225
6708GT
SCREW,HHC,3/8-16 X 2.25
............................................................25-
4828GT
NUT, NYLOCK, 3/8-16
(not shown)
.................................................................26Ref. Cable Assembly
(refer to Figure 301.1)
.................................................................127A
124501GT
LOADLIFTER LATCH KIT
(before SN LL08-7752)
..............................................................27B
124908GT
KIT,LL LATCH
(from SN LL08-7752 to 8046)
..........................................................27C
124903GT
WELDMENT,LATCH BRACKET,LL
(from SN LL08-8047)
.....................................................286-5205-16GT
SCREW,HHC,5/16-18 X 2.00,GR8
(from SN LL08-7752)
.....................................................296782GT
NUT, NYLOCK, 5/16-18
(from SN LL08-7752)
...............................................................
30
124908GT
KIT,LL LATCH
(to SN LL08-8046)
.....................................................................
30A
124904GT
HOOK,CARRIAGE LATCH,LL
(from SN LL08-8047)
..........................................................31
124984GT
SPRING,TORSION,45 DEGREE
(from SN LL08-7752)
.......................................................
32
35732GT
SPACER,TUBE,1/4 X 3/8 **
(from SN LL08-7752)
...........................................................
.
33
109949GT
ROLLER,LATCH RELEASE
(from SN LL08-7752)
............................................................34
8915GT
SCREW, HHC, 1/4-20 X 1.25
(from SN LL08-7752)
.........................................................
.
Part No. 115416GT
September 2024
302.2 Load Platform and Inner Frame Assembly
100 Parts Figures
Load Lifter
49
Page 50
Part No. 115416GT
September 2024
401.1 Rear Wheel Brake Option
100 Parts Figures
Load Lifter
50
Page 51
Item
Part No.
Description
Qty.
1
46161GT
SPACER,TUBE,PVC,1.00LG
...........................................................22
35917-SGT
BRAKE CAM,MACHINED
..............................................................336888GT
SCREW, HHC, 1/4-20 X 1
.............................................................46091GT
NUT, NYLOCK, 1/4-20
.................................................................535223-1850GT
ROUNDBAR,ALUM .75
................................................................1637112GT
SPRING,BRAKE LINKAGE, GL
........................................................1737113GT
WASHER,FLAT,RETAINING,.781
......................................................8
85311GT
KIT,AXLE LL
.........................................................................19
85312GT
KIT,PIN
...............................................................................
2
10
32453GT
WHEEL,PERFORMA,8 X 2
(to SN 3300-3245)
............................................................2
10A
57787-SGT
KIT,WHEEL,TPE,8 X 2,3/4,1/2
(from SN 3300-3246) (shown)
.........................................................116564GT
WASHER, SHIM,.765 X 1.312 X .093
...................................................
12
40700GT
PLATE,BRAKE PIVOT,LL-5.5
..........................................................2
13
35569GT
STAIR GLIDE ASSEMBLY,LS,GLL
(includes 3 item 21 and item 22)
.....................................................114
6090GT
SCREW, HHC, 1/4-20 X .75
...........................................................
.
15
Ref. Folding Leg Assembly
(refer to Figure 201.1)
.............................................................
16
10587GT
SCREW,HHC,1/2-13 X.75
(GR 5)
.............................................................1737114GT
PEDAL-BRAKE W/ NON SKID TAPE
...................................................
17-
1259GT
TAPE,NON SKID,2" WIDE (BULK)
.....................................................
3.5
18
6637GT
SCREW,HHC,1/4-20 X 1.75
(GD 5)
............................................................19
6889GT
NUT,LP NYLOCK,1/4-20
...............................................................
20
35350-SGT
PLATE,BRAKE LINKAGE STOP
.......................................................
1
21
11974GT
RIVET,MAGNALOK,.192 #7
...........................................................622
35916GT
GLIDE STRIP,L.L
.....................................................................
2
23
35570GT
STAIR GLIDE ASSEMBLY,RS,GLL
(includes 3 item 21 and item 22)
.....................................................
1
Part No. 115416GT
September 2024
401.1 Rear Wheel Brake Option
100 Parts Figures
Load Lifter
51
Page 52
Part No. 115416GT
September 2024
401.2 Rear Wheel Brake Option
100 Parts Figures
Load Lifter
52
Page 53
Item
Part No.
Description
Qty.
1
46161GT
SPACER,TUBE,PVC,1.00LG
...........................................................22
35917-SGT
BRAKE CAM,MACHINED
..............................................................336888GT
SCREW, HHC, 1/4-20 X 1
.............................................................46091GT
NUT, NYLOCK, 1/4-20
.................................................................535223-1850GT
ROUNDBAR,ALUM .75
................................................................1637112GT
SPRING,BRAKE LINKAGE, GL
........................................................1737113GT
WASHER,FLAT,RETAINING,.781
......................................................8
85311GT
KIT,AXLE LL
.........................................................................19
85312GT
KIT,PIN
...............................................................................
2
10A
57787-SGT
KIT,WHEEL,TPE,8 X 2,3/4,1/2
.........................................................
11
6564GT
WASHER, SHIM,.765 X 1.312 X .093
...................................................1240700GT
PLATE,BRAKE PIVOT,LL-5.5
..........................................................2
13
35569GT
STAIR GLIDE ASSEMBLY,LS,GLL
(includes 3 item 21 and item 22)
.....................................................
1
14
6090GT
SCREW, HHC, 1/4-20 X .75
............................................................15
Ref. Folding Leg Assembly
(refer to Figure 201.1)
.............................................................
16
10587GT
SCREW,HHC,1/2-13 X.75
(GR 5)
.............................................................
17
37114GT
PEDAL-BRAKE W/ NON SKID TAPE
...................................................
17-
1259GT
TAPE,NON SKID,2" WIDE (BULK)
.....................................................
3.5
18
6637GT
SCREW,HHC,1/4-20 X 1.75
(GD 5)
...........................................................
.
19
6889GT
NUT,LP NYLOCK,1/4-20
...............................................................2035350-SGT
PLATE,BRAKE LINKAGE STOP
.......................................................
1
21
11974GT
RIVET,MAGNALOK,.192 #7
...........................................................
6
22
35916GT
GLIDE STRIP,L.L
.....................................................................223
35570GT
STAIR GLIDE ASSEMBLY,RS,GLL
(includes 3 item 21 and item 22)
.....................................................
1
Part No. 115416GT
September 2024
401.2 Rear Wheel Brake Option
100 Parts Figures
Load Lifter
53
Page 54
Part No. 115416GT
September 2024
401.3 Rear Wheel Brake Option
100 Parts Figures
Load Lifter
54
Page 55
Item
Part No.
Description
Qty.
40996-sGT
OPTION,BRAKE,LOADLIFTER 5.5
.....................................................146161GT
SPACER,TUBE,PVC,1.00LG
...........................................................22
35917-SGT
BRAKE CAM,MACHINED
..............................................................336888GT
SCREW, HHC, 1/4-20 X 1
.............................................................46091GT
NUT, NYLOCK, 1/4-20
.................................................................535223-1850GT
ROUNDBAR,ALUM .75
................................................................1637112GT
SPRING,BRAKE LINKAGE, GL
........................................................1737113GT
WASHER,FLAT,RETAINING,.781
......................................................8
85311GT
KIT,AXLE LL
.........................................................................
1
9
85312GT
KIT,PIN
...............................................................................
2
10
32453GT
WHEEL,PERFORMA,8 X 2
(to SN 3300-3245)
............................................................2116564GT
WASHER, SHIM,.765 X 1.312 X .093
...................................................
12
40700GT
PLATE,BRAKE PIVOT,LL-5.5
..........................................................2
13
35569GT
STAIR GLIDE ASSEMBLY,LS,GLL
(includes 3 item 21 and item 22)
.....................................................114
6090GT
SCREW, HHC, 1/4-20 X .75
...........................................................
.
15
Ref. Folding Leg Assembly
(refer to Figure 201.1)
.............................................................
16
10587GT
SCREW,HHC,1/2-13 X.75
(GR 5)
.............................................................1737114GT
PEDAL-BRAKE W/ NON SKID TAPE
...................................................
17-
1259GT
TAPE,NON SKID,2" WIDE (BULK)
.....................................................
3.5
18
6637GT
SCREW,HHC,1/4-20 X 1.75
(GD 5)
............................................................19
6889GT
NUT,LP NYLOCK,1/4-20
...............................................................
20
35350-SGT
PLATE,BRAKE LINKAGE STOP
.......................................................
1
21
11974GT
RIVET,MAGNALOK,.192 #7
...........................................................622
35916GT
GLIDE STRIP,L.L
.....................................................................
2
23
35570GT
STAIR GLIDE ASSEMBLY,RS,GLL
(includes 3 item 21 and item 22)
.....................................................
1
Part No. 115416GT
September 2024
401.3 Rear Wheel Brake Option
100 Parts Figures
Load Lifter
55
Page 56
Part no.
Page Number
6-5205-16GT
45, 49
1259GT
51, 53, 55
4828GT
15, 19, 23, 27, 29, 33...
5224GT
27, 33
5365GT
43, 47
5397GT
29, 35, 43, 47
6021GT
43, 47
6034GT
29, 37
6052GT
15, 19, 23, 43, 47
6054GT
43, 47
6090GT
15, 19, 23, 43, 47, 51...
6091GT
15, 19, 23, 27, 33, 43...
6097GT
41, 43, 47
6175GT
39
6356GT
15, 19, 23, 27, 29, 33...
6357GT
39
6563GT
29, 35
6564GT
15, 19, 23, 51, 53, 55
6584GT
43, 47
6600GT
27, 33, 35
6637GT
51, 53, 55
6638GT
27, 33, 43, 47
6653GT
27, 33, 35
6708GT
45, 49
6782GT
45, 49
6825GT
39
6878GT
39
6888GT
51, 53, 55
6889GT
15, 19, 23, 51, 53, 55
7267GT
43, 47
7339GT
15, 19, 23, 27, 29, 33...
7713GT
43, 47
8516GT
29, 35
8886GT
29, 37
8887GT
29, 37
8915GT
45, 49
10587GT
15, 19, 23, 51, 53, 55
11224GT
43, 47
11335GT
43, 47
11413GT
29, 37
11890GT
15, 19, 23, 27, 33, 43...
11906GT
43, 47
Part no.
Page Number
11974GT
17, 21, 25, 51, 53, 55
11978GT
43, 47
12011GT
37
12012GT
39
12013GT
43, 47
12981GT
39
14182GT
27, 33
16342GT
29, 37
21279GT
43, 47
21280GT
43, 47
22283GT
15, 19, 23
22547GT
27, 33
23903GT
17, 21, 25
29849GT
29, 35
31072GT
11
31822GT
27, 33, 35
32453GT
15, 23, 51, 55
33468GT
9, 11
35185GT
43, 47
35190GT
17, 21, 25
35194GT
15, 19, 23, 27, 33
35195GT
15, 19, 23, 27, 33
35200GT
43, 49
35203GT
43, 47
35223-1850GT
51, 53, 55
35350-SGT
51, 53, 55
35537GT
27, 33
35543GT
31, 37
35546GT
9, 11
35547GT
9, 11
35548GT
9, 11
35550P-SGT
17, 21, 25
35552GT
9, 11
35553GT
17, 21, 23
35555GT
9, 11
35556GT
27, 33
35557GT
29, 35
35558GT
15, 19, 23
35559GT
17, 21, 25
35567GT
9, 11
35569GT
15, 19, 23, 51, 53, 55
35570GT
17, 21, 25, 51, 53, 55
Part no.
Page Number
35571GT
15, 21, 23
35582GT
43, 47
35623GT
29, 35
35625GT
29, 35
35626GT
29, 35
35629GT
29, 35
35630GT
29, 35
35634GT
29, 35
35645GT
17, 21, 25
35646GT
15, 19, 23
35648GT
15, 21, 23
35649GT
15, 19, 23
35650GT
29, 35
35732GT
45, 49
35909GT
15, 19, 23
35914GT
27, 33
35916GT
17, 21, 25, 51, 53, 55
35917-SGT
51, 53, 55
35918GT
29, 35
35920GT
29, 35
35922GT
29, 35
35983GT
27, 33
35989GT
29, 35
35991GT
15, 19, 23, 27, 29, 33...
35994GT
15, 19, 23
37023GT
39
37057GT
39
37058GT
39
37060GT
39
37061GT
39
37062GT
39
37063GT
39
37065GT
39
37066GT
39
37067GT
39
37068GT
39
37069GT
39
37112GT
51, 53, 55
37113GT
51, 53, 55
37114GT
51, 53, 55
37149GT
39
37151GT
39
Part No. 115416GT
September 2024
Part Number Index
Load Lifter
56
Page 57
Part no.
Page Number
37258GT
15, 19, 23
38862GT
43, 47
40167GT
37
40700GT
51, 53, 55
40703-341GT
29, 35
40996-sGT
55
44754GT
9, 11
44891GT
29, 35
46161GT
51, 53, 55
52981GT
9, 11, 13
57198GT
15, 19, 23
57787-SGT
15, 19, 51, 53
80939GT
11, 13
82487GT
13
82961GT
13
82962GT
13
85060GT
39
85182GT
39
85183GT
39
85184GT
39
85185GT
39
85281GT
15, 19, 23
85311GT
51, 53, 55
85312GT
15, 19, 23, 51, 53, 55
90337GT
43, 47
97514GT
13
97529GT
9, 11
97532GT
13
97536GT
13
107224GT
33
107225GT
33
109949GT
45, 49
115374GT
27, 33
115375GT
27, 35
124176GT
43, 47
124469GT
19
124471GT
21
124501GT
43, 47, 49
124781GT
39
124903GT
49
124904GT
49
124906GT
35
Part no.
Page Number
124908GT
45, 49
124913GT
33
124914GT
27, 33
124984GT
45, 49
145140GT
33
145292GT
47
230353GT
19
1257748GT
39
Part no.
Page Number
Part No. 115416GT
September 2024
Part Number Index
Load Lifter
57
Page 58
Loading...
