Operator's Manual

™

1330m

Serial Number Range

from GS30MD-101

ANSI/CSA North America South America Asia

with Maintenance Information

First Edition First Printing Part No. 1290846GT

Operator's Manual First Edition • First Printing

Front Matter

Contents

Introduction ........................................................... 1

Symbol and Hazard Pictorials Definitions ............. 6

General Safety ...................................................... 8

Personal Safety ................................................... 13

Work Area Safety ................................................ 14

Legend ................................................................ 22

Controls ............................................................... 23

Inspections .......................................................... 26

Operating Instructions ......................................... 40

Transport and Lifting Instructions ....................... 49

Maintenance ....................................................... 54

Specifications ...................................................... 56

First Edition: First Printing, January 2019

Genie is registered trademarks of Terex South Dakota, Inc. in the U.S.A. and many other countries. “GS” is a trademark of Terex South Dakota, Inc.

These machines comply with ANSI/SAIA A92.20 CAN/CSA B.354.6

GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Introduction

About this manual

Genie appreciates your choice of our machine for your application. Our number one priority is user safety, which is best achieved by our joint efforts. This book is an operation and daily maintenance manual for the user or operator of a Genie machine.

This manual should be considered a permanent part of your machine and should remain with the machine at all times. If you have any questions, contact Genie.

Product Identification

The machine serial number is located on the serial label.

Serial number stamped on chassis

Serial number

stamped on chassis

Intended Use and Familiarization Guide

The intended use of this machine is to lift personnel, including tools, and materials to an aerial work site. Before operating the machine, it’s the operator’s responsibility to read and understand this familiarization guide.

 Each person must be trained to operate a

MEWP.

 Familiarization with the MEWP must be given

to each person who is authorized, competent and trained.

 Only trained and authorized personnel should

be permitted to operate the machine.

 The operator is responsible to read,

understand, and obey the manufacturer’s instructions and safety rules provided in the Operator’s Manual.

 The Operator’s Manual is located in the

manual storage container, at the platform.

Part No. 1290846GT GS™-1330m 1

Operator's Manual First Edition • First Printing

Introduction

Platform controls symbology and related machine movement:

Ground controls symbology and related machine movement:

Lift function enable button

Drive function enable button

Lift function enable button

Platform up/down button

Drive, steer, and lift handle

Sequential functions and movement:

 Drive and steer.

Interlocked functions:

 Elevated drive speed.  Elevated drive in an off-level condition.  All platform and ground controls.

Limitations of use:

 The intended use of this machine is to lift

personnel, including tools, and materials to an aerial work site.

 Do not elevate the platform unless the machine

is on firm level ground.

2 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Introduction

Bulletin Distribution and Compliance

Safety of product users is of paramount importance to Genie. Various bulletins are used by Genie to communicate important safety and product information to dealers and machine owners.

The information contained in the bulletins is tied to specific machines using the machine model and serial number.

Distribution of bulletins is based on the most current owner on record along with their associated dealer, so it is important to register your machine and keep your contact information up to date.

To ensure safety of personnel and the reliable continued operation of your machine, be sure to comply with the action indicated in a respective bulletin.

To view any open bulletins for your machine, visit us on the web at www.genielift.com.

Contacting the Manufacturer

At times it may be necessary to contact Genie. When you do, be ready to supply the model number and serial number of your machine, along with your name and contact information. At minimum, Genie should be contacted for:

Accident reporting

Questions regarding product applications and safety

Standards and regulatory compliance information

Current owner updates, such as changes in machine ownership or changes in your contact information. See Transfer of Ownership, below.

Transfer of Machine Ownership

Taking a few minutes to update owner information will ensure that you receive important safety, maintenance and operating information that applies to your machine.

Please register your machine by visiting us on the web at www.genielift.com or by calling us toll free at 1-800-536-1800.

Part No. 1290846GT GS™-1330m 3

Operator's Manual First Edition • First Printing

Introduction

Danger

Failure to obey the instructions and safety rules in this manual will result in death or serious injury.

Do Not Operate Unless:

 You learn and practice the principles of safe

machine operation contained in this operator’s manual.

1 Avoid hazardous situations.

Know and understand the safety rules before going on to the next section.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to use.

4 Inspect the workplace.

5 Only use the machine as it was intended.

 You read, understand and obey the

manufacturer’s instructions and safety rules—safety and operator’s manuals and machine decals.

 You read, understand and obey employer’s

safety rules and worksite regulations.

 You read, understand and obey all applicable

governmental regulations.

 You are properly trained to safely operate the

machine.

4 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

NOTICE

Introduction

Safety Sign Maintenance

Replace any missing or damaged safety signs. Keep operator safety in mind at all times. Use mild soap and water to clean safety signs. Do not use solvent-based cleaners because they may damage the safety sign material.

Hazard Classification

Decals on this machine use symbols, color coding, and signal words to identify the following:

Safety alert symbol—used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

WARNING

CAUTION

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Indicates a property damage message.

Part No. 1290846GT GS™-1330m 5

Operator's Manual First Edition • First Printing

Symbol and Hazard Pictorials Definitions

Read the operator’s manual

Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard

Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard

Read the service manual

Crush hazard Crush hazard Collision hazard

Close chassis tray

Engage safety arm

Keep away from moving parts

Keep clear of outriggers and tires

Move machine to level ground

Lower the platform.

Do not set up where it cannot be leveled with outriggers

Maintain required clearance

Access by trained and authorized personnel only

Use a piece of cardboard or paper to search for leaks

6 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Symbol and Hazard Pictorials Definitions

Batteries used as counterweights

Wheel load

Voltage rating for power to platform

Chock the wheels Release brakes

Lifting & tie down instructions

Tiedown

Pressure rating for air line to platform

Manual force Engage brake Wind speed

Grounded AC 3-wire only

Lanyard anchorage points

Replace damaged wires and cords

No smoking

Maximum capacity

Indoor

Part No. 1290846GT GS™-1330m 7

Operator's Manual First Edition • First Printing

General Safety

1293165

1294707

44736

1294635

28236

1293164

Tip-over Hazard

Tipping over the machine will result in death or serious injury.

Maximum allowable wind speed: 0 mph / 0 m/sec

0 m/sec

Maximum allowable side force: 90 lbs / 400 N

Maximum capacity: 500 lbs / 227 kg

Occupants and equipment must not exceed 500 lbs / 227 kg

Maximum occupants: 2

Platform extended

Main deck: 300 Ibs / 136 kg

extension deck: 200 Ibs / 91 kg

1293164 A

8 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

General Safety

1294707

1292960

DANGER

1290659

1294707

1294707A

82561

1294681

1294685

Part No. 1290846GT GS™-1330m 9

Operator's Manual First Edition • First Printing

General Safety

1294681

1290675

1290657

1294707

10 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

General Safety

1293166

114338

193166 A21 93166 A2

1294688

1293217

1292053

1293217

1293217 A

0to50KV 3.0m5

50to 200KV 4.6 m0

200to 350KV 6.1 m0

350to 500KV 7.6 m2

500to 750KV 10.6 m7

750 to 1000KV 13.7 m2

400 N

1292053 B

0 m/sec

82487

227 kg

9 kg1

1 kg36

GS-1 303 m

227 kg

1290673

82487

1293217 A

0to50KV 3.0m5

50to 200KV 4.6 m0

200to 350KV 6.1 m0

350to 500KV 7.6 m2

500to 750KV 10.6 m7

750 to 1000KV 13.7 m2

1290672

82495

1294686

1290672

82474

Part No. 1290846GT GS™-1330m 11

Operator's Manual First Edition • First Printing

General Safety

114337

82474

1290670

6.52kg

1293217 A

0to50KV 3.0 m5

50 to 200KV 4.6 m0

200 to 350KV 6.1 m0

350 to 500KV 7.6 m2

500 to 750KV 10.6 m7

750 to 1000KV 13.7 m2

82481

1293217

1294686

1290670 A

12 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Personal Safety

Personal Fall Protection

Personal fall protection equipment (PFPE) is not required when operating this machine. If PFPE is required by job site or employer rules, the following shall apply:

All PFPE must comply with applicable governmental regulations and must be inspected and used in accordance with the manufacturer’s instructions.

Part No. 1290846GT GS™-1330m 13

Operator's Manual First Edition • First Printing

Work Area Safety

Electrocution Hazards

This machine is not electrically insulated and will not provide protection from contact with or proximity to electrical current.

Do not operate the machine during lightning or storms.

Do not use the machine as a ground for welding.

Obey all local and governmental regulations regarding required clearance from electrical power lines. At a minimum, the required clearance contained in the chart below must be followed.

Line Voltage Required Clearance

0 to 50KV 10 ft 3.05 m

50 to 200KV 15 ft 4.60 m

200 to 350KV 20 ft 6.10 m

350 to 500KV 25 ft 7.62 m

500 to 750KV 35 ft 10.67 m

750 to 1000KV 45 ft 13.72 m

Allow for platform movement, electrical line sway or sag, and beware of strong or gusty winds.

Keep away from the machine if it contacts energized power lines. Personnel on the ground or in the platform must not touch or operate the machine until energized power lines are shut off.

Tip-over Hazards

Occupants, equipment and materials shall not exceed the maximum platform capacity or the maximum platform capacity of the platform extension.

Maximum capacity

Platform extended

Model

GS-1330m

Platform retracted Platform extended

Extension only Platform only

The weight of options and accessories, such as panel carriers, will reduce the rated platform capacity and must be subtracted from the platform capacity. See the decals with the options and accessories.

If using accessories, read, understand and obey the decals, instructions and manuals with the accessory.

Platform

retracted

500 lbs

227 kg

Platform

only

300 lbs

136 kg

Extension

only

200 lbs

91 kg

Maximum

occupants

14 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Work Area Safety

Do not raise the platform unless the machine is on a firm, level surface.

Do not depend on the tilt alarm as a level indicator. The tilt alarm sounds on the chassis only when the machine is on a severe slope.

If the tilt alarm sounds: Lower the platform. Move the machine to a firm, level surface. If the tilt alarm sounds when the platform is raised, use extreme caution to lower the platform.

Do not drive over 0.5 mph / 0.8 km/h with the platform raised.

Outdoor Use: Do not raise the platform when wind speeds may exceed 12.5 m/s. If wind speeds exceed 12.5 m/s when the platform is raised, lower the platform and do not continue to operate the machine.

Do not operate the machine in strong or gusty winds. Do not increase the surface area of the platform or the load. Increasing the area exposed to the wind will decrease machine stability.

Use extreme care and slow speeds while driving the machine in the stowed position across uneven terrain, debris, unstable or slippery surfaces and near holes and drop-offs.

Do not drive the machine on or near uneven terrain, unstable surfaces or other hazardous conditions with the platform raised.

Do not use the machine as a crane.

Do not push the machine or other objects with the platform.

Do not contact adjacent structures with the platform.

Do not tie the platform to adjacent structures.

Do not place loads outside the platform perimeter.

Do not operate the machine with the chassis trays open.

Indoor Use: When raising the platform, follow ratings for allowable side force and number of occupants on the next page.

Part No. 1290846GT GS™-1330m 15

Operator's Manual First Edition • First Printing

Work Area Safety

Do not push off or pull toward any object outside of the platform.

Do not place or attach fixed or overhanging loads to any part of this machine.

Model

GS-1330m

Maximum allowable

side force

90 lbs/400 N Indoor only – 2

Maximum

occupants

Do not alter or disable the limit switches.

Do not alter or disable machine components that in any way affect safety and stability.

Do not replace items critical to machine stability with items of different weight or specification.

Do not use batteries that weigh less than the original equipment. Batteries are used as counterweight and are critical to machine stability. Each battery must weigh 46 lbs/21 kg. Battery tray including batteries must weigh a minimum of 138 lbs/62.5 kg.

Do not modify or alter a mobile elevating work platform without prior written permission from the manufacturer. Mounting attachments for holding tools or other materials onto the platform, toeboards, or guard rail system can increase the weight in the platform and the surface area of the platform or the load.

Do not place ladders or scaffolds in the platform or against any part of this machine.

Do not transport tools and materials unless they are evenly distributed and can be safely handled by person(s) in the platform.

Do not use the machine on a moving or mobile surface or vehicle.

Be sure all tires are in good condition, castle nuts are properly tightened and cotter pins are properly installed.

16 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Work Area Safety

Crushing Hazard

Keep hands and limbs out of scissors.

Keep hands clear when folding rails.

Do not work under the platform or in the scissor links without the safety arm in place.

Use common sense and planning when operating the machine with the controller from the ground. Maintain safe distances between the operator, the machine and fixed objects.

Operation on Slopes Hazards

Do not drive the machine on a slope that exceeds the slope and side slope rating of the machine. Slope rating applies to machines in the stowed position.

Maximum slope

rating, stowed

Model

GS-1330m

Note: Slope rating is subject to ground conditions with one person in the platform and adequate traction. Additional platform weight may reduce slope rating. See Driving on a Slope in the Operating Instructions section.

position

25% (14°) 25% (14°)

Maximum side slope

rating, stowed

position

Fall Hazards

The guard rail system provides fall protection. If occupant(s) of the platform are required to wear personal fall protection equipment (PFPE) due to job site or employer rules, PFPE and its use shall be in accordance with the PFPE manufacturer’s instructions and applicable governmental requirements. Use approved lanyard attachment point provided.

Do not sit, stand, or climb on the platform guard rails. Maintain a firm footing on the platform floor at all times.

Do not climb down from the platform when raised.

Keep the platform floor clear of debris.

Do not enter or exit the platform unless the machine is in the stowed position.

Attach the platform entry chain or close the entry gate before operating.

Do not operate the machine unless the guard rails are properly installed and the entry is secured for operation.

Part No. 1290846GT GS™-1330m 17

Operator's Manual First Edition • First Printing

Work Area Safety

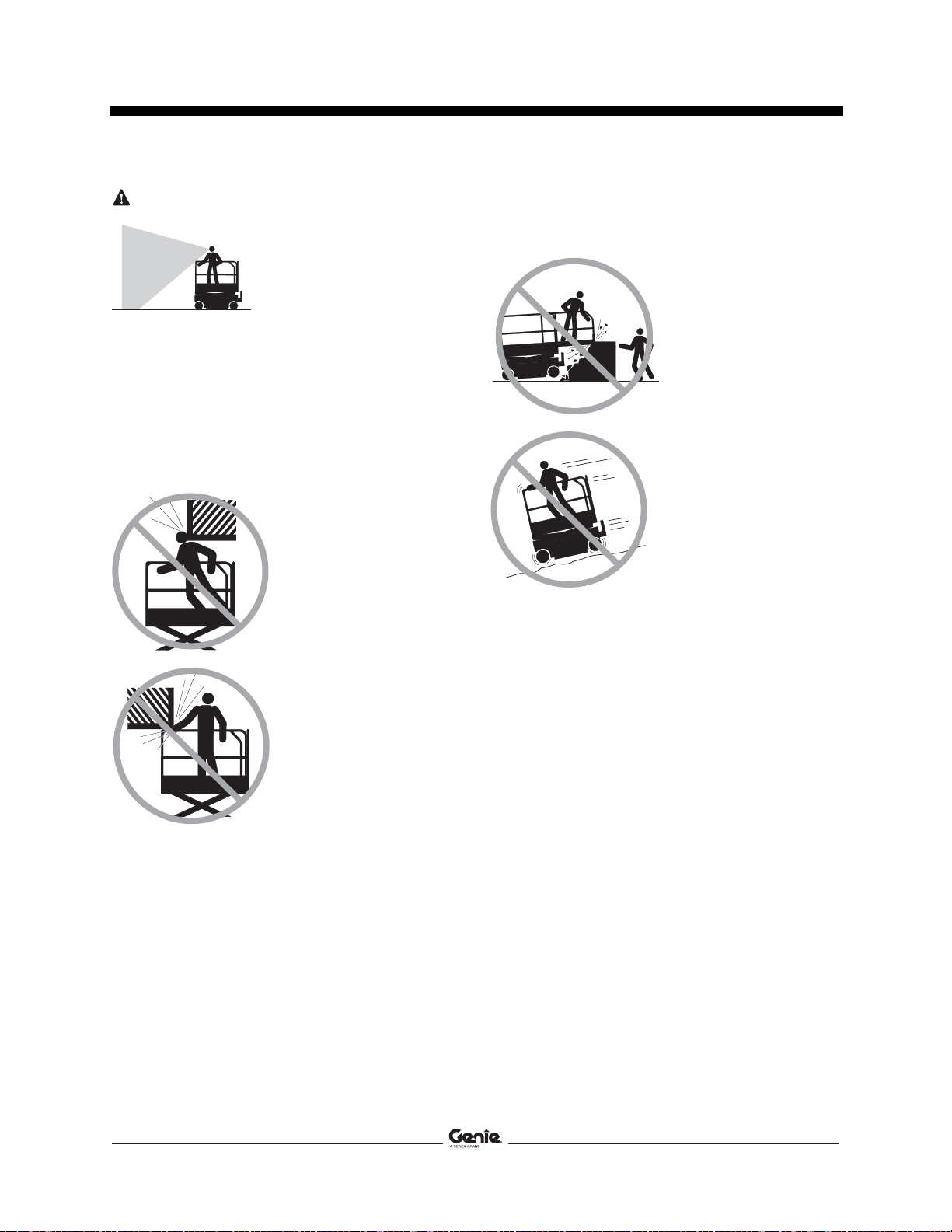

Collision Hazards

Be aware of limited sight distance and blind spots when driving or operating.

Be aware of extended platform position when moving the machine.

The machine must be on a level surface or secured before releasing the brakes.

Observe and use color-coded direction arrows on the platform controls and the platform decal plate for drive and steer functions.

Do not lower the platform unless the area below is clear of personnel and obstructions.

Operators must comply with employer, job site, and governmental rules regarding use of personal protective equipment.

Check the work area for overhead obstructions or other possible hazards.

Be aware of crushing hazards when grasping the platform guard rail.

Limit travel speed according to the condition of the ground surface, congestion, slope, location of personnel, and any other factors which may cause collision.

Do not operate a machine in the path of any crane or moving overhead machinery unless the controls of the crane have been locked out and/or precautions have been taken to prevent any potential collision.

No stunt driving or horseplay while operating a machine.

18 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Work Area Safety

Bodily Injury Hazard

Do not operate the machine with a hydraulic oil or air leak. An air leak or hydraulic leak can penetrate and/or burn skin.

Improper contact with components under any cover will cause serious injury. Only trained maintenance personnel should access compartments. Access by the operator is only advised when performing a pre-operation inspection. All compartments must remain closed and secured during operation.

Explosion and Fire Hazards

Do not operate the machine or charge the battery in hazardous locations or locations where potentially flammable or explosive gases or particles may be present.

Damaged Machine Hazards

Do not use a damaged or malfunctioning machine.

Conduct a thorough pre-operation inspection of the machine and test all functions before each work shift. Immediately tag and remove from service a damaged or malfunctioning machine.

Be sure all maintenance has been performed as specified in this manual and the appropriate Genie service manual.

Be sure all decals are in place and legible.

Be sure the operator's, safety, and responsibilities manuals are complete, legible, and in the storage container located on the machine.

Component Damage Hazards

Do not use any battery charger greater than 24V to charge the batteries.

Do not use the machine as a ground for welding.

Part No. 1290846GT GS™-1330m 19

Operator's Manual First Edition • First Printing

Work Area Safety

Battery Safety

Burn Hazards

Component Damage Hazard

Do not use any battery charger greater than 24V to charge the batteries.

Batteries contain acid. Always wear protective clothing and eye wear when working with batteries.

Avoid spilling or contacting battery acid. Neutralize

Do not expose the batteries or the charger to water or rain during charging.

battery acid spills with baking soda and water.

Explosion Hazards

Keep sparks, flames, and lighted tobacco away from batteries. Batteries emit explosive gas.

The battery tray should remain open during the entire charging cycle.

Do not contact the battery terminals or the cable clamps with tools that may cause sparks.

Electrocution/Burn Hazards

Connect the battery charger to a grounded, AC 3-wire electrical outlet only.

Inspect daily for damaged cords, cables and wires. Replace damaged items before operating.

Avoid electrical shock from contact with battery terminals. Remove all rings, watches and other jewelry.

Tip-over Hazard

137.8 lbs/62.5kg.

Lifting Hazard

Use the appropriate number of people and proper lifting techniques when lifting batteries.

20 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Work Area Safety

Lockout After Each Use

1 Select a safe parking location—firm level

surface, clear of obstruction and traffic.

2 Lower the platform. 3 Turn the key switch to the off position and

remove the key to secure from unauthorized use.

4 Charge the batteries.

Part No. 1290846GT GS™-1330m 21

Operator's Manual First Edition • First Printing

Legend

1 Platform guard rails 2 Lanyard anchorage points 3 Platform controls 4 Manual storage container 5 Platform extension 6 Flashing light 7 Transport tie-down 8 Steer tire 9 Pothole guard 10 Ground controls

11 LCD readout 12 Non-steer tire 13 Inverter (optional) 14 Brake release switch (hydraulic side) 15 Emergency lowering knob 16 Entry ladder / transport tie-down 17 Battery charger (on battery side of machine) 18 Tilt alarm 19 Safety arm 20 Air line to platform (optional) 21 Platform extension release pedal 22 GFCI outlet 23 Platform entry gate 24 Foot switch (if equipped)

22 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Controls

Ground Control Panel

1 Menu escape button 2 Menu up button 3 LCD diagnostic readout 4 Menu down button 5 Menu enter button 6 Key switch for platform/off/ground selection

Turn the key switch to the platform position and the platform controls will operate. Turn the key switch to the off position and the machine will be off. Turn the key switch to the ground position and the ground controls will operate.

7 Red Emergency Stop button

Push in the red Emergency Stop button to the off position to stop all functions. Pull out the red Emergency Stop button to the on position to operate the machine.

8 7A breaker for electrical circuits 9 Tech Pro Link Connector 10 Platform down button 11 Lift function enable button

Press and hold this button to activate the lift function.

12 Platform up button

Part No. 1290846GT GS™-1330m 23

Operator's Manual First Edition • First Printing

Controls

137636

STOP

Platform Control Panel

1 Red Emergency Stop button

Push in the red Emergency Stop button to the off position to stop all functions. Pull out the red Emergency Stop button to the on position to operate the machine.

2 Lift function button

Push this button to activate the lift function.

3 Horn button

Press the horn button and the horn will sound. Release the horn button and the horn will not sound.

4 Drive speed select button

Press this button to activate the slow drive function. The indicator light will be on when slow drive is selected.

24 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Controls

5 Proportional control handle and function

enable switch for drive, steer, and lift functions

Lift function: Press and hold the function enable switch to enable the lift function on the platform control handle. Move the control handle in the direction indicated by the blue arrow and the platform will raise. Move the control handle in the direction indicated by the yellow arrow and the platform will lower. The descent alarm should sound while the platform is lowering.

Drive function: Press and hold the function enable switch to enable the drive function on the platform control handle. Move the control handle in the direction indicated by the blue arrow on the control panel and the machine will move in the direction that the blue arrow points. Move the control handle in the direction indicated by the yellow arrow on the control panel and the machine will move in the direction that the yellow arrow points.

6 Thumb rocker switch for steer function

Press the left side of the thumb rocker and the machine will turn in the direction the blue triangle points on the platform control panel.

Press the right side of the thumb rocker and the machine will turn in the direction the yellow triangle points on the platform control panel.

7 LED diagnostic readout, battery charge

indicator and lift/drive mode indicator

8 Drive function button

Push this button to activate the drive function.

Part No. 1290846GT GS™-1330m 25

Operator's Manual First Edition • First Printing

Inspections

Do Not Operate Unless:

 You learn and practice the principles of safe

machine operation contained in this operator’s manual.

1 Avoid hazardous situations.

2 Always perform a pre-operation

inspection.

Know and understand the pre-operation inspection before going on to the next section.

3 Always perform function tests prior to use.

4 Inspect the workplace.

5 Only use the machine as it was intended.

Pre-operation Inspection Fundamentals

It is the responsibility of the operator to perform a pre-operation inspection and routine maintenance.

The pre-operation inspection is a visual inspection performed by the operator prior to each work shift. The inspection is designed to discover if anything is apparently wrong with a machine before the operator performs the function tests.

The pre-operation inspection also serves to determine if routine maintenance procedures are required. Only routine maintenance items specified in this manual may be performed by the operator.

Refer to the list on the next page and check each of the items.

If damage or any unauthorized variation from factory delivered condition is discovered, the machine must be tagged and removed from service.

Repairs to the machine may only be made by a qualified service technician, according to the manufacturer’s specifications. After repairs are completed, the operator must perform a pre-operation inspection again before going on to the function tests.

Scheduled maintenance inspections shall be performed by qualified service technicians, according to the manufacturer’s specifications and the requirements listed in the responsibilities manual.

26 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

Pre-operation Inspection

 Be sure that the operator’s, safety, and

responsibilities manuals are complete, legible and in the storage container located in the platform.

 Be sure that all decals are legible and in place.

See Inspections section.

 Check for hydraulic oil leaks and proper oil

level. Add oil if needed. See Maintenance section.

 Check for battery fluid leaks and proper fluid

level. Add distilled water if needed. See Maintenance section.

Check the following components or areas for damage, improperly installed, or missing parts and unauthorized modifications:

 Electrical components, wiring, and

electrical cables

 Hydraulic hoses, fittings, cylinders, and

manifolds

 Drive motors  Wear pads  Tires and wheels  Limit switches, alarms and horn  Alarms and beacons (if equipped)  Nuts, bolts and other fasteners  Brake release components

 Safety arm  Platform extension  Scissor pins and retaining fasteners  Platform control joystick  Battery pack and connections  Ground strap  Platform entry gate  Pothole guards  Lanyard anchorage points  Platform overload components

Check entire machine for:

 Cracks in welds or structural components  Dents or damage to machine  Excessive rust, corrosion or oxidation

 Be sure that all structural and other critical

components are present and all associated fasteners and pins are in place and properly tightened.

 Be sure side rails are installed and bolts are

fastened.

 Be sure that the chassis trays are closed and

latched and the batteries are properly connected.

Note: If the platform must be raised to inspect the machine, make sure the safety arm is in place. See Operating Instructions section.

Part No. 1290846GT GS™-1330m 27

Operator's Manual First Edition • First Printing

Inspections

Do Not Operate Unless:

 You learn and practice the principles of safe

machine operation contained in this operator’s manual.

1 Avoid hazardous situations.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to

use.

Know and understand the function tests before going on to the next section.

4 Inspect the workplace.

5 Only use the machine as it was intended.

28 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

Function Test Fundamentals

The function tests are designed to discover any malfunctions before the machine is put into service. The operator must follow the step-by-step instructions to test all machine functions.

A malfunctioning machine must never be used. If malfunctions are discovered, the machine must be tagged and removed from service. Repairs to the machine may only be made by a qualified service technician, according to the manufacturer’s specifications.

After repairs are completed, the operator must perform a pre-operation inspection and function tests again before putting the machine into service.

Part No. 1290846GT GS™-1330m 29

Operator's Manual First Edition • First Printing

Inspections

At the Ground Controls

1 Select a test area that is firm, level and free of

obstruction.

2 Be sure the batteries are connected. 3 Pull out the platform and ground red

Emergency Stop button to the on position.

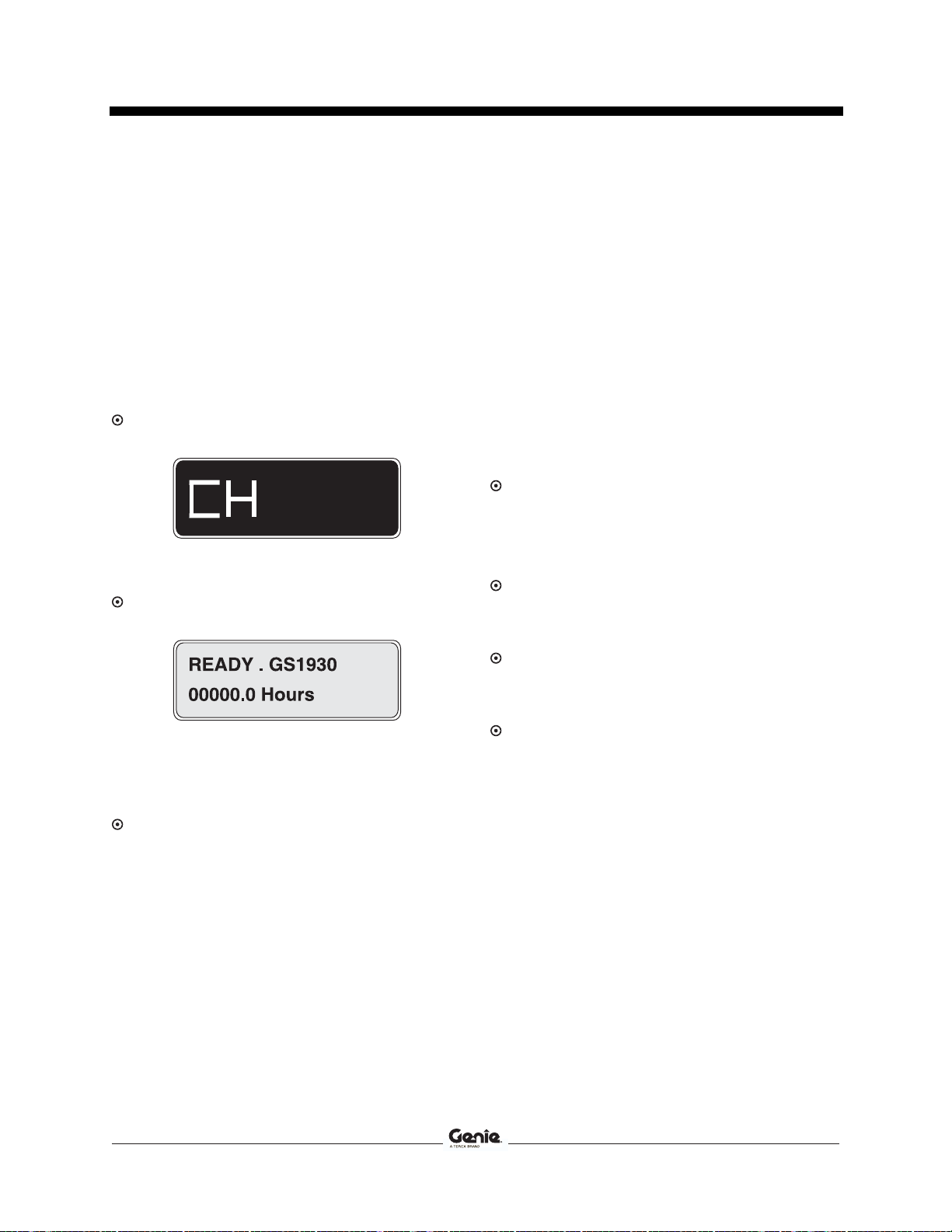

4 Turn the key switch to ground control. 5 Observe the diagnostic LED readout on the

platform controls.

Result: The LED should look like the picture

below.

6 Observe the diagnostic LCD readout on the

ground controls.

Result: The LCD should display the model and

hour meter.

Test the Up/Down Functions

This machine uses both flashing lights and audible alarms. Descent alarm: Lights flash and alarm sounds at 60 flashes/beeps per minute. Descent delay alarm: Lights flash and alarm sounds at 180 flashes/beeps per minute. Pothole guards not deployed: Lights flash and alarm sounds at 180 flashes/beeps per minute. Machine not level: Lights flash and alarm soundsat 180 flashes/beeps per minute. Horn: continuous flash and constant tone. An optional automotive-style horn is also available.

9 Do not press the lift function enable button. 10 Press the platform up or platform down button.

Result: The lift function should not operate.

11 Do not press the platform up or platform down

buttons.

12 Press the lift function enable button.

Result: The lift function should not operate.

13 Press and hold the lift function enable button,

and press the platform up button.

Test Emergency Stop

7 Push in the ground red Emergency Stop

button to the off position.

Result: No functions should operate.

8 Pull out the red Emergency Stop button to the

on position.

Result: The platform should raise.

14 Press and hold the lift function enable button,

and press the platform down button.

Result: The platform should lower. The

descent alarm should sound while the platform is lowering.

When lowering the platform, the platform should stop when it is approximately 1.5 m from the ground. The descent delay lights will flash and the alarm will sound. Be sure the area below the platform is clear of personnel and obstructions before continuing. To continue lowering, release the control handle, and then move the control handle again.

30 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

Test Emergency Lowering

15 Activate the up function by pressing the lift

enable button and platform up button, and raise the platform approximately 2 ft. / 60 cm.

16 Pull the emergency lowering knob located

behind the entry ladder.

Result: The platform should lower. The

descent alarm will not sound.

Test the Function Enable Switch and the Up/Down Functions

22 Do not hold the function enable switch on the

control handle.

23 Slowly move the control handle in the direction

indicated by the blue arrow, then in the direction indicated by the yellow arrow.

Result: No functions should operate.

Test the Tilt Sensor Operation

17 Press the ground control enter button.

Result: The ground control LCD screen will

display the tilt sensor X, Y values and the alarm will sound. The tilt sensor is functioning properly.

18 Turn the key switch to platform control.

At the Platform Controls

Test Emergency Stop

19 Push in the platform red Emergency Stop

button to the off position.

Result: No functions should operate.

Test the Horn

20 Pull out the red Emergency Stop button to the

on position.

24 Press the lift function button. 25 Wait seven seconds for the lift function to time

out.

26 Slowly move the control handle in the direction

indicated by the blue arrow, then in the direction indicated by the yellow arrow.

Result: The lift function should not operate. 27 Press the lift function button. 28 Press and hold the function enable switch on

the control handle. Slowly move the control handle in the direction indicated by the blue arrow.

Machines equipped with foot switch: Press and hold the foot switch and press and hold the function enable switch on the control handle at the same time.

Result: The platform should raise. The pothole

guards should deploy.

29 Release the control handle.

Result: The platform should stop raising.

21 Press the horn button.

Result: The horn should sound.

Part No. 1290846GT GS™-1330m 31

Operator's Manual First Edition • First Printing

Inspections

30 Press and hold the function enable switch on

the control handle.Slowly move the control handle in the direction indicated by the yellow arrow.

Result: The platform should lower. The

descent alarm should sound while the platform is lowering.

Test the Drive Function Button

31 Press the drive function button.

32 Wait seven seconds for the drive function to

time out.

36 Press the thumb rocker switch on top of the

control handle in the direction indicated by the blue triangle on the control panel.

Result: The steer wheels should turn in the

direction indicated by the blue triangle.

37 Press the thumb rocker switch on top of the

control handle in the direction indicated by the yellow triangle, on the control panel.

Result: The steer wheels should turn in the

direction indicated by the yellow triangle.

Test Drive and Braking

38 Press the drive function button.

33 Slowly move the control handle in the direction

indicated by the blue arrow, then in the direction indicated by the yellow arrow.

Result: No functions should operate.

Test the Steering

Note: When performing the steer and drive function tests, stand in the platform facing the steer end of the machine.

34 Press the drive function button.

35 Press and hold the function enable switch on

the control handle.

39 Press and hold the function enable switch on

the control handle.

Machines equipped with foot switch: Press and hold the foot switch and press and hold the function enable switch on the control handle at the same time.

40 Slowly move the control handle in the direction

indicated by the blue arrow on the control panel until the machine begins to move, then return the control handle to the center position.

Result: The machine should move in the

direction that the blue arrow points on the control panel, then come to an abrupt stop when the control handle is returned to the center position.

32 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

41 Slowly move the control handle in the direction

indicated by the yellow arrow on the control panel until the machine begins to move, then return the control handle to the center position.

47 Move the control handle in the direction

indicated by the blue arrow, then move the control handle in the direction indicated by the yellow arrow.

Result: The machine should move in the

direction that the yellow arrow points on the control panel, then come to an abrupt stop when the control handle is returned to the center position.

Note: The brakes must be able to hold the machine on any slope it is able to climb.

Test Drive Tilt Cutout

Note: Perform this test from the ground with the platform controller. Do not stand in the platform.

42 Fully lower the platform. 43 Drive the machine onto a slope where the

chassis angle is greater than 1.5° along the X-Axis (side to side).

44 Raise the platform 7 ft / 2.13 m.

Result: The platform should stop and the tilt

alarm will sound at 180 beeps per minute. The platform controls LED readout should display LL and the ground controls LCD should display LL: Machine Tilted.

45 Press the drive function button. 46 Press and hold the function enable switch on

the control handle.

Result: The drive function should not work in

either direction.

48 Fully lower the platform. 49 Drive the machine onto a slope where the

chassis angle is greater than 2.5° along the Y-Axis (front to back).

50 Raise the platform approximately 7 ft / 2.1 m

from the ground.

Result: The platform should stop and the tilt

alarm will sound at 180 beeps per minute. The platform controls LED readout should display LL and the ground controls LCD should display LL: Machine Tilted.

51 Press the drive function button. 52 Press and hold the drive/steer function enable

switch on the control handle.

53 Move the control handle in the direction

indicated by the blue arrow, then move the control handle in the direction indicated by the yellow arrow.

Result: The drive function should operate. 54 Lower the platform.

Result: The machine should drive.

Part No. 1290846GT GS™-1330m 33

Operator's Manual First Edition • First Printing

Inspections

Test Elevated Drive Speed

55 Raise the platform approximately 4 ft / 1.2 m

from the ground.

56 Press the drive function button.

57 Press and hold the function enable switch on

the control handle.Slowly move the control handle to full drive position.

61 Place a 2x4 or similar piece of wood under a

pothole guard.

62 Raise the platform.

Result: Before the platform is raised 7 ft /

2.1 m from the ground, an alarm should sound. The platform controls LED readout should display PHS and the ground controls LCD should display PHS: Pothole Guard Stuck.

63 Press the drive function button.

Result: The maximum achievable drive speed

with the platform raised should not exceed

0.72 ft / 22 cm per second.

If the drive speed with the platform raised exceeds

0.72 ft / 22 cm per second, immediately tag and remove the machine from service.

Test the Pothole Guards

Note: The pothole guards should automatically deploy when the platform is raised. The pothole guards activate limit switches that allow the machine to continue to function. If the pothole guards do not deploy, an alarm sounds and the machine will not drive or steer.

58 Raise the platform.

Result: When the platform is raised 4 ft / 1.2 m

from the ground, the pothole guards should deploy.

59 Press on the pothole guards on one side, and

then the other.

Result: The pothole guards should not move.

60 Lower the platform.

Result: The pothole guards should return to

the stowed position.

64 Press and hold the function enable switch on

the control handle.

65 Slowly move the control handle in the direction

indicated by the blue arrow, then in the direction indicated by the yellow arrow.

Result: The machine should not move forward

or backward.

66 Press the drive function button.

67 Press and hold the function enable switch on

the control handle.

68 Press the thumb rocker switch on top of the

control handle in the direction indicated by the blue and yellow triangles on the control panel.

Result: The steer wheels should not turn left or

right.

69 Lower the platform. 70 Remove the 2x4 or similar piece of wood.

34 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

Workplace Inspection Checklist

Do Not Operate Unless:

 You learn and practice the principles of safe

machine operation contained in this operator’s manual.

1 Avoid hazardous situations.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to use.

4 Inspect the workplace.

Know and understand the workplace inspection before going on to the next section.

5 Only use the machine as it was intended.

Workplace Inspection Fundamentals

Be aware of and avoid the following hazardous situations:

 drop-offs or holes  bumps, floor obstructions, or debris  sloped surfaces  unstable or slippery surfaces  overhead obstructions and high voltage

conductors

 hazardous locations  inadequate surface support to withstand all

load forces imposed by the machine

 wind and weather conditions  the presence of unauthorized personnel  other possible unsafe conditions

The workplace inspection helps the operator determine if the workplace is suitable for safe machine operation. It should be performed by the operator prior to moving the machine to the workplace.

It is the operator’s responsibility to read and remember the workplace hazards, then watch for and avoid them while moving, setting up, and operating the machine.

Part No. 1290846GT GS™-1330m 35

Operator's Manual First Edition • First Printing

Inspections

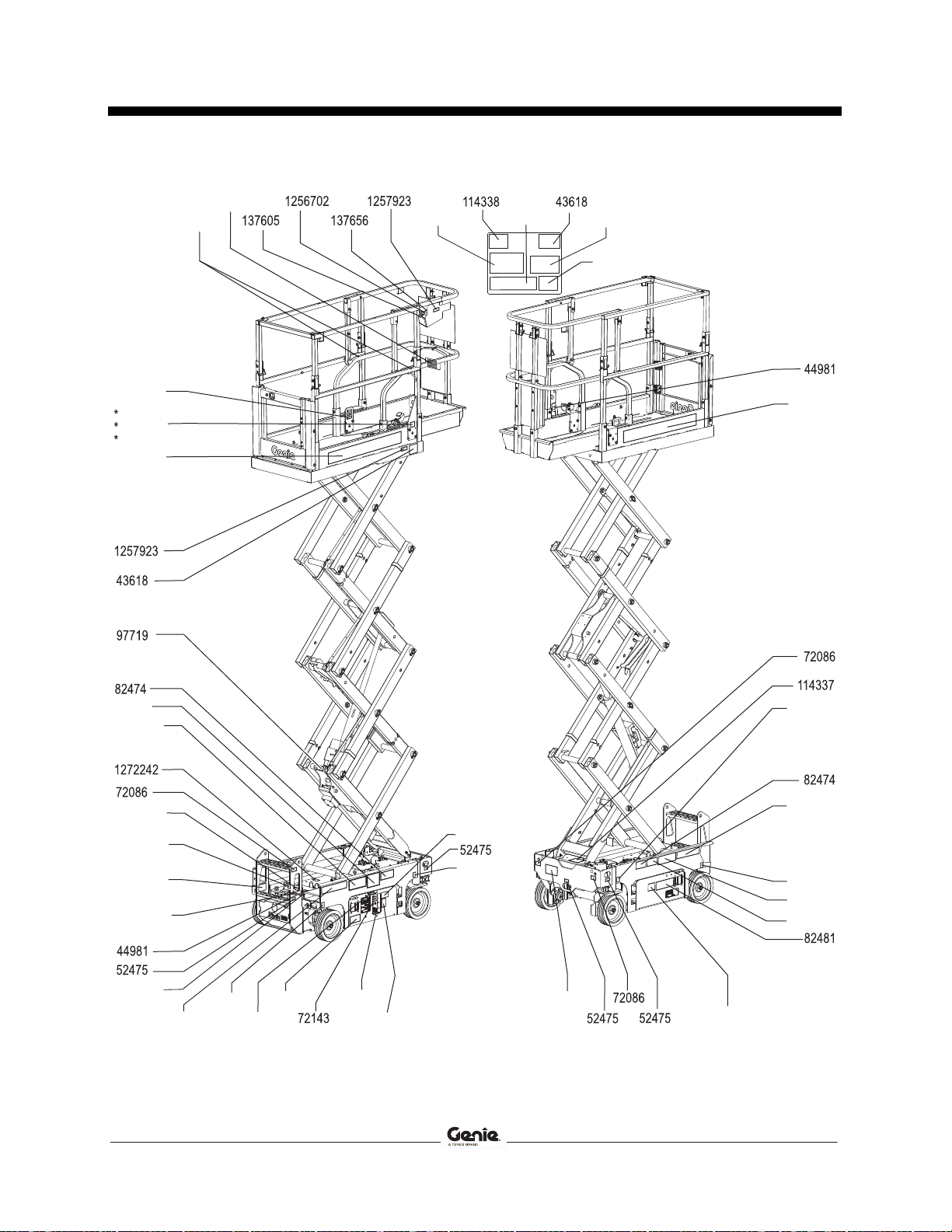

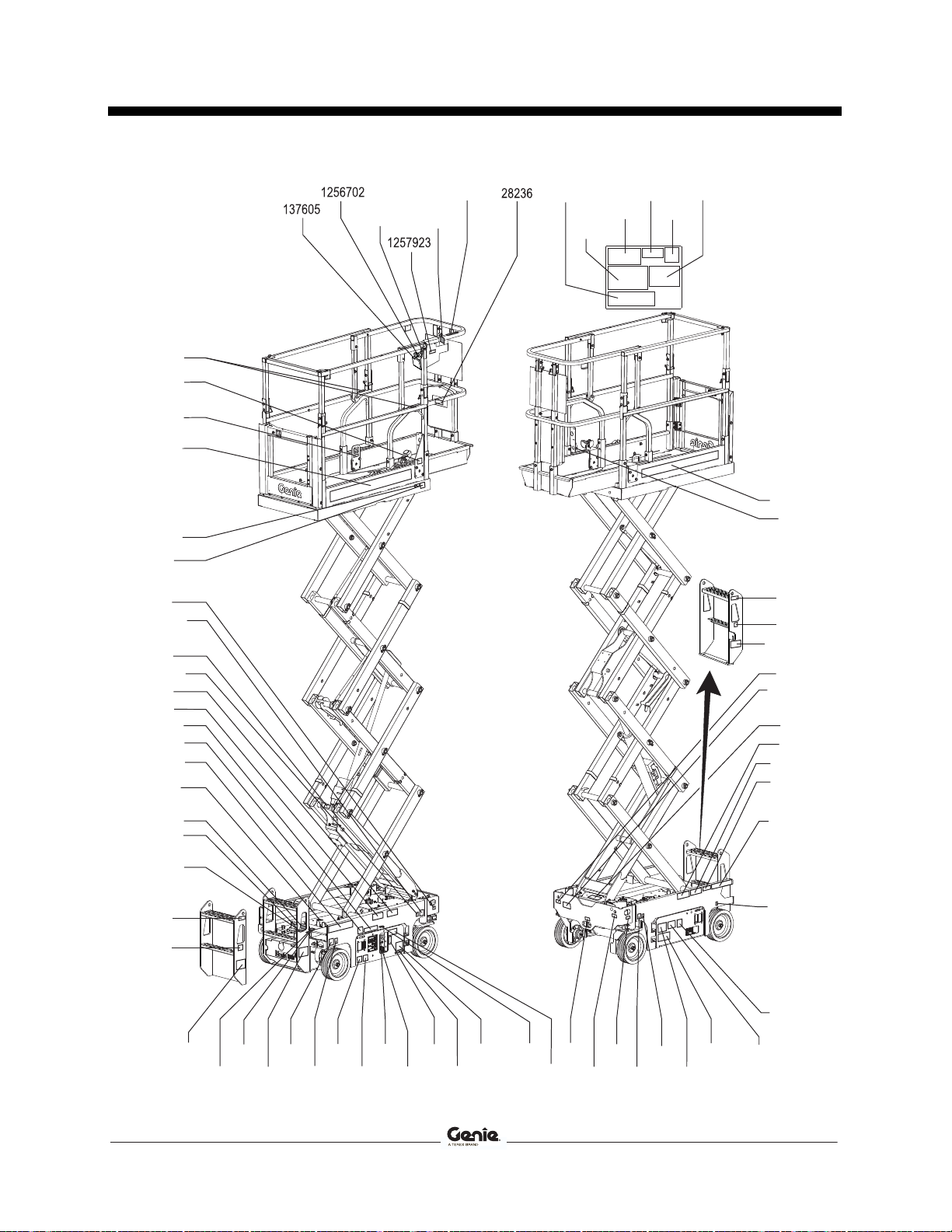

Inspection for Decals with Words GS-1330m

Determine whether the decals on your machine have words or symbols. Use the appropriate inspection to verify that all decals are legible and in place.

Part No. Decal Description Qty

28236 Warning – Improper Operation 1

31060 Danger – Tip-over Hazard, Limit Switch 1

43618 Label – Directional Arrows 2

43619 Label – Safety Arm 1

44736 Danger – Tip-over Hazard, Tilt Alarm 1

44981 Label – Air Line to Platform 2

52475 Label – Transport Tie-down 5

72086 Label – Lifting Point 4

72143 Label – Emergency Stop 1

82557 Label – Platform Controls Location 1

82561 Danger – Crushing Hazard 2

137605 Label – Emergency Stop, Platform

Control

137656 Label – Drive/Steer Direction,

Platform Control

1256702 Overlay – Platform Control Panel 1

1257923 Label – Smartlink 2

1272242 Label – Machine Registration/Owner

Transfer

1278704 Label – Battery Charger Indicator 1

1280819 Label – Warning, Prop 65 1

1281175 Label – Lanyard Anchorage Point, Fall

Restrained

1283878 Label – Tech Pro Link 1

1290656 Label – Tire Specification 4

1290657 Danger – Tip-over Hazard, Batteries 1

1290659 Danger – Electrocution Hazard 1

1290661 Instructions – Battery Connection

Diagram

1290662 Label – Chevron Rando 1

Part No. Decal Description Qty

1290663 Instructions – Annual Inspection 1

1290664 Instructions – Operation, Ground

Control

1290668 Instructions – Battery Charger

Operation

1290669 Label – Wheel Load, GS-1330m 4

1290675 Danger – Explosion/Burn Hazard 1

1290699 Label – Transport Diagram 2

1290845 Cosmetic – Genie GS-1330 2

1292047 Label – Power to Platform, 115V,

GS-1330m

1292048 Label – Power to Platform, 230V,

GS-1330m

1292049 Label – Power to Platform, 115V, UK,

GS-1330m

1292050 Label – Power to Platform, 230EU,

GS-1330m

1292051 Label – Emergency Lowering,

GS-1330m

1292275 Label – Electric Drive, E-Drive 2

1292960 Label – Brake Release Safety and

1292990 Label – Release Brake 1

1293164 Danger – Tip-over, Capacity, GS-1330m 1

1293165 Danger – Tip-over, Crush Hazard,

1294635 Label – Platform Overload LED

1294681 Warning – Improper Operation, Micro 1

1294682 Label – Ground Control Panel,

1294685 Instructions – Annual Inspection, Micro 1

1294706 Label – Fault Codes 1

1294707 Danger – Electrocution Hazard, Micro 3

Shading indicates decal is hidden from view, i.e.

under covers

* These decals are model, option or configuration specific.

Operating Instructions

GS-1330m

Indicator Light

GS-1330m

36 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

44736

1294635

43618

1290845

44981

1281175

*1292047

*1292048

1281175

1290845

1257923

43618

137656

1294706

82557

1293164

1294707

1293165

52475

1290669

43619

1290656

82561 114385 1290664

1292960 1292275

1272242

1292051

1292047

*1292048

*1292049

*1292050

72086

52475

72086

52475

1290699

72086

1290699

31060

82561

1294707 1294681

1292275

1290656

1290661

52475

72086

52475

1290669

1290656

1290675

1290668

1290657

1290659

1278704

44981

1290659

1290669

1290656

1290662

72143

1290663

1294682

1283878

1294685

1280819

1292990

1294681

Part No. 1290846GT GS™-1330m 37

Operator's Manual First Edition • First Printing

Inspections

Inspection for Decals with Symbols GS-1330m

Determine whether the decals on your machine have words or symbols. Use the appropriate inspection to verify that all decals are legible and in place.

Part No. Decal Description Qty

43618 Label – Directional Arrows 2

44981 Label – Air Line to Platform 2

52475 Label – Transport Tie-down 5

72086 Label – Lifting Point 4

72143 Label – Emergency Stop 1

82474 Label – Use Safety Chock 2

82481 Label – Battery/Charger Safety 1

82487 Label - Read the Manual 2

82495 Label – Brake Release Safety and

Operating Instructions

97719 Label – Safety Arm 1

114337 Label – Tip-over Hazard, Limit Switch 1

114338 Label – Tip-over Hazard, Tilt Alarm 1

137605 Label – Emergency Stop, Platform

Control

137656 Label – Drive/Steer Direction,

Platform Control

1256702 Overlay – Platform Control Panel 1

1257923 Label – Smartlink 2

1272242 Label – Machine Registration/Owner

Transfer

1278704 Label – Battery Charger Indicator 1

1281175 Label – Lanyard Anchorage Point, Fall

Restrained

Part No. Decal Description Qty

1283878 Label – Tech Pro Link 1

1290669 Label – Wheel Load, GS-1330m 4

1290670 Label – Tip-over Hazard, Batteries 1

1290673 Label – Electrocution Hazard, Plug 1

1290699 Label – Transport Diagram 2

1290845 Cosmetic – Genie GS-1330 2

1292047 Label – Power to Platform, 115V,

GS-1330m

1292048 Label – Power to Platform, 230V,

GS-1330m

1292052 Label – Emergency Lowering GS-1330m 1

1292053 Instructions – Maximum Capacity,

272 kg, GS-1330m

1292275 Label – Electric Drive, E-Drive 2

1292961 Label – Power to Platform, 100V,

GS-1330m

1292962 Label – Power to Charger, 115V,

GS-1330m

1292990 Label – Release Brake 1

1293166 Danger, Warning – Tip-over, Crush

Hazard

1293217 Label – Danger, Electrocution Hazard 3

1294682 Label – Ground Control Panel,

GS-1330m

1294686 Label – Compartment Access 2

1294688 Label – Platform Overload LED Indicator

Shading indicates decal is hidden from view, i.e.

Light

under covers

* These decals are model, option or configuration

specific.

38 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Inspections

1281175

1292047

1292048 1292961

1290845

1281175

82487

1293217

1292053

1293166

1294688

1290845

82495

1290669

1293217

1292052

1292961

1290673

1294686

1290669

1292275

1290669

1294686

1292962

1278704

1292275

1290669

1292990

82487

1283878

1294682

1290699

1290670

1293217

Part No. 1290846GT GS™-1330m 39

Operator's Manual First Edition • First Printing

Operating Instructions

Fundamentals

Do Not Operate Unless:

 You learn and practice the principles of safe

machine operation contained in this operator’s manual.

1 Avoid hazardous situations.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to use.

4 Inspect the workplace.

5 Only use the machine as it was

intended.

The Operating Instructions section provides instructions for each aspect of machine operation. It is the operator’s responsibility to follow all the safety rules and instructions in the operator’s, safety, and responsibilities manuals.

Using the machine for anything other than lifting personnel, along with their tools and materials, to an aerial work site is unsafe and dangerous.

Only trained and authorized personnel should be permitted to operate a machine. If more than one operator is expected to use a machine at different times in the same work shift, they must all be qualified operators and are all expected to follow all safety rules and instructions in the operator’s, safety, and responsibilities manuals. That means every new operator should perform a pre-operation inspection, function tests, and a workplace inspection before using the machine.

40 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Operating Instructions

Emergency Stop

Push in the red Emergency Stop button to the off position at the ground controls or the platform controls to stop all functions.

Repair any function that operates when either red Emergency Stop button is pushed in.

Emergency Lowering

1 Pull the emergency lowering knob to lower the

platform.

Operation from Ground

1 Be sure the battery pack is connected before

operating the machine.

2 Turn the key switch to ground control. 3 Pull out both ground and platform red

Emergency Stop buttons to the on position.

To Position Platform

1 At the control panel, press and hold the lift

function enable button.

2 Press the platform up or down button.

Drive and steer functions are not available from the ground controls.

Operation from Platform

1 Be sure the battery pack is connected before

operating the machine.

2 Turn the key switch to platform control. 3 Pull out both ground and platform red

Emergency Stop buttons to the on position.

To Position Platform

1 Press the lift function button.

On the LCD screen, a circle below the lift function symbol will turn on.

If the control handle is not moved within seven seconds of pushing the lift function button, the circle below the lift function symbol will turn off and lift function will not operate. Press the lift function button again.

2 Press and hold the function enable switch on

the control handle.

3 Machines equipped with foot switch: Press and

hold the foot switch and press and hold the function enable switch on the control handle at the same time.

4 Move the control handle according to the

markings on the control panel.

Part No. 1290846GT GS™-1330m 41

Operator's Manual First Edition • First Printing

Operating Instructions

To Steer

1 Press the drive function button. On the LCD

screen, a circle below the drive function symbol will turn on.

If the control handle is not moved within seven seconds of pushing the drive function button, the circle below the drive function symbol will turn off and drive function will not operate. Press the drive function button again.

2 Press and hold the foot switch (if equipped). 3 Turn the steer wheels with the

thumb rocker switch located on the top of the control handle.

3 Increase speed: Slowly move the control

handle off center.

Decrease speed: Slowly move the control handle toward center.

Stop: Return the control handle to center or release the function enable switch.

Use the color-coded direction arrows on the platform controls and on the platform to identify the direction the machine will travel.

Machine travel speed is restricted when the platform is raised.

Battery condition will affect machine performance. Machine drive speed and function speed will drop when the battery level indicator is flashing.

To Drive

1 Press the drive function button. On the LCD

screen, a circle below the drive function symbol will turn on.

2 Machines equipped with foot switch: Press and

hold the foot switch and press and hold the function enable switch on the control handle at the same time.

To select drive speed

The drive controls can operate in two different drive speed modes while in the stowed position. When the drive speed button light is on, slow drive speed mode is active. When the drive speed button light is off, fast drive speed mode is active.

Press the drive speed button to select the desired drive speed.

Note: When the platform is elevated, the drive speed button light is always on, indicating elevated drive speed.

42 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Operating Instructions

Driving on a slope

Determine the slope and side slope ratings for the machine and determine the slope grade.

Maximum slope rating, stowed position:

GS-1330m 25% 14°

Maximum side slope rating, stowed position:

GS-1330m 25% 14°

To determine the slope grade:

Measure the slope with a digital inclinometer OR use the following procedure.

You will need:

 carpenter’s level  straight piece of wood, at least 3 feet/1 m long  tape measure

Lay the piece of wood on the slope.

Note: Slope rating is subject to ground conditions with one person in the platform and adequate traction. Additional platform weight may reduce slope rating.

At the downhill end, lay the level on the top edge of the piece of wood and lift the end until the piece of wood is level.

While holding the piece of wood level, measure the vertical distance from the bottom of the piece of wood to the ground.

Divide the tape measure distance (rise) by the length of the piece of wood (run) and multiply by

100.

Example:

Piece of wood = 144 inches (3.6 m)

Run = 144 inches (3.6 m)

Rise = 12 inches (0.3 m)

12 in ÷ 144 in = 0.083 x 100 = 8.3% grade

0.3 m ÷ 3.6 m = 0.083 x 100 = 8.3% grade

If the slope exceeds the maximum slope or side slope rating, then the machine must be winched or transported up or down the slope. See Transport and Lifting section.

Part No. 1290846GT GS™-1330m 43

Operator's Manual First Edition • First Printing

Operating Instructions

Operational indicator codes

If the platform controls LED or ground controls LCD diagnostic readout displays an operational indicator code such as LL, the fault condition must repaired or removed before resuming machine operation. Push in and pull out the red Emergency Stop button to reset the system.

LED Readout

Platform Overload

If the platform controls LED diagnostic readout displays a flashing OL and the ground controls LCD diagnostic readout displays OL: Platform Overloaded, the platform is overloaded and no functions will operate. An alarm will sound.

1 Push in the Red Emergency stop button to the

off position.

2 Remove weight from the platform. 3 Pull out the Red Emergency Stop button to the

on position.

LCD Readout

Operational Indicator Codes

Code Condition

LL Off-Level

OL Platform Overloaded

CH Chassis Mode Operation

PHS Pothole Guard Stuck

Nd No Drive (option)

BR Manual Brake Release

For further information, please consult the appropriate Genie Service Manual. A code and a description of a code can also be viewed at the ground controls LCD display.

LED Readout

LCD Readout

When the platform is being raised or lowered, a self-check function will be performed near maximum height. The machine may stop and an alarm may sound. If the machine is not overloaded, normal operation will resume.

Overload Recovery

If the ground controls LCD diagnostic readout displays Overload Recovery, the emergency lowering system has been used while the platform was overloaded. For information on how to reset the message, please conslt the appropriate Genie Service Manual.

44 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Operating Instructions

Operation from Ground with Controller

Maintain safe distances between the operator, machine and fixed objects.

Be aware of the direction the machine will travel when using the controller.

Battery Level Indicator

Use the LED diagnostic readout to determine the battery level.

Note: When a blinking LO code appears on the platform controls LED display, the machine must be taken out of service and charged, otherwise all machine functions will be disabled.

Full Charge

How to Use the Safety Arm

1 Raise the platform approximately 8 ft / 2.4 m

from the ground.

2 Rotate the safety arm away from the machine

and let it hang down.

3 Lower the platform until the safety arm rests

securely on the link. Keep clear of the safety arm when lowering the platform.

After Each Use

1 Select a safe parking location—firm level

surface, clear of obstruction and traffic.

2 Lower the platform. 3 Turn the key switch to the off position and

remove the key to secure from unauthorized use.

4 Charge the batteries.

Half Charge

Low Charge

LO Flashing

Part No. 1290846GT GS™-1330m 45

Operator's Manual First Edition • First Printing

Operating Instructions

How to Fold Down the Guardrails

The platform railing system consists of one fold down rail section for the extension deck and one section for the main deck. All sections are held in place by four wire lock pins.

1 Fully lower the platform and retract the

platform extension.

2 Remove the platform controls.

Fall hazard. Use caution and maintain a firm

footing on the platform floor at all times while folding the guard rails.

3 From inside the platform, remove the two

extension deck lock pins.

Keep hands free of pinch points.

4 From the middle of the extension deck railing,

fold down the extension deck rail assembly toward the rear of the unit.

5 At the rear of the main deck, remove the two

main deck lock pins.

Keep hands free of pinch points.

6 From the middle of the unit, fold down the main

deck railing assembly toward the front of the unit.

7 Connect entry swing frame with left main rail

by the pin.

Keep hands free of pinch points.

8 Carefully open the gate and exit the platform. 9 Remove the two pins from one side of the

main rails.

Keep hands free of pinch points.

10 Fold the side main rail towards the inside of

the unit.

11 Remove the other two pins from the other side

of the main rails.

Keep hands free of pinch points.

12 Fold the other side main rail towards the inside

of the unit.

Note: To assist in the removal and replacement of the wire lock pins, pull or push back on the railing to compress the rubber bumpers.

How to Raise the Guardrails

Follow the fold down instructions but in reverse order, ensuring all lock pins are in place and installed properly.

46 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Operating Instructions

Standard Batteries

1 Remove the battery vent caps and check the

battery acid level. If necessary, add only enough distilled water to cover the plates. Do not overfill prior to the charge cycle.

2 Replace the battery vent caps.

Battery and Charger Instructions

Observe and Obey:

 Do not use an external charger or booster

battery.

 Charge the battery in a well-ventilated area.  Use proper AC input voltage for charging as

indicated on the charger.

 Use only a Genie authorized battery and

charger.

To Charge Battery

1 Be sure the batteries are connected before

charging the batteries.

2 Open the battery compartment. The

compartment should remain open for the entire

charging cycle.

Maintenance-free batteries

1 Connect the battery charger to a grounded AC

circuit.

3 Connect the battery charger to a grounded AC

circuit.

4 The charger will indicate when the battery is

fully charged.

5 Check the battery acid level when the charging

cycle is complete. Replenish with distilled water to the bottom of the fill tube. Do not overfill.

2 The charger will indicate when the battery is

fully charged.

Part No. 1290846GT GS™-1330m 47

Operator's Manual First Edition • First Printing

Operating Instructions

Dry Battery Filling and Charging Instructions

1 Remove the battery vent caps and

permanently remove the plastic seal from the battery vent openings.

2 Fill each cell with battery acid (electrolyte) until

the level is sufficient to cover the plates.

Do not fill to maximum level until the battery charge cycle is complete. Overfilling can cause the battery acid to overflow during charging. Neutralize battery acid spills with baking soda and water.

3 Install the battery vent caps. 4 Charge the battery. 5 Check the battery acid level when the charging

cycle is complete. Replenish with distilled water to the bottom of the fill tube. Do not overfill.

48 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Transport and Lifting Instructions

 The machine must be on a level surface or

secured before releasing the brakes.

Observe and Obey:

 Genie provides this securement information as

a recommendation. Drivers are solely

responsible for making sure machines are

properly secured and the correct trailer is

selected pursuant to US Department of

Transportation regulations, other localized

regulations, and their company policy.

 Genie customers needing to containerize any

lift or Genie product should source a qualified

freight forwarder with expertise in preparing,

loading and securing construction and lifting

equipment for international shipment.

 Only qualified mobile elevating work platform

operators should move the machine on or off

the truck.

 The transport vehicle must be parked on a

level surface.

 Do not allow the rails to fall when the snap pins

are removed. Maintain a firm grasp on the rails when the rails are lowered.

 Do not drive the machine on a slope that

exceeds the uphill, downhill or side slope rating. See Driving on a Slope in the Operating Instructions section.

 If the slope of the transport vehicle bed

exceeds the maximum slope rating, the machine must be loaded and unloaded using a winch as described in the brake release operation.

 The transport vehicle must be secured to

prevent rolling while the machine is being

loaded.

 Be sure the vehicle capacity, loading surfaces

and chains or straps are sufficient to withstand

the machine weight. Genie lifts are very heavy

relative to their size. See the serial label for the

machine weight.

Part No. 1290846GT GS™-1330m 49

Operator's Manual First Edition • First Printing

Transport and Lifting Instructions

Brake Release Operation

1 Chock the wheels to

prevent the machine from rolling.

2 Be sure the winch line is properly secured to

the drive chassis tie points and the path is clear of all obstructions.

3 Pull the ground emergency stop button out and

position the key switch to ground mode.

4 Open the hydraulic tray. 5 Remove the protective cove

from the toggle switch.

6 Move the toggle switch as

indicated in the image to release the brakes.

After the machine is loaded:

1 Chock the wheels to prevent the machine from

rolling.

2 Move the toggle switch as

indicated in the image to engage the brakes.

3 Place the protective cover on

the toggle switch.

4 Push the red Emergency stop button at both

ground and platform controls to off position.

Towing the Genie GS-1330m is not recommended. If the machine must be towed, do not exceed 2 mph / 3.2 km/h.

50 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Transport and Lifting Instructions

Securing to Truck or Trailer for Transit

Always use the extension deck lock when the machine is transported.

Inspect the entire machine for loose or unsecured items.

Use chains or straps of ample load capacity.

Use a minimum of 2 chains or straps.

Turn the key switch to the off position and remove the key before transporting.

Adjust the rigging to prevent damage to the chains.

Part No. 1290846GT GS™-1330m 51

Operator's Manual First Edition • First Printing

NOTICE

Transport and Lifting Instructions

Lifting the Machine with a Forklift

Observe and Obey:

 Only qualified riggers should rig and lift the

machine.

 Only qualified forklift operators should lift the

machine with a forklift.

 Be sure the crane capacity, loading surfaces

and straps or lines are sufficient to withstand the machine weight. See the serial label for the machine weight.

Be sure the extension deck, controls and component trays are secure. Remove all loose items on the machine.

Fully lower the platform. The platform must remain lowered during all loading and transport procedures.

Use the forklift pockets located on both sides of the ladder.

Position the forklift forks in position with the forklift pockets.

Drive forward to the full extent of the forks.

Raise the machine 16 in / 0.4 m and then tilt the forks back slightly to keep the machine secure.

Be sure the machine is level when lowering the forks.

Lifting the machine from the side can result in component damage.

52 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Transport and Lifting Instructions

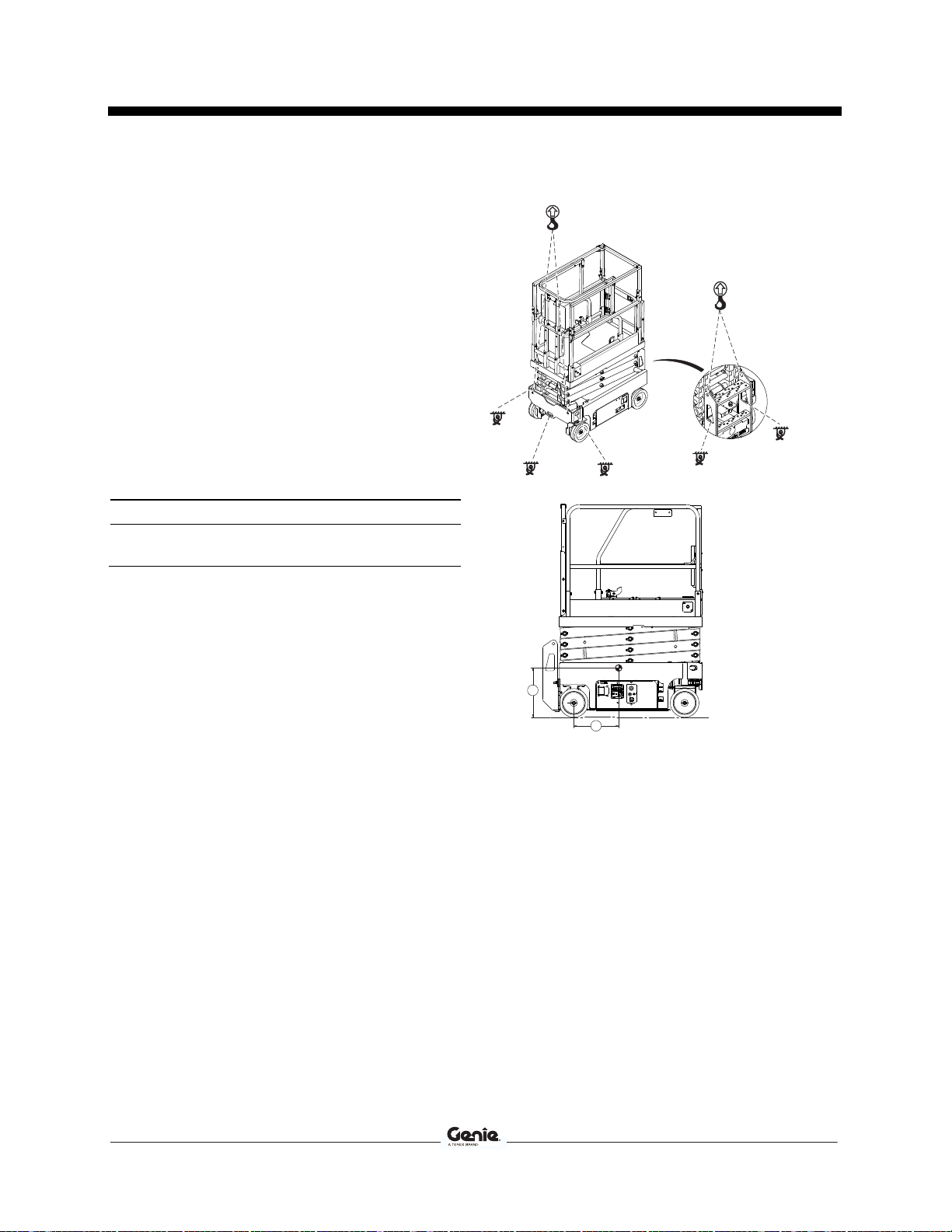

Lifting Instructions

Fully lower the platform. Be sure the extension deck, controls and component trays are secure. Remove all loose items on the machine.

Determine the center of gravity of your machine using the table and the picture on this page.

Attach the rigging only to the designated lifting points on the machine. There are two 1 inch/2.5 cm holes on the front of the machine and two holes in the ladder for lifting.

Adjust the rigging to prevent damage to the machine and to keep the machine level.

Center of Gravity Table

Model X Axis Y Axis

GS-1330m

17.4 .in

44.3 cm

20.6 .in

52.5 cm

1 X Axis 2 Y Axis

Part No. 1290846GT GS™-1330m 53

Operator's Manual First Edition • First Printing

Maintenance

Check the Hydraulic Oil Level

Observe and Obey:

 Only routine maintenance items specified in

this manual shall be performed by the operator.

 Scheduled maintenance inspections shall be

completed by qualified service technicians, according to the manufacturer’s specifications and the requirements specified in the responsibilities manual.

 Dispose of material in accordance with

governmental regulations.

 Use only Genie approved replacement parts.

Maintenance Symbols Legend

The following symbols have been used in this manual to help communicate the intent of the instructions. When one or more of the symbols appear at the beginning of a maintenance procedure, it conveys the meaning below.

Maintaining the hydraulic oil at the proper level is essential to machine operation. Improper hydraulic oil levels can damage hydraulic components. Daily checks allow the inspector to identify changes in oil level that might indicate the presence of hydraulic system problems.

1 Be sure that the machine is on a firm, level

surface, free of obstructions, with the platform in the stowed position.

2 Visually inspect the oil level in the hydraulic oil

tank.

Result: The hydraulic oil level should be

between the

3 Add oil as needed. Do not overfill.

Hydraulic oil specifications

Hydraulic oil type Chevron Rando HD equivalent

ADD and FULL marks on the tank.

Indicates that tools will be required to perform this procedure.

Indicates that new parts will be required to perform this procedure.

54 GS™-1330m Part No. 1290846GT

First Edition • First Printing Operator's Manual

Maintenance

Check the Batteries

Proper battery condition is essential to good machine performance and operational safety. Improper fluid levels or damaged cables and connections can result in component damage and hazardous conditions.

Electrocution hazard. Contact with hot or live

circuits may result in death or serious injury.

Remove all rings, watches and other jewelry.

Bodily injury hazard. Batteries contain acid.

Avoid spilling or contacting battery acid.

Neutralize battery acid spills with baking soda

and water.

Note: Perform this test after fully charging the batteries.

1 Put on protective clothing and eye wear. 2 Be sure that the battery cable connections are

tight and free of corrosion.

3 Be sure that the battery hold-down brackets

are in place and secure.

Scheduled Maintenance

Maintenance performed quarterly, annually and every two years must be completed by a person trained and qualified to perform maintenance on this machine according to the procedures found in the service manual for this machine.

Machines that have been out of service for more than three months must receive the quarterly inspection before they are put back into service.

Note: Adding terminal protectors and a corrosion preventative sealant will help eliminate the corrosion on the battery terminals and cables.

Part No. 1290846GT GS™-1330m 55

Operator's Manual First Edition • First Printing

Specifications

Model

GS-1330m

Height, working maximum 12 ft 10 in 3.9 m

Height, platform maximum 18 ft 10 in 5.9 m

Height, stowed maximum

80 in 202 cm

fixed rail

Height, stowed maximum,

80 in 202 cm

rails up

Height, stowed maximum,

66 in 168 cm

rails folded

Platform height, stowed

35.2 in 90 cm

maximum

Height, guard rails 43 in 110 cm

Width 30.5 in 78 cm

Length, stowed 56 in 141 cm

Length, platform extended 74 in 187 cm

Platform extension length 18 in 46 cm

Platform dimensions

50 x 27 in 126 x 67 cm

(length x width)

Maximum load capacity 500 lbs 227 kg

Wheelbase 39 in 98 cm

Turning radius (outside) 61 in 155 cm

Turning radius (inside) 15.7 in 40 cm

Ground clearance 2.4 in 6 cm

Ground clearance

0.63 in 2 cm

Pothole guards deployed

Weight 1950 lbs 885 kg

(Machine weights vary with option configurations. See serial label for specific machine weight.)

Power source

System voltage

2 Batteries, 12V 85AH

24V

AC outlet in platform Standard

Maximum hydraulic pressure

2250 psi 155 bar

(functions)

Tire size

10 x 3 x 8 in

Total vibration value to which the hand/arm system is subjected does not exceed 2.5 m/s2.

Highest root mean square value of weighted acceleration to which the whole body is subjected does not exceed 0.5 m/s

Operating temperature

Minimum

Maximum

-20°F -29°C

150°F 66°C

Airborne noise emissions

Sound pressure level at ground workstation <70 dBA

Sound pressure level at platform workstation <70 dBA

Maximum slope rating, stowed position

Maximum side slope rating, stowed

25% (14°)

position

Note: Slope rating is subject to ground conditions with one person in the platform and adequate traction. Additional platform weight may reduce slope rating.

Drive speeds

Stowed, maximum

Platform raised, maximum

2.5 mph 4.0 km/h

0.5 mph

40 ft/55 sec

12.2 m/55 sec

0.8 km/h

Floor loading information, GS-1330m

Tire load maximum 860 lbs 390 kg

Tire contact pressure 119.4 psi 8.40 kg / cm

824 kPa

Occupied floor pressure 237 psf 1159 kg / cm

11.37 kPa

Note: Floor loading information is approximate and does not incorporate different option configurations. It should be used only with adequate safety factors.

Continuous improvement of our products is a Genie policy. Product specifications are subject to change without notice or obligation.

GS™-1330m Part No. 1290846GT Operator's Manual First Edition • First Printing

56 GS™-1330m Part No. 1290846GT

Genie GS-1330M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
