Genexis DRG700 User Manual
DRG700
Quick Installation Guide
This guide applies to all DRG700 models
Contents
1. DRG700 overview............................
2. Installation......................................
3. Network setup.................................
4. Wireless setup.................................
5. Configuring your DRG700................
6. Troubleshooting..............................
1
2
4
7
8
9
10
1. DRG700 overview
User interfaces
Interface Description
1 Power port
2 Ethernet LAN
ports
3 USB 2.0 port

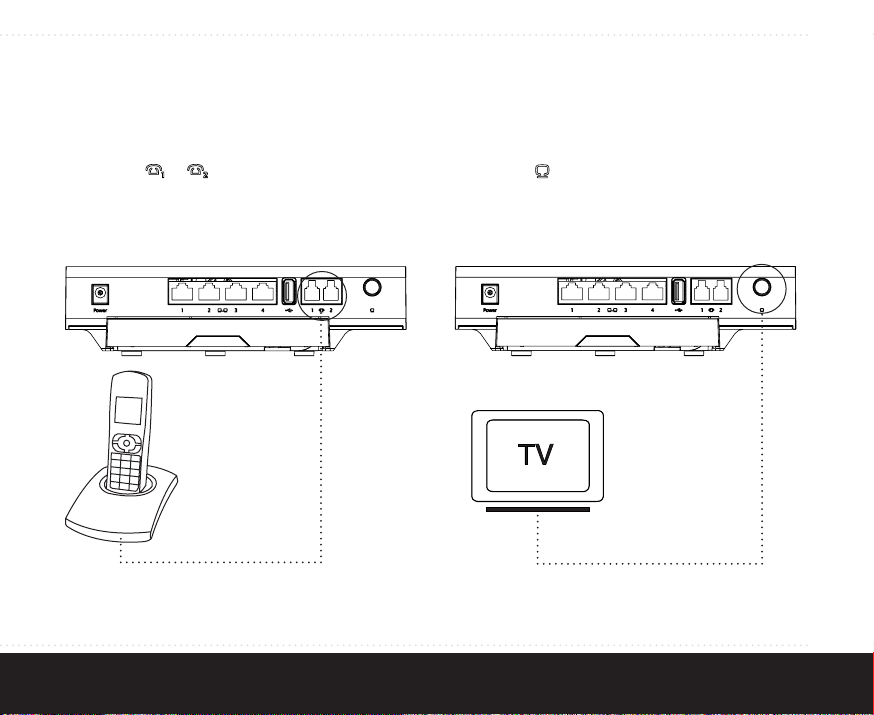

4 Telephony ports
5 CATV connector
6 Reset button
7 WPS button
Note: Depending on your specic
product type, port conguration may
differ.
1 32 4 5
6 7
Cleaning instructions:
Your DRG700 product may be cleaned using a soft, dry cloth. For areas
of persistent dirt, a damp cloth may be used with mild detergent. Product
and LED logos may be damaged by using aggressive cleaning products or
ethanol-based cleaners - if in doubt do not clean near these logos. Under
no circumstances allow water or cleaning fluid to ingress the product, as
this may cause permanent damage and prevent correct operation.
2
Status feedback LEDS:
Reset button:
LED Activity Description
3
LAN
ports
On (green)
On (red)
Blink (green)
Off
On
Off
On (green)
On (red)
Off
On
Off
On
Off
On
Blink
Off
On (green)
On (orange)
Blink
Power on
Error
Booting
Power off
WAN link active
WAN link inactive
CATV on, signal received
CATV on, no signal received
CATV disabled
Phone line 1 active
Phone line 1 inactive
Phone line 2 active
Phone line 2 inactive
WLAN enabled
WPS active
WLAN disabled
Link operating at 1000
Mbps
Link operating at 100 or 10
Mbps
Activity
Function Action
Restart To restart DRG700 without erasing
Factory
reset
the saved configuration:
1. Press the button for less than 5
seconds.
2. Release the button.
To restart DRG700 with all configura-
tion data cleared and factory settings
restored:
1. Press the button for more than 5
seconds.
2. Release the button.
WPS button:
This button is used to automatically connect a
WPS-enabled wireless client to the DRG700. For
details about the connection procedure, see
“Wireless Setup” on page 8.
