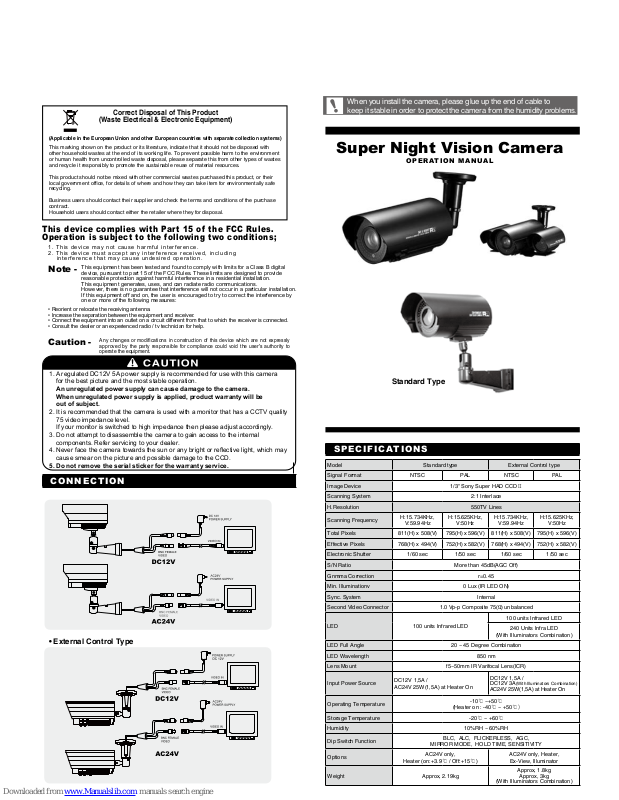

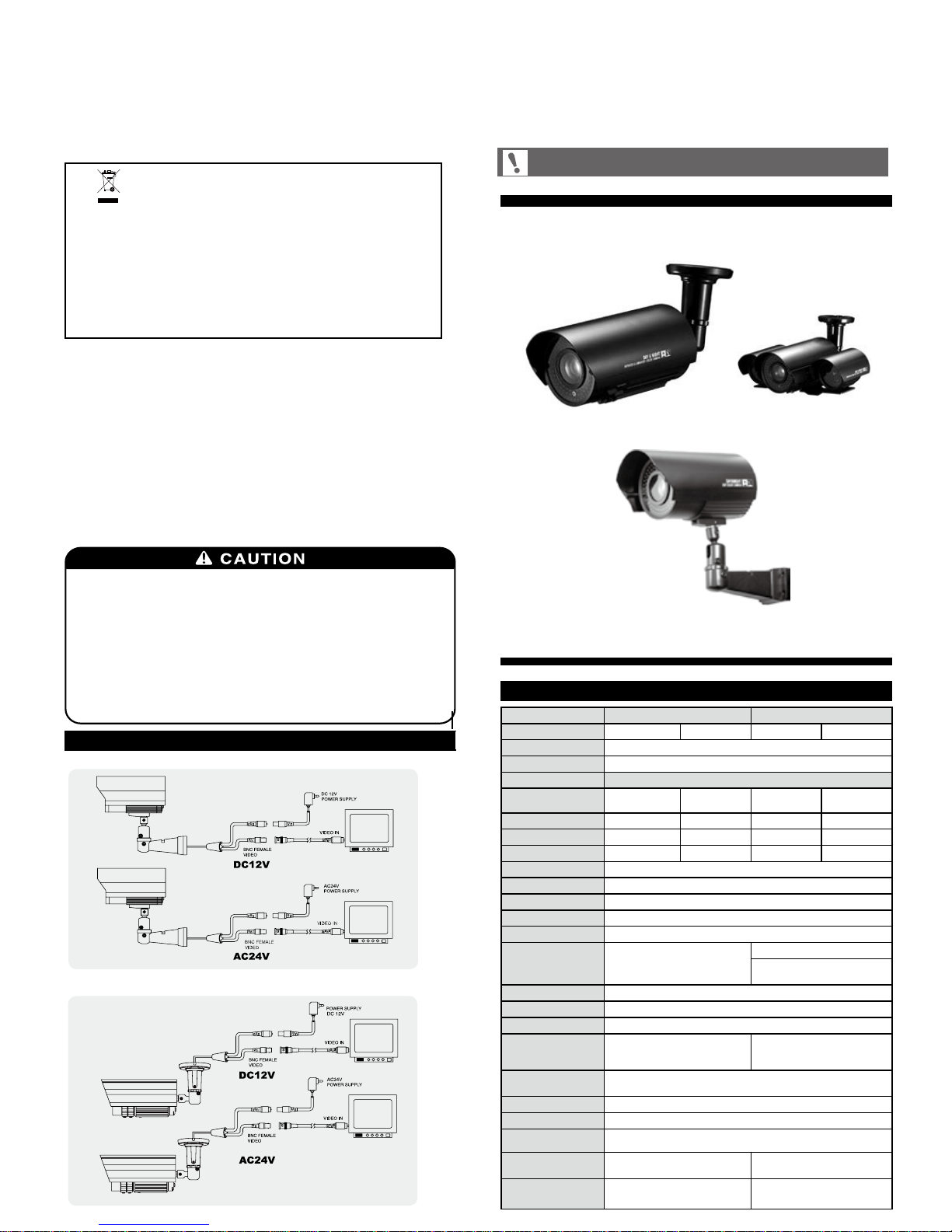

Page 1
Super Night Vision Camera
OP ER AT IO N MA NUA L
This device complies with Par t 15 of the FCC Rule s.
Operation is subject to the following two conditions;
1. Th is de vic e may no t cau se ha rmf ul in ter fe ren ce.
2. Th is de vic e mus t a cc ept an y int erf er enc e rec eiv ed , i ncl ud ing
i nt erf er enc e t ha t m ay ca use un de sir ed op era ti on.
This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Note -
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / tv technician for help.
Any changes or modications in construction of this device which are not expressly
approved by the party respons ible for compliance co uld void the user's authority to
operate the equipment.
Caution -
1. A regulated DC12V 5A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be
out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal
components. Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicate that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this product, or their
local government ofce, for details of where and how they can take item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract.
Household users should contact either the retailer where they for disposal.
SPE CIF ICATI ONS
Model Standard type External Control type
Signal Format NTSC PAL NTSC PAL
Image Device 1/3" Sony Super HAD CCD
Ⅱ
Scanning System 2:1 Interlace
H.Resolution 550TV Lines
Scanning Frequency
H:15.734KHz,
V:59.94Hz
H:15.625KHz,
V:50Hz
H:15.734KHz,
V:59.94Hz
H:15.625KHz,
V:50Hz
Total Pixels 811(H) x 508(V) 795(H) x 596(V) 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V) 768(H) x 494(V) 752(H) x 582(V)
Electronic Shutter 1/60 sec 1/50 sec 1/60 sec 1/50 sec
S/N Ratio More than 45dB(AGC Off)
Gnmma Correction r=0.45
Min. Illuminationv 0 Lux (IR LED ON)
Sync. System Internal
Second Video Connector 1.0 Vp-p Composite 75(Ω) unbalanced
LED 100 units Infrared LED
100 units Infrared LED
240 Units Infra LED
(With Illuminators Combination)
LED Full Angle 20 ~ 45 Degree Combination
LED Wavelength 850 nm
Lens Mount f5~50mm IR Varifocal Lens(ICR)
Input Power Source
DC12V 1,5A /
AC24V 25W(1,5A) at Heater On
DC12V 1,5A /
DC12V 3A
(With Illuminators Combination)
AC24V 25W(1,5A) at Heater On
Operating Temperature
-10℃ ~+50
℃
(Heater on : -40℃ ~ +50
℃)
Storage Temperature -20℃ ~ +60
℃
Humidity 10%RH ~ 60%RH
Dip Switch Function
BLC, ALC, FLICKERLESS, AGC,
MIRROR MODE, HOLD TIME, SENSITIVITY
Options
AC24V only,
Heater (on:+3.9℃ / Off:+15℃)
AC24V only, Heater,
Ex-View, Illuminator
Weight Approx, 2.19kg
Approx, 1.8kg
Approx, 3kg
(With Illuminators Combination)
CON NEC TIO N
• External Control Type
Standard Type
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.

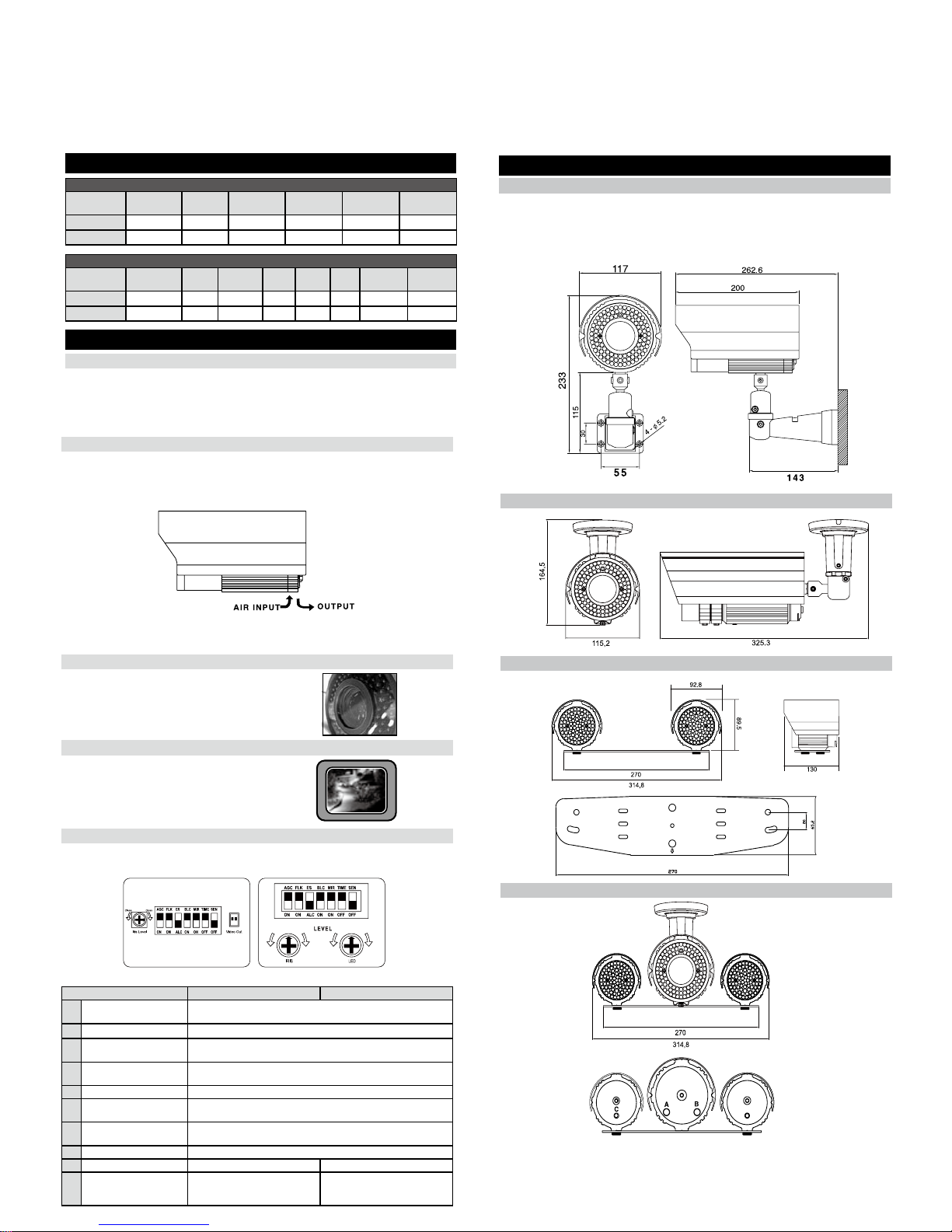

Page 2
Spe cia l Fea tur es
Se r vi ce V id eo c on ne to r
The Service Video Connector also provides
the installer with an easy way of conguring
the camera.
Ke y Fe atur es
• Special DWS(Dual Window Structure) to prevent IR light reection.
• Dustproof window glass.
• Built-in cooling fan.
• f 5 - 50mm DC Iris varifocal lens(ICR).
• High Resolution 550TV Lines.
DIM ENS ION S
Unit : mm
ST AN DAR D Ty pe
Ex te r na l Co nt ro l Ty pe
Standard type
Accessories
Video output
test cable
Manual
Mount
Bracket
Screw Wrench DIY cable
Q'ty 1 1 1 4 1 1
Option - - - - - -
ACC ESS ORI ES FUR NIS HED
External Control type
Accessories
Video output
test cable
Manual
Mount
Bracket
Screw Wrench
DIY
cable
Illuminator
Supporter
IR
Illuminator
Q'ty 1 1 1 3 1 1 1 2
Option - - - - - - - -
AI R- Ci rculat io n sy st em
• Operation
- Turns on with the IR LEDs.
• Diagram
• Functions
- Protects the camera from the Heat from LEDs.
- Dehumidies the Cameras interior.
DWS(Dual Wi nd ow S tr uc tu re )
- Antireection against IR LED Lighting.
- Cylindrical construction inside front cap
Standard Type External Control type
1
AGC
(Auto Gain Control)
ON : MIN / OFF : MAX
2 FLICKERLESS ON / OFF
3
ALC
(Auto Light Compensation)
ON : ALC / OFF : ELC
4
BLC
(Back Light Compensation)
ON / OFF
5 MIRROR MODE ON / OFF
6
TIME
(Hold Time)
ON : 5sec / OFF : 10sec
7
SENSITIVITY
(Sensor Level Control)
ON : LED ON(1LUX)/LED OFF(5LUX)
OFF : LED ON(2LUX)/LED OFF(4LUX)
8 Iris Level DC Drive Volume-Adjusting brightness of the picture
9 Video Out Output terminal of picture signal -
10 LED Level -
LED Volume-
Adjusting brightness of the LED
(initial Setting Level:MAX)
Di p sw it ch es
Installation is made simply by the adjustable
DC Volume and Dip Switches.
Standard Type External Control type
Il lu mi na to r Ki t fo r Ex te rnal Contro l Type
* Explanation
1. A : Service Video Connector.
2. B : Illuminator Combination Connector.
3. C : Illuminator Connector.
